Emerson A6740 | 16-Relay Machinery Protection Module

Key Technical Specifications

The A6740 accepts up to 60 protection-status inputs, including channel-clear, alert, and danger signals. These inputs can be processed through as many as 30 configurable logical expressions, with the resulting logic assigned to 16 relay outputs.

The relay contacts are configurable as normally open or normally closed, while the relay operating state can also be configured as normally energized or normally non-energized. Time delays from 0 to 30 seconds are available for output logic.

Product Introduction (Anti-Template)

A machinery protection system does not stop at measuring vibration. At some point, the protection logic has to make something happen—raise an alarm, initiate a shutdown circuit, or pass a machine-status condition to another control system. The Emerson A6740 provides that relay interface for the AMS 6500, accepting channel status signals and converting selected logic combinations into 16 physical relay outputs.

This module is particularly relevant where several protection channels must be combined into a defined trip philosophy. Up to 30 logic expressions can be configured, with Boolean functions and adjustable delays available. The result is a dedicated relay layer between the machinery monitoring system and the plant’s protection circuitry.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the exact model: A6740.

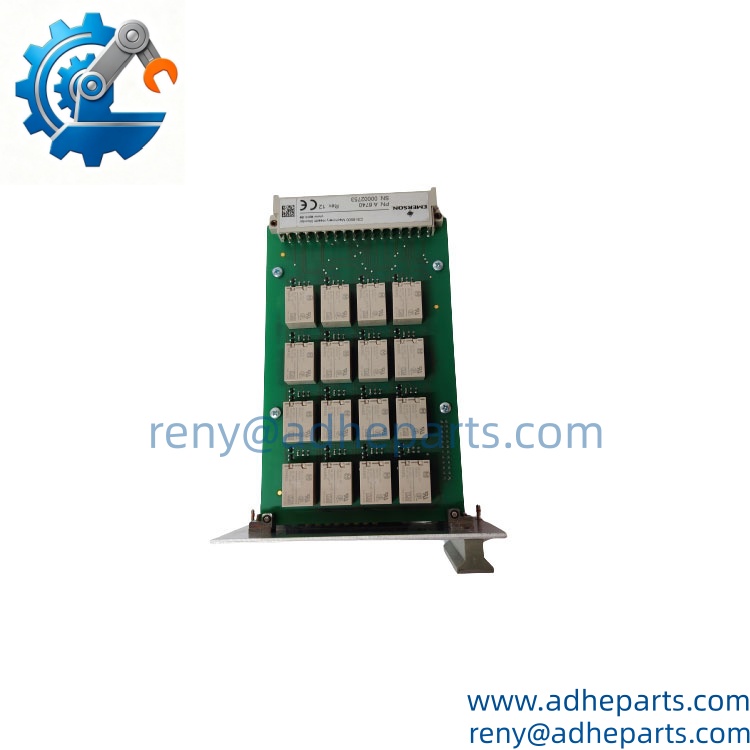

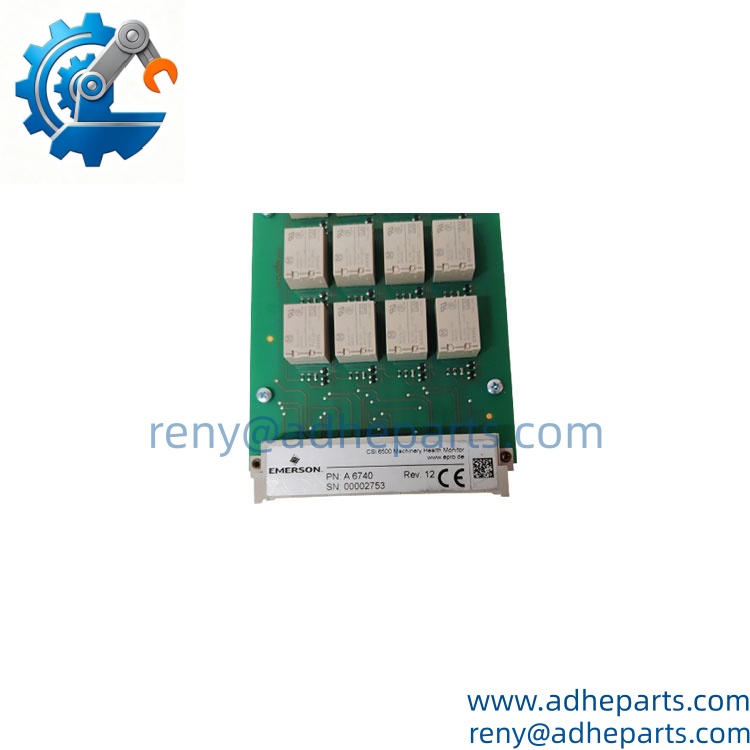

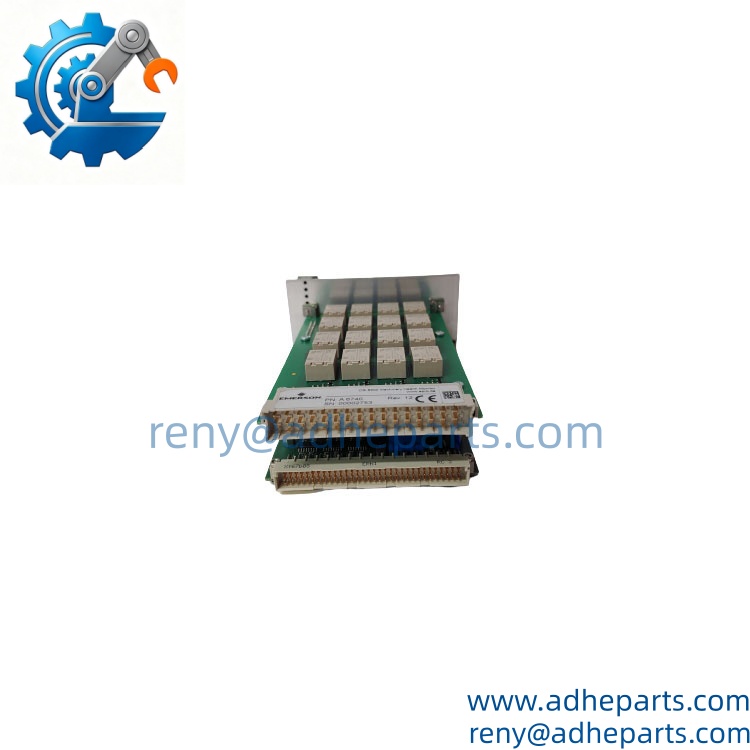

   • Check the module identification label, serial number, and hardware revision.

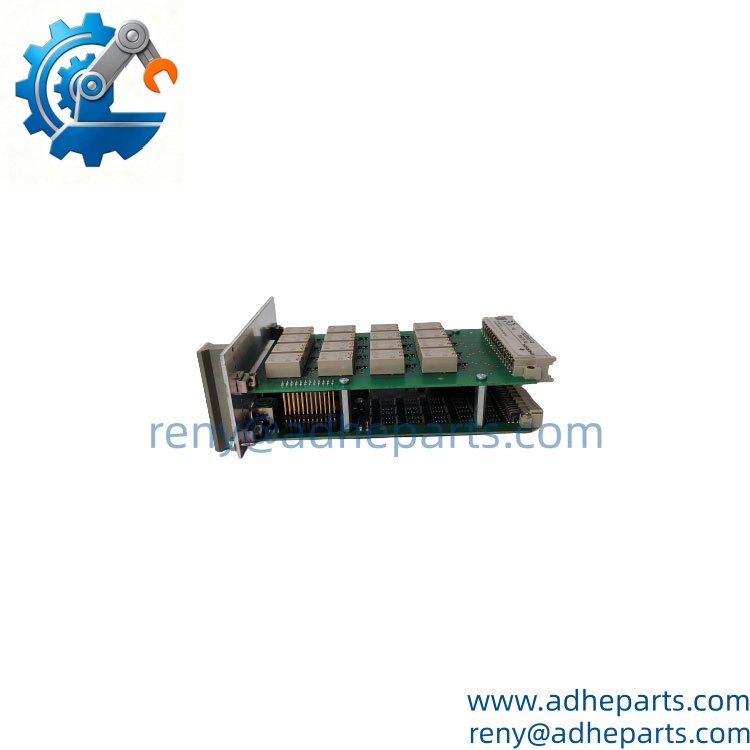

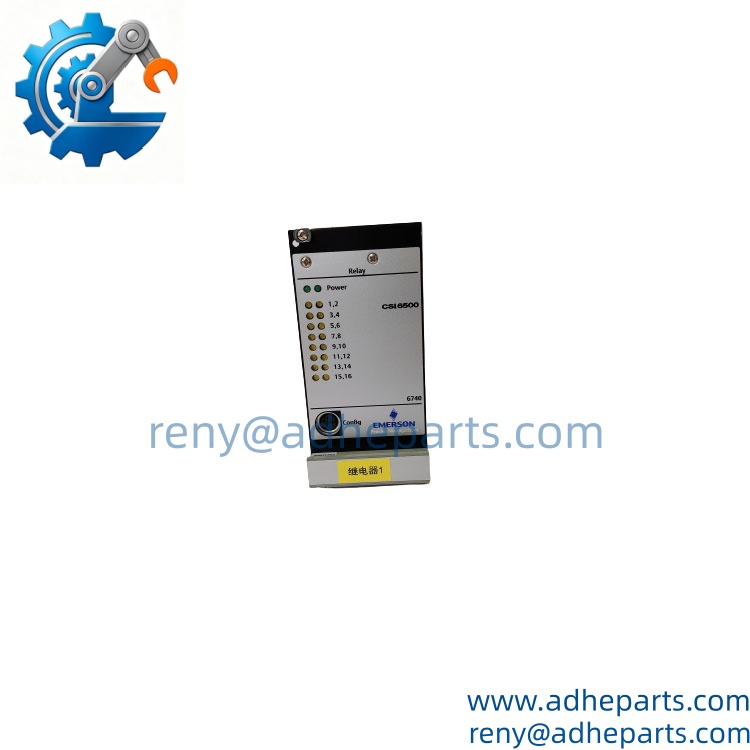

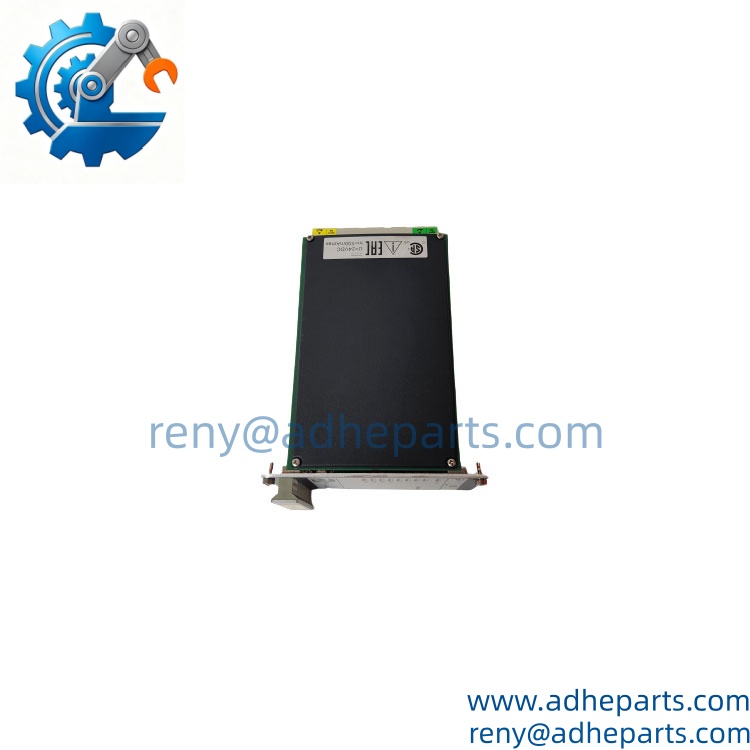

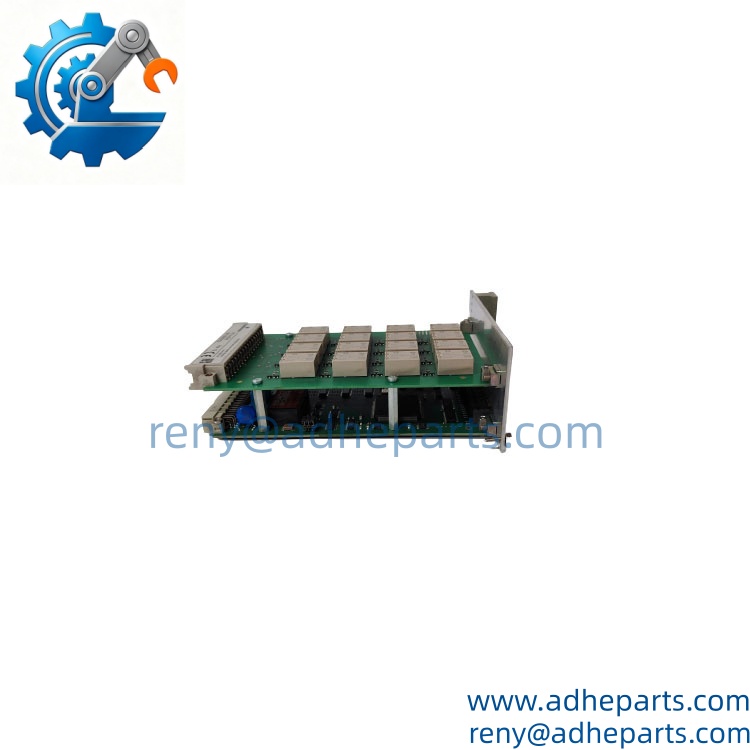

   • Inspect the front-panel LEDs, extraction handle, connector assembly, and relay section.
   • Confirm that the customer’s rack is compatible with the A6740’s 2-slot / 12 TE format.
   • Verify whether the existing installation uses the or the narrower -10 variant.
2. Live Rig Testing
   • Apply the appropriate control power under controlled test conditions.
   • Verify module startup and status indications.
   • Simulate representative Channel Clear, Alert, and Danger inputs.
   • Test relay operation across the required outputs.
   • Verify normally open and normally closed contact behavior.
   • Check configured time-delay behavior where applicable.
   • Test the intended logic combinations rather than checking only one relay.
3. QA & Anti-Static Packaging
   • Record the complete model and serial information.
   • Photograph the module before shipment.
   • Use ESD-safe packaging for the electronic assembly.
   • Protect the front panel, connectors, and extraction mechanism.
   • Use rigid internal cushioning to prevent relay and PCB damage during transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Use an accurate description such as industrial machinery protection output relay module.
   • Air freight is generally suitable for a module weighing roughly 320 g.
   • Use anti-static and moisture-resistant packaging for international transportation.
   • Confirm the final HS classification with the destination customs broker before export declaration.

Technical Pitfalls & Integration Warnings

1. vs. -10 Rack Compatibility

This is one of the first things to check. Emerson specifies the as a 12 TE module for the IMR6000-series rack, while the is the 10 TE version for the IMR6500-series rack. They perform the same general relay function but are not simply interchangeable from a mechanical rack perspective.

A replacement can be electrically correct and still fail at installation because the rack width is wrong. Measure the original module and verify the chassis type first.

2. Relay Logic Is Part of the Protection Scheme

The can use up to 30 logical expressions and assign them to 16 relay outputs.

Suppose Relay 4 is configured for a two-out-of-three danger condition on the original module. Replacing the hardware without restoring that logic can leave the machinery protection system with a completely different response. Save the configuration before replacement.

3. Normally Energized vs. Normally Non-Energized

The relay operating state is configurable. Contact logic alone is therefore not enough to determine how the protection circuit behaves during loss of power or module failure. Emerson specifies both normally energized and normally non-energized configurations.

This matters during commissioning. A wiring team can correctly connect the NO/NC contacts and still create the wrong fail-safe behavior if the relay energization philosophy is not matched.

4. Time-Delay Settings

The module supports output time delays from 0 to 30 seconds.

Do not assume that a zero-delay configuration is appropriate just because the replacement card passes a functional test. A protection logic that intentionally delays a relay by several seconds can behave very differently if the configuration is lost.

Frequently Asked Questions (FAQ)

Q1: What exactly does the Emerson do?

The is a 16-channel output relay module for the AMS 6500 machinery protection system. It receives Channel Clear, Alert, and Danger status signals and uses configurable logic to operate 16 relay outputs.

Q2: How many inputs and relay outputs does it have?

It supports 60 configurable inputs, up to 30 logical expressions, and 16 relay outputs.

Q3: What logic functions are available?

The documented logic includes:

• OFF
• AND
• OR
• 2-out-of-3
• Combined AND/OR logic

Up to 30 logic expressions can be defined for the module.

Q4: Is the same as -10?

Not exactly. Both are 16-channel output relay modules, but their mechanical rack formats differ. , while -10 is 10 TE. Emerson specifies them for different rack families.

If you are replacing an installed module, send a photograph of the original front panel and rack before ordering.

Q5: Can the be hot-swapped?

Yes. Emerson identifies the as a hot-swappable module and describes it as API 670 compliant.

That does not mean it should automatically be pulled from an operating protection rack. If its relays participate in an active turbine or compressor trip circuit, follow the plant’s approved maintenance and bypass procedure first.

Q6: What is the relay contact rating?

The documented relay specification is 48 V, 1 A maximum contact load. The contacts are SPDT and can be configured as normally open or normally closed.

Q7: What is the approximate size and weight?

The is approximately 60 × 128.4 × 160 mm, with a net weight of about 320 g and a gross packed weight of approximately 450 g.

Q8: What should I send when requesting an replacement?

For an outage-critical replacement, provide:

• complete identification
• Hardware revision
• Serial number
• Photograph of the existing module
• AMS 6500 rack/chassis model
• Existing relay wiring
• Current relay logic or configuration file, if available
• Whether the application is turbine, compressor, generator, or another critical machine

The rack variant and relay configuration are especially important. Matching only “” is not enough when the module is part of a live machinery trip system.
