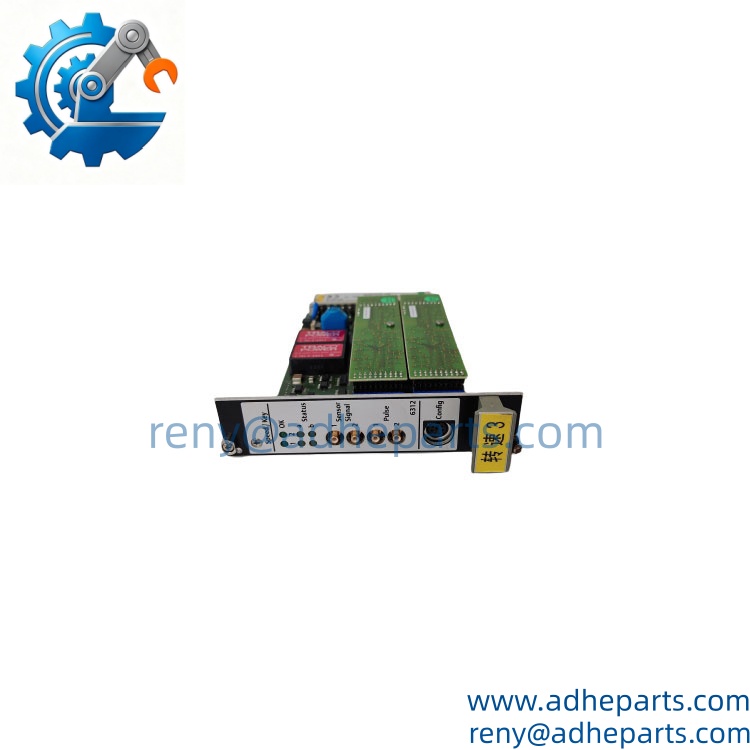

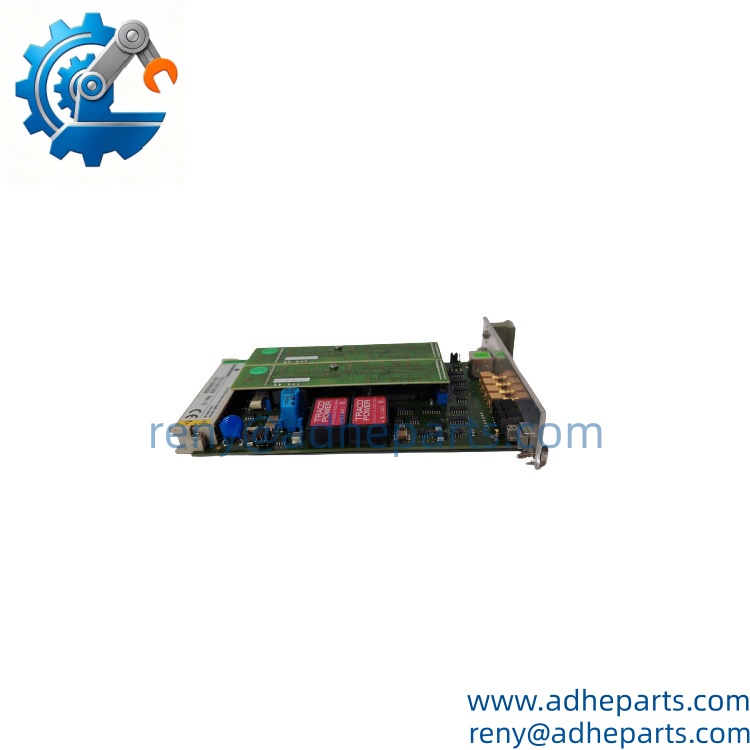

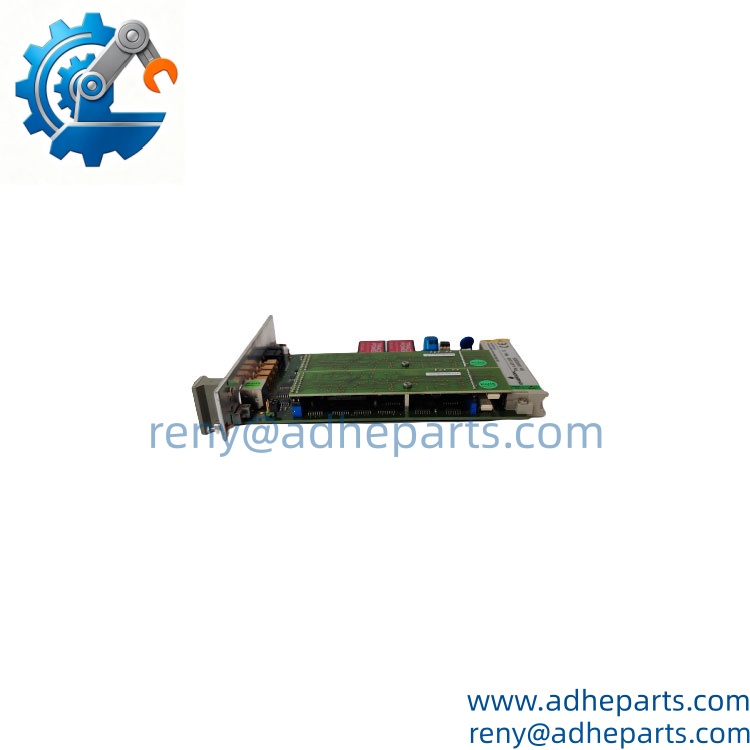

Emerson A6312/06 | AMS 6500 Machinery Monitor

Description

Emerson identifies the A6312 as a Speed and Key Monitor for critical rotating machinery. It is a one-slot, two-channel module used with AMS 6500 machinery monitoring systems to form an API 670 machinery protection system.

Key Technical Specifications

The A6312/06 has two independent measurement channels and accepts differential eddy-current sensor signals. Emerson documentation specifies a 0–20,000 Hz input frequency range, while the measurement range can be configured through the system software.

The module can also operate in a redundant speed/key configuration. In that arrangement, the primary and backup sensors must be installed in the same axial plane so that phase continuity is maintained during automatic switchover.

Product Introduction (Anti-Template)

When a turbine or compressor needs a reliable phase reference for speed and protection logic, the Emerson A6312/06 provides the dedicated monitoring channel required at the machinery-protection level. It processes two independent sensor inputs and monitors rotational speed, key phase, zero speed, and direction of rotation. Emerson specifies the module for critical steam, gas, compressor, and hydro-turbomachinery applications.

The A6312/06 is more than a simple tachometer interface. Its configurable measurement range, alarm functions, buffered outputs, and redundant-sensor capability make the exact sensor and application configuration important. Honestly, checking the existing probe type and tooth/key arrangement before ordering is much safer than assuming every A6312 variant will behave identically.

QC, Procurement & Logistics SOP

1. Inbound Verification

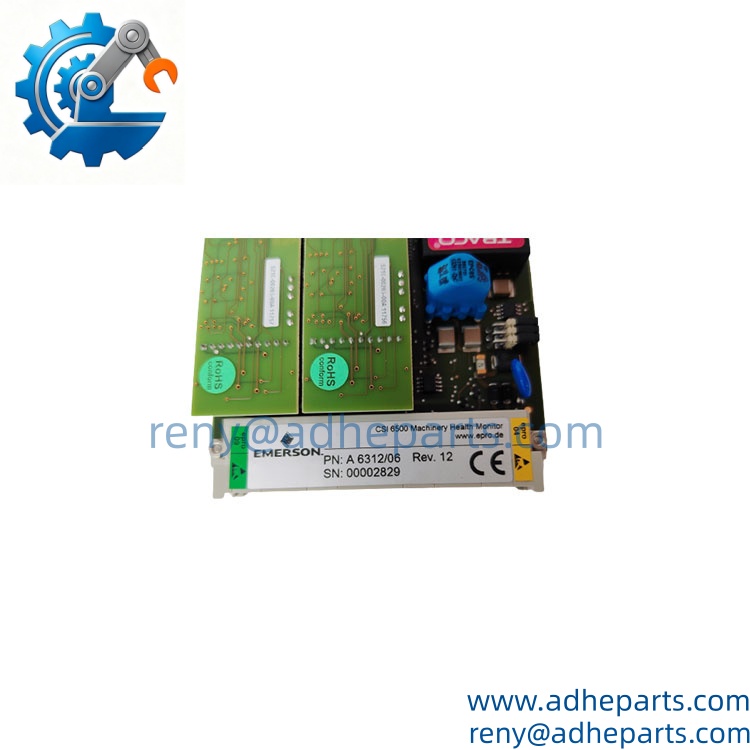

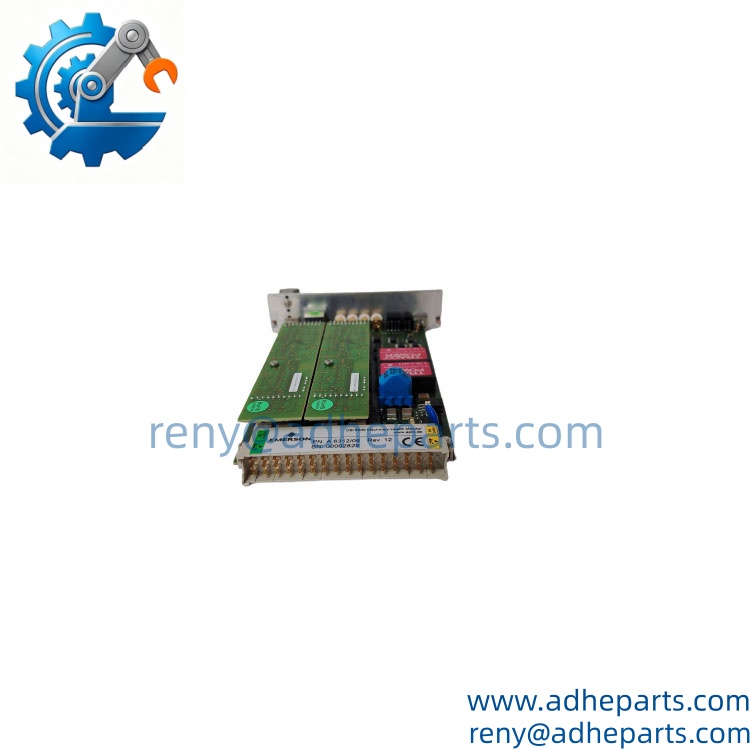

   Verify the physical identification as /06 / A631206 and record the hardware revision, serial number, front-panel markings, connector condition, LEDs, and PCB condition. Check that the module width and connector arrangement correspond to the customer’s existing unit.
2. Live Rig Testing
   On a compatible A6000/AMS 6500 test rack, verify power-up, channel status, sensor input response, speed calculation, phase/key detection, alarm indications, buffered outputs, and redundant-channel behavior where applicable.
3. QA & Anti-Static Packaging
   Handle the Eurocard under ESD precautions. Protect the DIN backplane connector and front-panel SMB interfaces against impact. The card should remain immobilized inside anti-static packaging during transportation.
4. Global Logistics & Export Compliance
   Export documentation should identify the item as an Emerson /06 Dual-Channel Speed and Key Monitor. HS classification should be reviewed against the actual machinery-monitoring function and destination customs requirements. For urgent turbine maintenance, air freight is generally appropriate; secure cushioning should be used for both air and sea freight.

Technical Pitfalls & Integration Warnings

1. /06 vs. /08
   These are related variants, but the mechanical width differs. The /06 is approximately 6 HP / 30 mm, while /08 uses an approximately 8 HP / 40 mm format. Confirm the original rack position and module width before replacement.
2. Sensor Compatibility
   The module is designed around specific displacement-sensor input characteristics. Emerson documentation lists compatible 6422–6425 sensor families. Replacing the module without checking the installed sensor can result in incorrect speed or phase readings.
3. Redundant Sensor Positioning
   If redundant speed/key monitoring is enabled, the primary and backup sensors should be installed in the same axial plane. Otherwise, automatic failover can introduce a phase discontinuity. This is an easy detail to overlook during field replacement.
4. ESD During Unboxing
   The /06 is an exposed Eurocard assembly. Keep it in its anti-static bag until installation and avoid touching the backplane connector or exposed circuitry.

Frequently Asked Questions (FAQ)

Q1: “What is the Emerson /06 used for?”

It is a dual-channel Speed and Key Monitor used to measure rotational speed, phase reference, zero speed, and direction of rotation on critical rotating machinery.

Q2: “Is A631206 the same as /06?”

Yes. A631206 is commonly used as a compact written form of . For purchasing, it is preferable to provide the complete designation and a photo of the nameplate.

Q3: What sensors can be connected to the /06?

The technical documentation identifies compatible Emerson eddy-current sensor families including 6422, 6423, 6424, and 6425. The sensor characteristics and application configuration should still be checked before replacement.

Q4: “Can it measure two shaft speeds?”

Yes. The two channels are independent and can be used separately for speed measurements from two shafts or for other supported speed/key configurations.

Q5: Can the /06 be hot-swapped?

Do not assume live replacement is safe simply because the module is part of a machinery protection rack. Follow the approved maintenance procedure for the specific rack and protection architecture. If the module participates in an active protection function, verify the system’s bypass and maintenance requirements before removal.

Q6: “What is the power supply?”

The module uses redundant +24 VDC supply inputs. The documented permissible supply range is 19–31.2 VDC, with the two supply inputs diode-decoupled for redundancy.

Q7: What information should I provide when ordering a replacement?

Please provide:

• /06 nameplate photo
• Complete part number and revision
• Existing rack model
• Sensor/probe model
• Number of teeth or keyphasor arrangement
• Required speed range
• Whether redundant speed/key monitoring is used
• Quantity required
• Destination country
• Required delivery date

For this module, the sensor and speed-reference arrangement are critical. Matching only “A631206” is not enough for a high-confidence engineering replacement.
