Product Overview

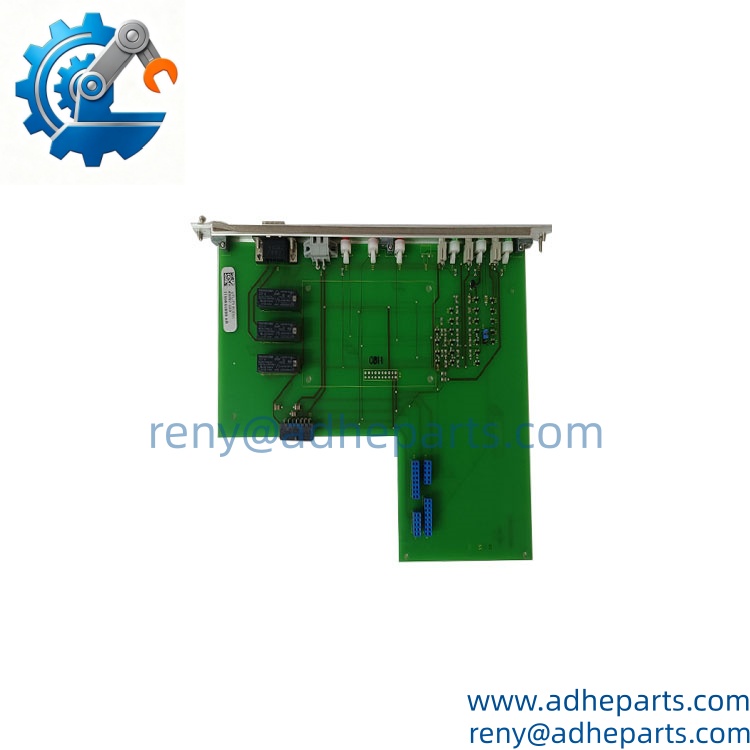

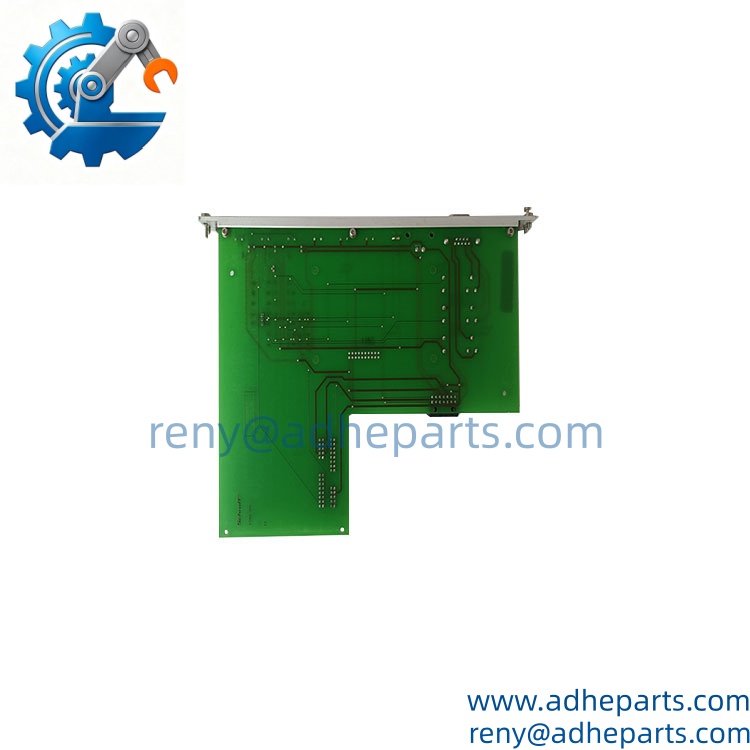

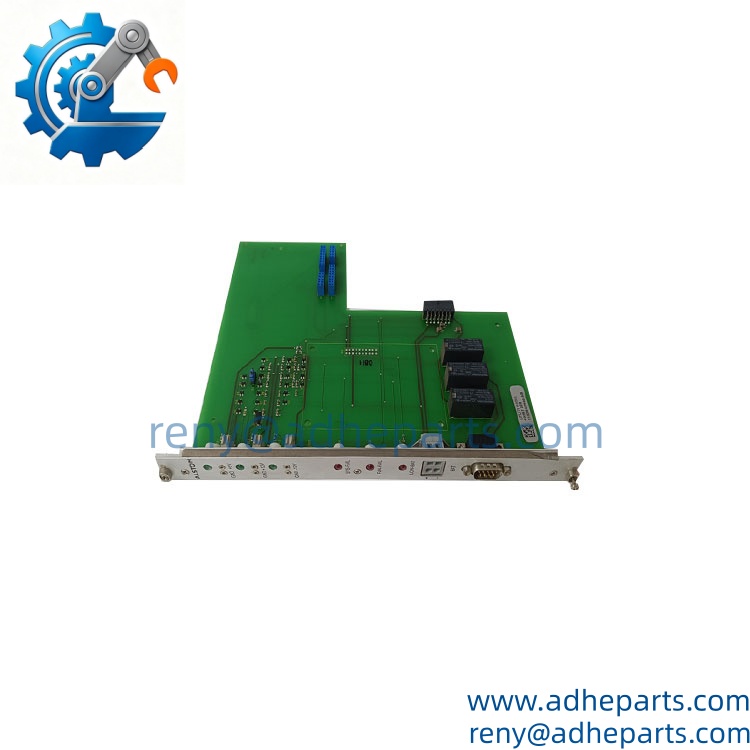

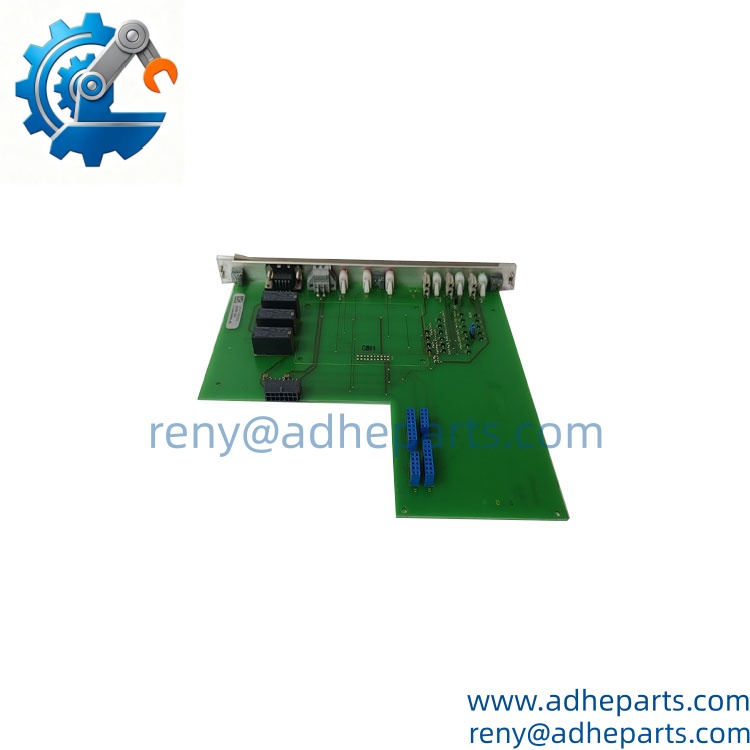

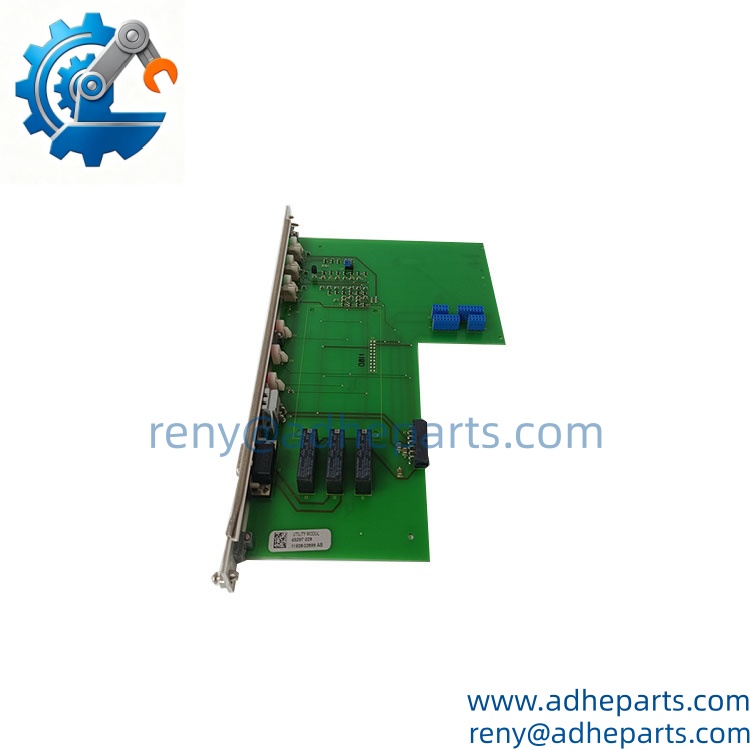

The ALSTOM 43297029 is a rack‑mounted utility processor board originally produced under Alstom‑Converteam heritage, deployed within VME‑based distributed control and turbine control systems for power generation, gas‑turbine facilities, and heavy‑duty process plants. This unit delivers signal conditioning, backplane interfacing, local data processing, and system utility management for critical plant control architectures. It is widely used as a spare replacement for legacy Alstom power control platforms, and original manufacturing has been discontinued.
Core Technical Specifications
- Manufacturer: ALSTOM (Converteam legacy)
- Model: 43297029
- Form Factor: VME rack‑mount PCB module
- Supply Voltage: 24 VDC ±10%
- Power Consumption: ≤20 W
- Processor: 32‑bit industrial RISC core
- Memory: 128 MB Flash, 64 MB RAM
- Interfaces: Dual redundant RS‑485 Modbus‑RTU, VME backplane connector, LED diagnostic indicators
- Operating Temperature: ‑10 °C ~ +60 °C
- Humidity: 5‑95 % non‑condensing
- Net Weight: approx 0.6 kg
- Mounting: Standard VME rack slot installation
Key Features
- Handles signal conditioning and auxiliary utility functions for turbine and generator control systems
- Built‑in LED status indicators for on‑board fault diagnosis and quick field troubleshooting
- Supports Modbus RTU serial communication for data exchange with adjacent rack modules
- Rugged industrial PCB construction for continuous operation inside power‑plant control cabinets
- Designed for slot‑in replacement within matching Alstom‑Converteam VME hardware racks
- Integrated real‑time clock with supercapacitor backup for time‑stamped event logging
Primary Application Scenarios
- Steam & gas turbine control systems in thermal power plants
- Generator excitation control assemblies
- Heavy‑duty process DCS systems
- Marine power‑control cabinets
- Retrofit and spare‑part replacement for legacy Alstom‑Converteam installations
Incoming Quality‑Check Procedure
- Visual inspection: Check PCB traces, solder joints, connector pins for corrosion, bent pins or physical damage

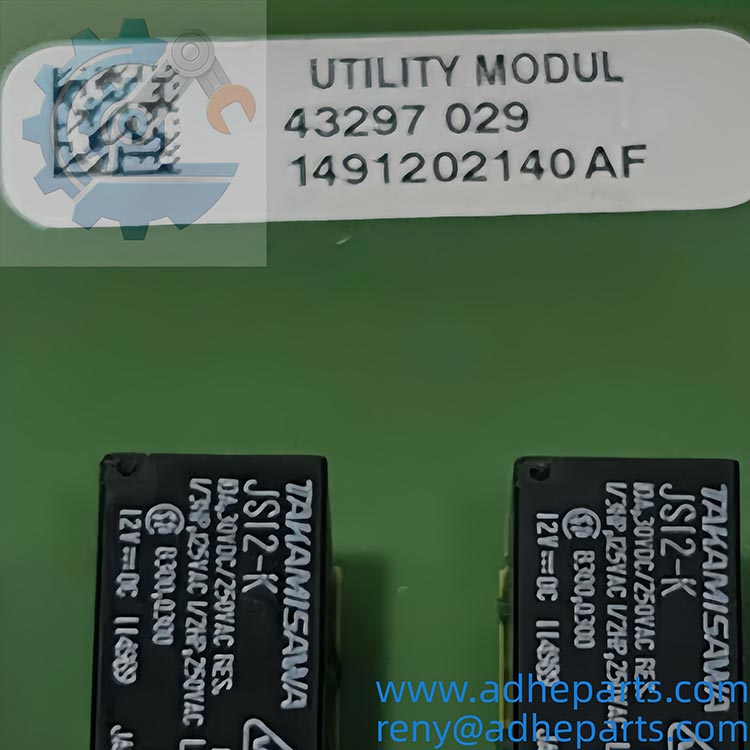

- Verify part number marking and label authenticity against 43297029 identifier
- Inspect LED indicator functionality under bench 24 VDC power supply
- Confirm backplane connector integrity; test basic communication link with compatible test rack where available
- Complete static‑protection handling throughout full inspection workflow
- Record inspection results for traceability for global procurement portals documentation
Critical Technical Warnings
- This module only operates within matching Alstom‑Converteam VME rack hardware. Physical fit does not guarantee compatibility; firmware revision matching is mandatory before commissioning. Mismatched firmware can trigger system faults or communication failure.
- Always observe ESD static‑control protocols when handling the PCB card; static discharge can permanently damage on‑board semiconductors.
- Input power must stay strictly within 24 VDC rated range; overvoltage will destroy the module.
- Not hot‑swappable in most legacy rack configurations. Power down the rack before module removal or insertion.
- Original OEM production is discontinued; verify stock unit hardware revision against your existing system bill‑of‑materials prior to purchase.
Frequently Asked Questions
Q: Can I drop‑in replace 43297029 with any other Alstom module? A: No. Hardware revision and firmware version must match your existing system configuration. Cross‑model direct swap‑out is not supported without full project validation.
Q: What condition options are available for this discontinued part? A: Available stock typically includes new‑old‑stock, tested refurbished units. Full bench testing is strongly recommended before site deployment.
Q: What is the typical lead‑time for global shipment? A: Lead‑time depends on stock location and customs databases clearance procedures for industrial automation spares. Confirm stock availability before final order confirmation.
Q: Does this module support Ethernet out‑of‑the‑box? A: Base hardware delivers dual RS‑485 Modbus‑RTU; Ethernet capability is an optional variant and is not present on every 43297029 unit. Confirm interface configuration prior to ordering.
