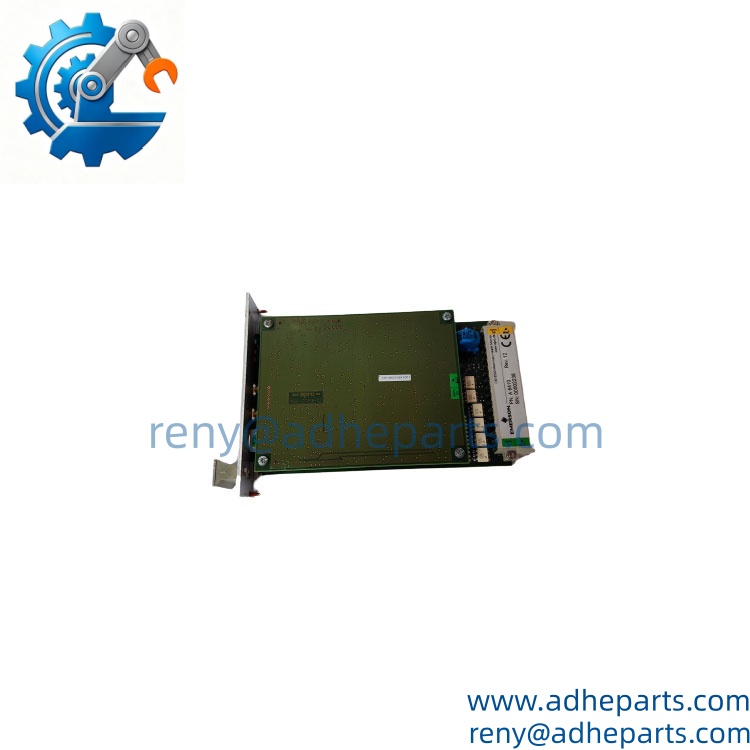

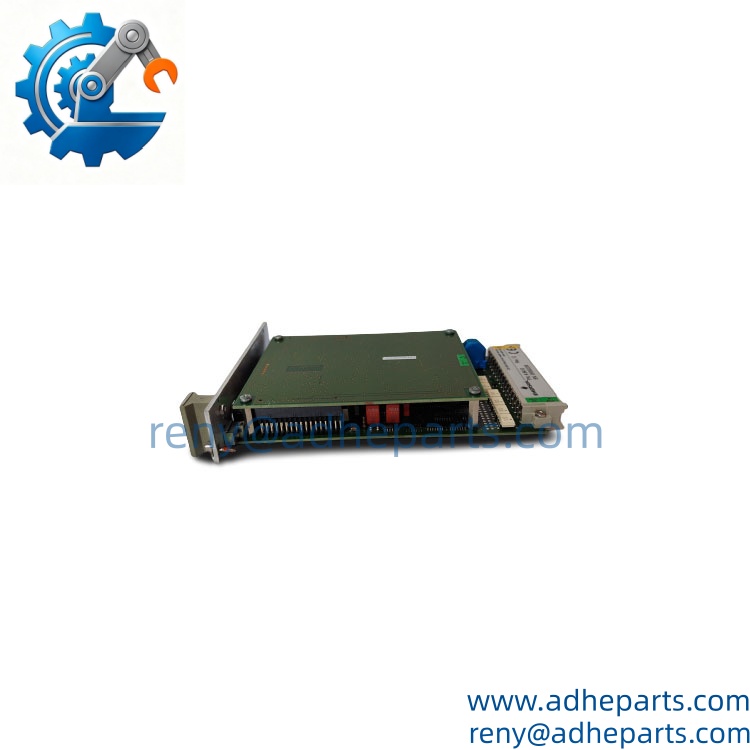

Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Emerson |
| Model | A6410 |
| Ordering Number | 9199-00005 |
| Product Type | Valve & Case Expansion Monitor |

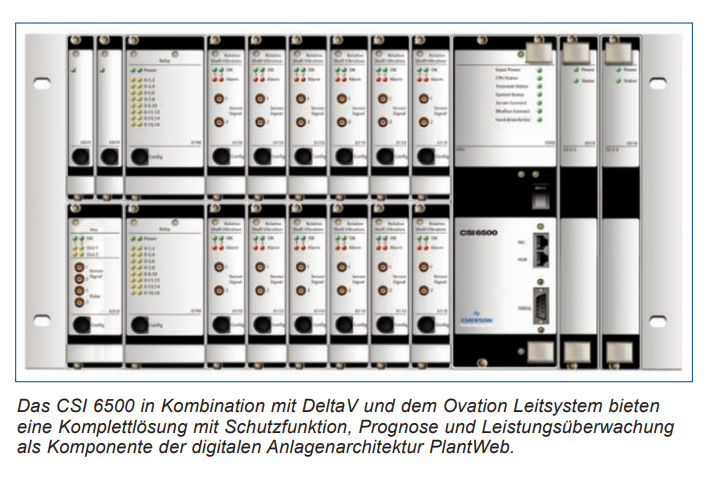

| System | AMS 6500 / CSI 6500 |
| Number of Channels | 2 |
| Module Format | 3U, single-slot plug-in |
| Rack Occupancy | 1 slot |
| Input Type | Inductive half-bridge, full-bridge, differential transformer |
| Input Configuration | Two independent differential inputs |
| Input Impedance | 200 kΩ |
| Input Voltage | 3.6 VDC, overvoltage protected |
| Measuring Frequency | 0–100 Hz, -3 dB |
| Carrier Frequency | 4.75 kHz |
| Sensor Supply | Separate buffered sensor supply |
| Sensor Supply Voltage | 4 Vrms nominal |
| Permissible Sensor Load | 120–600 Ω |
| Front Buffered Outputs | 2 × ±12 V |
| Analog Outputs | 0/4–20 mA and 0–10 V |
| Power Consumption | Maximum 6 W |
| Supply Current | 250 mA at 24 VDC |
| PCB Dimensions | 100 × 160 mm |
| Module Width | 30 mm |
| Module Height | 128.4 mm |
| Net Weight | Approx. 320 g |
| Gross Weight | Approx. 450 g |
| Operating Temperature | 0–65°C |
Emerson’s technical documentation identifies the A6410 as a two-channel, 3U, one-slot module with two independent differential transducer inputs. It supports inductive half-bridge/full-bridge sensors and differential transformers, with a 0–100 Hz measuring frequency range and 4.75 kHz carrier frequency.
The documented physical format is approximately 100 × 160 mm, with a module width of 30 mm and a net weight of about 320 g.
To learn more about this product click on the file below or download the file:
Product Introduction (Anti-Template)
During turbine startup, casing expansion is not a parameter that can be treated casually. The turbine casing has to expand in a controlled manner as temperature rises; uneven expansion can cause the machine to move out of alignment and, in severe cases, allow the rotor to contact the casing. The Emerson A6410 9199-00005 monitors this condition while also providing valve-position measurement within the AMS 6500 machinery protection architecture.
The module uses two independent differential measurement channels and can work with inductive displacement sensors. Its one-slot design also reduces cabinet space compared with older four-channel, 6U arrangements. For a replacement, though, the sensor type and original configuration need to be checked—not just the A6410 part number.
QC, Procurement & Logistics SOP
- Inbound Verification
- Confirm the complete identification: A6410 / 9199-00005.
- Record the serial number, hardware revision, and identification markings.

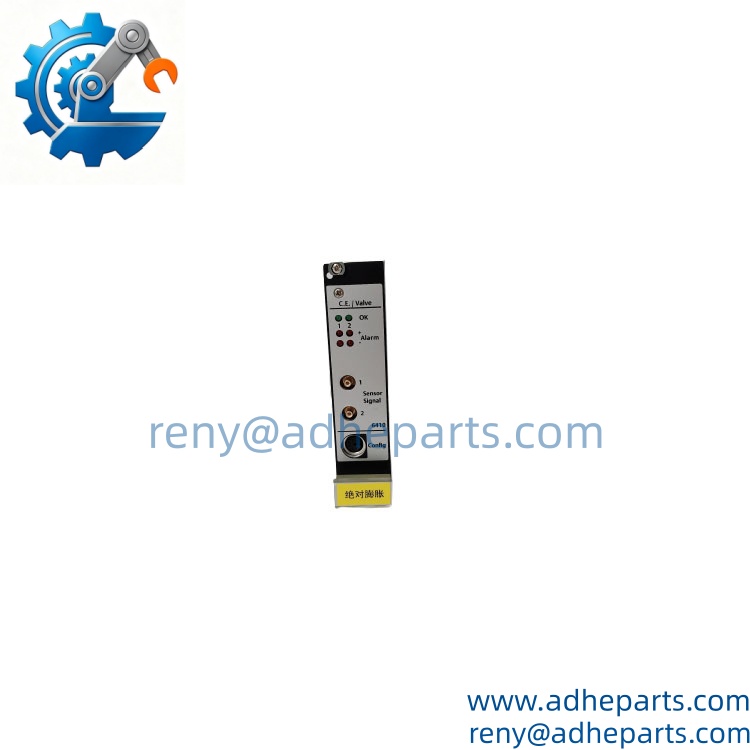

- Inspect the front LEDs, extraction handle, connector interfaces, and PCB.
- Check the module against the customer’s existing A6410.
- Confirm the application involves valve position, case expansion, or both.
- Verify the installed transducer type before shipment.
- Live Rig Testing
- Power the module using the specified 24 VDC system supply.
- Check startup behavior and individual channel status.
- Simulate suitable inductive transducer signals using calibrated equipment.
- Verify measurement response on both channels.
- Check the buffered outputs and proportional outputs where applicable.
- Verify alarm behavior using controlled test values.
- Record test results against the module serial number.
- QA & Anti-Static Packaging

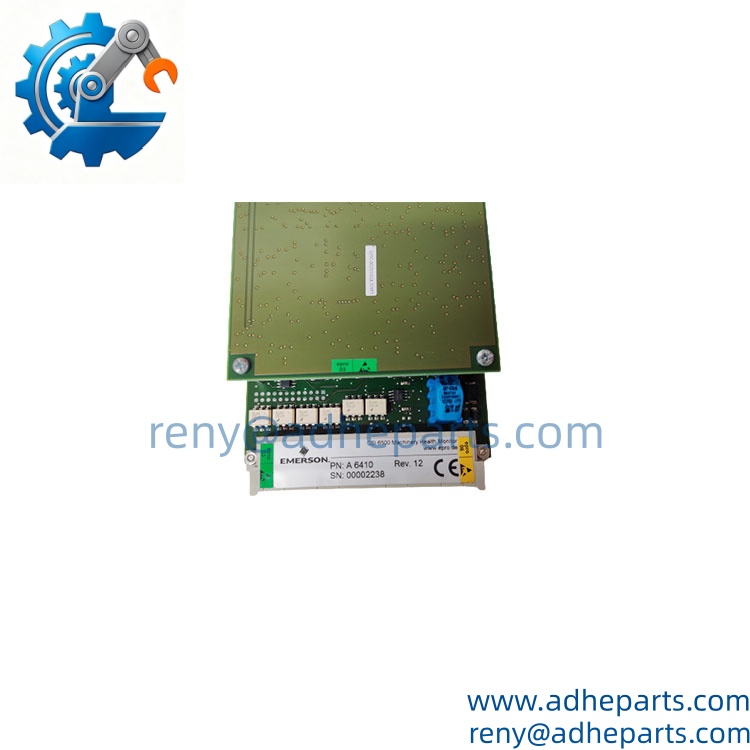

- Photograph the complete nameplate before packing.
- Use ESD-safe packaging for the electronic module.
- Protect the front connector and extraction handle.
- Prevent mechanical stress on the PCB.
- Use rigid cushioning to prevent movement during transportation.
- Global Logistics & Export Compliance
- Prepare the commercial invoice, packing list, product description, country-of-origin information, and appropriate HS classification.
- Use a clear description such as industrial valve and case expansion monitoring module.
- Air freight is generally practical for a module weighing approximately 320 g.
- Use anti-static and moisture-resistant packaging for international shipments.
- Confirm the final HS classification against the destination country’s customs requirements.
Technical Pitfalls & Integration Warnings
1. Sensor Type Mismatch
The is not a generic analog input card. Its inputs are designed for specific inductive measurement arrangements, including half-bridge, full-bridge, and differential-transformer sensors. Emerson specifies a separate buffered sensor supply for these inputs.
If the replacement monitor is connected to an incompatible sensor, it may power up normally while producing an incorrect measurement. Verify the transducer before commissioning.
2. Case Expansion Channel Configuration
Case expansion is normally measured across two sides of the turbine casing. If the two channels are wired or configured incorrectly, the system can show misleading differential expansion behavior. Check channel identification and the original engineering configuration before changing anything.
3. Valve Position Scaling
Valve position is often interpreted as a percentage-open measurement and can provide an indication of turbine loading. A replacement with incorrect sensitivity or measurement-range settings may display a plausible number that is nevertheless wrong. Emerson documentation identifies sensitivity and measurement range as configurable parameters.
4. ESD and Connector Damage
The is an electronic protection module. Keep it inside its anti-static packaging until installation. Do not touch connector contacts unnecessarily, and avoid forcing the rear connector into the rack. A damaged connection can produce intermittent measurement faults that are particularly difficult to reproduce.
Frequently Asked Questions (FAQ)
Q1: What is Emerson 9199-00005?
It is a Dual-channel Valve and Case Expansion Monitor for the AMS 6500 Machinery Health Monitor. The module is used to monitor turbine valve position and casing expansion.
Q2: How many channels does the have?
The provides two independent differential measurement channels.
Q3: What sensors can be connected to the ?
The module supports inductive half-bridge and full-bridge sensors, as well as differential transformers. Emerson documentation also identifies a separate buffered sensor supply.
Q4: What is the used for on a steam turbine?
Two main measurements are involved:
- Valve position: provides an indication of the main steam inlet valve position and, consequently, turbine loading.
- Case expansion: monitors axial expansion of the turbine casing during startup and operation.
Uneven casing expansion can cause the turbine to shift or “crab,” potentially creating rotor-to-casing contact.
Q5: Is the hot-swappable?
Yes. Emerson’s documentation identifies the as a hot-swappable module.
That said, the plant’s maintenance procedure still takes priority. If the module is connected to an active machinery protection system, verify the protection state before removing the card.
Q6: What is the physical size and weight?
The uses a 100 × 160 mm Eurocard PCB format, occupies one rack slot, is approximately 30 mm wide and 128.4 mm high, and weighs about 320 g net. Standard packed gross weight is approximately 450 g.
Q7: Is 9199-00005 the same as ?
Yes. is the model designation, while 9199-00005 is the associated ordering/material number. Emerson’s protection-card documentation lists the ordering information as with the product description “Dual-channel Valve and Case Expansion Monitor.”
Q8: What information should I provide when ordering a replacement?
For a reliable compatibility check, provide:
- / 9199-00005
- Clear photograph of the existing nameplate
- Hardware revision
- AMS 6500 rack information
- Installed sensor/transducer model
- Valve-position or case-expansion application
- Existing alarm or diagnostic information
- Photos of the front and rear connections
For an outage-critical turbine spare, the sensor and original configuration are just as important as the model number.
