Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
The A6110 is Emerson’s dual-channel Shaft Relative Vibration Monitor for the AMS 6500 machinery protection system. It is designed for critical rotating equipment and forms part of an API 670 machinery protection architecture when installed with other AMS 6500 protection modules.
The key feature of EMERSON A6110 is dual‑channel shaft relative vibration monitor module for AMS 6500 machinery protection rack, accepting eddy‑current proximity probe signals, measuring shaft‑to‑bearing‑housing relative displacement, executing configurable alert/trip thresholds and providing alarm relay outputs plus 4‑20 mA analog values for turbine and compressor API‑670 compliant machine protection.
This means that customers replacing this model should not only compare the module catalog number. The rack slot compatibility, probe type matching, downloaded channel configuration and alarm threshold parameters should also be checked.
A typical machinery protection signal flow may include:
Eddy‑current proximity probe → EMERSON A6110 → Rack backplane → Alarm relay / 4‑20 mA outputs → DCS & machine trip interlock circuit
Therefore, if the customer’s existing rotating‑machinery protection system relies on this card for shaft relative vibration monitoring and safety alarming, rack chassis compatibility, sensor setup and stored configuration parameters must be confirmed before purchasing the replacement module.
This is an important ordering consideration that distinguishes EMERSON A6110 from ordinary general‑purpose analog acquisition modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Emerson |
| Model | A6110 |
| Product Type | Shaft Relative Vibration Monitor |
| System | AMS 6500 / CSI 6500 |
| Number of Channels | 2 |
| Module Format | 3U, single-slot plug-in module |
| Sensor Type | Eddy-current displacement sensor |
| Compatible Sensors | 6422, 6423, 6424, 6425 |
| Sensor Input Voltage | 0 to -22 VDC |
| Input Resistance | >100 kΩ |
| Input Frequency Range | 1 or 5 Hz lower cutoff; 50–2000 Hz adjustable upper cutoff |
| Measurement Range | 0–400 mV minimum range to 0–8000 mV maximum range |
| Sensor Supply | -26.7 VDC nominal |
| Sensor Supply Current | 20 mA nominal; 35 mA maximum |
| Front Buffered Outputs | 2 × ±10 V |
| Analog Outputs | 0/4–20 mA and 0–10 V |
| Configuration Interface | RS-232 Mini-DIN |
| Power Consumption | Maximum 6 W |
| Supply Current | 250 mA at 24 VDC |
| Operating Temperature | 0–65°C |
| Net Weight | Approximately 320 g |
| Rack Occupancy | 1 slot |
Emerson specifies the A6110 as a two-channel, 3U, one-slot module. The design allows either independent or combined monitoring modes and includes self-checking of the monitoring hardware, power input, hardware temperature, sensor, and cable.
The module is intended for use with Emerson displacement sensors 6422, 6423, 6424, and 6425. Its sensor input is galvanically separated from the power supply, with an input range of 0 to -22 VDC and an adjustable measurement bandwidth.
If you want to see more parameters, you can click below:
Product Introduction (Anti-Template)
When a turbine rotor begins moving outside its normal vibration envelope, the protection system needs to distinguish a genuine mechanical condition from a sensor or cable fault. The Emerson performs that job by monitoring shaft relative vibration from non-contact displacement sensors and comparing the measured signal against configured alarm and protection limits. It is used with the AMS 6500 machinery protection platform for critical rotating equipment such as steam turbines, gas turbines, compressors, and hydro machinery.
The module occupies only one rack slot while providing two monitoring channels. Front and rear buffered outputs, proportional outputs, alarm indication, and self-checking functions are built into the architecture. Honestly, the compact 3U format is useful in protection cabinets where rack space is already tight.
QC, Procurement & Logistics SOP
- Inbound Verification
- Confirm the exact model marking: .

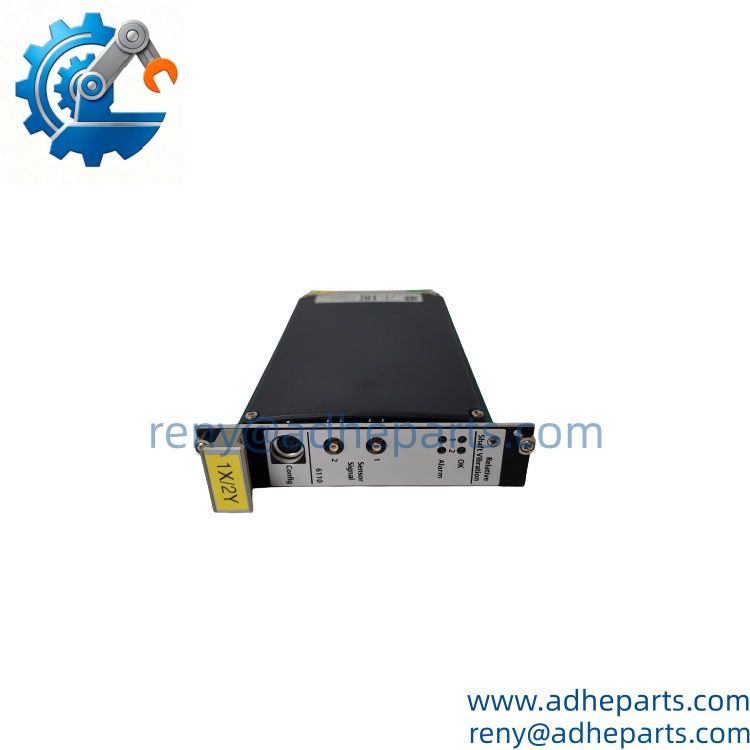

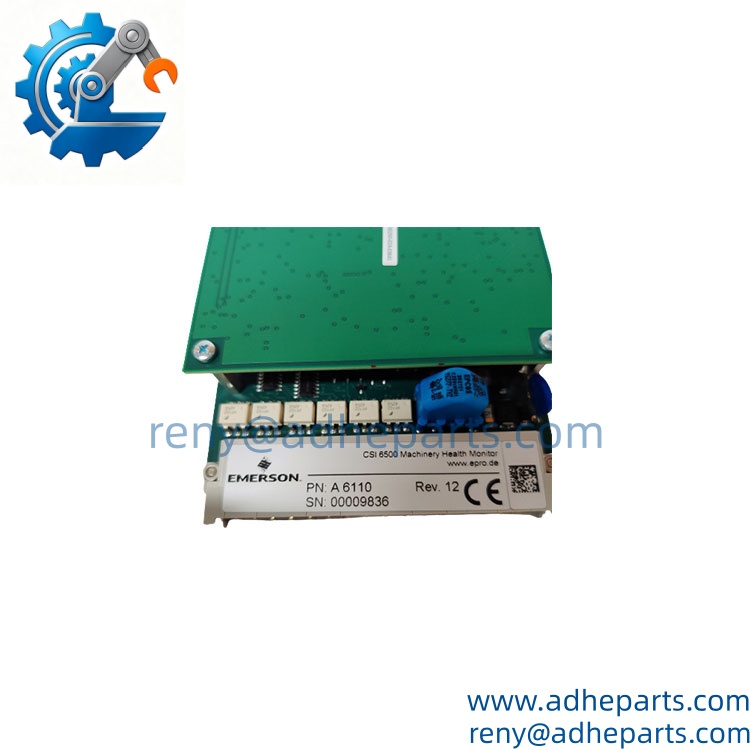

- Record the serial number, hardware revision, and any option information printed on the module.

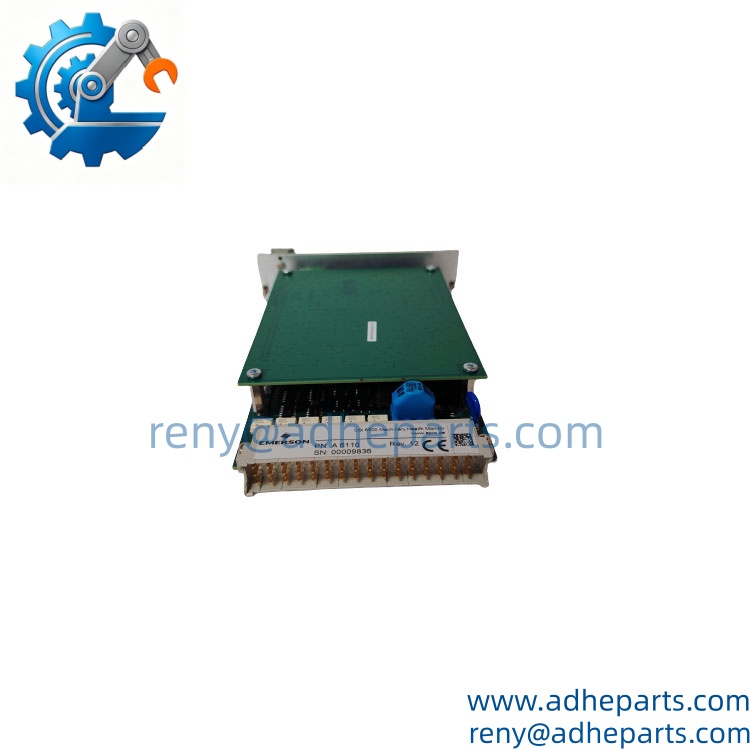

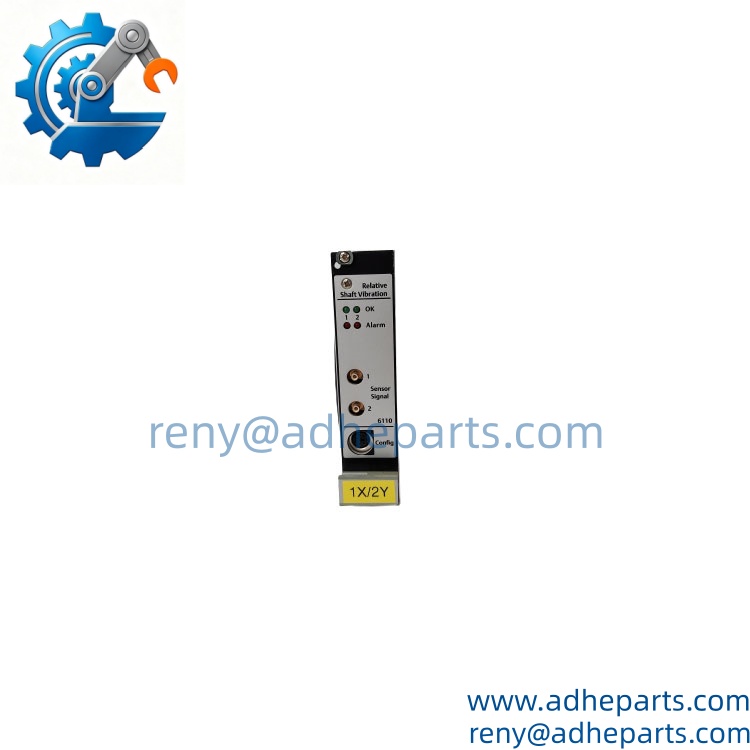

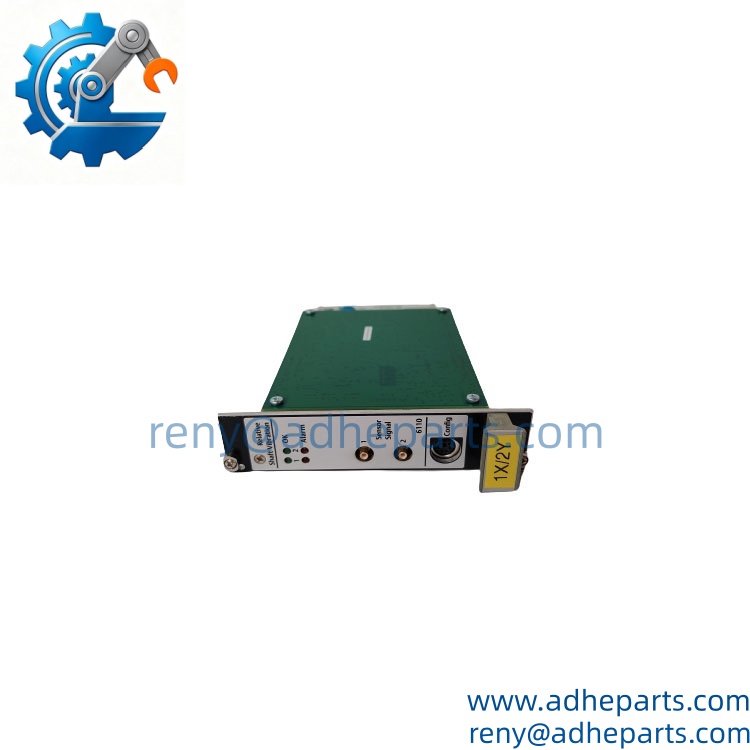

- Inspect the front-panel LEDs, handle, configuration interface, connectors, and PCB condition.
- Verify that the customer’s system is an AMS 6500 / CSI 6500 installation.
- Confirm the installed sensor model before approving the replacement.
- Live Rig Testing
- Power the module using the specified 24 VDC system supply.
- Check startup behavior and the two channel-status indicators.
- Simulate appropriate displacement-sensor signals using calibrated test equipment.
- Verify vibration measurement response and alarm indication.
- Check the buffered outputs where applicable.
- Verify sensor/cable fault detection under controlled conditions.
- Record test results against the module serial number.
- QA & Anti-Static Packaging
- Photograph the model and serial identification before packing.

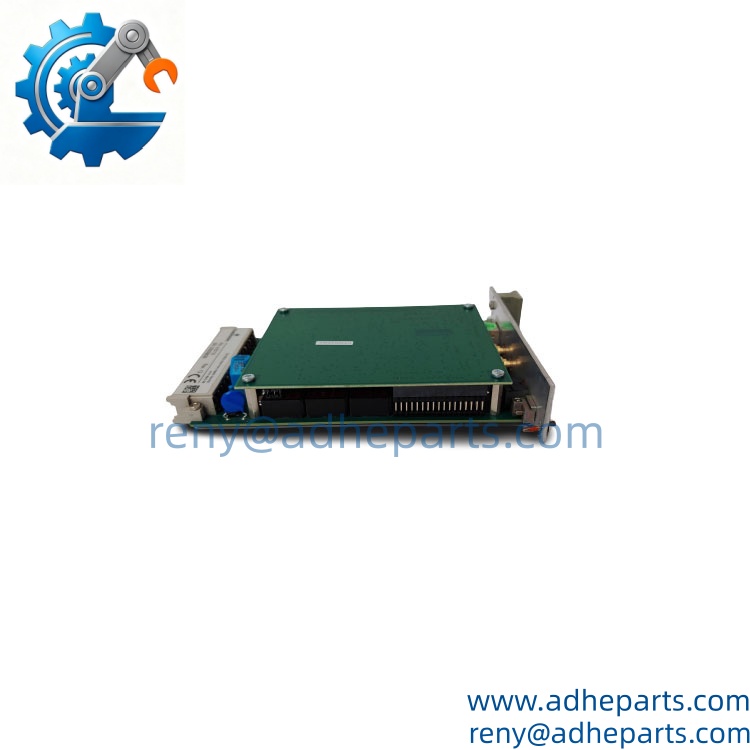

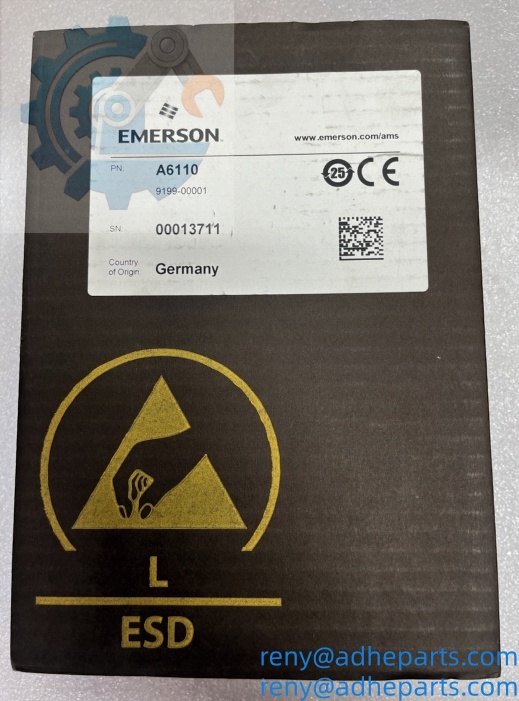

- Use ESD-safe packaging for the electronic module.
- Protect the front-panel connector and configuration socket from impact.
- Prevent excessive pressure on the extraction handle.
- Use rigid cushioning to prevent movement during transportation.
- Global Logistics & Export Compliance
- Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
- Use an accurate description such as industrial shaft relative vibration monitoring module.
- Air freight is generally practical because the module weighs approximately 320 g.
- Use anti-static and moisture-resistant packaging for international transportation.
- Confirm the final HS classification with the destination customs authority or broker before declaration.
Technical Pitfalls & Integration Warnings
1. Sensor Compatibility
The is designed around specific Emerson eddy-current displacement sensors. Emerson lists sensor types 6422, 6423, 6424, and 6425 for the module.
A common replacement mistake is to focus on the monitor card while ignoring the transducer system. If the installed probe and driver combination does not match the expected input characteristics, the monitor may show an apparently valid signal that is not correctly scaled.
2. Measurement Range and Configuration
The supports configurable measurement ranges from 0–400 mV up to 0–8000 mV, with adjustable frequency limits.
If a replacement has different configuration parameters from the original card, the measured vibration amplitude can appear incorrect even when the hardware is functioning. Preserve the original configuration before replacing the module whenever possible.
3. Alarm / Trip Settings
The compares vibration parameters against alarm setpoints and can drive alarm and relay functions within the overall machinery protection architecture.
Do not copy alarm values from another machine simply because the equipment looks similar. Rotor dynamics, bearing design, operating speed, and plant protection philosophy all matter.
4. Hot-Swap and Protection Circuits
Emerson describes the as a hot-swappable module.
That does not mean every plant should remove it without preparation. If the module participates in an active machinery protection or trip circuit, follow the site’s approved maintenance procedure first. A technically permitted card replacement can still have operational consequences if the protection architecture is not placed in the correct maintenance state.
Frequently Asked Questions (FAQ)
Q1: What is the Emerson ?
The is a dual-channel Shaft Relative Vibration Monitor for the AMS 6500 / CSI 6500 machinery protection system. It monitors shaft vibration using non-contact displacement sensors and provides alarm and protection functions.
Q2: How many channels does the have?
It has two independent monitoring channels, which can also be configured for combined monitoring modes.
Q3: Which sensors work with the ?
The Emerson documentation lists displacement sensors 6422, 6423, 6424, and 6425. These are non-contact eddy-current sensor types used for shaft position and vibration measurement.
Q4: What is the difference between shaft relative vibration and casing vibration?
Shaft relative vibration measures shaft movement relative to the bearing housing, using a displacement sensor mounted at the bearing. It is particularly relevant to machines with fluid-film bearings where rotor movement relative to the bearing structure is a key protection parameter.
Q5: Can the be hot-swapped?
Yes. Emerson’s documentation identifies the as a hot-swappable module.
For an actual plant replacement, however, check the maintenance procedure and protection logic before removing the card.
Q6: What should I provide when ordering an replacement?
For a proper compatibility check, provide:
- model photograph
- Complete nameplate information
- Hardware revision
- Serial number
- Existing sensor model
- AMS 6500 rack information
- Current alarm or diagnostic condition
- Photographs of the front and rear connections
This is especially important when replacing an older protection module because configuration can be just as important as the base model number.
Q7: What is the approximate weight and size?
Emerson’s documentation gives a PCB/Euro-card format of approximately 100 × 160 mm, with a module height of 128.4 mm, width of 30 mm, and length of 160 mm. Net weight is approximately 320 g, with one rack slot required.
Q8: What equipment is the normally used on?
Typical applications include steam turbines, gas turbines, compressors, and hydro turbo machinery. It is used where shaft relative vibration is an important machinery protection measurement.
