Emerson A6220 | Shaft Eccentricity Vibration Monitor

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

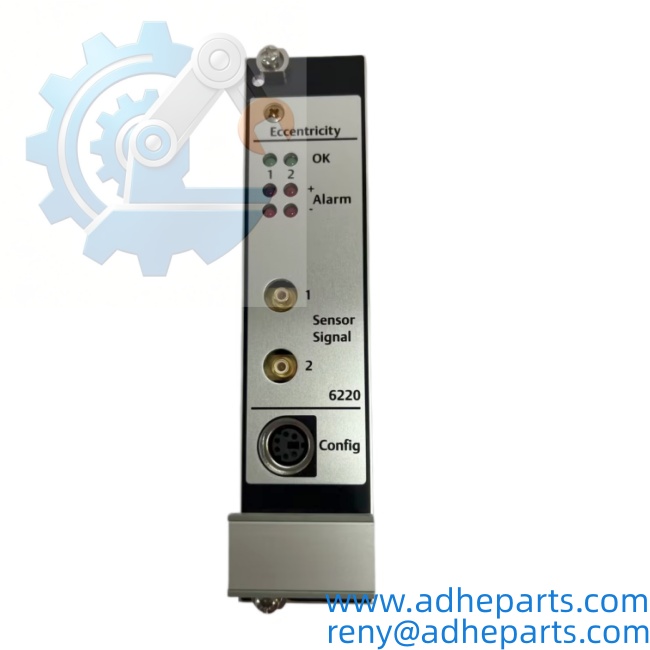

Emerson identifies the A6220 as a Shaft Eccentricity Vibration Monitor for the AMS 6500 Machinery Health Monitor. It is intended for critical rotating equipment such as steam turbines, gas turbines, compressors, and hydro turbomachinery, and can form part of an API 670 machinery protection system.

Key Technical Specifications

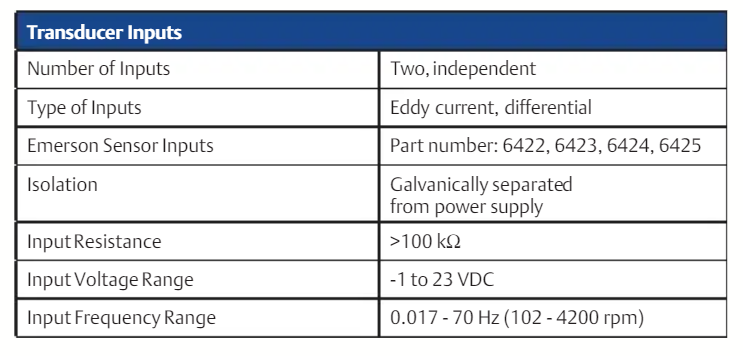

Emerson’s protection-card documentation describes the A6220 as a two-channel, 3U, one-slot module. The module monitors shaft eccentricity using displacement sensors and provides alarm/protection functions based on configured setpoints.

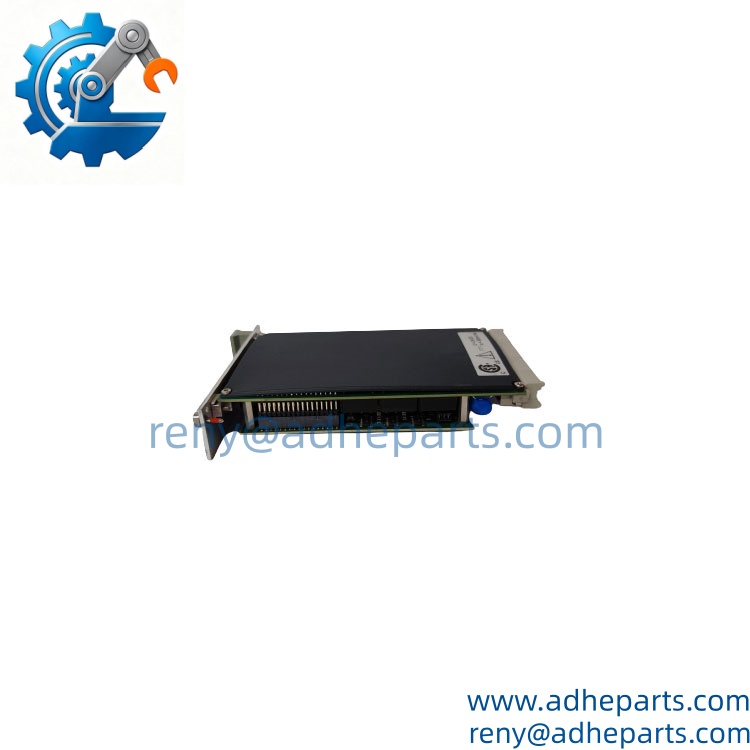

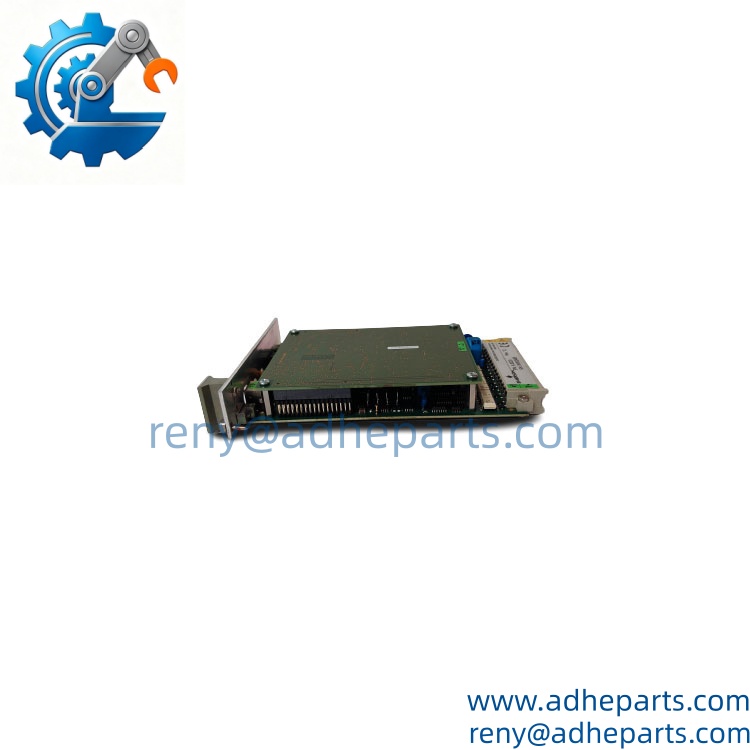

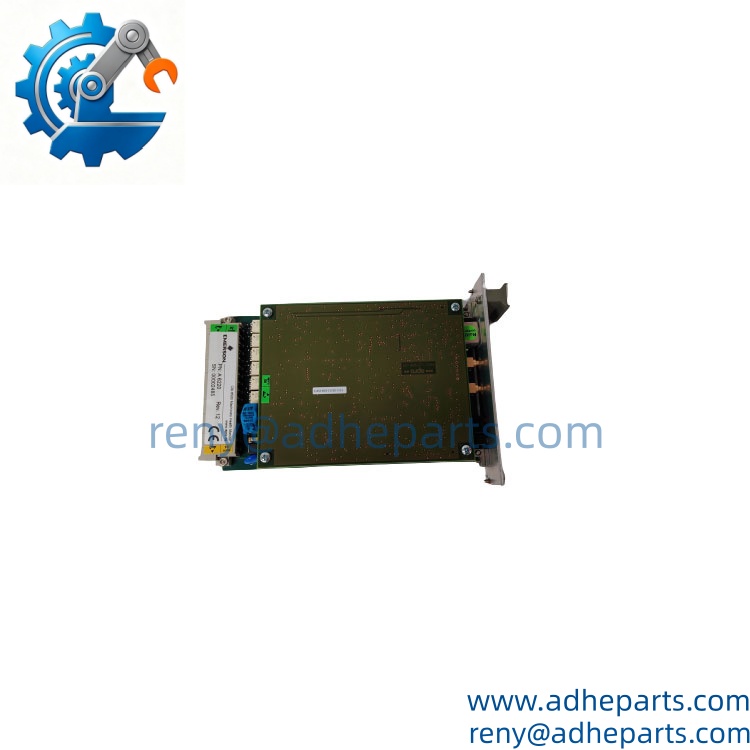

The published mechanical specification uses the DIN 41494 Eurocard format. The board is approximately 100 × 160 mm, occupies one rack slot, and has a net weight of about 320 g.

Product Introduction (Anti-Template)

When a rotor is not rotating around its intended centerline, ordinary vibration data may not tell the whole story. Shaft eccentricity gives the protection system another measurement: how far the rotor’s centerline deviates from its normal position. The Emerson A6220 is designed for this task, using displacement sensors to monitor shaft eccentricity on critical rotating equipment within the AMS 6500 architecture.

The module uses two channels in a compact one-slot format. Its outputs can be integrated with the wider machinery protection system, while self-checking functions help identify problems involving the monitoring hardware, power supply, sensor, or cable. Honestly, this matters during commissioning because a bad probe cable should not be mistaken for an actual rotor condition.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the exact model: A6220.

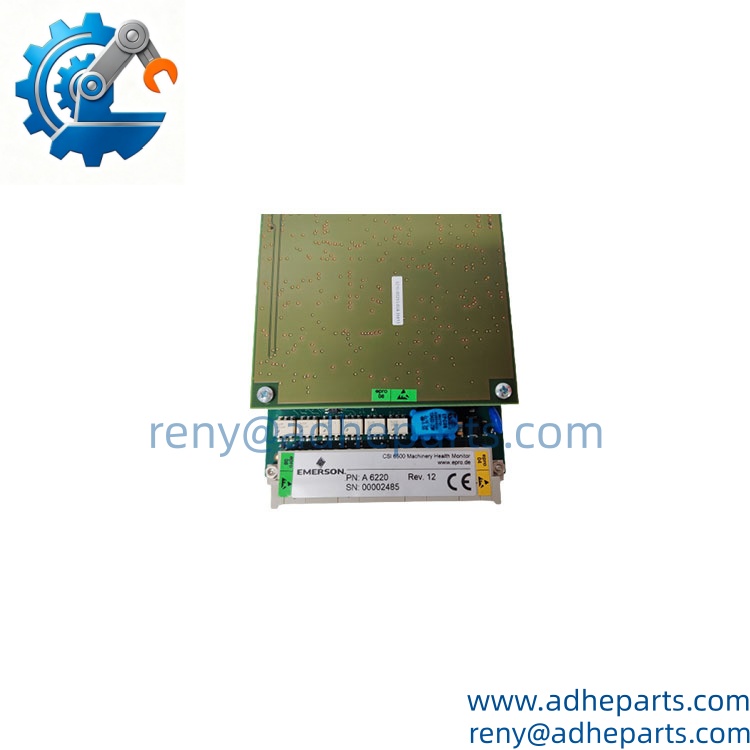

   • Record the serial number, hardware revision, and identification markings.
   • Inspect the front-panel indicators, connector interfaces, extraction handle, and PCB.
   • Verify that the customer’s installation uses an AMS 6500 / CSI 6500 rack.
   • Confirm the installed displacement-sensor model before shipment.
2. Live Rig Testing
   • Power the module using the specified system supply.
   • Check startup behavior and channel-status indications.
   • Simulate appropriate displacement-sensor signals with calibrated test equipment.
   • Verify measurement response on both channels.
   • Check analog outputs where applicable.
   • Verify alarm and diagnostic behavior under controlled conditions.
   • Record the test results against the module serial number.
3. QA & Anti-Static Packaging
   • Photograph the model and serial number before packing.
   • Place the module in ESD-safe packaging.
   • Protect the front connector and extraction mechanism from impact.
   • Use rigid cushioning to prevent movement inside the carton.
   • Add moisture protection for long-distance transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Use an accurate description such as industrial shaft eccentricity monitoring module.
   • Air freight is generally suitable for a module weighing approximately 320 g.
   • Use anti-static and moisture-resistant packaging for air or sea transportation.
   • Confirm the final HS classification with the destination customs broker before declaration.

Technical Pitfalls & Integration Warnings

1. Shaft Eccentricity Is Not the Same as General Vibration

Do not substitute an A6220 simply because another vibration monitor occupies the same AMS 6500 rack. The is specifically designed for shaft eccentricity measurement. Its application depends on the machine’s bearing arrangement, rotor geometry, and displacement-sensor installation.

2. Sensor Compatibility

The is specified for displacement sensors including 6422, 6423, 6424, and 6425.

A replacement monitor can power up correctly while still producing incorrect readings if the probe system, driver, or signal characteristics do not match the original configuration. Verify the complete measurement chain—not just the monitor card.

3. Configuration and Alarm Setpoints

The module compares measured parameters against configured alarm limits and can drive alarm/protection functions.

Suppose a replacement card has different configuration values from the original. The displayed eccentricity may appear reasonable, yet the alarm could activate at the wrong level. Save the original configuration before replacement whenever possible.

4. Hot-Swap Risk

Available documentation identifies the as a hot-swappable module.

That does not remove the need for a site-specific maintenance procedure. If the module participates in a turbine trip or machinery protection chain, verify the protection state before removing the card. A technically supported replacement can still create an operational event if the surrounding protection logic is not handled correctly.

Frequently Asked Questions (FAQ)

Q1: What is the Emerson used for?

The is a shaft eccentricity vibration monitor for the AMS 6500 Machinery Health Monitor. It measures rotor eccentricity using displacement sensors and supports alarm and machinery-protection functions.

Q2: How many channels does the provide?

It provides two monitoring channels in a 3U, one-slot module.

Q3: Which sensors are compatible with the ?

The Emerson documentation identifies displacement sensors 6422, 6423, 6424, and 6425 for this monitor.

Q4: What is the difference between the and a shaft relative vibration monitor?

They measure different aspects of rotor behavior. A shaft relative vibration monitor focuses on the dynamic movement of the shaft relative to the bearing structure, while the is specifically intended to monitor shaft eccentricity. Selecting between them should therefore be based on the machine’s protection scheme rather than simply the number of channels.

Q5: Can I install an in any AMS 6500 rack slot?

The is designed as a one-slot AMS 6500 module, but the rack’s overall configuration and the installed system architecture still need to be checked. Confirm the existing rack, power arrangement, sensor wiring, and system configuration before installation.

Q6: Is the hot-swappable?

Available technical documentation identifies it as a hot-swappable module. However, follow the plant’s approved maintenance procedure when the card is part of an active machinery protection system.

Q7: What information should I provide when ordering a replacement?

For an exact compatibility check, provide:

• model
• Complete nameplate photograph
• Hardware revision
• Serial number
• Existing displacement-sensor model
• AMS 6500 rack information
• Current alarm or diagnostic condition
• Photographs of the front and rear connections

Q8: What are the approximate dimensions and weight?

The uses a DIN 41494 Eurocard format. The PCB is approximately 100 × 160 mm, the module is about 30 mm wide and 128.4 mm high, and the net weight is approximately 320 g.
