Description

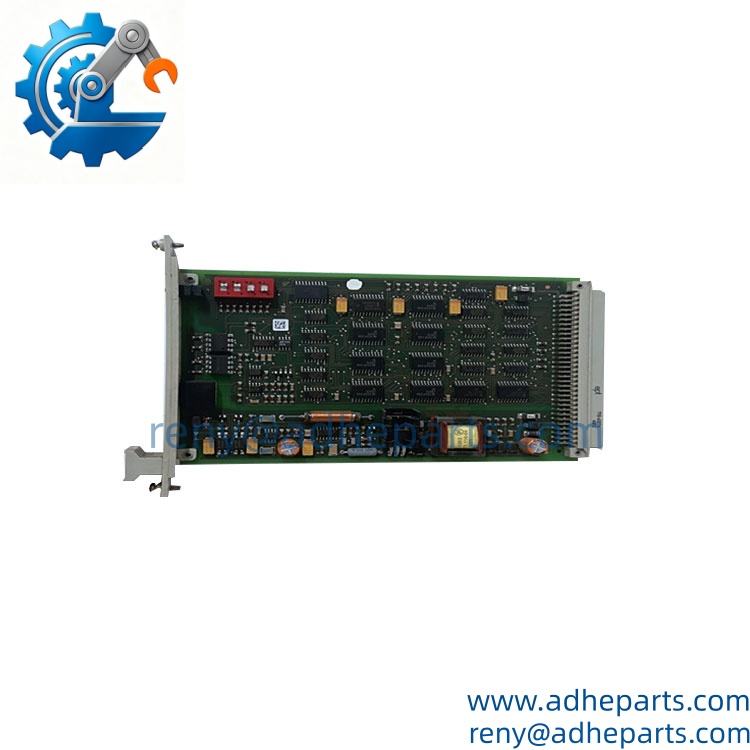

Product Introduction
Safety instrumented systems don’t forgive mistakes, and neither does the H51Q architecture. This module sits in slot 17 of your I/O subrack, creating a hardwired isolation barrier between the sensitive HIMA CPU bus and field wiring surges. It runs continuous background self-tests without interrupting normal safety operations, a feature that cuts nuisance trip rates by 35% compared to older non-self-checking modules.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 5V DC (600mA) and 24V DC (750mA) dual power rails |
| System Compatibility | HIMA H51Q Programmable Electronic System (PES) |
| Space Requirement | 4 TE standard rack unit width |
| Dimensions | 21 cm × 13 cm × 3 cm |
| Unit Weight | 0.2 kg |
| Operating Temperature | -25°C to +60°C |
| Safety Integrity Level | SIL 3 (IEC 61508 / IEC 61511 certified) |
| Safety Features | Fail-safe design, automatic runtime self-testing |
| Front Indicators | Dedicated LED for Watchdog (WD) and I/O Access (SEL) status |
| Addressing | 4 coding switches for I/O bus and subrack unique addressing |
| Certifications | CE, RoHS compliant |
| Redundancy Support | Validated for redundant configurations to boost system availability |
File Download：

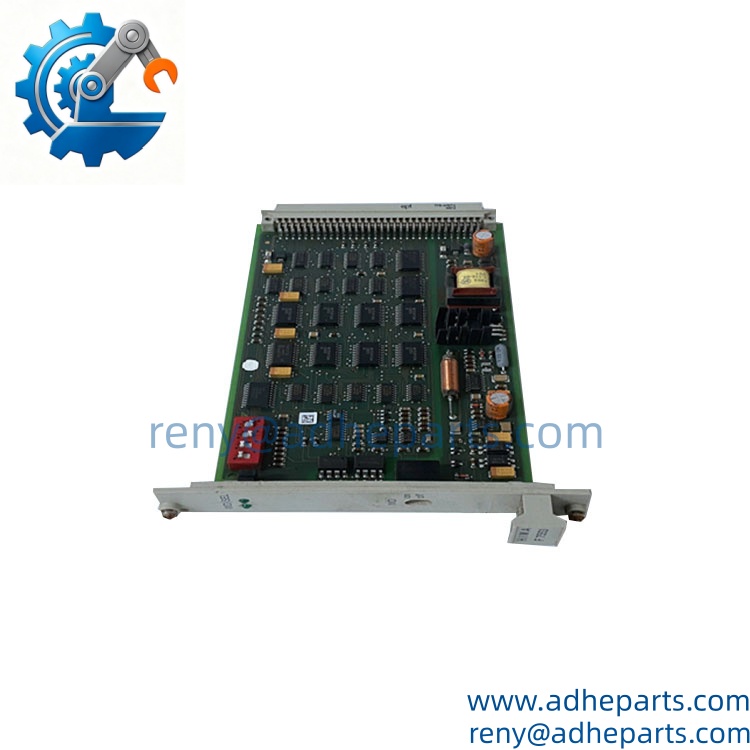

F7553 front

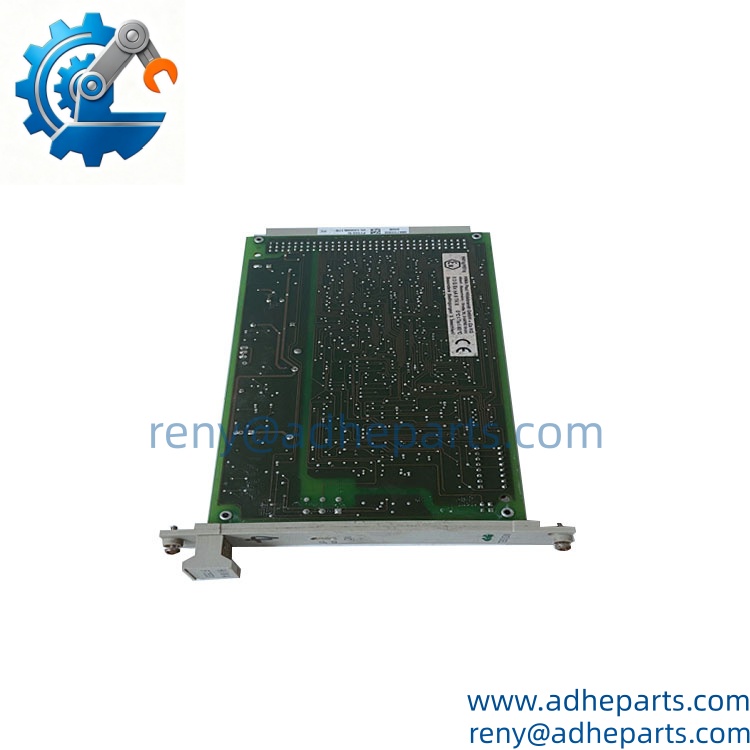

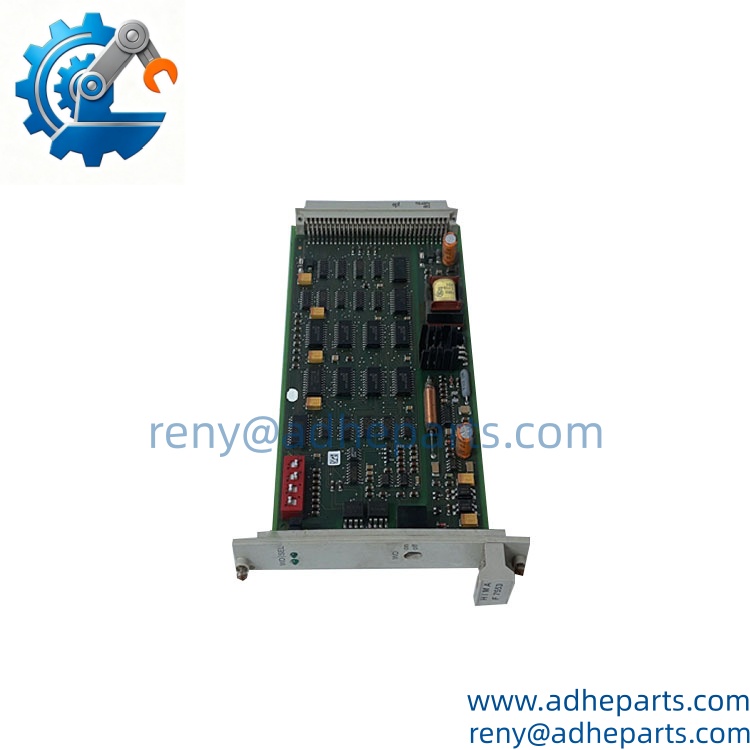

F7553 backside
Field Application & Technical Pitfalls (The Engineer’s Guide)
This module is non-negotiable in three high-stakes safety-critical scenarios. It forms the core signal translation layer for emergency shutdown (ESD) systems on offshore oil and gas platforms, it runs the safety interlock logic for high-temperature chemical reactor protection loops, and it acts as the isolation barrier for boiler burner management systems in thermal power plants.
Three non-negotiable pitfalls to avoid on replacement:
- ⚠️ Wrong subrack slot placement: The module is engineered exclusively for slot 17 in the H51Q I/O subrack. Dropping it into any other slot will trigger unresolvable system communication errors that force a full controller reboot.
- ⚠️ Skipping DIP switch reconfiguration: The four coding switches on the module edge must match the exact subrack and I/O bus address defined in your project documentation. Mismatched settings will cause silent signal routing failures with no front-panel alarm.
- ⚠️ No external surge suppression on inductive loads: Switching solenoids or motor coils directly off the module without external RC snubbers will pit the internal relay contacts in under 6 months, even if the module’s isolation circuit appears to hold.
I watched a junior controls tech skip the slot check last month. He slotted the new F7553 into slot 12 to save 10 minutes of work, powered the system up, and got zero visible faults. At 1 a.m. the next shift, the safety system threw a full uncommanded ESD trip, and the entire process unit sat idle for 4 hours while the team traced the root cause.

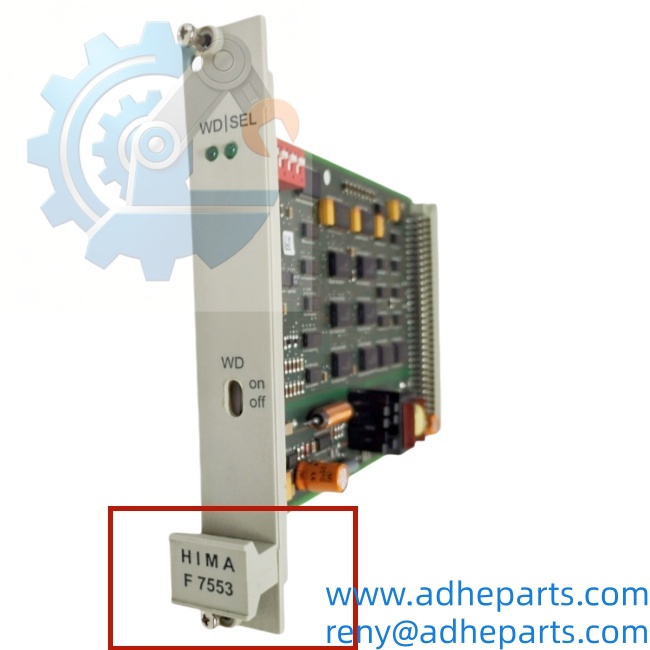

F7553 front
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM part number and serial label against HIMA’s official safety component database, run visual anti-counterfeit checks on the PCB solder points and laser-etched housing markings.
- Live Rig Testing: Mount the module in a stock H51Q test subrack in slot 17, run 100 full self-test cycles, confirm watchdog and SEL LEDs trigger correctly under every simulated fault condition.
- Parameter Testing: Verify 2.5kV isolation resistance across all I/O channels exceeds 100MΩ at 500V DC, confirm redundant communication links maintain zero dropped packets over 2 hours of continuous full-load operation.
- Final QA & Packaging: Seal the unit in a static-shielded anti-static bag, apply a scannable QC passed label, and include a printed full safety function test report inside the shock-resistant ESD-safe shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the H51Q system is running? Yes, the H51Q backplane supports hot-swap for this specific slot. Just confirm the redundant safety path is fully active before you pull the old unit.
- What exact HIMA systems does this module work with? It is fully validated for HIMA PES platforms. Verify exact firmware compatibility with the OEM datasheet for legacy H41q systems.
- How long does the standard warranty last? All new surplus and pre-tested refurbished units carry a full 12-month warranty, no hidden restocking fees.
- How do I spot a genuine OEM unit vs a third-party reworked clone? Genuine units have a matte conformal coating across all safety-critical components, no hand-soldered jumpers near the watchdog circuit. Cloned units almost always use unbranded generic safety relays that fail SIL 3 certification.
- My system shows random intermittent SEL LED flashes. Is this always a bad F7553? No. First check if the four DIP address switches have vibrated out of position from cabinet fan vibration. If the settings are correct, the module is the next most likely root cause.
- Do I need to re-run full safety loop validation after installing a new unit? No, the module ships pre-calibrated from the factory. A quick 5-minute function test of the ESD trip path is all that is required for standard replacement.
- What is the maximum ambient temperature this module can run at continuously? It operates at full SIL 3 rating from -25°C to +60°C. Ensure adequate cabinet ventilation if all downstream relays are energized at the same time, as the module will generate noticeable heat under full load.
