Product Introduction
When an ESD emergency shutdown loop fails to trigger on demand, this HIMA module eliminates that single point of failure.
It slots directly into HIMax system racks for process safety applications, with built-in short-circuit protection on every individual output channel. Its hot-swap capable design lets maintenance teams replace the unit without taking the entire safety rack offline.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 24V DC |
| Number of Output Channels | 16 independent digital outputs |
| Per-Channel Maximum Load | 0.5A |
| Safety Certification | SIL 3 / IEC 61508 Compliant |
| Communication Protocol | HIMA SafetyBus p |
| Operating Temperature | 0℃ ~ 60℃ |
| Dimensions | 127mm x 203mm x 25mm |
| Net Weight | 0.2kg |
| Installation | HIMax standard rack slot / DIN rail compatible |
| Country of Origin | Germany |
MoreTechnical Specifications you can click below:
HIMA F3322 984332202 Datasheet
F3322 backside
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Process Plant ESD Systems: Triggers emergency shutdown valves and alarm beacons in refinery and chemical plant safety interlock loops.
- Boiler Protection Systems: Cuts fuel supply to industrial boilers within 20ms if flame loss or overpressure conditions are detected.
- Conveyor Safety Interlocks: Stops bulk material handling conveyors immediately when emergency pull cords are activated across long mine or port lines.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect non-safety rated field devices directly to these outputs. The second terminal block from the left carries SIL 3 rated signal paths that will lose safety certification if paired with unapproved third-party relays.
- ⚠️ Bold Warning 2: Firmware revision mismatch will lock all outputs in a safe state. This unit requires HIMax system firmware v9.1 or newer; it will not boot on v8.x racks.
- ⚠️ Bold Warning 3: ESD damage to the onboard safety watchdog chip is invisible until a real emergency event occurs. Always ground your wrist strap before touching the gold backplane connector pins.
A chemical plant maintenance team once swapped a F3322 unit without checking rack firmware compatibility. The module locked all 16 outputs in the safe off state on power-up, triggering a full plant ESD that lasted 2 hours. No one caught the firmware version mismatch until they pulled the system diagnostic log.

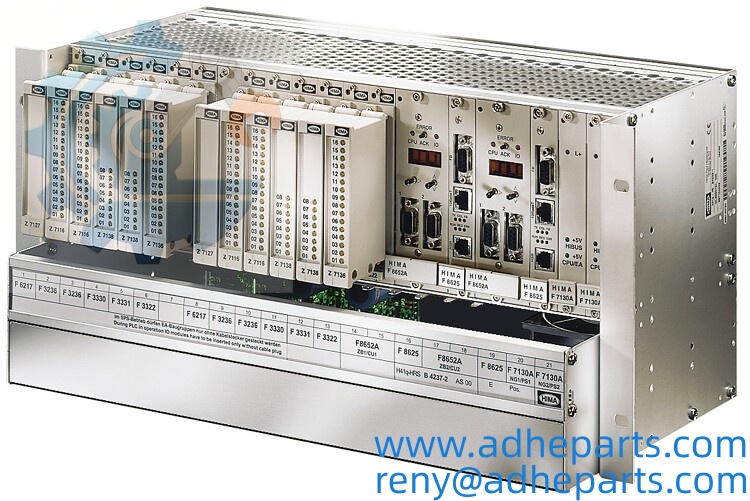

HIMA Module System
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against HIMA’s official part registry, run anti-counterfeit UV verification on the housing hologram, and confirm no bent pins on the backplane connector.
- Live Rig Testing: Seat the unit in a certified HIMax test rack, apply 24V DC power, and confirm full SafetyBus p handshake and all 16 channel toggle operations for 2 continuous hours.
- Parameter Testing: Perform 500V insulation resistance testing between all output channels and ground, verify per-channel 0.5A load output accuracy stays within ±2% of rated value.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, apply a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

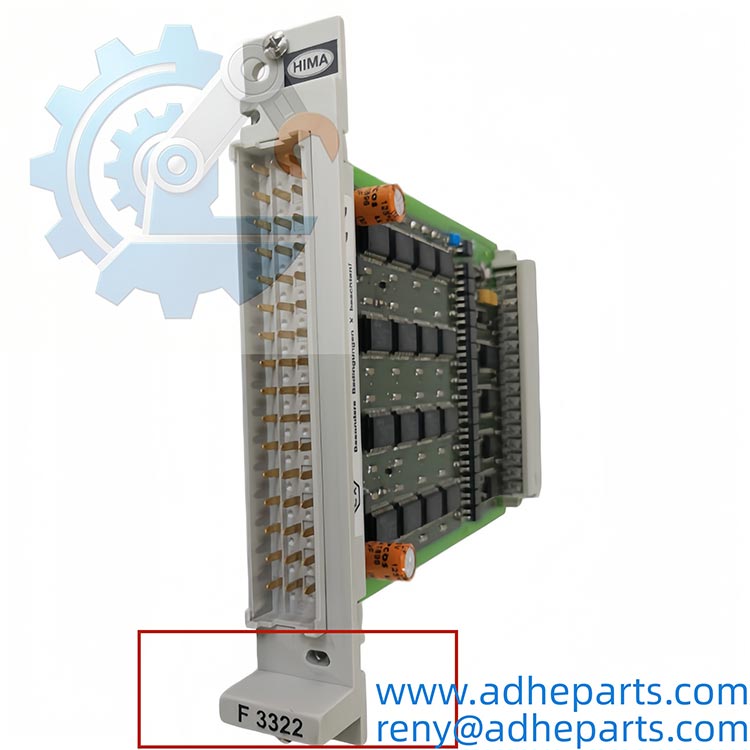

F3322 front
Frequently Asked Questions (FAQ)
- Can I hot-swap this module without disabling the safety rack? Yes, but you must confirm the HIMax system is configured for redundant I/O operation first. Non-redundant setups will trigger a safety loop fault when you pull the unit.
- What exact HIMA systems is this module compatible with? It works natively with all HIMax safety PLC racks. It will not operate in older HIMatrix systems without a custom OEM firmware patch.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine HIMA F3322 units have a laser-etched part number on the side of the housing, not a printed sticker. Clone units almost always fail the SIL 3 watchdog response speed test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official HIMA calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older F3222 8-channel output unit? Well, technically it fits the same rack slot, but you will need to reassign all 8 existing output points and reconfigure the remaining 8 unused channels in the safety logic software.
