Foxboro FBM230 P0926GU | 4-Port Serial Communication Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

The FBM230 P0926GU is a Foxboro I/A Series Field Device System Integrator Module. It provides four independent serial ports for connecting single-ported field devices to the control system. Schneider Electric’s current Foxboro documentation identifies P0926GU as the module part number and specifies four serial ports.

This is not a conventional analog or digital I/O module. Its job is communication and data integration: field-device data is collected through serial interfaces, processed using downloadable device drivers, and transferred into the Foxboro control database through the module fieldbus.

Key Technical Specifications

The official Foxboro documentation specifies communication with associated FCM100ET, FCM100E, FCP270, or FCP280 controllers through a redundant 2 Mbps module fieldbus. The module can communicate with up to 64 RS-485 devices, or up to four directly connected RS-232/RS-422 devices.

The physical module is approximately 102 mm high × 45 mm wide × 104 mm deep, with a mass of approximately 284 g. It mounts on a modular baseplate, which can be installed horizontally or vertically on DIN rail or horizontally in a 19-inch rack using the appropriate mounting hardware.

Product Introduction (Anti-Template)

When a plant needs to bring data from intelligent field instruments or third-party serial devices into an existing Foxboro DCS, the FBM230 P0926GU acts as the communication bridge. Its four serial ports can be configured for RS-232, RS-422, or RS-485 applications, while downloadable software drivers allow the module to handle different field-device communication requirements.

The important distinction is that the FBM230 does not simply convert one electrical signal into another. It performs field-device data integration and passes the resulting information into the Foxboro control database. With up to 64 RS-485 devices supported under the documented configuration, one module can replace a surprisingly large collection of point-to-point serial interfaces.

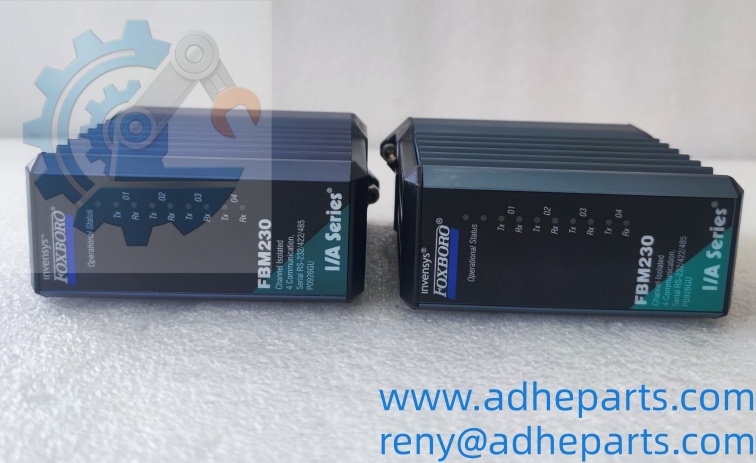

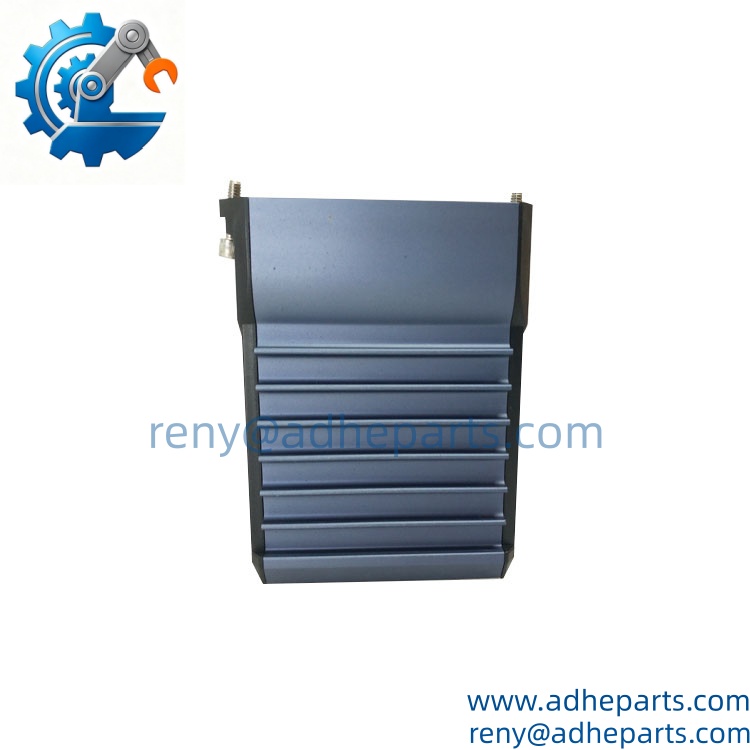

FOXBORO-FBM230-P0926GU sideview

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete identification: FBM230 / P0926GU. Check the nameplate, serial number, hardware revision, connectors, enclosure, mounting interface, and PCB condition.
2. Termination Assembly Verification

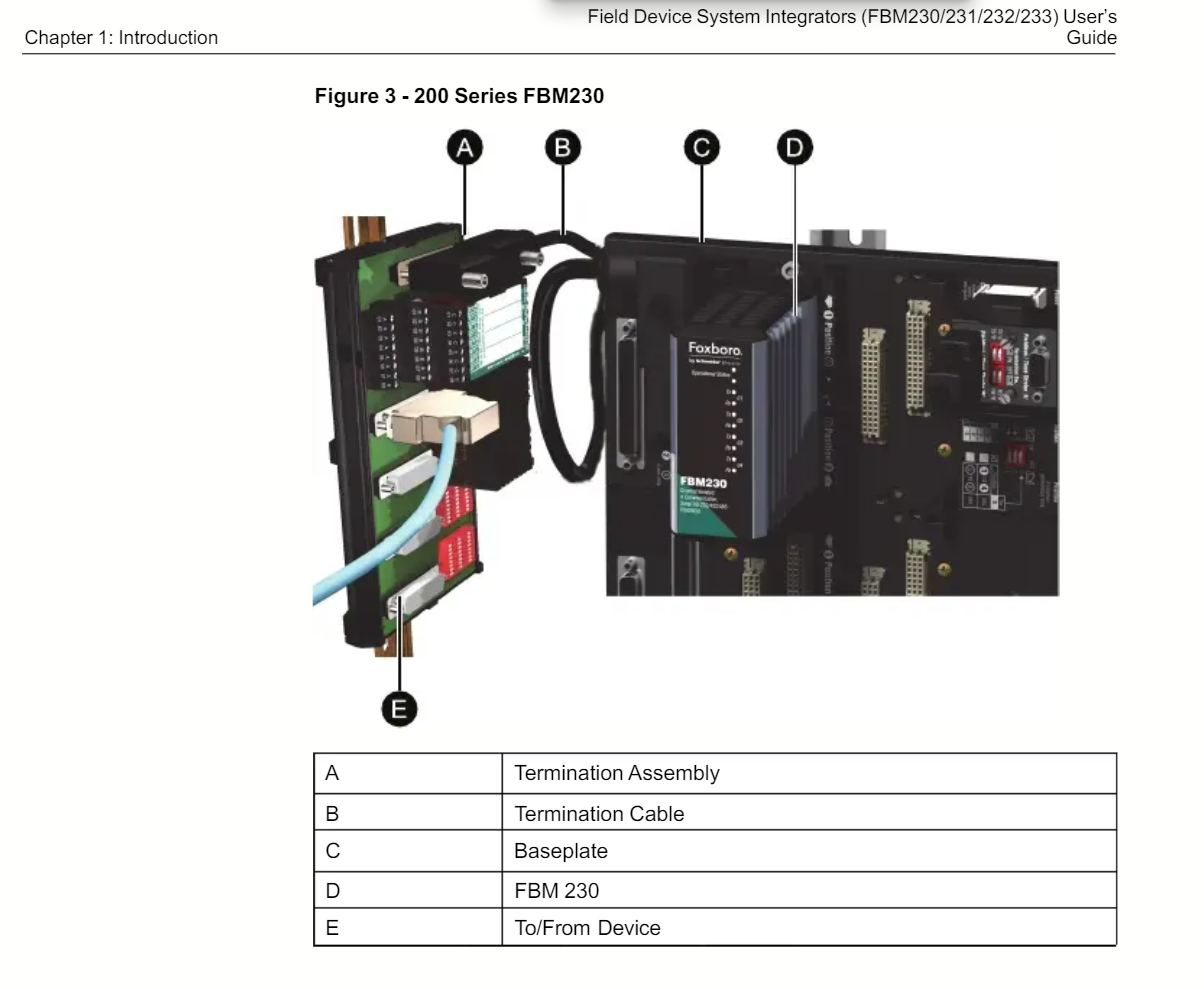

   The FBM230 works with a dedicated termination assembly. Foxboro documentation identifies P0926PA as the ring-lug termination assembly and RH926GH as the compression-screw termination assembly. Confirm which arrangement the customer’s existing installation uses.
3. Live Rig Testing
   On a compatible Foxboro test setup, verify power-up, module diagnostics, serial-port communication, RS-232/422/485 operation, module-fieldbus communication, and data exchange with a representative field device.
4. Protocol & Driver Verification
   Record the customer’s existing serial protocol and downloadable I/O driver configuration before replacing the module. A new may power up normally while still failing to communicate if the field-device driver or communication parameters are incorrect.
5. QA & Anti-Static Packaging
   Use ESD protection during handling. Protect the backplane connection and terminal interface from mechanical impact. The module should remain immobilized in anti-static packaging during transportation.
6. Global Logistics & Export Compliance
   Export documentation should identify the item as a Foxboro P0926GU Field Device System Integrator Module. HS classification should be reviewed according to the actual communication-module function and destination customs requirements. For urgent DCS maintenance, air freight is generally the practical option; secure packaging should be used for both air and sea freight.

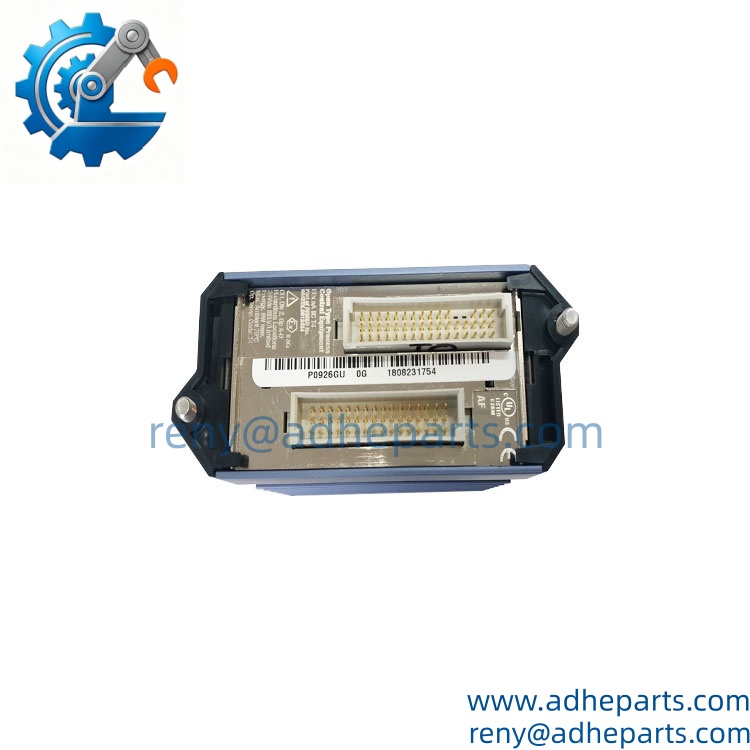

FOXBORO-FBM230-P0926GU backside

Technical Pitfalls & Integration Warnings

1. RS-232 / RS-422 / RS-485 Configuration Error
   The four ports are configurable, but the physical wiring and software configuration must agree. For example, connecting an RS-485 field device to a port configured for RS-232 will not be solved by simply changing the cable.
2. Termination Assembly Mismatch
   The module and termination assembly form part of the installation. If the customer requests only P0926GU, verify whether they already have the correct TA and cable arrangement. Foxboro identifies P0926PA and RH926GH as associated termination components.
3. Driver / Protocol Mismatch
   The relies on downloadable software drivers for field-device integration. A replacement module may be electrically healthy but fail to exchange meaningful data if the driver, baud rate, parity, address, or protocol settings do not match the original configuration.
4. ESD During Unboxing
   Do not handle the exposed electronics immediately after opening the package. Ground the technician and follow the site’s ESD procedure before removing the module from its protective packaging.

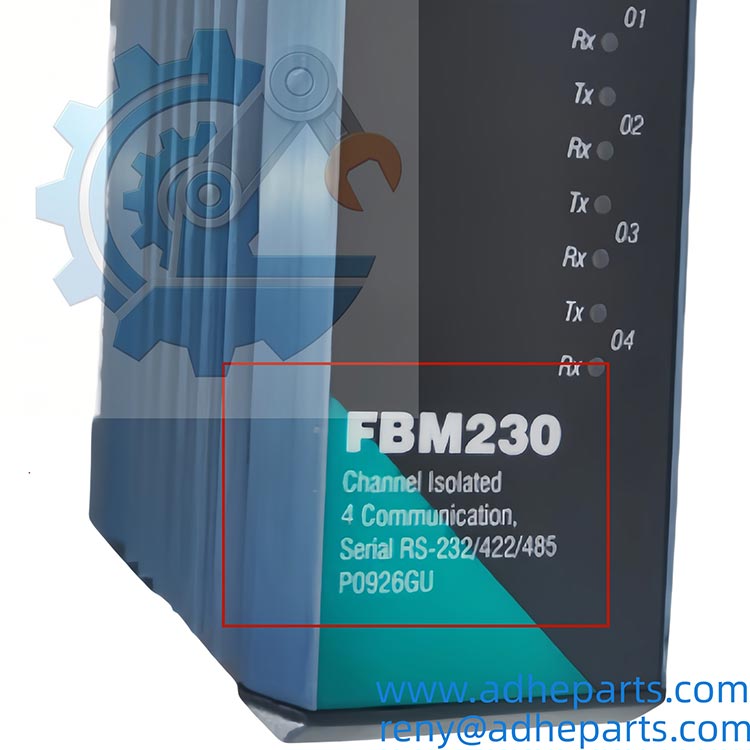

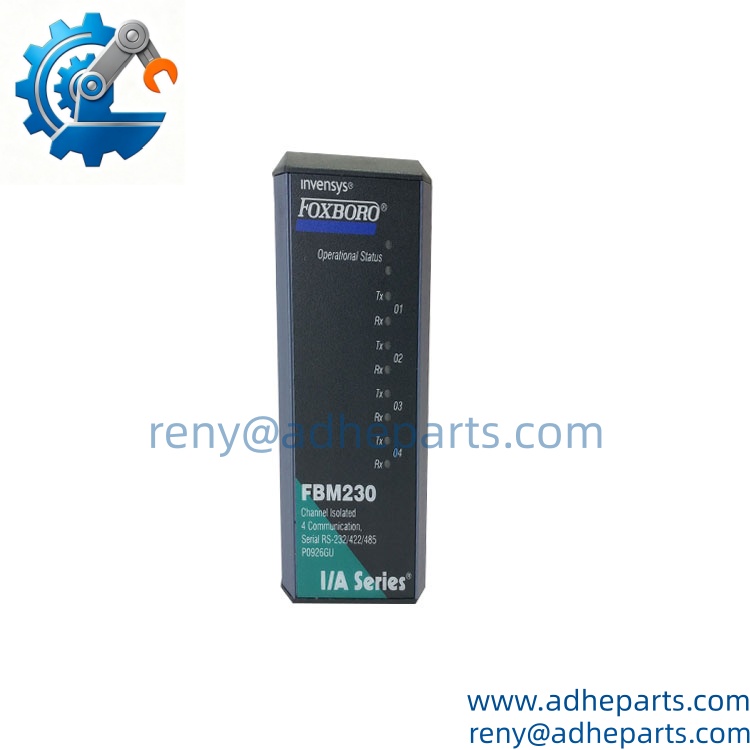

FOXBORO-FBM230-P0926GU front

Frequently Asked Questions (FAQ)

Q1: “What exactly is the Foxboro P0926GU?”

It is a Field Device System Integrator Module for the Foxboro I/A Series. Its primary purpose is to connect serial field devices to the Foxboro control system and integrate their data into the control database.

Q2: “How many serial devices can one handle?”

That depends on the interface arrangement:

• Up to 64 RS-485 devices
• Up to 4 directly connected RS-232/RS-422 devices
• Up to 2,000 DCI block connections

These figures are configuration-dependent and should not be interpreted as 64 devices on every possible port arrangement.

Q3: Which serial interfaces does it support?

The four ports support RS-232, RS-422, and RS-485, with the communication interface selected/configured according to the application.

Q4: “What controllers can the communicate with?”

Foxboro documentation identifies the module as communicating through the redundant 2 Mbps module fieldbus with associated FCM100ET, FCM100E, FCP270, and FCP280 equipment.

Q5: Can I hot-swap the ?

Do not assume that live replacement is acceptable simply because the is a modular fieldbus component. Follow the approved Foxboro maintenance procedure and determine whether the affected field devices and control loops can remain in service during replacement.

Q6: “What if the replacement powers on but the field device does not communicate?”

Check the communication configuration before declaring the module defective:

• RS-232 / RS-422 / RS-485 selection
• Baud rate
• Parity
• Stop bits
• Device address
• Protocol/driver
• Termination and cable wiring
• Field-device power
• Module-fieldbus communication

This is a classic troubleshooting situation: a healthy module can still show no useful field data when the serial configuration is wrong.

Q7: What should I provide when ordering P0926GU?

Please send:

• nameplate photo
• Complete part number:
• Hardware revision
• Existing termination assembly number
• Field-device model
• Serial protocol
• RS-232, RS-422, or RS-485 configuration
• Existing controller model
• Quantity required
• Destination country
• Required delivery date

For this part, I would especially request a photo of the module plus the termination assembly. That gives procurement enough information to distinguish the itself from the associated TA, cable, and field-device communication configuration.
