Product Overview
The HIMA F3236 is a safety‑certified 16‑channel digital input module for HIMatrix safety PLC systems. It acquires discrete status signals from field devices including potential‑free dry contacts and 6 mA current‑loop sensors, transmits safety‑validated data to the safety controller via internal system backplane bus. Each channel supports wire‑break diagnostics for field wiring fault detection. Equipped with per‑channel LED status indicators, hot‑swap function allows online replacement without system shutdown. Widely deployed as spare replacement for existing ESD, F&G and burner management safety installations in process plants.

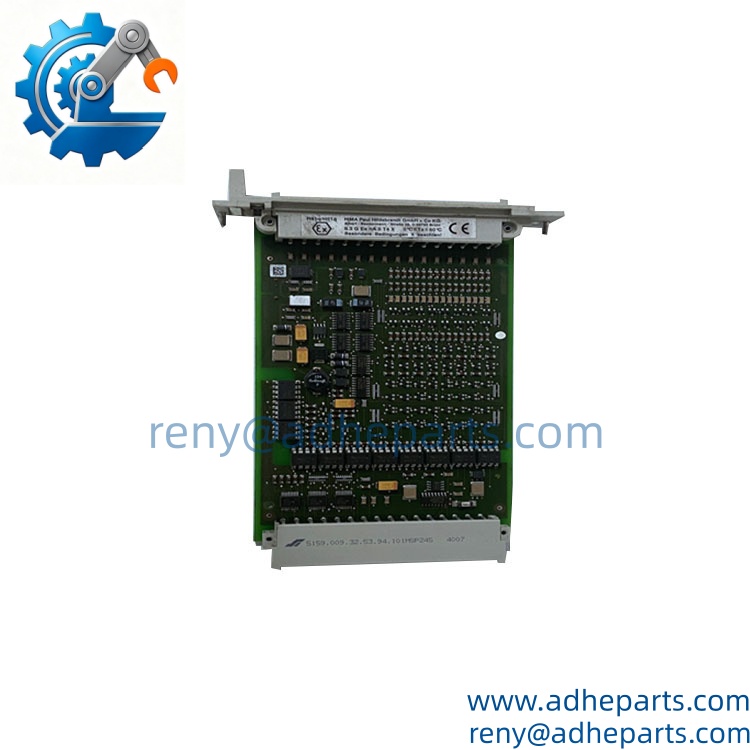

F3236 sideview
Series
F3236 belongs to HIMA HIMatrix F‑series safety I/O portfolio. Matching system hardware includes HIMatrix F3 controllers, compatible rack base units and safety backplane bus.
Product Features
- 16 independent galvanically isolated digital input channels
- Dual‑mode input support: dry contact / 6 mA current‑loop signal
- SIL 3 safety integrity level certified per IEC 61508, TÜV approved
- Per‑channel wire‑break diagnostic function to detect open‑circuit field wiring faults
- Front‑panel LED indicators for individual channel status and module health
- Hot‑swap capability for online maintenance and module replacement
- 1500 VAC isolation rating between field side and controller backplane bus
- Typical response time 8 ms for fast safety signal acquisition
- Digital input filtering suppresses electromagnetic interference and nuisance trips
- Compact 4TE width for high‑density rack‑mount installation in safety cabinets
Product Parameters
| Item | Parameter |
|---|---|
| Model | F3236 |
| Channel Quantity | 16 isolated digital input channels |
| Input Signal Type | Dry contact, 6 mA current‑loop |
| Field Supply Voltage | 24 VDC |
| Backplane Power | 5 VDC @120 mA; 24 VDC @200 mA |
| Isolation | 1500 VAC field‑to‑backplane isolation |
| Typical Response Time | 8 ms |
| Form Factor | 4TE rack‑mount module |
| Operating Temperature | ‑20 °C ~ +60 °C |
| Certification | SIL 3 IEC 61508, TÜV, ATEX II 3G Ex nA IIC T4 Gc |
| Hot‑Swap | Supported |
To learn more about this product click on the file below or download the file:
Product Specifications
- System Compatibility: HIMA HIMatrix F3 safety controller platform
- Diagnostic: Channel‑level wire‑break detection, module self‑diagnostics
- Mounting: Standard 19‑inch rack installation
- Environment: Indoor safety instrumented system cabinet installation
- Safety standard: IEC 61508, IEC 61511 for process safety applications
Image search keyword: HIMA F3236 HIMatrix 16‑channel SIL3 safety digital input module

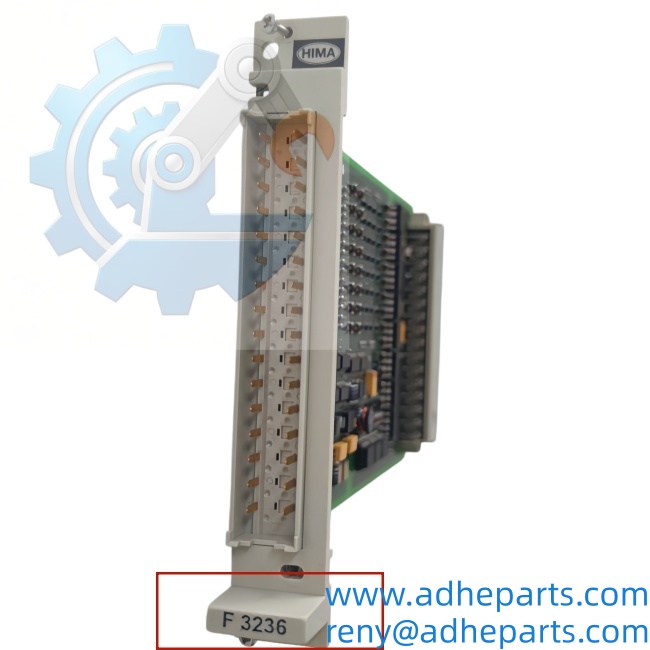

F3236 front

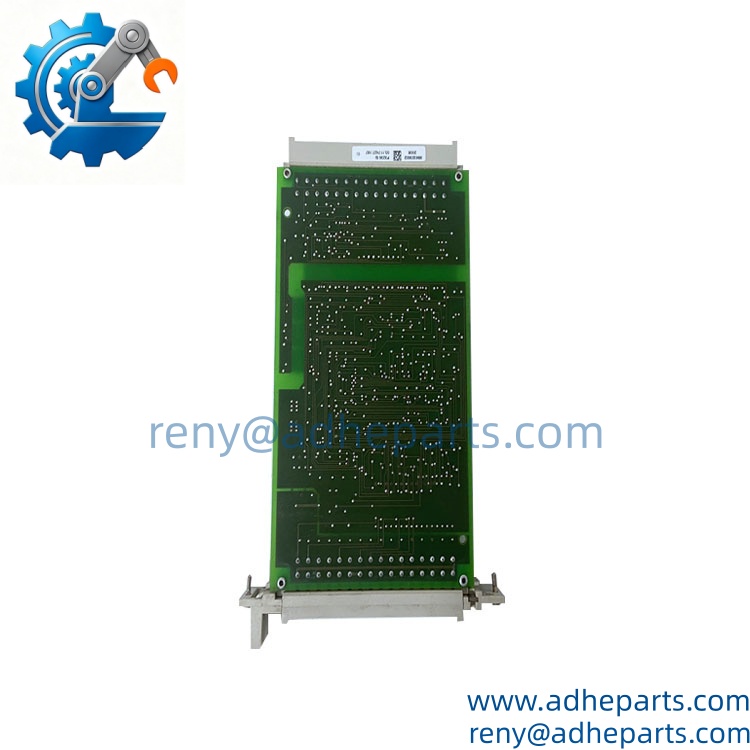

F3236 backside
Functions
- Collect discrete on/off status signals from field safety switches, push‑buttons and sensors
- Accept both dry contact and 6 mA current‑loop input signals for different field device types
- Detect broken field wiring via wire‑break monitoring function
- Transmit safety‑validated input status to HIMatrix safety controller over backplane bus
- Visualize channel status via front‑panel LED indicators for local troubleshooting
- Support hot‑swap replacement to minimize safety‑system downtime during maintenance
Purpose
Serve as safety‑grade digital input interface between field safety devices and HIMatrix SIS controllers; gather critical safety‑related discrete signals for ESD, fire‑gas and burner‑management systems.
Application Fields
- Process industry Safety Instrumented System (SIS) cabinets
- Emergency Shutdown (ESD) safety control systems
- Fire and Gas (F&G) monitoring systems
- Burner Management System (BMS) safety logic panels
- Petrochemical, chemical and power plant safety automation
- Retrofit and spare‑part replacement for existing HIMatrix F‑series installations
