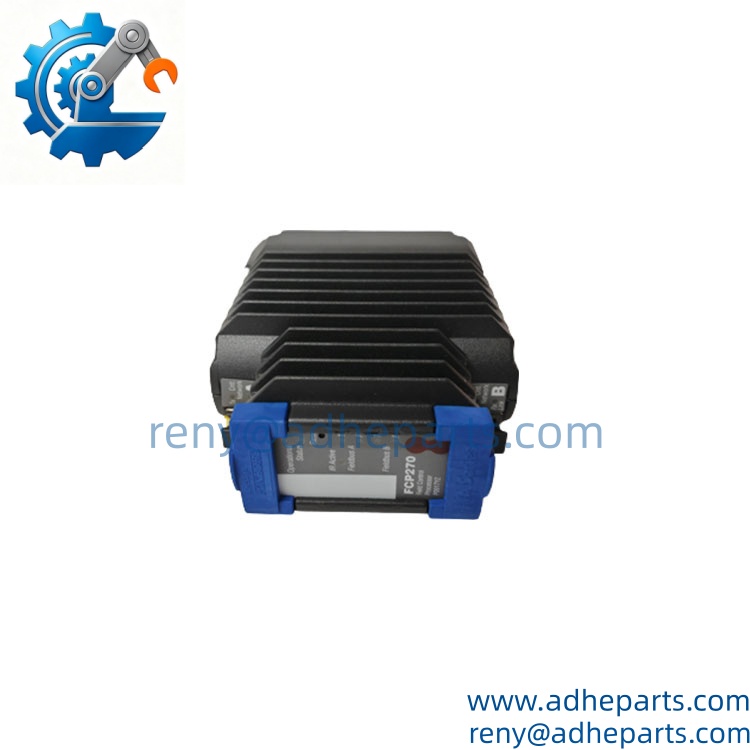

Foxboro FCP270 | 24 VDC Field Control Processor

Description

The FCP270 P0917YZ is a Field Control Processor used in Foxboro I/A Series and Foxboro Evo distributed control architectures. It performs regulatory and sequential control, data acquisition, and alarm processing while communicating with connected Fieldbus Modules.

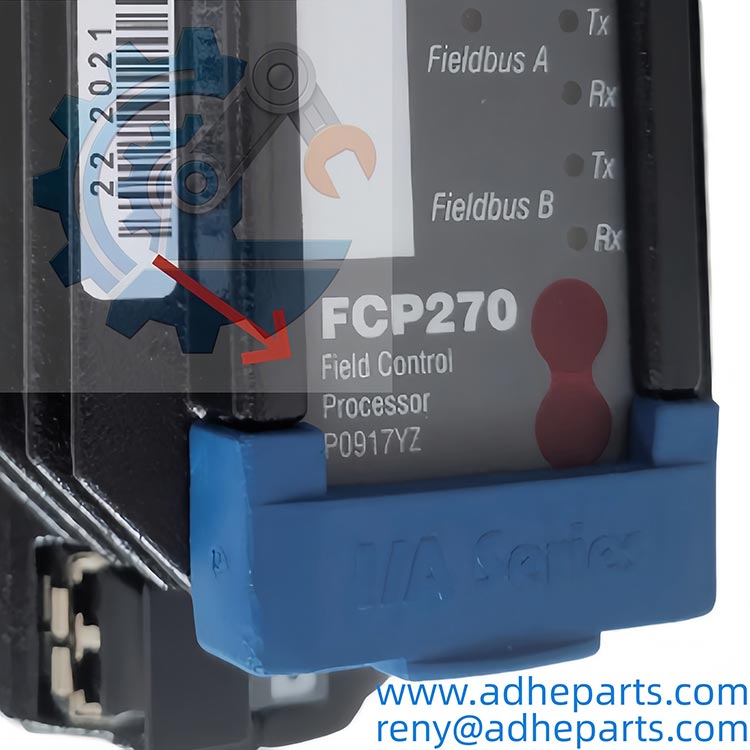

FCP270-P0917YZ label

Key Technical Specifications

The FCP270 connects to the control network through 100 Mbps Ethernet and can communicate with both 100 Series and 200 Series Fieldbus Modules through the appropriate fieldbus interface architecture.

For fault-tolerant operation, two FCP270 processor modules are installed in adjacent supported positions with an interconnecting fault-tolerant connector. This allows one processor to take over if the active processor encounters a fault.

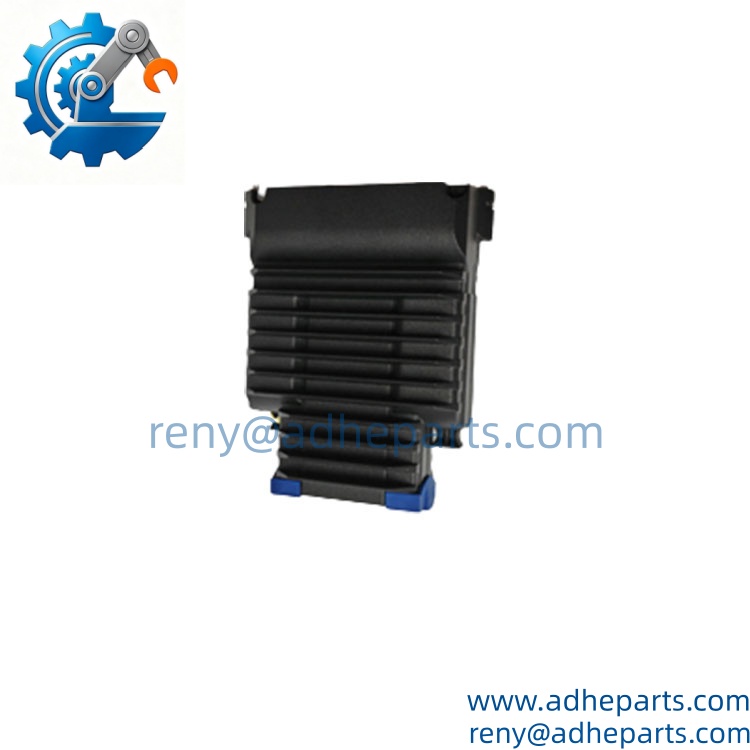

FCP270-P0917YZ sideview

Product Introduction (Anti-Template)

Operating as the control processor at the field level, the Foxboro FCP270 P0917YZ handles the actual execution of process-control strategies rather than simply passing I/O data. It performs regulatory, logic, timing, and sequential control, while also handling data acquisition and alarm detection for connected Fieldbus Modules.

The processor is designed for distributed installations where the controller needs to remain close to the field equipment. Its 100 Mbps Ethernet connection links the FCP270 with the higher-level control network, while the fieldbus side communicates with the associated FBM architecture. The fault-tolerant version uses two processor modules—useful when a controller failure cannot be allowed to stop the process.

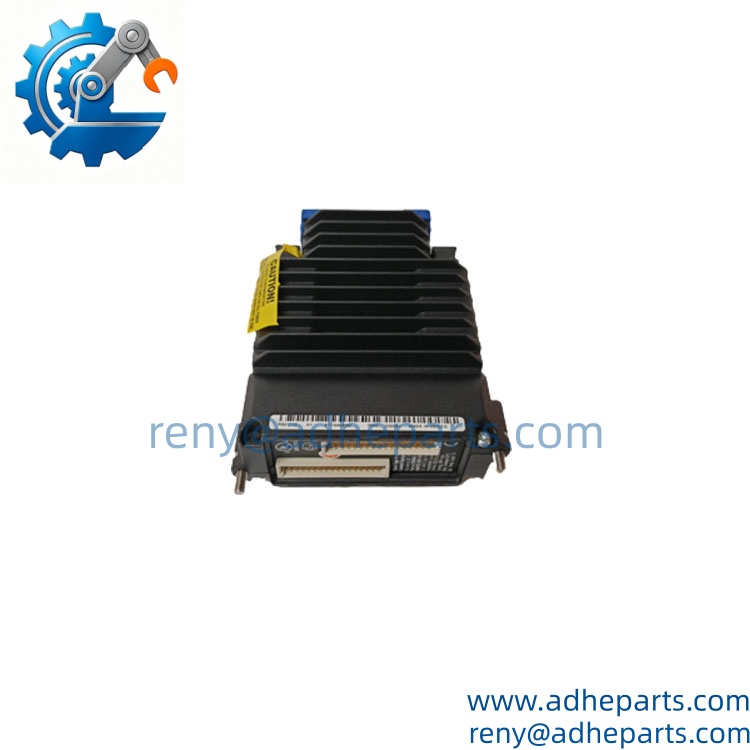

FCP270-P0917YZ backside

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the complete identification: .
   • Check the product label, serial number, hardware revision, and manufacturing markings.
   • Inspect the housing, connectors, mounting interface, and visible PCB areas.
   • Verify the customer’s existing I/A Series or Foxboro Evo architecture.
   • Confirm the installed baseplate and associated FBM communication hardware.
2. Live Rig Testing
   • Apply the specified 24 VDC supply under controlled conditions.
   • Verify processor startup and diagnostic behavior.
   • Check Ethernet communication where compatible test equipment is available.
   • Verify processor-to-fieldbus communication.
   • Confirm memory initialization and normal execution status.
   • For redundant applications, verify processor synchronization and controlled failover where the test environment permits.
   • Record test results against the module’s serial number.
3. QA & Anti-Static Packaging
   • Photograph the part number and serial label before packing.
   • Handle the processor using ESD precautions.
   • Place the module in an anti-static bag.
   • Protect all connectors against impact and contamination.
   • Use rigid internal cushioning because the processor contains both electronic circuitry and field communication interfaces.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Describe the item accurately as an industrial DCS field control processor.
   • Air freight is practical for a single processor weighing approximately 0.6 kg.
   • Use ESD-safe, moisture-resistant packaging for air or sea freight.
   • Confirm the final customs classification against the destination country’s tariff requirements before declaration.

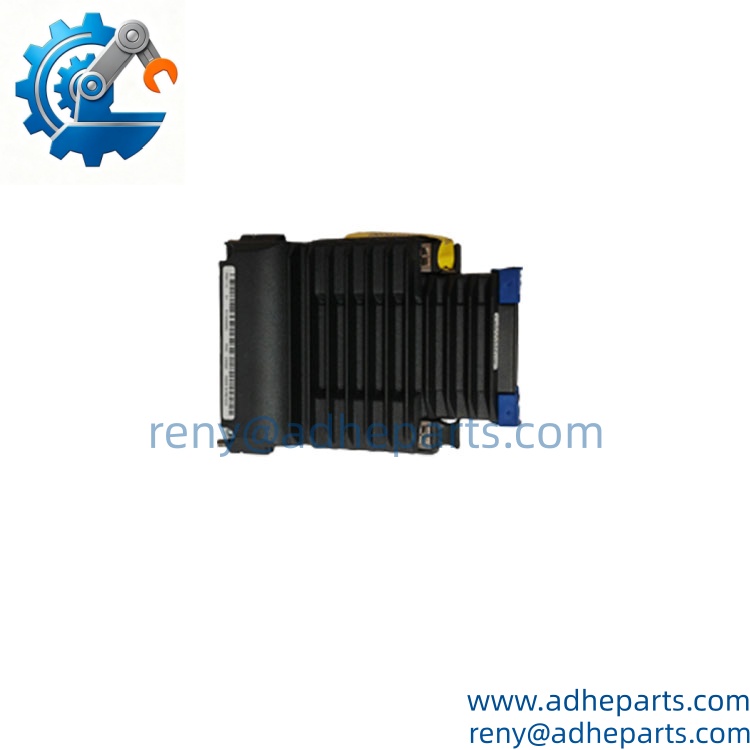

FCP270-P0917YZ sideview

Technical Pitfalls & Integration Warnings

1. Firmware and Software Compatibility

Do not assume that two modules with the same base part number will behave identically in every legacy installation. The processor is tightly coupled to the installed I/A Series or Foxboro Evo software environment.

A practical example: a replacement processor powers up normally but fails to join the existing control environment because its software or firmware revision is outside the supported range. Check the existing system version before purchasing a replacement.

2. Fault-Tolerant Pairing

The fault-tolerant arrangement uses two processor modules installed in adjacent supported positions with a dedicated interconnection through the baseplate.

Replacing only one processor in a redundant pair requires more attention than replacing a standalone controller. Processor compatibility, software configuration, synchronization, and the existing active/standby state should all be verified.

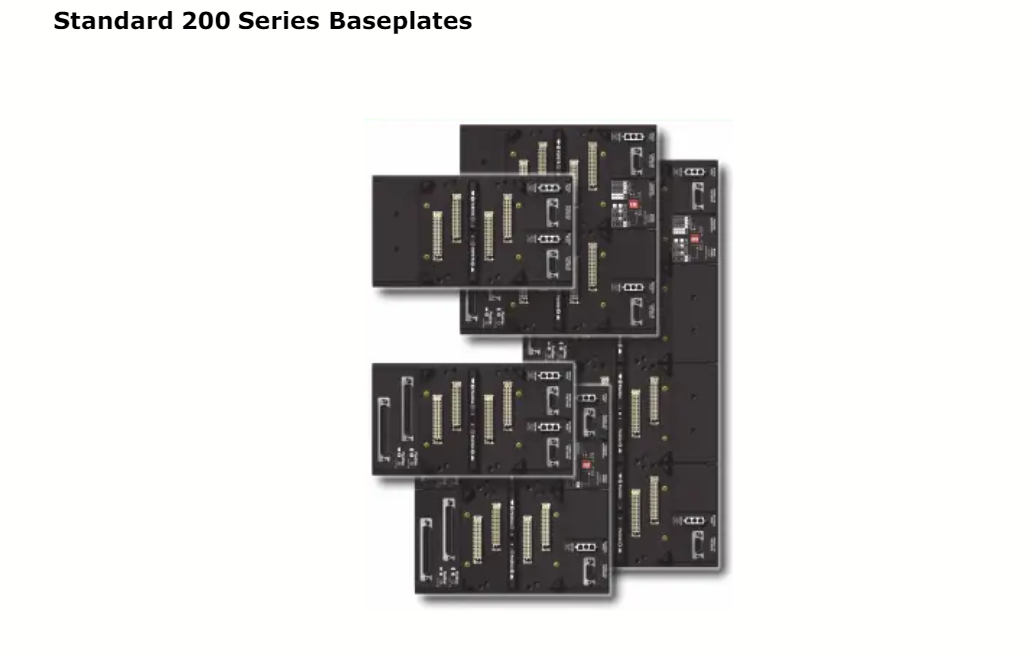

3. Baseplate and Fieldbus Architecture

The is not a standalone generic PLC CPU. Its installation depends on the associated Foxboro baseplate, fieldbus interface, and FBM architecture.

If the customer’s existing system uses a specific FBI/FEM arrangement, confirm that configuration before substituting another processor generation. A visually similar processor is not automatically a plug-compatible replacement.

4. ESD During Installation

A field processor can survive years inside a control cabinet and then fail because of one careless handling operation. Keep the in ESD-safe packaging until installation, and avoid touching exposed connector contacts.

Honestly, with legacy DCS processors, the installation environment is often more important than the physical condition of the card itself.

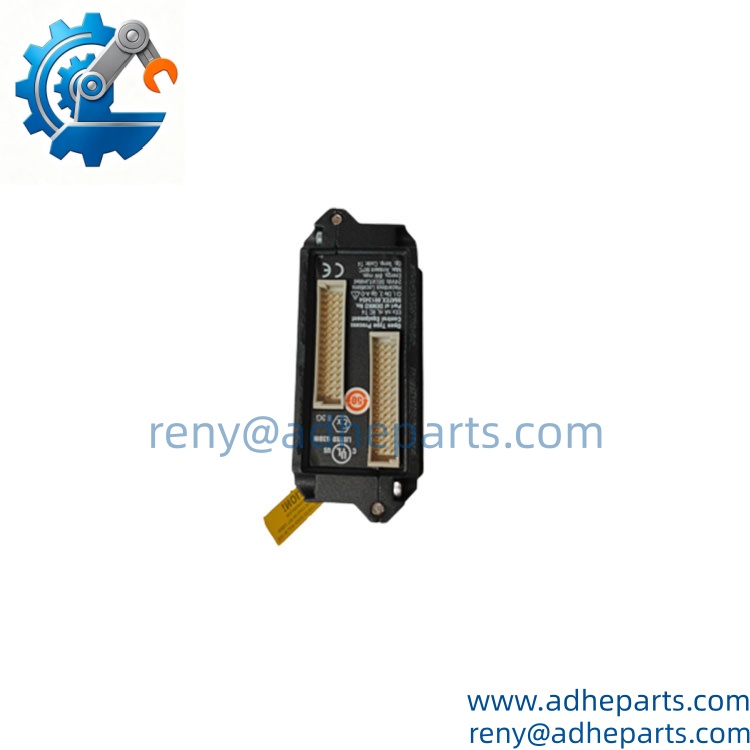

FCP270-P0917YZ backside

Frequently Asked Questions (FAQ)

Q1: What is the Foxboro P0917YZ?

The is a Field Control Processor for Foxboro I/A Series and Evo DCS architectures. It executes regulatory, logic, timing, and sequential control and also performs data acquisition and alarm processing.

Q2: What voltage does the require?

The published specification identifies 24 VDC typical input voltage. Power consumption for a non-fault-tolerant module is specified at a maximum of approximately 8.5 W.

Q3: Can the support redundant operation?

Yes. The fault-tolerant configuration uses two processor modules installed in adjacent supported positions with a fault-tolerant interconnection.

Q4: How many FBMs can one support?

The published information identifies support for up to 32 of the 200 Series FBMs. With an FEM100, the architecture can support up to 128 200 Series FBMs, while up to 64 100 Series FBMs can also be supported.

Q5: Is the compatible with every Foxboro I/A Series system?

Not automatically. The processor needs to be matched to the installed system generation, software environment, baseplate, fieldbus architecture, and configuration. Before ordering, provide the existing processor photograph, hardware revision, system software version, and baseplate information.

Q6: Can I hot-swap the ?

Do not treat the as an ordinary plug-in I/O card. Replacement procedures depend on the particular baseplate, redundant configuration, and maintenance state of the DCS. If the processor is controlling an operating process, follow the site’s approved processor replacement and failover procedure.

Q7: What is the approximate size and weight?

Published product information gives approximately 147 × 51.5 × 114 mm and a net weight of approximately 0.6 kg.

Q8: What information should I provide when ordering an replacement?

Foxboro System

For an accurate compatibility check, provide:

• P0917YZ
• Photograph of the existing processor label
• Hardware revision
• I/A Series or Foxboro Evo software version
• Baseplate model
• Existing fieldbus interface
• Whether the system is standalone or fault-tolerant
• Current diagnostic or communication fault

For an operating DCS, matching the software and system architecture is just as important as matching P0917YZ.
