HIMA F6705 | 12-Bit Analog Output Module

Description

HIMA’s official revision documentation identifies the F6705 as a 2-channel analog output module for H41q/H51q safety systems, with approved revisions including Rev. 04 and Rev. 05.

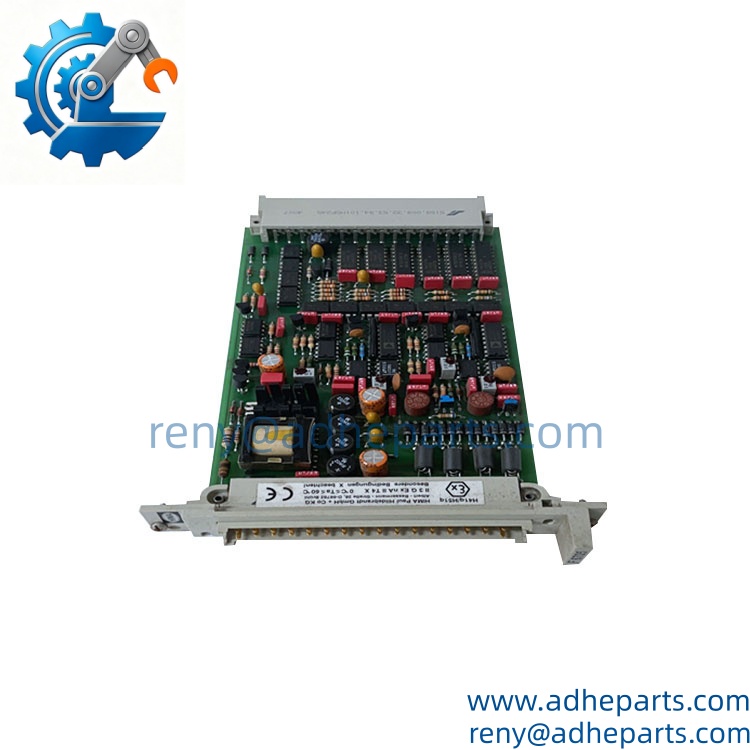

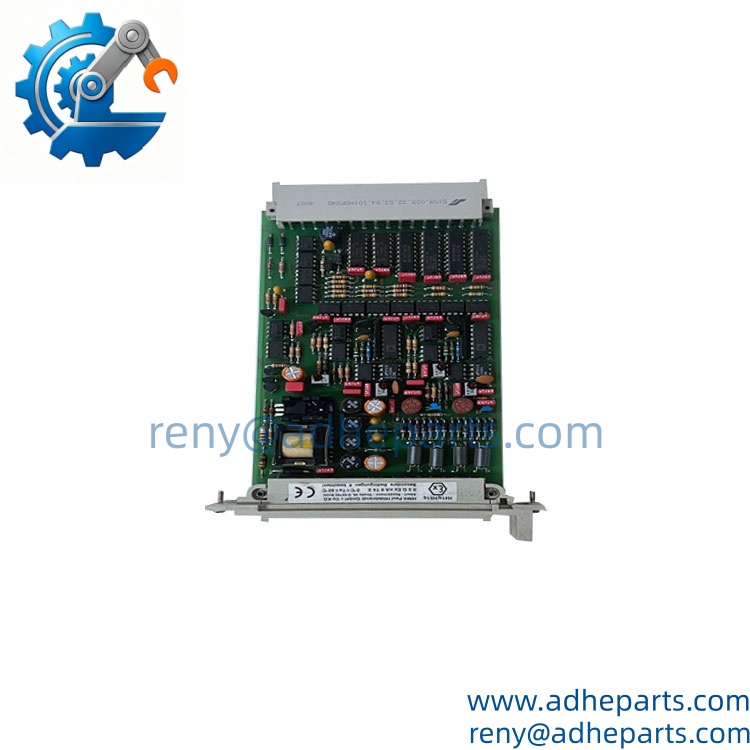

F6705 sideview

Key Technical Specifications

HIMA’s own certification material lists the F6705 as a 2-fold analog output module, safety related, while HIMA’s published system information associates it with SIL 3 / AK 6 applications.

The technical data specifies 12-bit resolution, 0/4–20 mA outputs, galvanic isolation, and source/sink operating modes. The source-mode burden can reach 550 Ω, including line resistance, which should be considered when checking the receiving device and cable run.

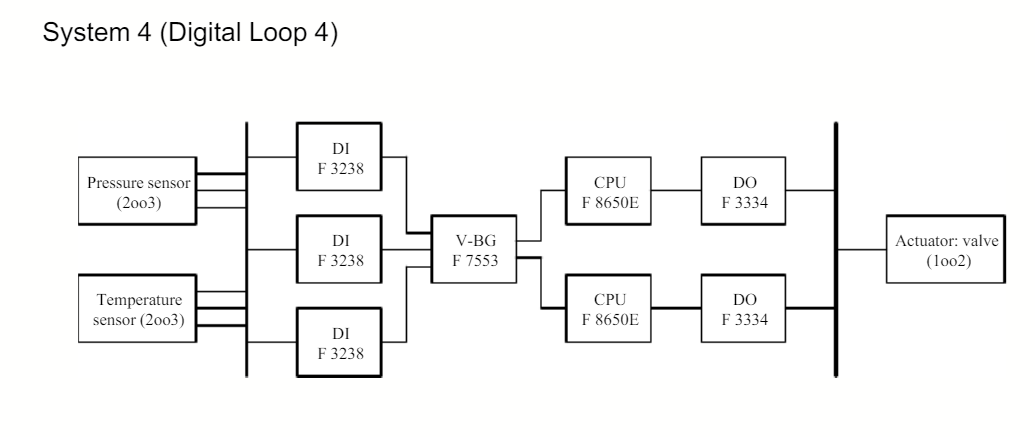

Other Products in HIMA Safety System

HIMA F6217 8‑Channel SIL3 Safety‑Related Analog Input Module

HIMA F3322 984332202 | HIMax Safety System Certified Digital Output Module

HIMA F3236 16‑Channel SIL3 Safety Digital Input Module

Product Introduction (Anti-Template)

When a safety controller has to regulate a valve, actuator, or other analog field device, the HIMA F6705 converts the controller’s internal digital command into a safety-related analog current signal. It provides two independent 0/4–20 mA outputs and is designed for safety applications within HIMA H41q/H51q systems. HIMA documentation identifies the module as a safety-related device with approved hardware revisions.

The electrical details matter here. A 20 mA output is not simply a generic analog signal—the permitted burden, line resistance, source/sink configuration, and safety shutdown behavior all affect the installation. Honestly, checking the field-loop wiring before replacing the card can prevent a perfectly good F6705 from being blamed for a problem elsewhere in the loop.

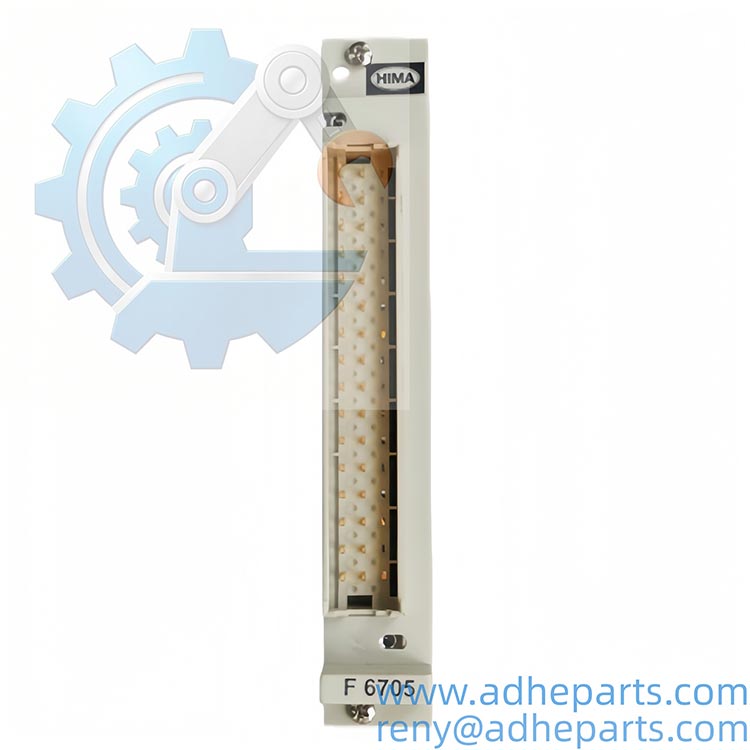

F6705 front

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete F6705 identification, hardware revision, serial number, front-panel markings, terminal condition, and PCB condition. HIMA’s revision documentation lists Rev. 04 and Rev. 05 as approved versions, so the revision should be recorded during procurement.
2. Live Rig Testing
   On a compatible HIMA H41q/H51q test configuration, verify power-up, module diagnostics, both analog output channels, source/sink operation where applicable, output accuracy, and safety shutdown behavior. A simple LED or power-on check is not enough for a safety-related analog module.
3. QA & Anti-Static Packaging
   Handle the using ESD precautions. Protect the connector and terminal area from impact and contamination. The module should be secured inside anti-static packaging with enough internal cushioning to prevent movement during transportation.
4. Global Logistics & Export Compliance
   Export documentation should identify the item accurately as a HIMA 2-Channel Safety-Related Analog Output Module. HS classification should be reviewed according to the actual product function and destination customs requirements. For urgent plant maintenance, air freight is generally preferable; reinforced packaging helps prevent connector damage during air or sea transportation.

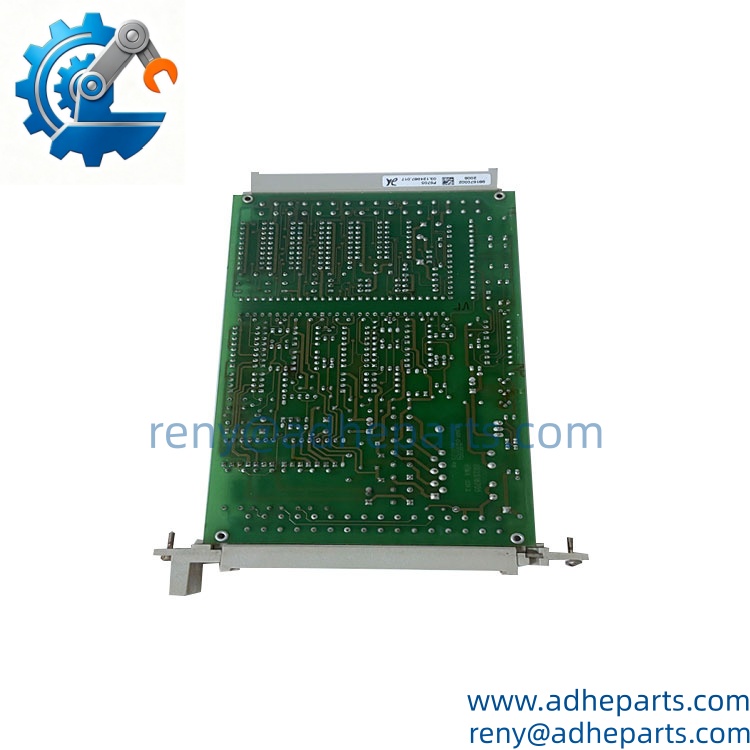

F6705 backside

Technical Pitfalls & Integration Warnings

1. Hardware Revision Mismatch
   Do not treat every revision as automatically identical for a safety-certified installation. HIMA’s official documentation lists specific approved revisions, including Rev. 04 and Rev. 05. Match the replacement against the installed hardware and the application’s certified configuration.
2. Source vs. Sink Configuration
   The supports source and sink operating modes, but the external circuit must be wired accordingly. A field loop designed for one mode cannot simply be connected to the other without checking the circuit design and available supply voltage.
3. Excessive Loop Burden
   The documented source-mode burden is up to 550 Ω, including line resistance. Consider the receiving device, cable length, barriers, and other loop components. If the total burden is too high, the output may fail to reach the expected current range.
4. Safety-System Replacement Procedure
   This is a safety-related I/O module. Do not remove or insert it casually while the safety system is active. Follow the approved maintenance, bypass, and proof-test procedure for the specific HIMA installation. A wiring mistake on an analog output can affect a field actuator directly.

Frequently Asked Questions (FAQ)

Q1: “What exactly is the HIMA ?”

The is a 2-channel safety-related analog output module. It converts digital controller values into 0/4–20 mA signals for process and safety-related field devices. HIMA classifies it as a safety-related output module.

Q2: How many analog outputs are available?

There are two independent analog output channels. The outputs support 0/4–20 mA operation.

Q3: “What is the resolution?”

The uses 12-bit resolution, equivalent to 4,095 discrete steps. The documented basic error is ≤0.2% at 25°C, with an operating error of ≤0.4% over 0 to +60°C.

Q4: Can it operate as a source or sink output?

Yes. The module supports both source and sink configurations, but the external circuit and supply arrangement must be compatible with the selected mode. In source mode, the specified burden is up to 550 Ω including line resistance.

Q5: “Is the SIL 3 rated?”

HIMA’s published safety documentation identifies the as a safety-related 2-channel analog output module, with SIL 3 / AK 6 classification in the applicable system documentation. The actual safety claim for a plant application depends on the complete certified architecture and application configuration.

Q6: Can I hot-swap the ?

Do not assume that it is safe to hot-swap the module merely because it is a plug-in I/O card. For a safety-related output, replacement must follow the approved HIMA maintenance procedure and the site’s safety-management requirements. Confirm the system state before removing the existing module.

Q7: “What should I send before ordering a replacement?”

Please provide:

• nameplate photo
• Hardware revision
• Serial number
• Existing HIMA system model
• Current output wiring
• Source or sink configuration
• Field device being controlled
• Required output range
• Quantity required
• Destination country
• Required delivery date

For an replacement, the hardware revision and output-loop configuration are particularly important. HIMA’s official documentation identifies specific approved revisions, so matching only the basic “” designation is not enough for a safety-critical replacement.
