Product Overview
The HIMA F6217 is an 8‑channel safety‑certified analog input module for HIMA HIQuad H41q‑H and H51q‑H safety PLC racks. It receives analog current and voltage signals from field transmitters for pressure, temperature, flow and level measurements, converts analog field signals into digital values and transmits safety‑validated data to the safety controller over the system backplane bus. Built‑in channel diagnostics detect wire break, short‑circuit and out‑of‑range sensor faults. Front‑panel LED indicators offer quick visual status check for each channel and module health. Hot‑swap capability allows on‑line replacement without full system shutdown. Widely used as spare replacement for existing ESD and F&G safety installations in process plants.

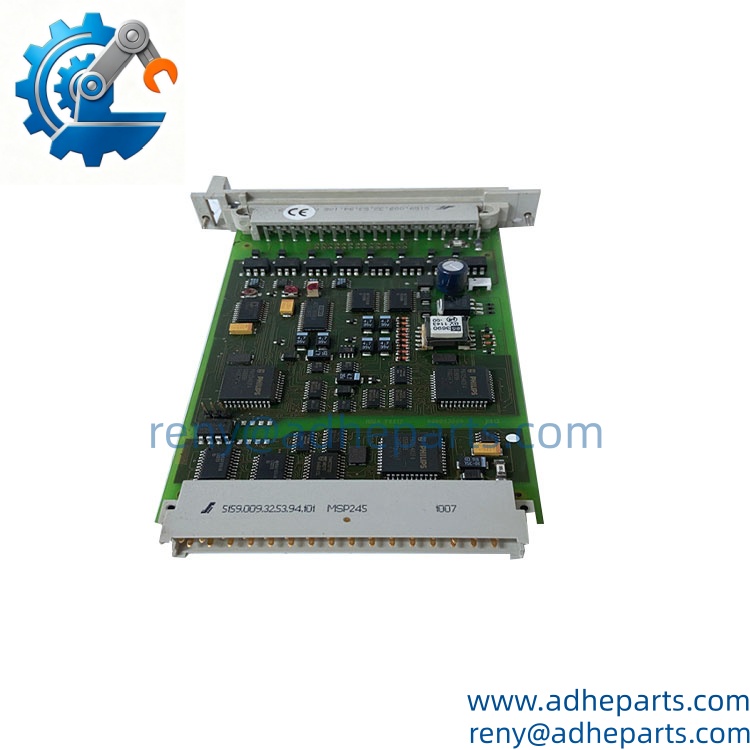

F6217 Sideview
Series
F6217 belongs to HIMA HIQuad H‑series I/O hardware portfolio. Compatible system hardware: H41q‑H, H51q‑H safety controllers, standard subrack backplanes. Not compatible with HIMatrix F3 series controllers.
Image search keyword: HIMA F6217 8‑channel SIL3 analog input module H41q H51q HIQuad

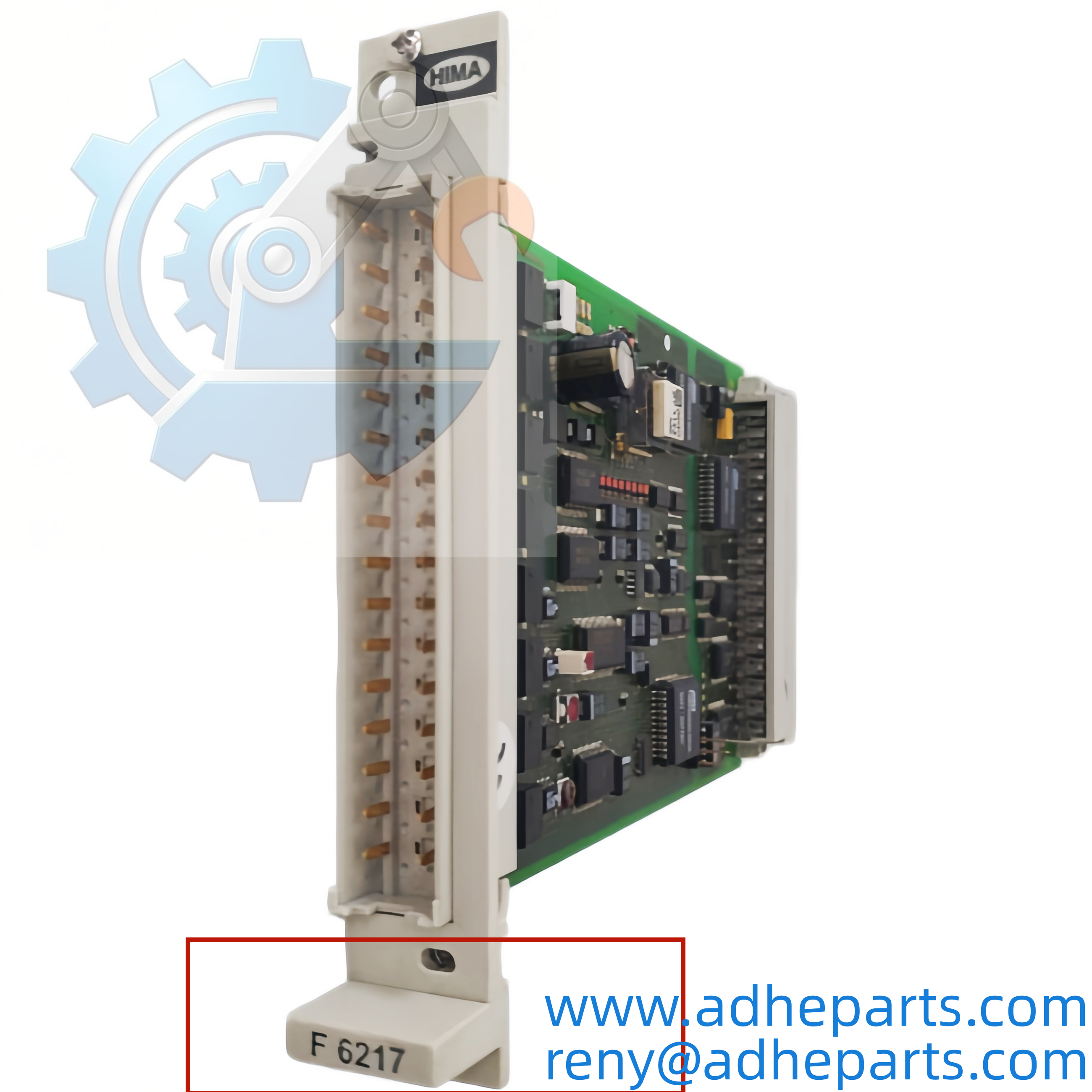

F6217 front

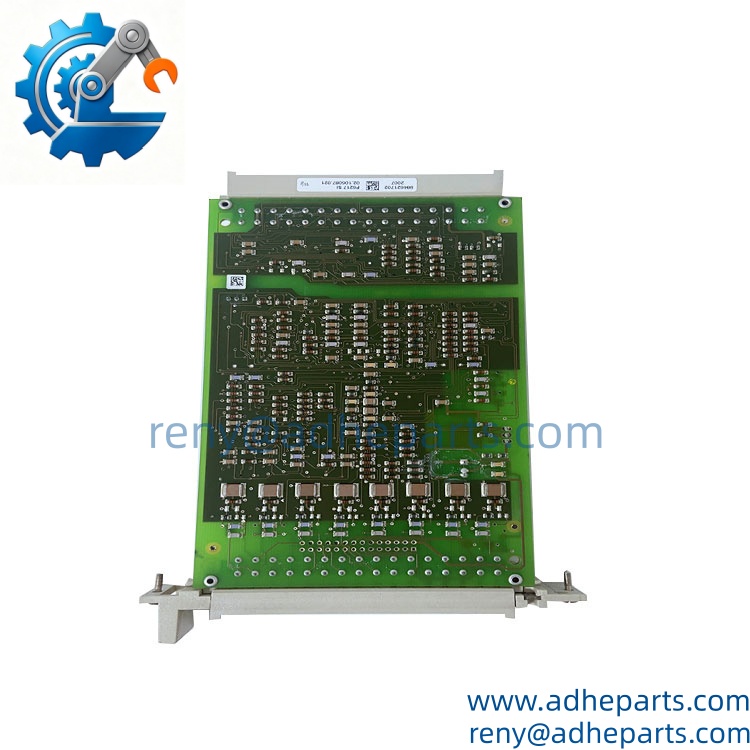

F6217 backside

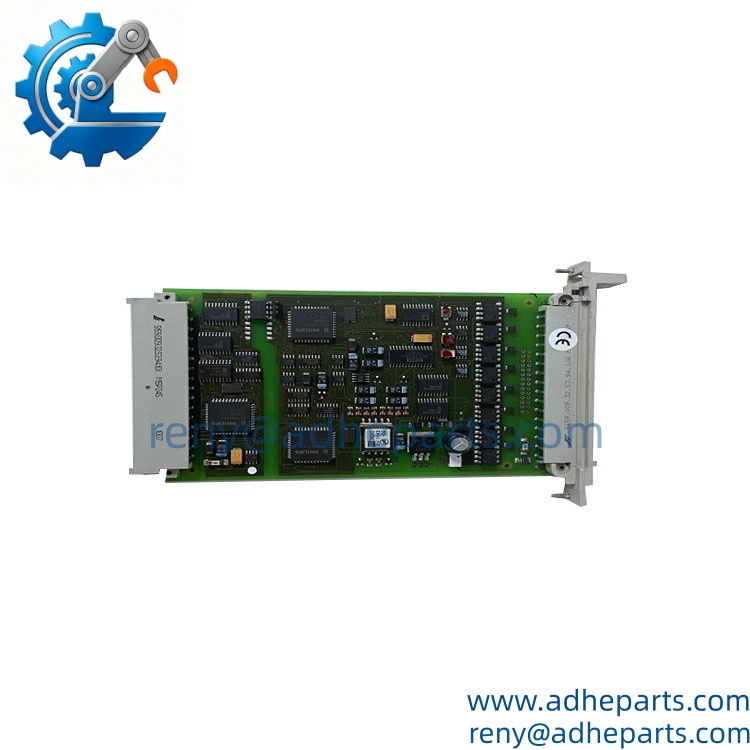

F6217 front 2
Product Features
- 8 independent safety‑grade analog input channels
- Dual signal support: 0‑22 mA current loop and 0‑5.5 V voltage input
- 12‑bit high‑resolution A/D conversion for precise process variable measurement
- SIL 3 safety integrity level certified per IEC 61508, TÜV approved
- Comprehensive channel diagnostics: wire‑break detection, short‑circuit and signal out‑of‑range monitoring
- Galvanic isolation between field side and safety backplane bus
- Per‑channel LED status indicators for local troubleshooting
- Hot‑swap function for on‑line module exchange during maintenance
- Compact eurocard form factor for installation inside standard safety subracks
- Built‑in module self‑test for continuous hardware health supervision
Product Parameters
| Item | Parameter |
|---|---|
| Model | F6217 |
| Channel Count | 8 analog input channels |
| Input Signal | 0‑22 mA current, 0‑5.5 V voltage |
| Resolution | 12‑bit |
| System Compatibility | HIMA H41q‑H, H51q‑H (HIQuad) |
| Hot‑Swap | Supported |
| Operating Temperature | ‑20 °C ~ +60 °C |
| Safety Certification | SIL 3 IEC 61508, TÜV |
| Weight | 0.14 kg |
More Product Parameters Can Click
Product Specifications
- Installation: Eurocard module for HIMA standard subrack racks
- Diagnostic functions: Sensor fault, wire break, short‑circuit, signal range violation detection
- Environment: Indoor safety instrumented system cabinet installation
- Safety standards: IEC 61508, IEC 61511 for process safety applications
- Signal source: 2‑wire / 4‑wire process transmitters
Functions
- Acquire safety‑relevant analog measurement signals from field transmitters (pressure, temperature, flow, level)
- Convert analog current / voltage field signals into digital data for safety controller logic processing
- Detect sensor failures, open‑circuit wiring and short‑circuit faults via built‑in channel diagnostics
- Transmit validated process measurement data to H41q‑H / H51q‑H safety controller over backplane bus
- Visualize channel and module status via front‑panel LED indicators for on‑site troubleshooting
- Support hot‑swap replacement to reduce downtime during safety‑system maintenance work
Purpose
Act as safety‑grade analog input interface between field process transmitters and HIQuad safety PLC; deliver reliable process variable measurements for ESD, fire‑gas and other safety‑related logic functions.
Application Fields
- Process industry Safety Instrumented System (SIS) cabinets
- Emergency Shutdown (ESD) safety control systems
- Fire and Gas (F&G) monitoring systems
- Petrochemical, chemical and power‑plant safety automation
- Off‑shore platform safety‑related process monitoring
- Retrofit and spare‑part replacement for existing HIMA H41q / H51q safety installations
