Description
Product Introduction
When a single blown fuse takes down 8 safety I/O points on a critical ESD rack, this module isolates the fault to keep the rest of your safety system online.
It mounts directly on standard 4 TE DIN rail slots, with dedicated LED status indicators for every individual fused circuit. Its zero residual voltage on fuse trip design eliminates hidden shock hazards during field troubleshooting.

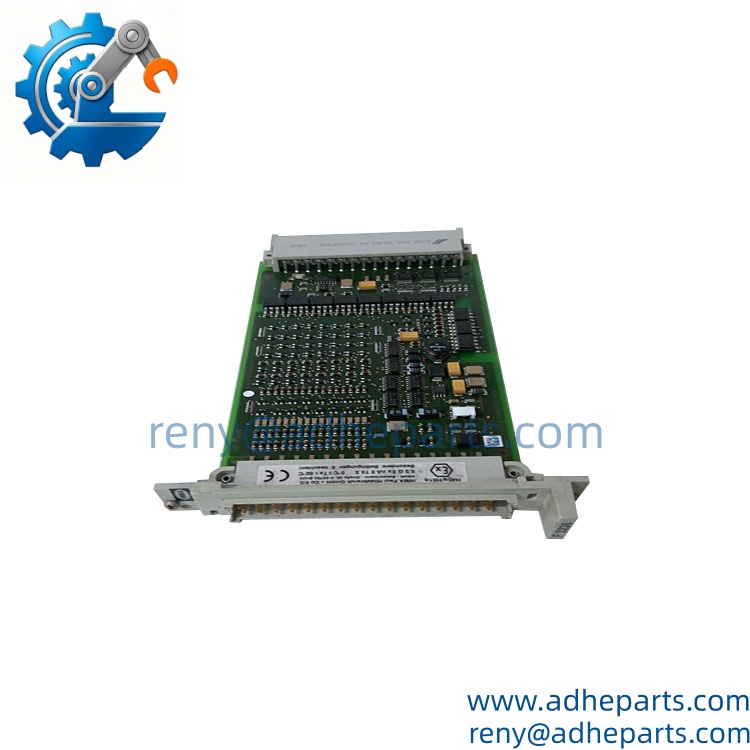

F7133 sideview
Key Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply Input | 24V DC, 60mA |
| Fuse Rating | Max 4A slow-blow, 4 independent miniature fuses |
| Relay Switching Time | Approximately 100ms |
| Relay Contact Load | 30V DC / 4A continuous |
| Residual Voltage (Fuse Tripped) | 0 V |
| Residual Current (Fuse Tripped) | 0 mA |
| Residual Voltage (Missing Supply) | Max 3 V |
| Residual Current (Missing Supply) | < 1 mA |
| Space Requirement | 4 TE DIN rail footprint |
| Country of Origin | Germany |
File Download：

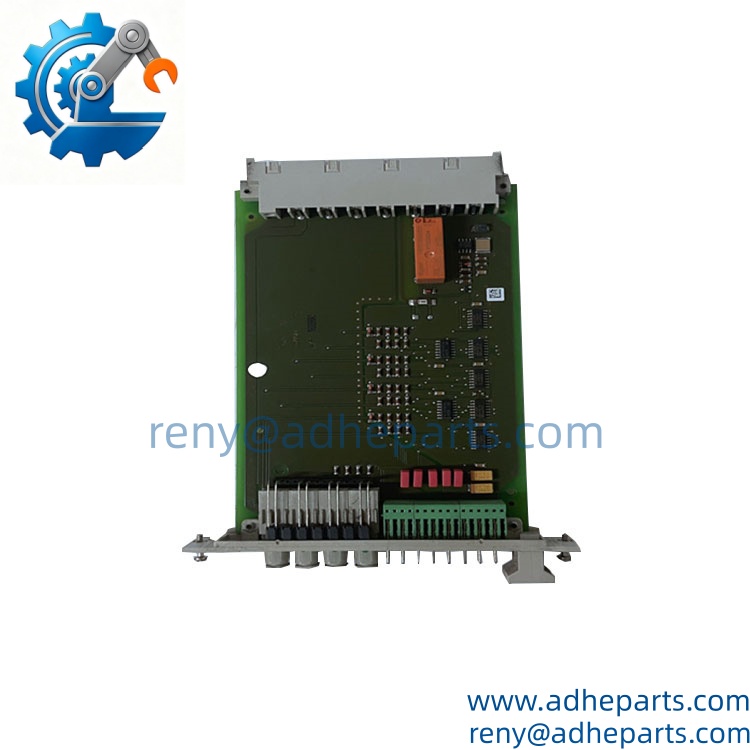

F7133 front
Other Same Series Items:
HIMA F6217 8‑Channel SIL3 Safety‑Related Analog Input Module
HIMA F3322 984332202 | HIMax Safety System Certified Digital Output Module
HIMA F3236 16‑Channel SIL3 Safety Digital Input Module
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Refinery ESD Rack Power Distribution: Isolates power feeds for emergency shutdown valve I/O channels to prevent single-point fault propagation.
- Power Plant Boiler Protection Systems: Supplies regulated 24V DC power to flame scanner and pressure transmitter safety loops.
- Chemical Process Safety Interlocks: Distributes power to SIL 3 rated field sensors, with immediate fault notification on any blown fuse.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never replace the factory 4A slow-blow fuses with fast-blow equivalents. The second fuse slot from the left will nuisance trip on motor inrush current and take down your entire interlock loop.
- ⚠️ Bold Warning 2: Do not connect L+ and EL+ terminals in reverse. The front side pins 1, 2, 3, 4 are dedicated output channels, not power inputs — miswiring will blow the onboard monitoring logic chip instantly.
- ⚠️ Bold Warning 3: Skipping the 10-minute post-installation status check will leave you with uncaught loose terminal connections. The module will not flag a high-resistance partial fuse failure until it hits full load.
A plant maintenance team once swapped a F7133 unit and skipped the post-install LED verification step. A loose connection on channel 2 caused a partial voltage drop that went undetected for 3 days, until a critical level transmitter lost power mid-batch and triggered an unplanned 6-hour process shutdown.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against HIMA’s official part registry, confirm the 4 factory-installed 4A slow-blow fuses are intact, and inspect all front-side pins for no physical damage.
- Live Rig Testing: Mount the unit on a calibrated HIMA test bench, apply 24V DC power, verify all 4 channel LEDs light up correctly, and confirm relay switching time stays within 90-110ms.
- Parameter Testing: Inject a 4A continuous load on every channel, confirm residual voltage on fuse trip reads 0V, and verify no residual current leaks to the output side under fault conditions.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

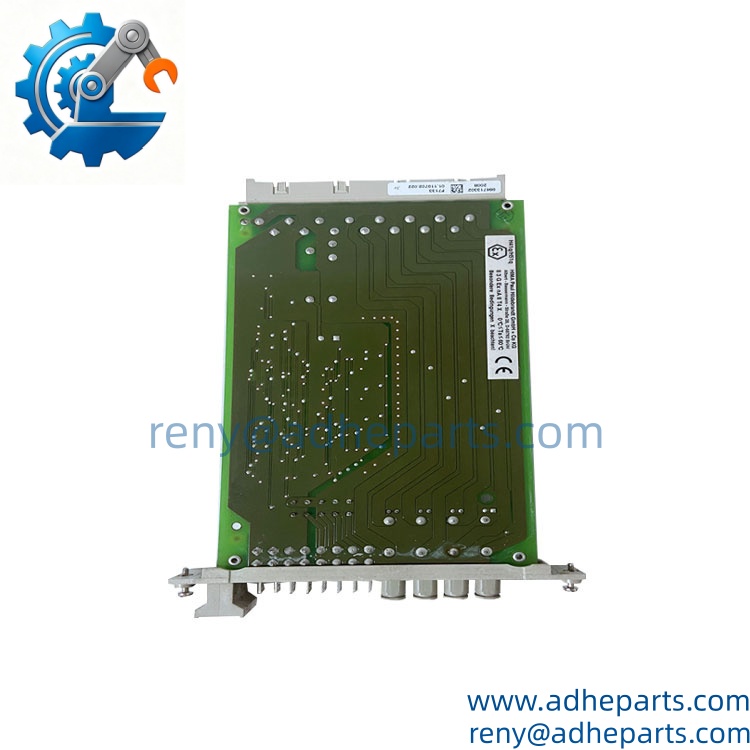

F7133 backside
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the safety rack is powered on? No. You must disable the corresponding power segment interlock before removing the unit, otherwise you will trigger a partial I/O power loss and throw a system safety fault.
- What exact HIMA systems is this module compatible with? It works natively with all HIMax safety PLC racks. It also supports direct DIN rail mounting outside the rack for distributed field power distribution setups.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or incorrect fuse replacement in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine HIMA F7133 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the 0V residual voltage test on fuse trip.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official HIMA factory test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older F7131 2-fold power distribution unit? Well, technically it fits the same DIN rail footprint, but you will have 2 extra unused channels that you must terminate properly to avoid floating voltage signal interference.
