Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Vibro-Meter |
| Model | MPC4 |
| Ordering Number | 200-510-017-017 |
| Series | VM600 |
| Product Type | Machinery Protection Card |
| Dynamic Signal Inputs | Up to 4 |
| Speed / Tachometer Inputs | Up to 2 |
| Dynamic Measurements | Acceleration, velocity, displacement, and other configured parameters |
| Speed Signal Sources | Proximity probes, magnetic pickup sensors, TTL signals |
| Signal Processing | Digital filtering, integration/differentiation, rectification, order tracking, amplitude/phase processing |
| Alarm Functions | Configurable Alert and Danger thresholds, delay, hysteresis, and latching |
| Associated I/O Card | IOC4T |
| System Application | Rotating machinery monitoring and protection |
| Installation | VM600 rack |
| Condition | New surplus / used, depending on available stock |
| Warranty | 12 months |
The MPC4’s dynamic inputs are programmable for different measurement types. Its speed inputs can accept several sensor arrangements, including proximity-probe, magnetic-pickup, and TTL-based signals. Configurable Alert and Danger levels can be used with delay, hysteresis, and latching functions.
One important procurement point: 200-510-017-017 is a specific MPC4 ordering number, and other MPC4 variants should not be assumed interchangeable solely because they carry the MPC4 name. Hardware and firmware revisions can affect compatibility and should be checked against the existing installation.
Product Introduction — Anti-Template
The VM600 MPC4 200-510-017-017 sits at the heart of a rotating-machine protection measurement chain. Rather than simply passing vibration signals through a rack, it processes dynamic and speed inputs into configured measurements that can be used for alarm and protection decisions. That makes it particularly relevant to turbine, compressor, pump, generator, and other machinery where a bad vibration reading is not just a maintenance issue—it can become a shutdown event.
The card supports multiple sensor types and measurement functions, while the associated IOC4T handles the external I/O side of the VM600 architecture. For replacement work, matching the full 200-510-017-017 ordering number and hardware/firmware revision is more important than matching the label alone.

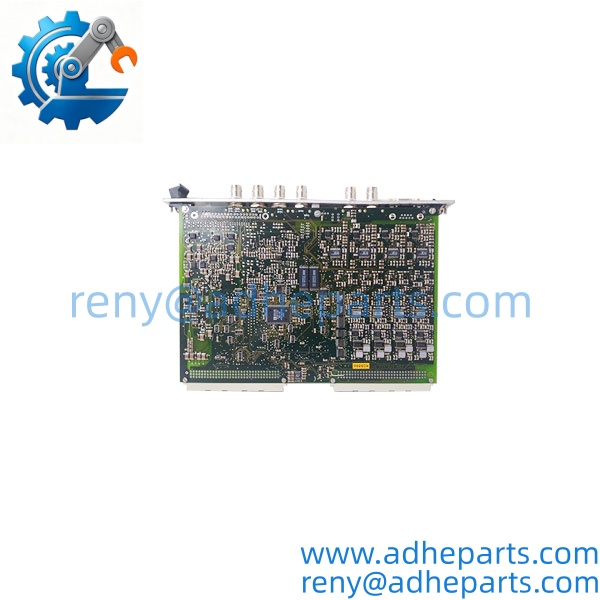

200-510-017-017

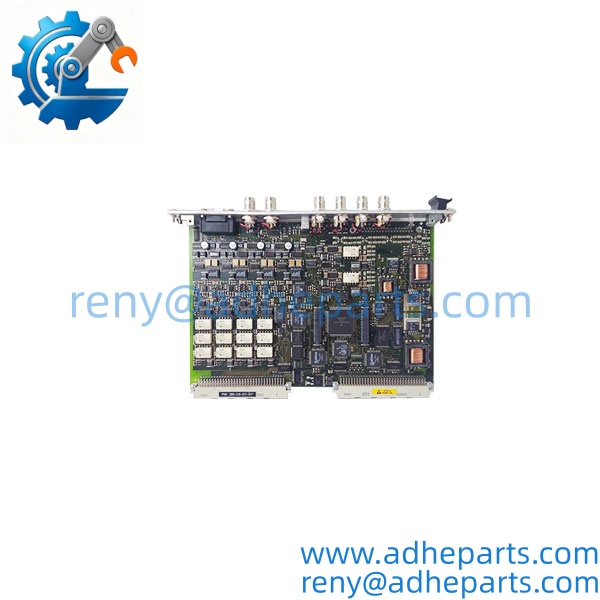

200-510-017-017

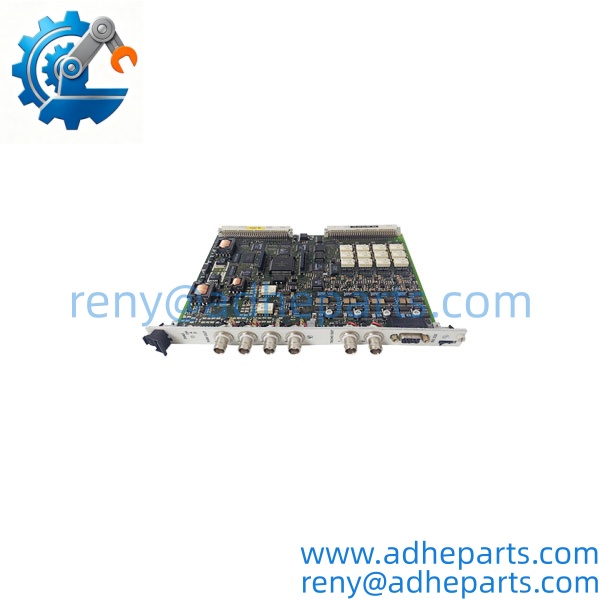

200-510-017-017
QC, Procurement & Logistics SOP
1) Inbound Verification
Before quotation and shipment, verify:
- Manufacturer marking: Vibro-Meter.
- Model: .
- Complete ordering number: 200-510-017-017.
- Hardware revision and firmware identification where available.
- Front-panel condition and indicators.
- Rear connector and backplane condition.
- PCB condition and visible component damage.
- Evidence of corrosion, contamination, previous repair, or overheating.
- Compatibility with the customer’s VM600 rack and IOC4T configuration.
- Whether the customer requires an exact revision or accepts a documented compatible version.
The complete label should be photographed before shipment. Do not quote a different suffix simply because it appears to be a newer or similar version.
2) Functional and Live Testing
Where an appropriate VM600 test setup is available, testing may include:
- Visual inspection of the complete PCB.
- Connector and backplane-contact inspection.
- Controlled rack power-up.
- Card recognition by the system.
- Status and diagnostic indication checks.
- Dynamic-input verification using an approved signal source.
- Tachometer-input verification.
- Measurement and signal-processing checks.
- Alarm threshold and status verification.
- Communication/configuration checks through the approved software environment.
Testing should use the correct rack, companion IOC4T, sensor interface, and configuration. A simple power-on test is not sufficient to prove the measurement chain.
3) QA, ESD Protection, and Packaging
Before dispatch, record:
- Front and rear photos.
- Complete ordering number.
- Hardware and firmware markings.
- Serial number where present.
- Connector condition.
- PCB condition.
- Test results when functional testing is available.
The should be handled as an ESD-sensitive electronic board. Use an antistatic bag, suitable cushioning, connector protection, and a rigid carton. Keep the PCB away from loose metal objects during packing.
4) Global Logistics and Export Compliance
For international shipment, confirm:
- Exact manufacturer and ordering number.
- Product description: machinery protection card.
- Quantity.
- Country of origin based on the actual unit and available documentation.
- Declared value and currency.
- Consignee information.
- Required certificate of origin or other customs documents.
- Warranty and inspection documentation requested by the buyer.
- Preferred express, air-freight, or sea-freight method.
The HS classification should be confirmed according to the actual construction and function of the card and the customs requirements of the destination country. Avoid using a generic PLC-module classification without checking the applicable tariff rules.
5) Secure Air and Sea Packaging
For express and air shipments, use double-wall cartons with internal cushioning so the card cannot move during transport. Protect the card edge connector and front-panel components from impact.
For sea freight or extended storage, add a moisture barrier and desiccant. Do not place heavy material directly above the card.
Technical Pitfalls & Integration Warnings
Do Not Confuse With IOC4T
The is the machinery protection/processing card. The IOC4T provides the associated input/output functions. They perform different jobs and are normally used together in the architecture.
Verify the Exact Variant
Different ordering numbers and revisions exist. A similar-looking is not automatically a direct replacement. Later versions introduced hardware changes, including differences related to RoHS compliance and buffered dynamic-signal output impedance.
Check Sensor Compatibility
The dynamic inputs can be configured for different measurement types, while tachometer inputs support different sensor technologies. The sensor type, signal level, conditioning, and configuration must match the channel assignment.
Verify Firmware and Configuration
A replacement card may require the correct firmware and application configuration. If the original machine uses customized Alert/Danger thresholds, filtering, scaling, speed-dependent settings, or measurement logic, those parameters should be documented before replacing the card.
Do Not Assume Hot-Swap Is Safe
The system may support maintenance procedures designed around rack replacement, but do not assume that any can be removed under power. Follow the approved system maintenance procedure and site lockout/tagout requirements.
Check the Complete Signal Chain
A functioning does not guarantee a functioning measurement loop. Sensor, extension cable, signal conditioning, input, output, relay logic, and configuration all need to be considered when troubleshooting an abnormal vibration reading.
Frequently Asked Questions
What is Vibro-Meter 200-510-017-017?
It is the ordering number for the Machinery Protection Card, used for monitoring and protecting rotating machinery.
How many signals can the monitor?
The can measure up to four dynamic signal inputs and two speed inputs simultaneously.
What types of machinery can use the ?
Typical applications include turbines, compressors, pumps, generators, and other rotating equipment where vibration, displacement, speed, or related dynamic parameters need continuous monitoring.
Is the an analog input module?
Not in the usual PLC/DCS sense. It is a dedicated machinery-protection processing card with programmable dynamic and speed inputs. Its function is measurement and protection processing rather than general-purpose PLC analog acquisition.
Does the work with an ?
Yes. The and form the principal card pair within the machinery protection architecture, with the providing associated external I/O functions.
Can I replace 200-510-017-017 with another ?
Not without verification. Check the complete ordering number, hardware revision, firmware version, rack configuration, signal requirements, and the existing combination. Some revisions have hardware differences that matter for interchangeability.
What information should I send for a replacement quotation?
Please provide the complete label photo, ordering number, hardware/firmware revision, rack model, associated part number, and the sensor types connected to the card. For a running turbine or compressor system, the existing configuration information is especially useful.
