Description
Key Technical Specifications
- Operating Supply Voltage: 24 VDC
- Power Consumption: ≤10 W
- Signal Processing: High-resolution analog-to-digital conversion
- Bus Interface: S100 parallel backplane bus for Advant OCS racks
- Isolation: Reinforced galvanic isolation between field circuits and system bus
- Operating Temperature Range: -25 °C to +60 °C
- Humidity Rating: 5% to 90% non-condensing
- Mounting Format: Standard single-width plug-in rack module
- Form Factor: Eurocard rack assembly for Advant control cabinets
- Compliance: Industrial EMC standards for power plant and process environments
- Supported Field Signals: Transformer-derived analog measurement inputs
Product Introduction

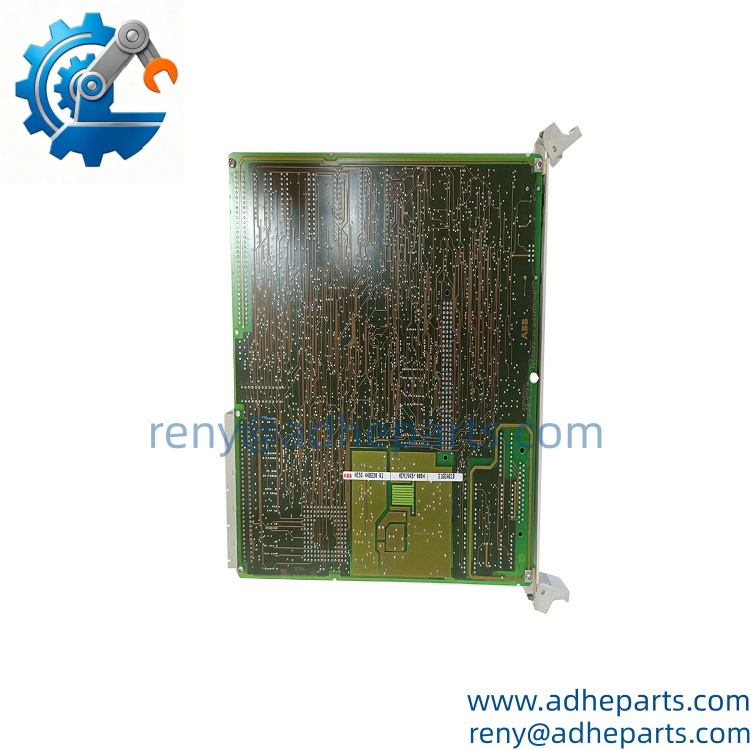

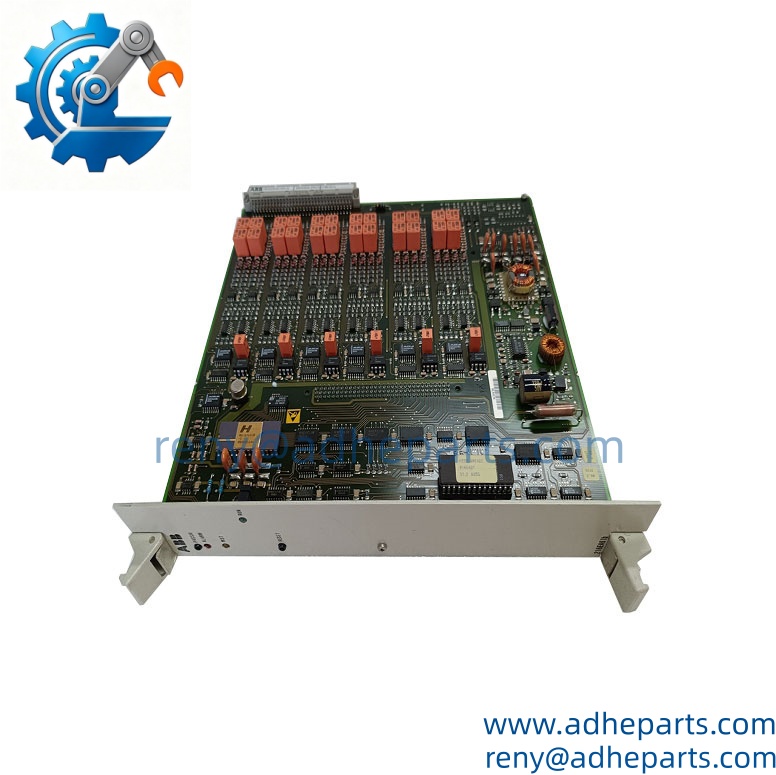

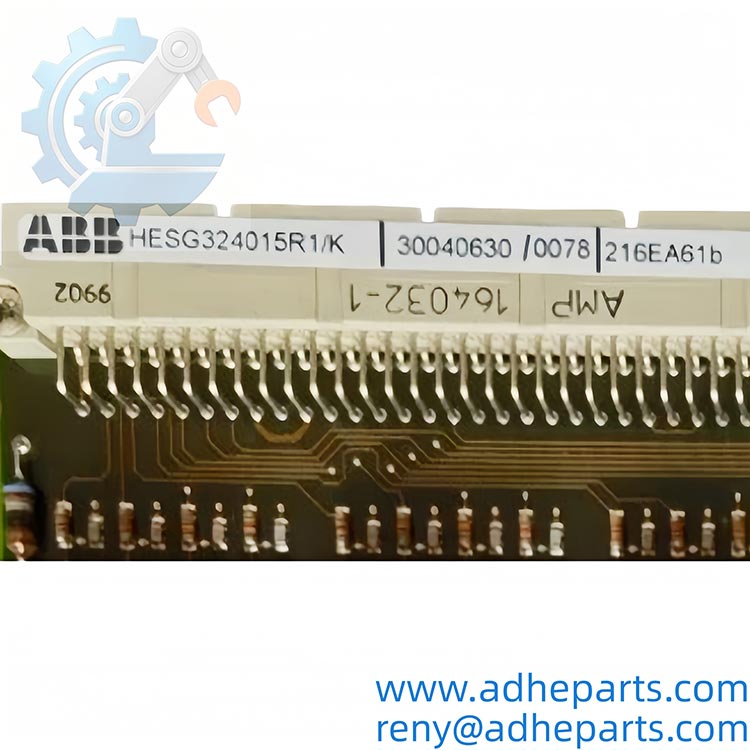

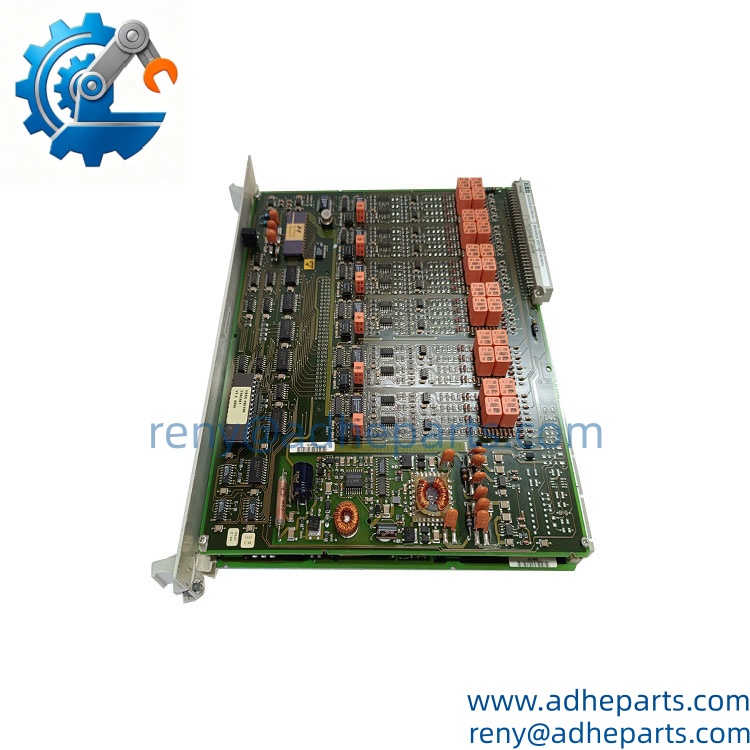

When analog measurement signals drift without clear fault alarms, control loops lose stable regulation and plant operators face blind process conditions. The ABB 216EA61b HESG324015R1 serves as front-end signal processing hardware for Advant OCS DCS systems, cleaning and digitizing field analog signals before transmission to the main controller. Minor hardware revisions are not fully interchangeable. Honestly, cross-checking the printed part number suffix prevents wasted time on site swap attempts.
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect original ABB silkscreen labeling, cross-reference serial identifiers for origin tracing, and examine PCB surfaces for scratch marks or prior repair solder work.
- Live Rig Testing: Complete power-on initialization, verify stable backplane communication, and execute built-in diagnostic routines to confirm all analog signal channels operate normally.
- QA & Anti-Static Packaging: Seal each circuit board inside static shielding bags, add rigid foam padding, and label cartons for sensitive DCS control electronics.
- Global Logistics & Export Compliance: Assign accurate HS classification for distributed control system circuit boards. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older Advant controller firmware cannot fully support diagnostic reporting on newer batches of 216EA61b HESG324015R1. One power generation facility installed the module without updating system software and lost continuous signal monitoring alerts.
- Backplane Contact Degradation: Dirty or corroded rack connectors create intermittent signal dropouts. Technicians often misdiagnose rack bus faults as module failure.
- Field Wiring Noise Interference: Unshielded analog cabling introduces measurement offset. Noise distortion can mimic sensor drift and trigger unnecessary control actions.
- ESD destruction during unboxing: Removing the board from shielding packaging without a grounded wrist strap risks damaging precision analog circuits. Static damage frequently causes unstable readings that only surface under sustained thermal load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 6–9 weeks subject to factory availability.Q: Can I select air freight or sea freight for this ABB analog processor module?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 216EA61b HESG324015R1 support hot-swap while the Advant rack remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks backplane communication errors and permanent damage to adjacent DCS modules.Q: Is the 216EA61b HESG324015R1 backward compatible with older Advant AC410 racks?A: Physical slot fit matches legacy Advant OCS racks, but stable analog sampling performance depends on matching controller firmware versions. Bench validation is recommended prior to site installation.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and communication validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this analog processing board?A: Persistent cabinet dust buildup, cyclic temperature swings, and sustained operation above 55 °C accelerate aging of analog signal components. Maintain regular cabinet air filter maintenance cycles.
