Description
Key Technical Specifications
- Operating Power: 24 VDC nominal input
- Processor: 32-bit high-speed processing core
- Communication Interfaces: RS485, Modbus RTU, Profibus DP
- Operating Temperature Range: -20 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity Rating: 5% to 90% non-condensing
- Protection Class: IP20 for cabinet mounting
- Form Factor: Standard plug-in drive control board
- Weight: Approx. 80 g
- Supported Tasks: Speed loop control, signal conditioning, fault detection, sequential logic
- Certifications: CE, UL industrial compliance
Product Introduction

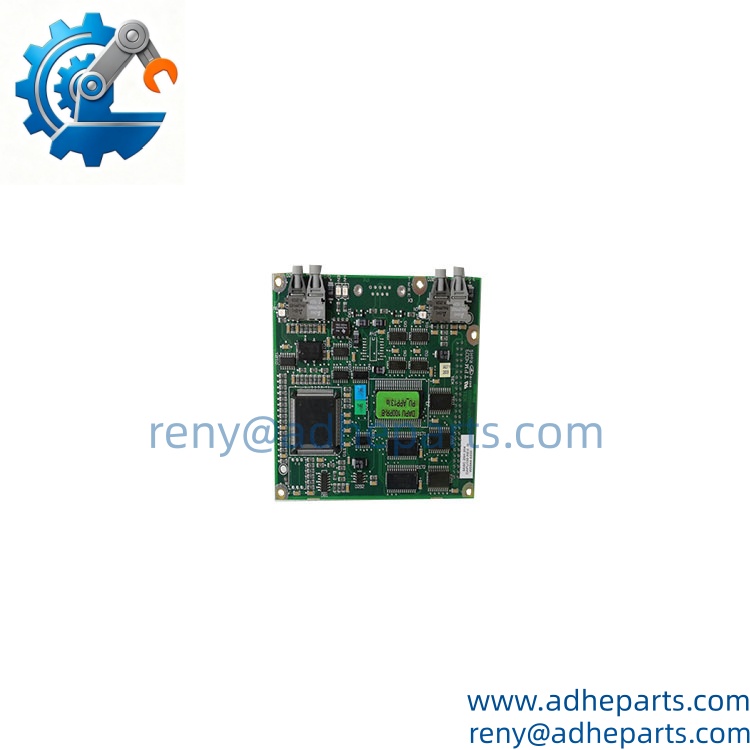

When drive control logic fails to execute correctly, motor speed fluctuations trigger unexpected process trips across production lines. The ABB 3ASC25H204 DAPU100 processes real-time feedback signals and runs closed-loop control routines for matched ABB drive assemblies. Firmware variants are not interchangeable between hardware revisions. Honestly, verifying the exact revision code before ordering avoids costly on-site incompatibility.
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect original ABB labeling, cross-reference serial identifiers for origin tracing, and check PCB edges for scratch marks or evidence of prior repair.
- Live Rig Testing: Complete power-on initialization, verify communication channel stability, and trigger built-in diagnostic routines to confirm no internal hardware faults.
- QA & Anti-Static Packaging: Seal each board inside static shielding bags, add rigid foam padding, and label cartons for sensitive drive control electronics.
- Global Logistics & Export Compliance: Assign accurate HS classification for drive control circuit boards. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings

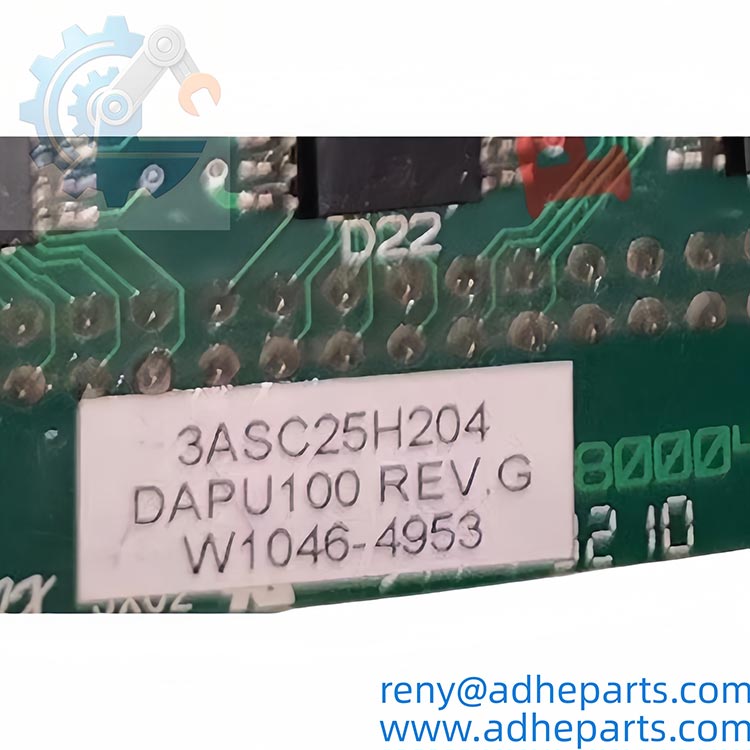

- Firmware Rev Mismatch: Older drive firmware cannot fully support all control functions on newer batches of 3ASC25H204 DAPU100. One production facility installed the board without matching firmware, resulting in unstable motor speed regulation.
- Improper Backplane Seating: Partial insertion creates intermittent communication loss. A technician rushed installation and spent hours troubleshooting random drive fault alarms.
- Wiring Noise Interference: Unshielded signal cabling induces measurement drift. Noise spikes can mimic hardware failure and trigger unnecessary drive trips.
- ESD destruction during unboxing: Removing the board from shielding packaging without a grounded wrist strap risks damaging onboard transceivers. Static damage often only surfaces under continuous thermal load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 5–8 weeks subject to factory availability.Q: Can I select air freight or sea freight for this ABB DAPU100 board?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 3ASC25H204 DAPU100 support hot-swap while the drive unit remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks backplane short circuits and permanent damage to drive power stage hardware.Q: Is the 3ASC25H204 DAPU100 backward compatible with older ABB drive racks?A: Physical slot fit matches legacy drive assemblies, but stable operation depends on matching drive firmware versions. Bench validation is recommended prior to site installation.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and communication validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this processing board?A: Persistent cabinet dust buildup, cyclic temperature swings, and sustained operation above 55 °C accelerate component aging. Maintain regular cabinet air filter maintenance cycles.
Model-Specific Information
The key feature of ABB 3ASC25H204 (DAPU100) is its dedicated data and signal processing function for ABB DCS control systems, responsible for signal coordination and data exchange between main controllers and field I/O modules.
This means that customers replacing this model should not only compare the full catalog number. The backplane compatibility, hardware revision and system firmware version should also be checked.
A typical system may include:DCS Rack Backplane → ABB 3ASC25H204 → Main Controller & Field I/O Modules → Process Sensors and Actuators
Therefore, if the customer’s existing distributed control system relies on this specific processing module for internal signal scheduling, bus matching and hardware revision consistency must be confirmed before purchasing the replacement board.
This is an important ordering consideration that distinguishes ABB 3ASC25H204 from general-purpose analog and digital I/O modules.
