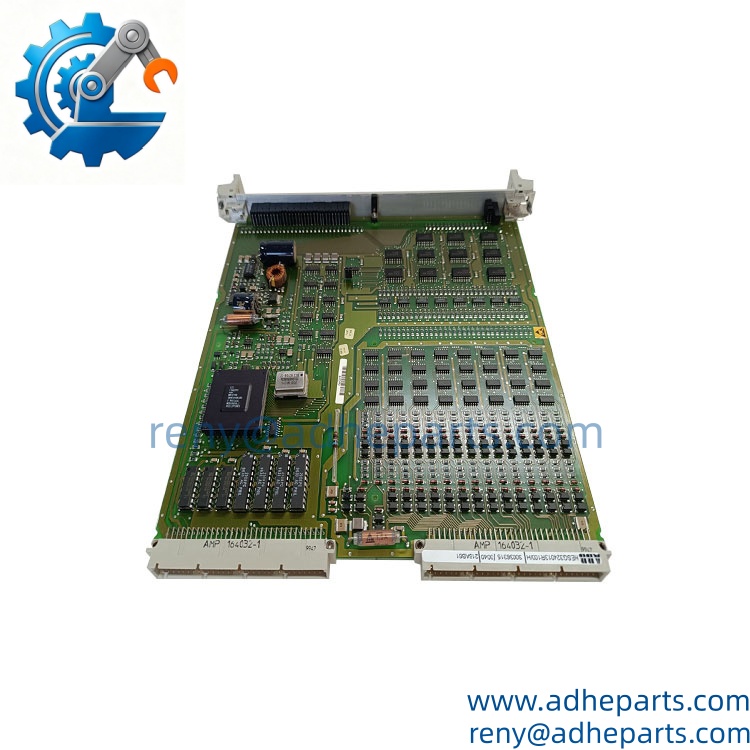

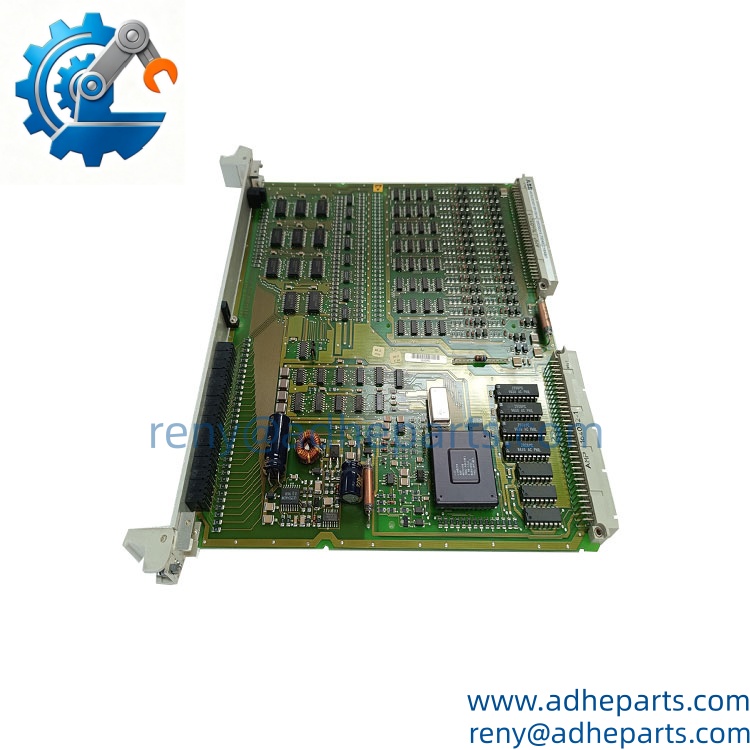

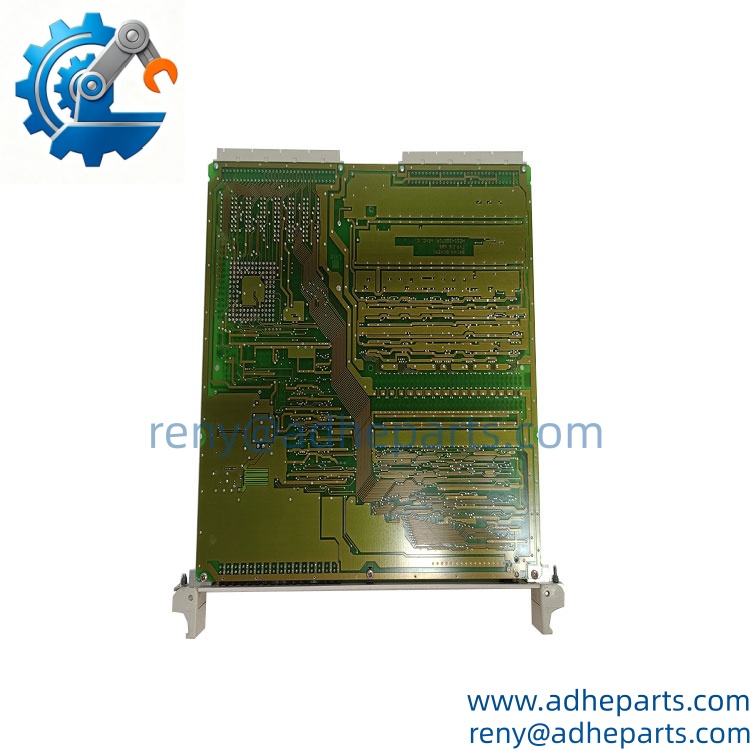

ABB 216AB61 HESG324013R100 | Procontrol Digital Output

Description

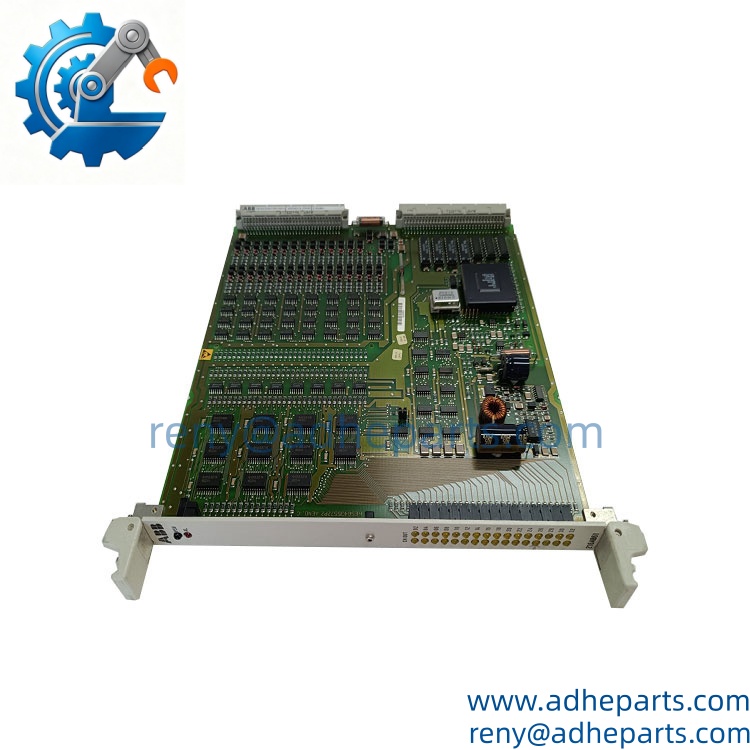

ABB 216AB61 HESG324013R100 is identified in multiple technical and procurement references as a Procontrol digital/binary output unit. The documented configuration provides 32 outputs, with front-panel LEDs indicating activated relay states.

Key Technical Specifications

The strongest available technical reference identifies the 216AB61 as a 32-output digital output unit. Its outputs are intended to control relays in the output auxiliary relay assembly, while front-panel LEDs indicate activated outputs. The same source gives an approximate weight of 1 kg and identifies Sweden as the product origin.

The part number is also associated with the REG 216 generator protection platform. That system provides protection, measurement, monitoring, event logging, disturbance recording, and automation functions, so the 216AB61 should be evaluated as part of the complete installed Procontrol/REG 216 architecture rather than as a generic 32-channel output card.

Product Introduction (Anti-Template)

When a generator protection system has to issue a large number of discrete commands, relay output capacity becomes a practical limitation. The ABB 216AB61 HESG324013R100 addresses that requirement with 32 digital outputs intended to control relays in the output auxiliary relay assembly. Front-panel LEDs provide a quick indication of activated relay states, which is useful during commissioning and fault tracing.

This is an old Procontrol-era component, and that changes the procurement approach. Do not judge compatibility only by connector shape or the 216AB61 designation. The rack position, associated relay assembly, system configuration, and exact part-number suffix should all be checked before approving a replacement.

QC, Procurement & Logistics SOP

1. Inbound Verification

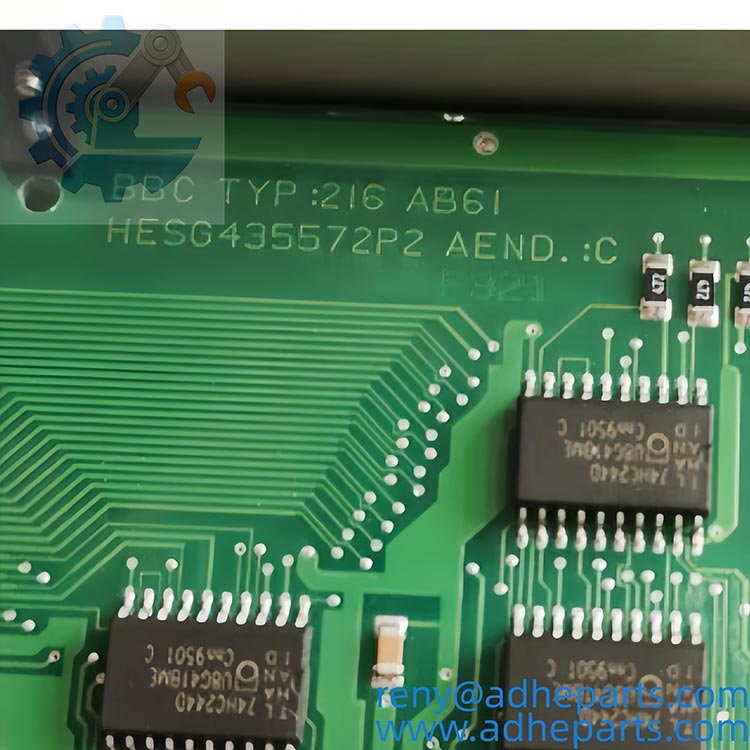

   • Confirm the complete identification: 216AB61 / HESG324013R100.
   • Inspect the nameplate, PCB assembly, connectors, card-edge contacts, mounting points, and front-panel LEDs.
   • Compare the unit with the customer’s existing Procontrol or REG 216 configuration.
   • Where applicable, check associated identification such as HESG216881/B.
   • For surplus inventory, inspect for oxidation, storage damage, or evidence of previous installation.
2. Live Rig Testing
   • Perform controlled power-up testing with compatible Procontrol/REG 216 test equipment when available.
   • Verify startup behavior and front-panel LED operation.
   • Where the test environment permits, exercise representative output channels.
   • Check that output states correspond correctly to the applied control commands.
   • Do not connect unknown field loads directly to a bench test; verify the relay interface and load arrangement first.
3. QA & Anti-Static Packaging
   • Photograph the model and part-number label before packing.
   • Protect the electronic assembly and card-edge contacts against ESD.
   • Use anti-static packaging and shock-absorbing material.
   • Prevent the approximately 1 kg module from moving inside the export carton.
   • Keep connectors protected from bending or impact during transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Use a classification appropriate for the actual industrial digital output module and the destination customs requirements.
   • For urgent generator protection-system maintenance, air freight is generally the practical option.
   • Sea freight can be considered for consolidated or non-urgent shipments.
   • Use rigid export packaging to protect the PCB and connectors against vibration and impact.
   • Customs clearance may require additional technical description if the item is declared only as a generic “electronic board.”

Technical Pitfalls & Integration Warnings

1. System Revision / Compatibility Mismatch

The 216AB61 belongs to an older Procontrol/REG 216 architecture. A replacement can have the same catalog number but a different hardware revision. Before installation, compare the revision markings and existing system documentation. A module that powers up correctly is not automatically proven compatible with every generation of the surrounding protection system.

2. Output Configuration Errors

Thirty-two outputs create plenty of opportunity for a channel-mapping mistake. Suppose output 17 is wired to a trip-related relay but the replacement configuration maps that command differently. The card itself may be healthy while the controlled equipment responds incorrectly. Verify channel assignment against the existing drawings before transferring connections.

3. Wiring / Relay Assembly Compatibility

The documented purpose of the 216AB61 is to control relays in the output auxiliary relay assembly. Do not treat the module as a standalone output card. Confirm the associated relay assembly, rack position, terminal arrangement, and field wiring before installation. Honestly, tracing the output circuit first is much cheaper than discovering a mapping error during a generator start test.

4. ESD Damage During Unboxing

The module contains electronic circuitry that should be handled using normal ESD precautions. Keep it inside anti-static packaging until installation is ready, and avoid touching card-edge contacts or exposed circuitry. A failed output channel caused during handling can be difficult to distinguish from an installation fault.

Frequently Asked Questions (FAQ)

Q1: What is the ABB 216AB61 HESG324013R100 used for?

It is a 32-channel digital/binary output unit used in ABB Procontrol/REG 216-related systems. Its documented purpose is to control relays in the output auxiliary relay assembly.

Q2: How many outputs does the 216AB61 have?

The documented configuration provides 32 digital outputs. Front-panel LEDs indicate activated relay states, making channel status easier to check during maintenance.

Q3: Is HESG324013R100 the same part as 216AB61?

Yes. is the associated ABB part number for the 216AB61 unit in the references reviewed. Procurement documents should retain both identifiers to avoid confusion with similar 216-series modules.

Q4: Can I use another 216-series module as a replacement?

Do not assume so. The 216-series designation covers multiple different module types. For example, 216DB61 is identified separately as a binary input/tripping unit, while 216EA61B is another distinct module. Match the complete part number and function rather than replacing based on the first three digits.

Q5: Can the 216AB61 be hot-swapped?

Do not assume that it can be removed while the protection system is energized. A digital output module can control protection-related relay circuits, and removing it may change the state or availability of those circuits. Follow the installed Procontrol/REG 216 maintenance procedure and plant isolation requirements.

Q6: What should I provide when requesting a replacement?

Provide the complete identification, a clear photograph of the existing nameplate, the rack/chassis information, and photographs of the neighboring modules and terminal arrangement if available. If the module is being replaced during an outage, the existing hardware revision is also worth recording.

Q7: What is the approximate shipping weight?

One procurement reference lists the product weight at approximately 1 kg, with dimensions of about 85 × 140 × 120 mm. Export packaging will increase the gross shipping weight, so the final freight calculation should include the protective carton and cushioning.
