Description
3. Key Technical Specifications
- Blocking voltage: 4500 V (VDRM)
- Average on-state current: 3500 A (ITAV) at 70 °C case
- Non-repetitive surge current: 50–60 kA (10 ms)
- Turn-off time: <10 µs
- On-state voltage: 2.1–3.5 V typical
- Gate drive: 15–20 V
- Junction temperature: –40 to +125 °C
- Mounting force: 40 kN
- Dimensions: Approx 439 mm x 173 mm x 41 mm
- Weight: 2.9 kg
- Package: Press-pack standard (HiPak equivalent)
4. Product Introduction (Anti-Template)

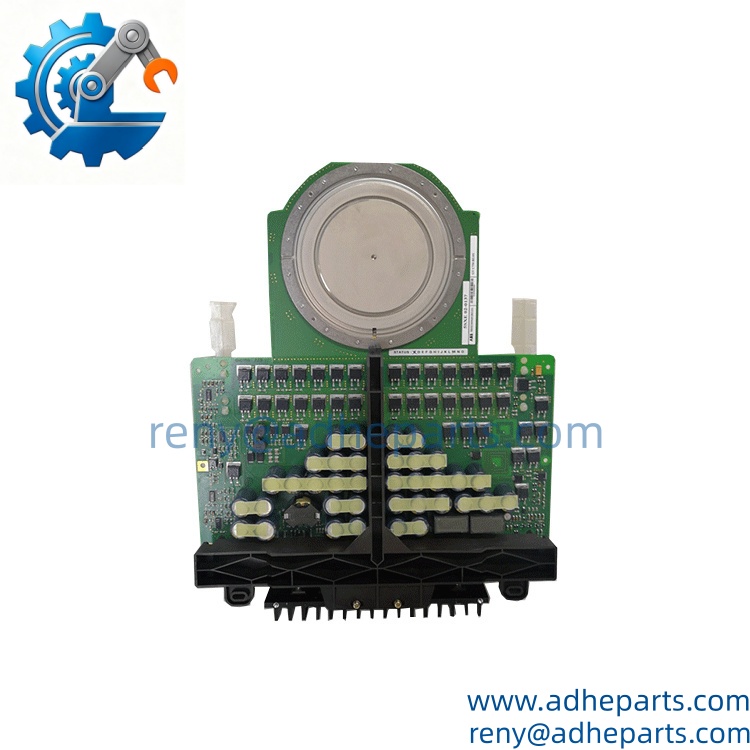

When a main CPU trips and downtime costs thousands per minute, the last thing you need is a power module that can’t handle the load. The ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 slots right into medium-voltage converter racks as a 4500 V 3500 A IGCT built for exactly those critical high-current switching needs. It delivers snubberless turn-off with sub-10 µs response and stays rock-steady from –40 °C to +125 °C under continuous heavy loads.
Honestly, this design choice saves hours of rewiring when you stay inside the same 5SHY family. The integrated freewheeling diode and low gate-drive requirements simplify your entire power stage, while the high clamping force keeps everything tight and reliable.
The key feature of ABB 5SHY3545L0009 (3BHB013085R0001, 3BHE009681R0101) is its high-power IGCT power semiconductor device with integrated gate drive circuit, designed for medium voltage drive power conversion.
This means that customers replacing this model should not only compare the full part number set. The hardware revision, thermal matching parameters and drive system topology should also be checked.
5. QC, Procurement & Logistics SOP
- Inbound Verification: Origin tracing against ABB part labeling, OEM seal and date-code inspection, visual check for bent pins or damaged connectors.
- Live Rig Testing: Power-on self-test in a compatible converter setup, verification of all channels under load, confirmation of response timing and protocol validation.
- QA & Anti-Static Packaging: Final functional sign-off, conformal inspection, sealed in anti-static bags with desiccant and foam support.
- Global Logistics & Export Compliance: Optimized HS code classification for industrial electronic modules, double-boxed with shock indicators, documented for air or sea freight to minimize customs holds.
6. Technical Pitfalls & Integration Warnings
Firmware or system revision mismatch can drop communication. Picture a plant running an older drive controller that expects a specific protocol handshake—swap in a later lot and the outputs stay dark until the backplane firmware is aligned.
DIP switch or address configuration errors are classic. A technician sets the wrong base address, the module powers up with LEDs, yet the converter never sees the points; hours later the root cause is a single switch that should have been left at factory default.
Wiring or terminal incompatibility bites hard. Source or sink wiring mistakes happen when people forget to match the field device polarity; the channel reads zero or flickers randomly.
ESD during unboxing still kills modules. Dry winter air, no wrist strap, a quick touch on the edge connector, and one channel fails intermittent weeks later. Always ground before handling.
7. Frequently Asked Questions (FAQ)
How long does global shipping usually take once the unit clears QA? Most regions see 3–7 business days by air after export docs are complete. Sea freight stretches that to 3–5 weeks depending on port congestion—customs clearance in the EU might add 2 days.
What shipping and customs options do you support? We handle air freight for urgency and sea for bulk. All shipments carry optimized HS classification and full commercial invoice so clearance stays predictable.
Can I hot-swap the 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 while the rack is live? Not recommended. Removing or inserting under power risks backplane arcing and can take out adjacent modules. Power down the I/O base first.
Is the 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 backward-compatible with older ABB racks? In most cases yes within the same family, provided voltage, commons, and addressing match. Always confirm the exact backplane revision and firmware before the swap.
What happens if the load exceeds 0.5 A on one channel? The overcurrent and thermal protection kick in. The channel shuts down until the fault clears and the module cools; repeated overloads can permanently degrade that output.
Do you supply the terminal blocks or just the module? Module only unless specified. Match the original terminal style or use the ABB-compatible blocks rated for the current.
Any special storage or handling notes before installation? Keep in original anti-static packaging until ready. Avoid condensation; bring the unit to ambient temperature before powering up in a humid plant.
