Description

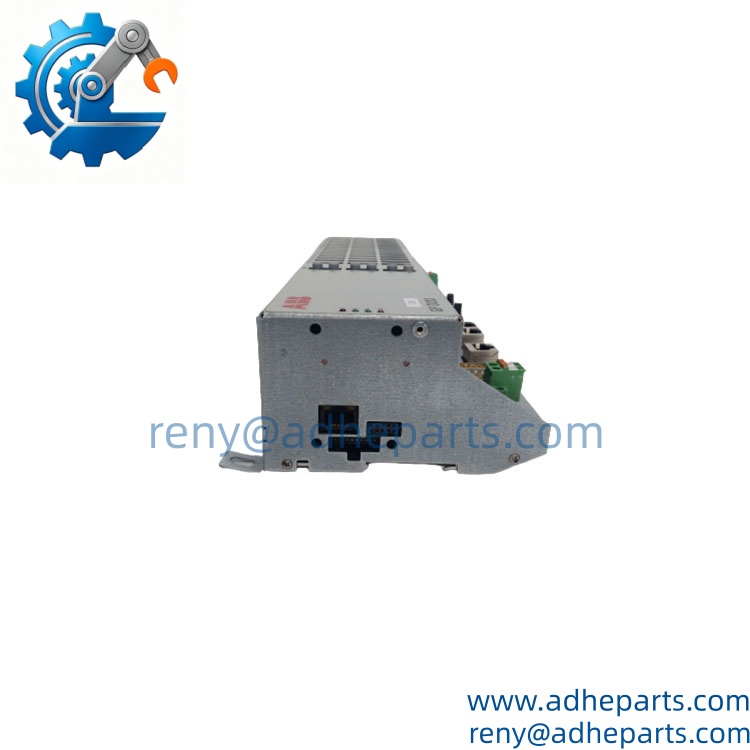

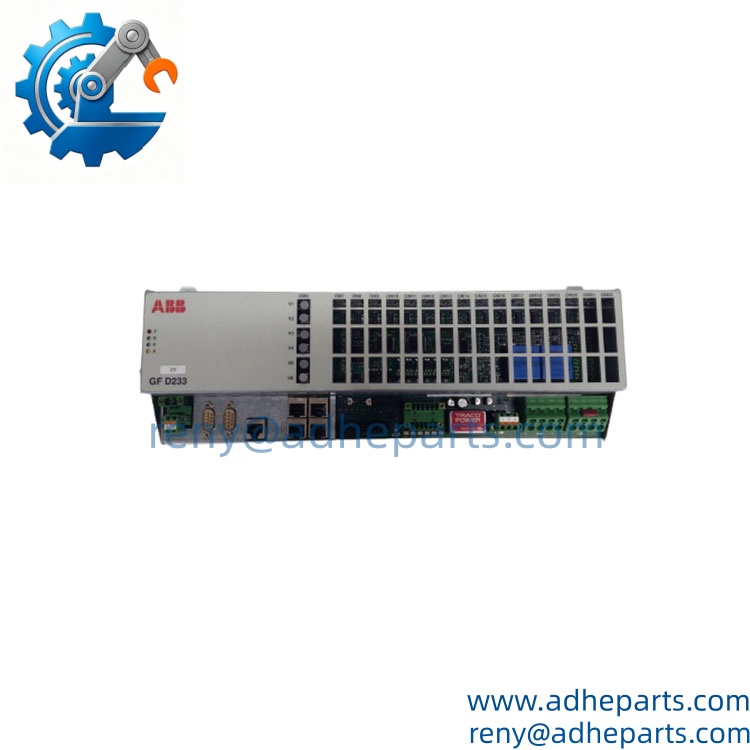

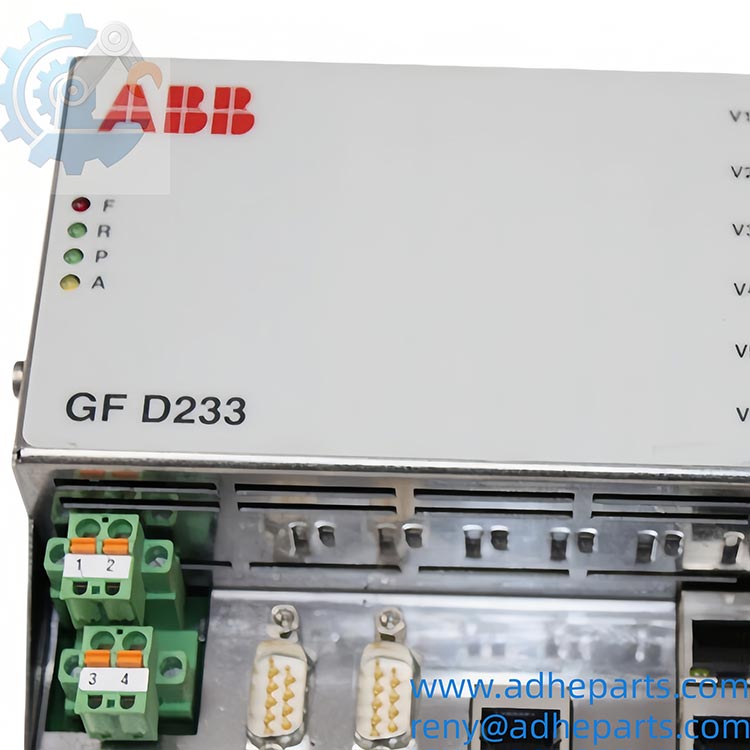

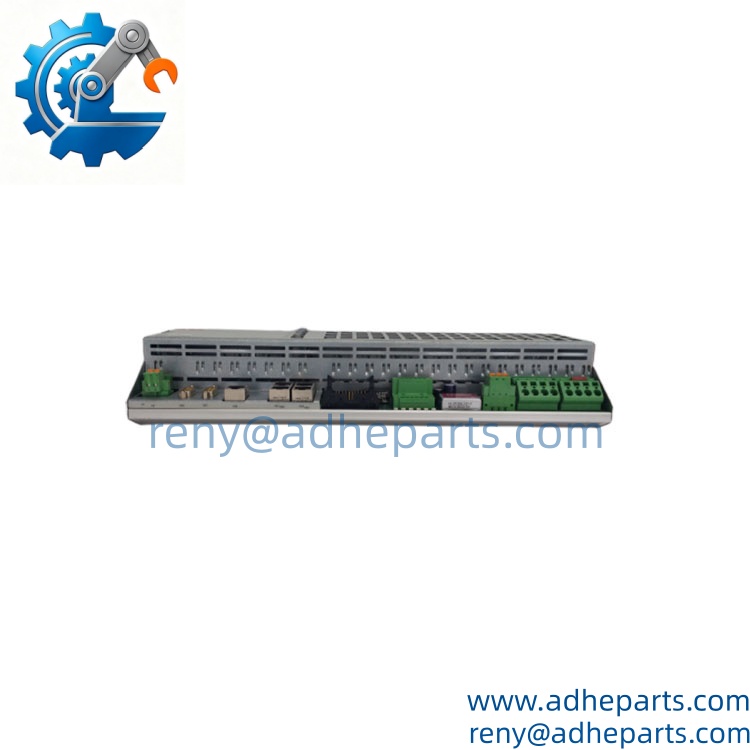

The ABB 3BHE022294R0101 (GF D233A) is a high-reliability Gate Drive Unit (GDU) circuit board engineered for high-power conversion systems, medium-voltage drives, and excitation controllers. Operating alongside the 3BHE020356R0101 controller board, this unit provides precise gate pulse control and isolation for semiconductor switches (such as IGCTs/IGBTs), ensuring stable power delivery and long-term equipment protection in demanding industrial automation applications.
Technical Specifications
| Parameter | Details |
| Manufacturer | ABB |
| Model Number | 3BHE022294R0101 |
| Module Code / Type | GF D233A / GFD233A |
| Associated Part Number | 3BHE020356R0101 |
| Product Type | Gate Drive Board / GDU Driver Unit |
| Compatible Systems | ABB ACS6000 / ACS1000 Drives, UNITROL Excitation Systems, MEGADRIVE |
| Functionality | IGCT/IGBT Pulse Driving, Galvanic Isolation, Fault Protection |
| Dimensions & Weight | Standard ABB Eurocard / Approx. 1.2 kg |
| Country of Origin | Switzerland / Germany |
| Condition | 100% Brand New Original or Rigorously Tested Surplus |
| Warranty | 12 Months (1 Year) |
Product Description & Applications
Product Overview
The ABB 3BHE022294R0101 GF D233A plays a crucial role in heavy-duty industrial drive systems. Designed to operate under high-voltage and high-current electrical stress, it converts control logic signals into high-energy switching pulses that reliably drive the main power semiconductor units. Integrated over-current and failure detection mechanisms ensure immediate fault containment, preventing catastrophic system shutdowns.
The ABB 3BHE022294R0101 (Type: LIN-board / GF D233 A: PEC80-LIN) is an authentic ABB spare part designed for PEC80 control system applications and drive interfaces. Originally manufactured in Switzerland and China under HS Code 85372000, this LIN-board serves as a crucial interface and driver card in high-power converter systems.
Direct Replacement Notice: If you are upgrading or replacing an active line module, ABB’s designated new replacement part ID for this unit is 3BHE046836R0101. Both original and superseded configurations are available to support your operational needs.
Key Features & Highlights
- High Output Drive Capability: Delivers fast, clean switching pulses to power semiconductors with minimal latency.
- Superior Noise Immunity: Built with advanced isolation transformers and optical links to withstand extreme electromagnetic interference (EMI).
- Industrial-Grade Durability: Engineered for continuous 24/7 operation in harsh ambient conditions.
- Seamless Compatibility: Direct plug-and-play fit for ABB medium-voltage drive cabinets and excitation controllers.
Main Industrial Applications
- Power Generation & Energy: Thermal, hydro, and wind power generation plants.
- Oil, Gas & Petrochemicals: High-power compressor drives, pipeline pumps, and refinery systems.
- Metals & Mining: Heavy rolling mills, mine hoists, and large kiln drives.
- Marine & Propulsion: Vessel propulsion drives and heavy marine electrical distribution.
Frequently Asked Questions (FAQ)
Q1: Is the ABB 3BHE022294R0101 / 3BHE020356R0101 original?
A: Yes, we supply 100% original ABB factory parts. Each unit undergoes strict visual and functional quality control before being dispatched.
Q2: What is the difference between 3BHE022294R0101, 3BHE020356R0101, and GF D233A?
A: “GF D233A” (or GFD233A) is the hardware module design code. 3BHE022294R0101 and 3BHE020356R0101 are the official ABB commercial part numbers/revisions for the driver unit and its matching assembly board.
Q3: How are the parts tested prior to shipping?
A: Pre-owned or surplus modules are bench-tested by experienced automation engineers to verify signal integrity, component response, and power output stability.
Q4: How fast can I get a quotation and shipping estimate?
A: Simply click the “Get Quote” button or contact our sales team via WhatsApp/Email. We respond with pricing and express shipping options (DHL, FedEx, UPS) within 1–2 hours during business hours.
Trust Badges & Guarantee
- 100% Quality Guaranteed: Backed by our full 12-Month Replacement Warranty.
- Express Global Delivery: Fast worldwide shipping via DHL, FedEx, UPS, and TNT with full tracking provided upon dispatch.
- Export-Grade Protection: Shipped in anti-static ESD shielding bags, wrapped in thick foam protection, and encased in heavy-duty industrial shipping cartons.
- Secure Payment Methods: We support Wire Transfer (T/T), PayPal, Credit Card, and Western Union.
