Foxboro FBMSVH | Electro-Hydraulic Servo Control Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Important identification note: Available technical records for FBMSVH are inconsistent. The strongest matching technical descriptions identify it as an LVDT-based electro-hydraulic servo control module, while several other listings incorrectly describe it as a generic I/O or communication module. The LVDT/servo-control specification is the technically coherent match for the FBMSVH designation.

Key Technical Specifications

The FBMSVH accepts either a 4–20 mA current command or 0–10 VDC voltage command, combines that command with LVDT position feedback, and generates a bidirectional servo-valve drive current. Available technical records specify a maximum output of approximately ±30 mA, with ±27 mA identified as the normal servo-control output range.

The feedback loop includes an LVDT modulator/demodulator and adjustable proportional or proportional-integral control. A separate 0–20 mA valve-position signal can be provided for external monitoring.

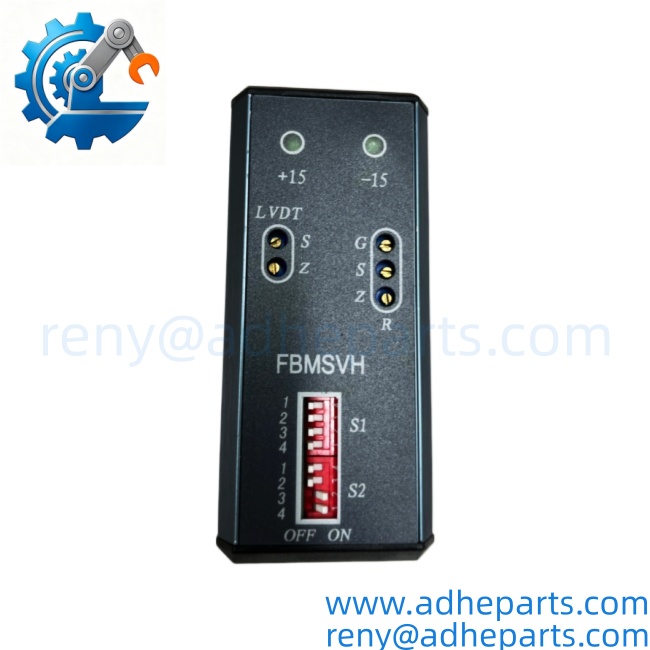

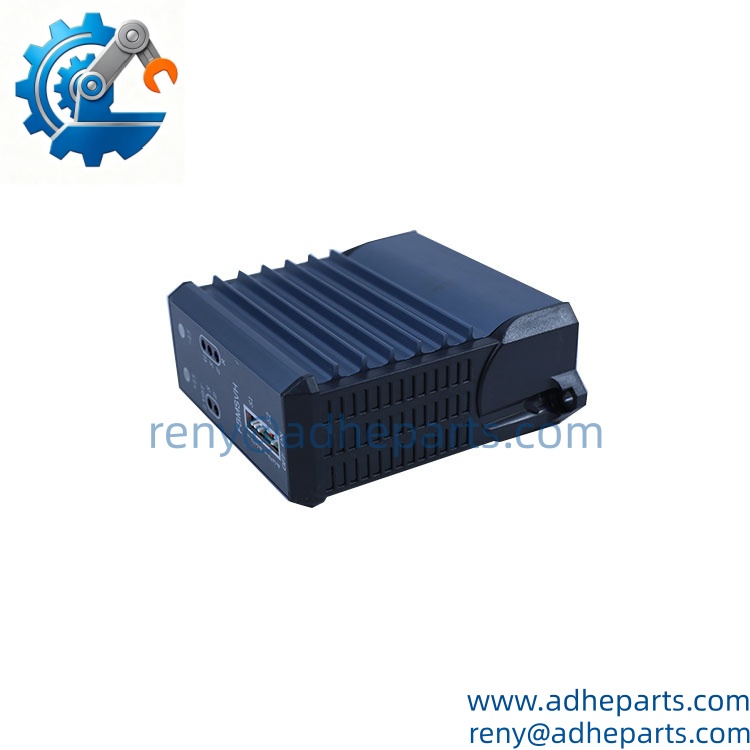

FOXBORO-FBMSVH front

Product Introduction (Anti-Template)

When a turbine control system needs to position a hydraulic or pneumatic servo valve accurately, the FBMSVH provides the closed-loop interface between the command signal, valve actuator, and LVDT feedback. Instead of simply passing an analog signal through, the module compares the requested position with the measured valve position and adjusts the servo-valve drive current accordingly.

The module accepts 4–20 mA or 0–10 VDC commands, while the LVDT provides position feedback to the control loop. Its output can reach approximately ±27 mA, making it suitable for servo-valve applications where bidirectional current control is required. Honestly, the LVDT wiring deserves more attention than the module itself—an incorrect excitation or feedback connection can make a healthy card look defective.

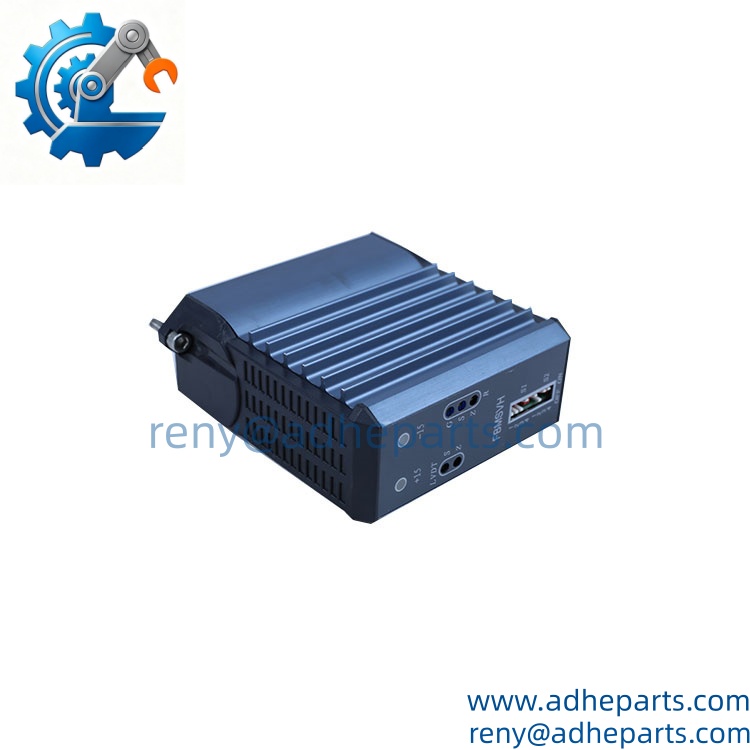

FOXBORO-FBMSVH sideview

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the physical marking FBMSVH, serial number, hardware revision, connector condition, PCB condition, and any Foxboro identification label.
2. Application Verification
   Confirm that the customer’s existing application uses an LVDT-controlled pneumatic or hydraulic servo valve. This is important because several online descriptions incorrectly classify FBMSVH as a generic I/O or communication module.
3. Live Rig Testing
   Where a suitable test setup is available, verify power-up, command input response, LVDT excitation, feedback response, proportional/PI adjustment, servo output current, valve-position output, and external shutdown behavior.
4. LVDT Verification
   Check the LVDT excitation and feedback circuitry before connecting the customer’s actuator. Verify the sensor’s electrical characteristics and mechanical travel against the original installation.
5. QA & Anti-Static Packaging
   Use ESD precautions during handling. Protect the PCB, connectors, adjustment components, and terminal interface from static discharge and mechanical impact.
6. Global Logistics & Export Compliance
   Export documentation should identify the item as a Foxboro FBMSVH Electro-Hydraulic Servo Control Module / LVDT Control Card. HS classification should be reviewed against the actual product function and destination customs requirements. Use secure anti-static and shock-resistant packaging for both air and sea freight.

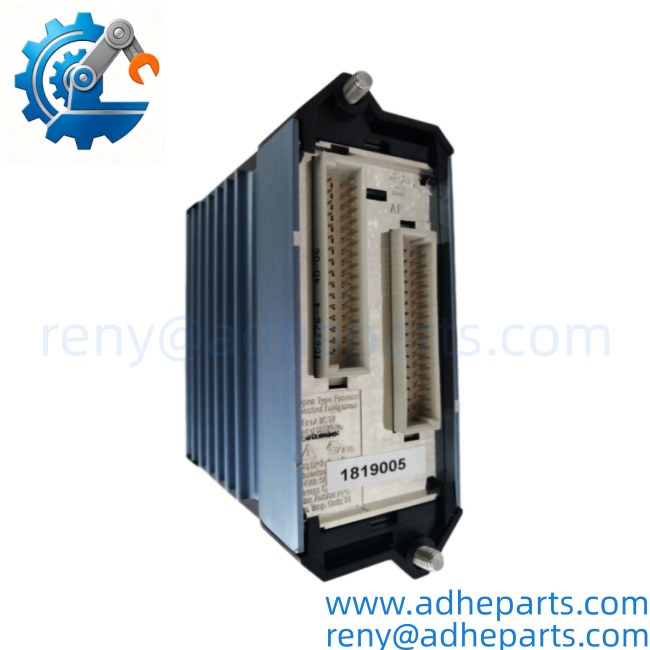

FOXBORO-FBMSVH sideview

Technical Pitfalls & Integration Warnings

1. Do Not Confuse It With a Generic I/O Module
   Some secondary listings describe FBMSVH as an analog I/O or communication module, but the detailed technical descriptions identify it as an LVDT servo control card. For procurement, the customer’s existing wiring and application should take priority over a generic online product title.
2. LVDT Wiring Error
   The module provides LVDT excitation and receives the corresponding feedback signal. If excitation, primary/secondary wiring, or signal polarity is incorrect, the feedback loop can become unstable or show an incorrect valve position.
3. Command Signal Mismatch
   The command input can be configured for 4–20 mA or 0–10 VDC. A 4–20 mA control loop should not be connected as though it were a voltage input. Check the existing control-system output before wiring the replacement.
4. Servo Output / Valve Compatibility
   The servo-valve drive output is bidirectional, with approximately ±27 mA normal operating range and up to ±30 mA maximum. The connected servo valve must match the electrical characteristics of the FBMSVH output stage.

Frequently Asked Questions (FAQ)

Q1: “What exactly is the Foxboro FBMSVH?”

It is an electro-hydraulic servo control module designed for closed-loop valve-position control. It uses an external command signal and LVDT feedback to control pneumatic or hydraulic servo valves.

Q2: “What signal does FBMSVH receive?”

It supports two command-input formats:

• 4–20 mA
• 0–10 VDC

The applicable input configuration depends on the installation.

Q3: What is the LVDT used for?

The LVDT provides the actual valve-position feedback. The FBMSVH compares this feedback against the requested position and adjusts its servo output to reduce the position error.

Q4: “What is the servo output current?”

The documented normal output range is approximately ±27 mA, with a maximum of about ±30 mA into an 80 Ω load. A separate 0–20 mA signal can provide valve-position information to external equipment.

Q5: Can FBMSVH control a hydraulic turbine valve?

Potentially, yes. The module is specifically described for pneumatic or hydraulic servo-valve closed-loop control. The actual application must be checked against the servo valve’s current requirements, LVDT characteristics, travel range, and command signal.

Q6: Can I hot-swap the FBMSVH?

Do not assume live replacement is safe. This module can directly control a servo valve, meaning an incorrect or uncontrolled output could move the actuator. Isolate the applicable hydraulic/pneumatic system and place the control loop in the approved maintenance state before removing the card.

Q7: “What information should I send before ordering?”

Please provide:

• FBMSVH nameplate photo
• Hardware revision
• Existing servo-valve model
• LVDT model
• LVDT wiring/feedback specification
• Command signal: 4–20 mA or 0–10 VDC
• Existing power-supply arrangement
• Existing Foxboro system/application
• Quantity required
• Destination country
• Required delivery date

For FBMSVH, I would strongly recommend requesting the customer’s existing card photo plus the servo-valve/LVDT nameplate. The module’s application is much easier to verify from the connected valve and feedback device than from the FBMSVH designation alone.
