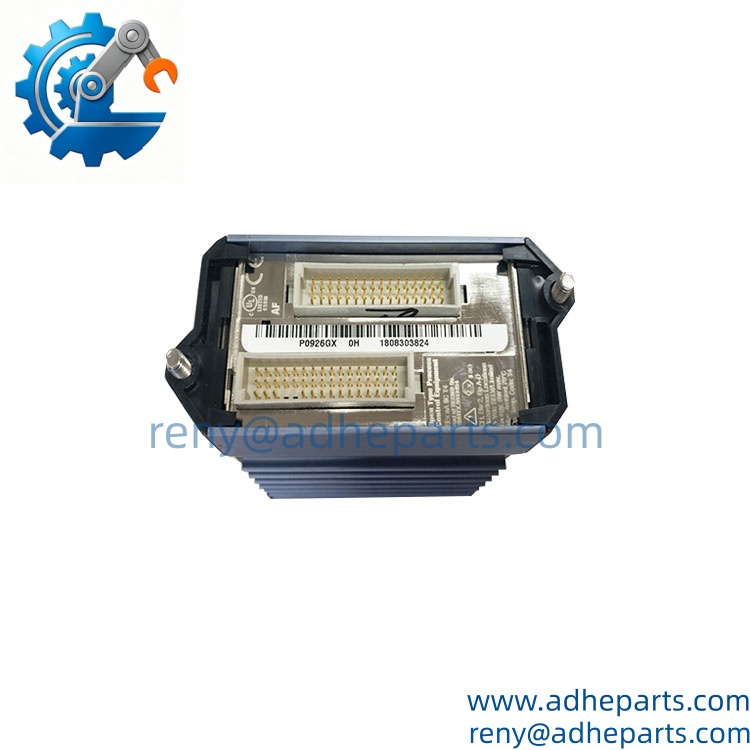

FOXBORO FBM233 P0926GX Label
Product Introduction
When a critical distillation column temperature reading drifts 2% off-scale, this module locks in measurement accuracy to keep your product specification on target.
It slots directly into standard FOXBORO I/A Series control racks, connecting via backplane interface to the main system controller. Its ruggedized component build handles continuous operation in harsh industrial plant environments.

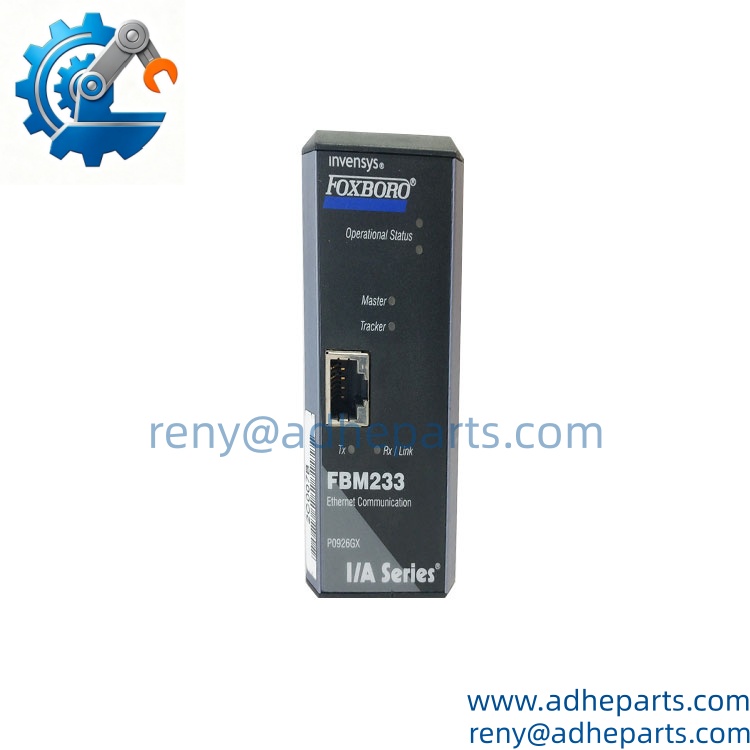

FOXBORO FBM233 P0926GX front
Key Technical Specifications
| Parameter | Value |
|---|---|
| Supported Input Types | Voltage, 4-20mA current analog signals |
| Number of Input Channels | 16 fully independent isolated channels |
| Operating Temperature Range | 0°C to 60°C |
| Installation | Standard FOXBORO I/A Series control system rack |
| Communication Interface | Dedicated backplane fieldbus connection |
| Signal Isolation | Per-channel individual electrical isolation |
| Protection Grade | IP20 for rack-mounted installation |
| Supported Functions | Sequential control, trapezoidal logic processing |
| Protocol Compatibility | Multiple industrial fieldbus protocol support |
| Mechanical Design | Robust industrial-grade anti-vibration housing |

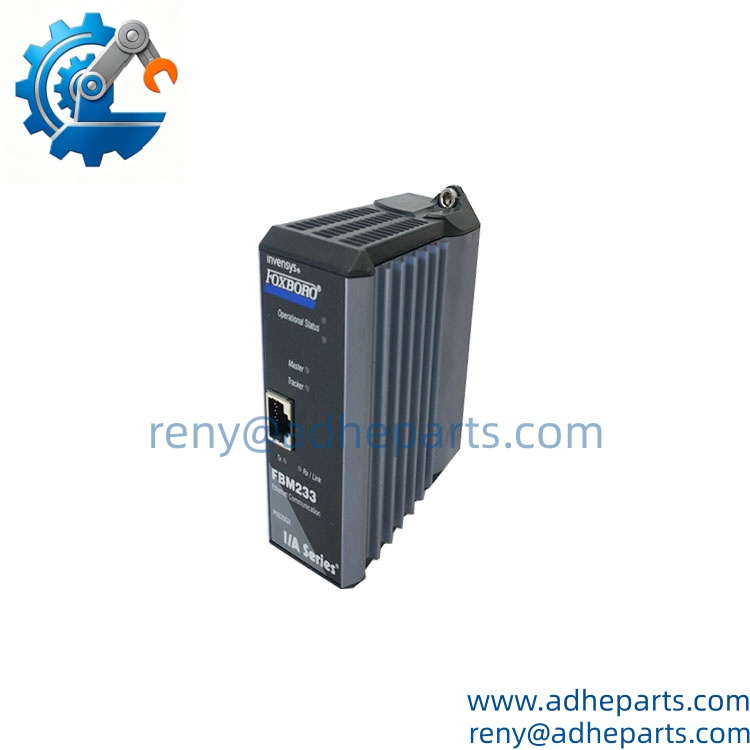

FOXBORO FBM233 P0926GX sideview
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Refinery Distillation Column Control: Collects temperature, pressure and level sensor signals across 16 independent loops to maintain stable fractionation performance.
- Chemical Plant Batch Process Monitoring: Tracks real-time analog readings from reactor pH, flow and temperature transmitters to ensure batch recipe compliance.
- Power Plant Boiler Process Control: Feeds steam pressure and water level analog data to the DCS for precise combustion and feedwater regulation.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never mix 4-20mA and 0-10V input signals on adjacent channels. The third terminal block from the left shares a common ground reference that will introduce cross-channel signal interference.
- ⚠️ Bold Warning 2: Firmware revision mismatch will cause 30% of channels to return stale data. This unit requires I/A Series system firmware v7.2+; it will not operate correctly on v6.x legacy racks.
- ⚠️ Bold Warning 3: Skipping ESD protection during installation can damage the onboard 16-bit ADC chip without immediate visible failure. The fault will only surface when ambient plant temperature climbs above 50°C.
A petrochemical plant maintenance team once swapped a FBM233 unit without verifying firmware compatibility. 6 channels started returning stale 2-hour old data after 4 hours of operation, leading to incorrect distillation column temperature adjustments that forced a 12-hour production shutdown to rework off-spec product.
File Download：
FBM233 Datasheet

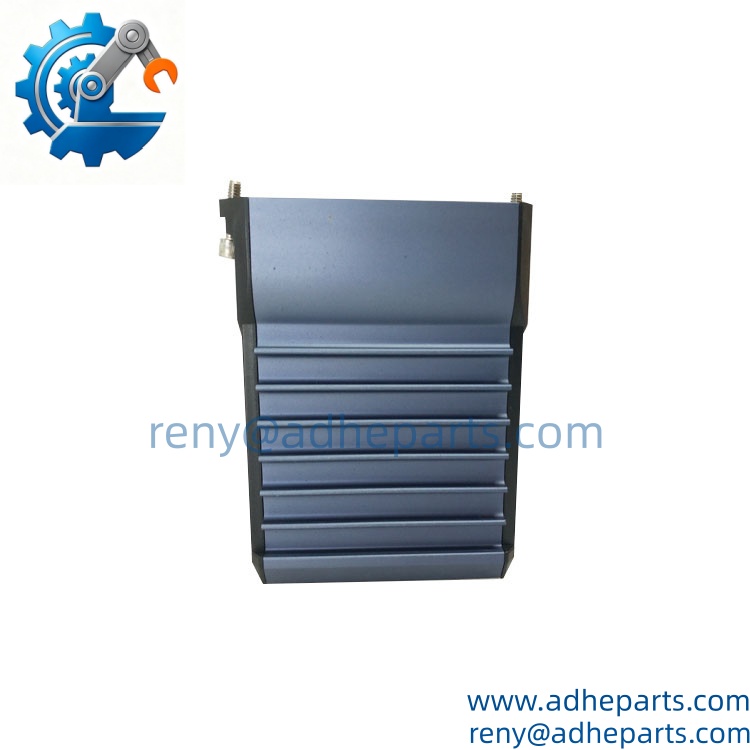

FOXBORO FBM233 P0926GX backside
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against FOXBORO’s official part registry, inspect the anti-counterfeit label, and confirm no bent pins on the backplane connector.
- Live Rig Testing: Seat the unit in a calibrated FOXBORO I/A Series test rack, apply system power, and confirm full fieldbus handshake and all 16 channel data acquisition for 2 continuous hours.
- Parameter Testing: Inject calibrated 4-20mA and 0-10V reference signals into every channel, verify measurement accuracy stays within ±0.1% of reference, and confirm per-channel isolation resistance meets 500V industrial standards.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the DCS rack is powered on? Yes, but you must confirm the I/A Series system is configured for redundant I/O operation first. Non-redundant setups will trigger a process data gap when you pull the unit.
- What exact FOXBORO systems is this module compatible with? It works natively with all FOXBORO I/A Series DCS racks. It will not boot in older Spectrum series systems without a custom OEM firmware patch.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine FOXBORO FBM233 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the per-channel 500V isolation resistance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official FOXBORO factory calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older FBM232 8-channel analog input unit? Well, technically it fits the same rack slot, but you will need to re-map all 8 existing DCS points and reconfigure the 8 new unused channels in the system logic software.
