Foxboro FBM214B | 8-Channel HART Analog Input Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

The FBM214b is Foxboro’s Compact 200 Series HART communication input interface module. Schneider Electric’s current documentation identifies it as an 8-channel, channel-isolated 4–20 mA HART input module.

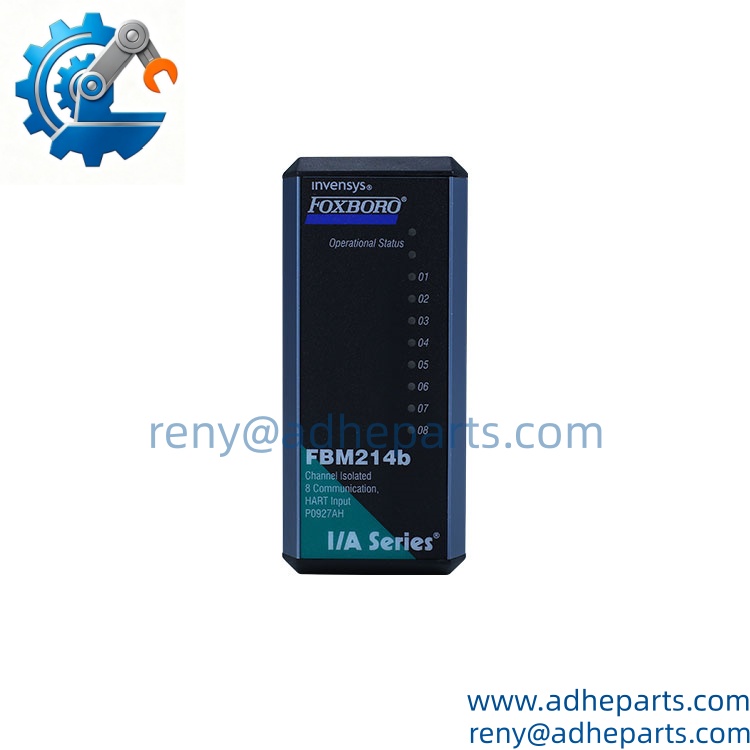

FOXBORO-FBM214B label

Key Technical Specifications

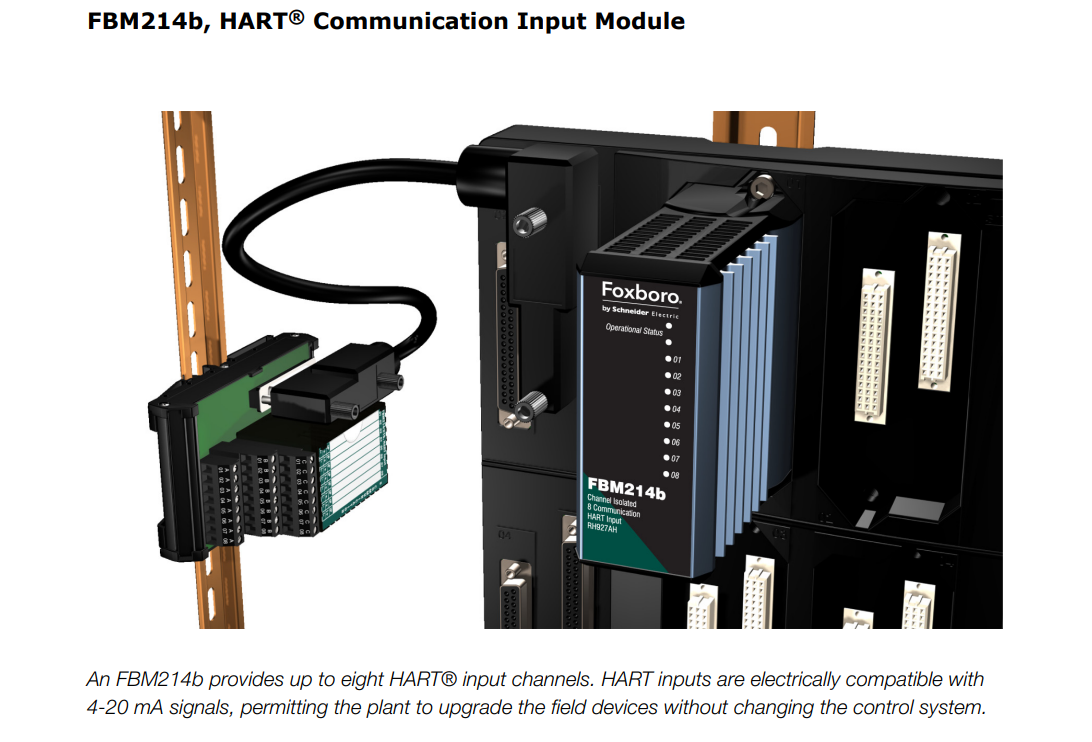

The FBM214b provides eight individually isolated input circuits, and each channel can accept standard 4–20 mA devices as well as HART-enabled field devices. The module also provides an individually isolated, current-limited loop supply for each channel.

One important distinction: FBM214b is not simply the same hardware as the older FBM214. Foxboro documentation states that the FBM214 has group-isolated analog inputs, whereas the FBM214b provides individual isolation for its eight channels.

Product Introduction (Anti-Template)

A pressure transmitter can still deliver its normal 4–20 mA process signal while carrying useful diagnostic information through HART. The Foxboro FBM214B is designed to handle both sides of that communication, providing eight isolated analog input channels while allowing the DCS to communicate digitally with compatible HART field devices. This makes it suitable for process measurements where the plant needs more than a basic current signal.

Each channel has its own isolated loop supply and current limitation, reducing the chance that a problem on one transmitter loop propagates into another input. The module communicates with its associated FCP or FCM through the redundant 2 Mbps module Fieldbus.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the exact identification: FBM214B.

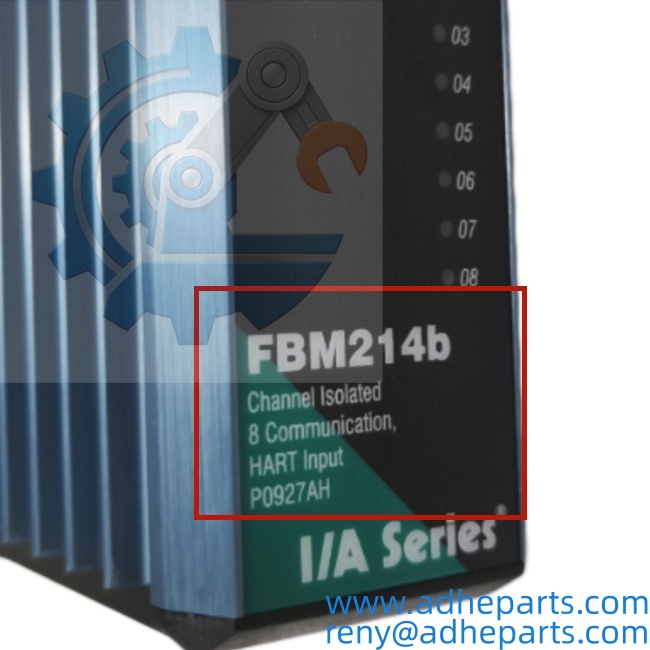

   • Check the module label, serial number, hardware revision, and manufacturing information.

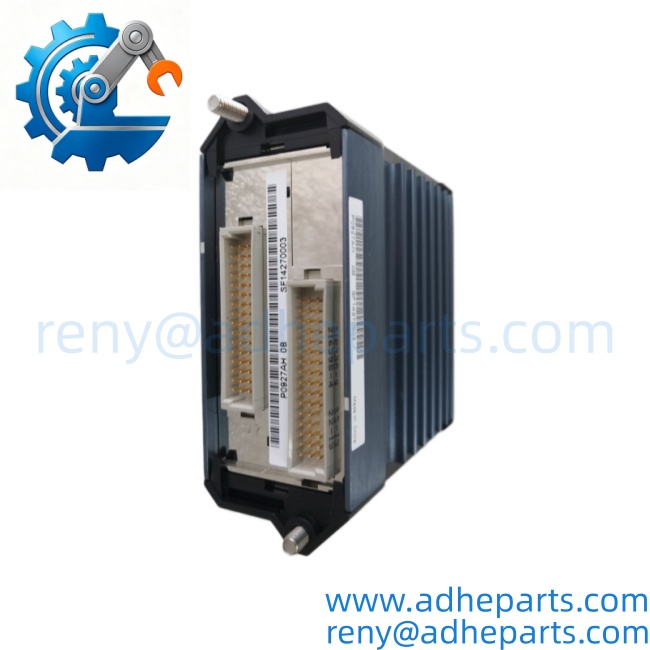

   • Inspect the housing, connectors, LEDs, and mounting interfaces.
   • Verify whether the customer’s installation uses the Compact 200 Series architecture.
   • Confirm the associated baseplate and termination assembly before shipment.
2. Live Rig Testing
   • Apply the specified system power under controlled conditions.
   • Check module startup and diagnostic LEDs.
   • Feed representative 4–20 mA signals into each available channel.
   • Verify analog measurement response across the input range.
   • Test HART communication with an appropriate compatible field device or simulator.
   • Check channel isolation and loop-supply behavior where the test setup permits.
   • Record the test results against the module serial number.
3. QA & Anti-Static Packaging
   • Photograph the complete identification label before packing.
   • Use ESD-safe packaging for the electronic module.
   • Protect the fieldbus and termination connectors against impact.
   • Prevent excessive pressure on the housing and connector areas.
   • Add moisture protection for long-distance transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Use a precise description such as industrial DCS 8-channel HART analog input module.
   • Air freight is generally practical for this type of electronic I/O spare.
   • Use anti-static, moisture-resistant, and impact-resistant packaging.
   • Confirm the final HS classification with the destination customs broker before declaration.

Technical Pitfalls & Integration Warnings

1. FBM214 vs. FBM214B

This is the first substitution issue to check. Foxboro documentation distinguishes the two: the FBM214 has eight group-isolated analog input channels, while the FBM214b has eight individually isolated channels.

A technician may see the same basic model family and assume direct interchangeability. That is not a safe assumption when the original system depends on channel-to-channel isolation.

2. HART Communication Is Not the Same as 4–20 mA Measurement

The analog signal may work while HART communication does not.

For example, a transmitter can continue showing a valid process value in the DCS while digital diagnostics, device identification, or configuration access fail. Check the complete HART loop, termination assembly, wiring, and software support rather than judging the module only from its analog reading.

3. Termination Assembly Compatibility

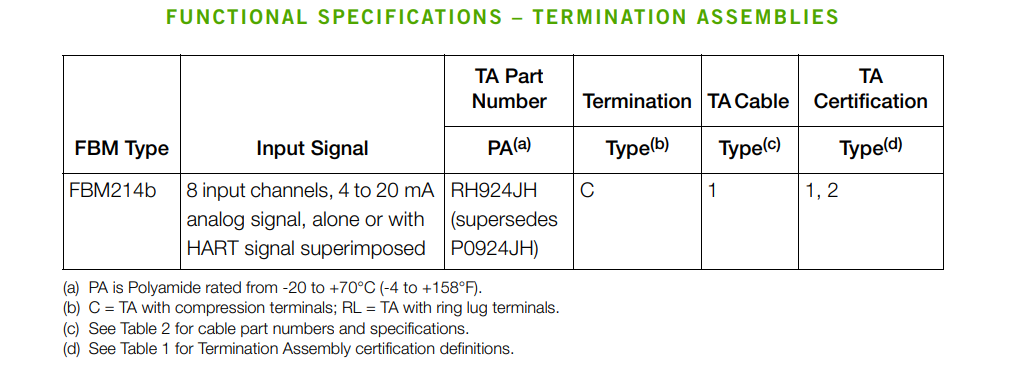

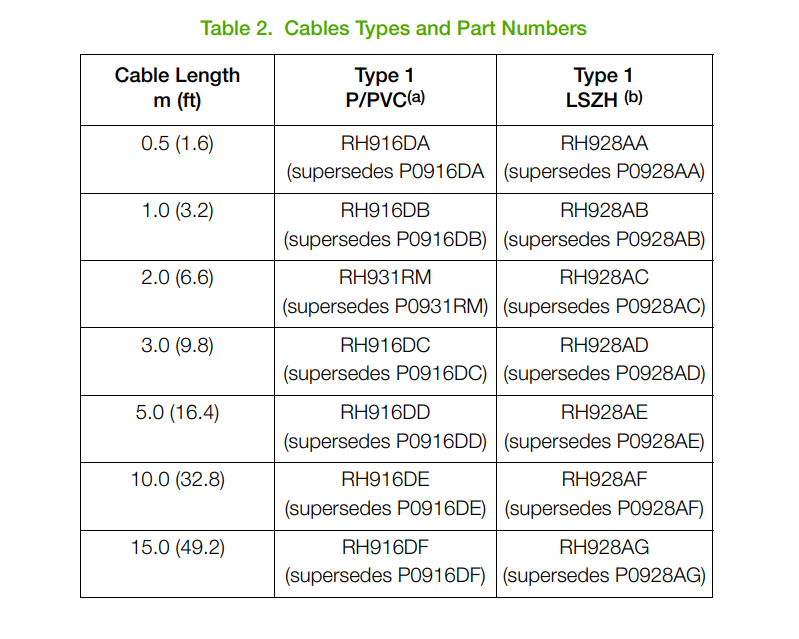

The FBM214b does not receive customer field wiring directly; field connections are made through the associated termination assembly. Foxboro documentation specifically notes that Compact 200 Series FBMs use dedicated termination assemblies.

Do not order the module alone without checking the existing termination arrangement. A mechanically correct FBM can still be unusable if the field termination hardware does not match.

4. Software Revision

The current Foxboro specification identifies I/A Series software v8.2 through v8.8 and Control Core Services v9.0 or later for the FBM214b.

For a legacy DCS, software compatibility deserves the same attention as the hardware part number. A module that powers up does not necessarily mean the control system will recognize and operate it correctly.

Frequently Asked Questions (FAQ)

Q1: What is the Foxboro FBM214B used for?

The FBM214b is an 8-channel isolated 4–20 mA HART input module used in Foxboro DCS architectures. It collects analog process signals and provides HART communication with compatible smart transmitters.

Q2: Does the FBM214B support HART?

Yes. HART communication is one of its primary functions. The module supports standard 4–20 mA measurement together with HART digital communication.

Q3: How many input channels does it have?

The FBM214b provides 8 individually isolated analog input channels. Each channel can handle compatible 4–20 mA field signals.

Q4: Does each channel have its own loop power?

Yes. Each channel has an individually isolated 24 VDC ±10% loop supply, with the loop supply limited by design to less than 37 mA.

Q5: Can FBM214 replace ?

Do not assume direct replacement. The two versions differ in their isolation architecture. The FBM214b provides individual channel isolation, while the older FBM214 uses group isolation.

For an actual replacement, provide the existing module’s complete identification and a photograph of the installed termination assembly.

Q6: Is the hot-swappable?

The Compact 200 Series architecture is designed so that the module can be removed or replaced without disturbing the field-device termination, power, or communication cabling.

Even so, follow the plant’s approved maintenance procedure. If the affected channels are part of an active control or protection loop, place the relevant process and control functions in the required maintenance state first.

Q7: What software versions are supported?

Foxboro’s current specification lists I/A Series software v8.2–v8.8 or Control Core Services v9.0 and later.

For an older installation, verify the actual system software revision before purchasing a replacement.

Q8: What should I provide when requesting an replacement?

For a proper compatibility check, provide:

• complete model information
• Hardware revision
• Serial number
• Photograph of the existing module
• Baseplate model
• Termination assembly model
• DCS software version
• Transmitter type and HART requirements
• Current module or channel fault information

For this module, the termination assembly and isolation architecture are just as important as the nameplate.
