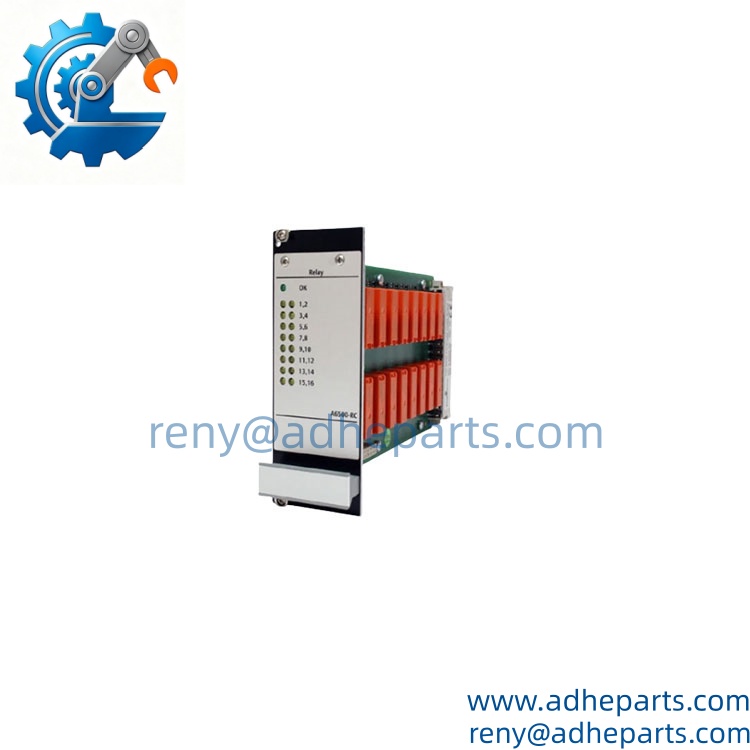

Emerson A6500-RC | 16-Relay Output Module

Description

The Emerson A6500-RC is the 16-Channel Output Relay Module used with the AMS 6500 machinery protection system. Emerson specifies it for critical rotating equipment such as steam turbines, gas turbines, compressors, and hydro machinery.

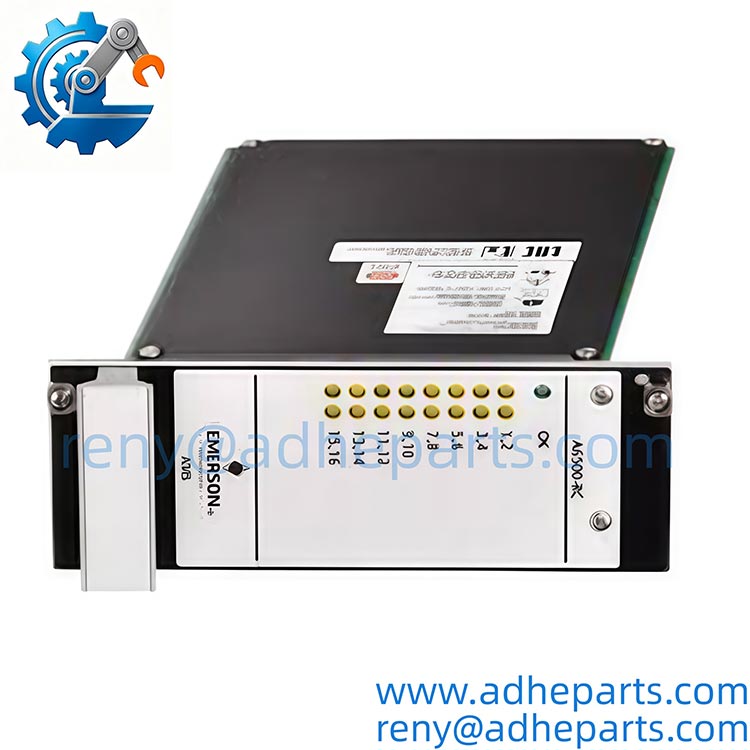

AMS-A6500-RC-label

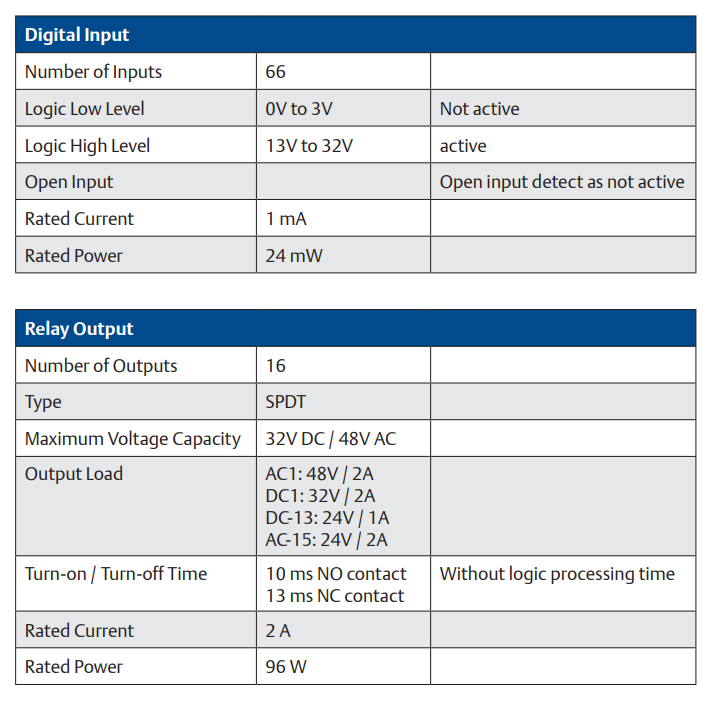

Key Technical Specifications

The A6500-RC accepts up to 66 digital status inputs, including channel clear, alert, and danger signals, and provides 16 relay outputs. Emerson specifies SPDT mechanical relays with selectable normally open/normally closed operation.

The logic engine allows up to 16 logic networks to be configured. Time delay can be programmed from 0 to 1000 seconds, which is useful when alarm or trip logic needs intentional delay rather than immediate relay action.

Datasheet Uploads

A6500-RC Datasheet

AMS-6500-ATG-Overview

Product Introduction (Anti-Template)

When a machinery protection system detects an alert or danger condition, the monitoring card is only half of the job. The protection signal still has to reach the plant’s interlock, alarm, or trip circuit. The Emerson A6500-RC handles that interface within the AMS 6500 machinery monitoring architecture, accepting status signals from monitoring channels and routing them through configurable logic to 16 physical relay outputs.

Its small 3U form factor does not mean it is a simple relay board. The module combines 66 digital inputs, programmable logic, time delays, and 16 SPDT outputs in a two-slot A6500 rack module. Honestly, this architecture can save a considerable amount of external relay wiring when the protection logic is properly configured.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the exact identification: A6500-RC.
   • Check the Emerson nameplate, module label, hardware revision, and serial number.
   • Inspect the front-panel LEDs, extraction handle, connector interface, and PCB condition.
   • Verify that the customer’s rack is an configuration.
   • Confirm whether the installation uses standard or redundant relay architecture.
2. Live Rig Testing
   • Verify the module using compatible AMS 6500 equipment where available.
   • Check power-up behavior and the module status indication.
   • Exercise representative digital inputs under controlled conditions.
   • Verify relay output operation against the configured logic.
   • Check configurable time delays where applicable.
   • Do not connect test relay outputs directly to live turbine trip circuits without an approved commissioning procedure.
3. QA & Anti-Static Packaging
   • Record the module identification and serial number before packing.
   • Use ESD-safe packaging for the electronic assembly.
   • Protect the front-panel controls, extraction handle, and rack connectors.
   • Prevent connector pins from contacting packing materials or loose metal objects.
   • Use rigid cushioning to prevent shock during international transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and appropriate HS classification.
   • Identify the item accurately as an industrial machinery protection relay module.
   • Air freight is normally practical for this type of electronic module.
   • Use moisture-resistant anti-static packaging for long-distance transportation.
   • Check the final HS classification against the destination customs tariff before export documentation is finalized.

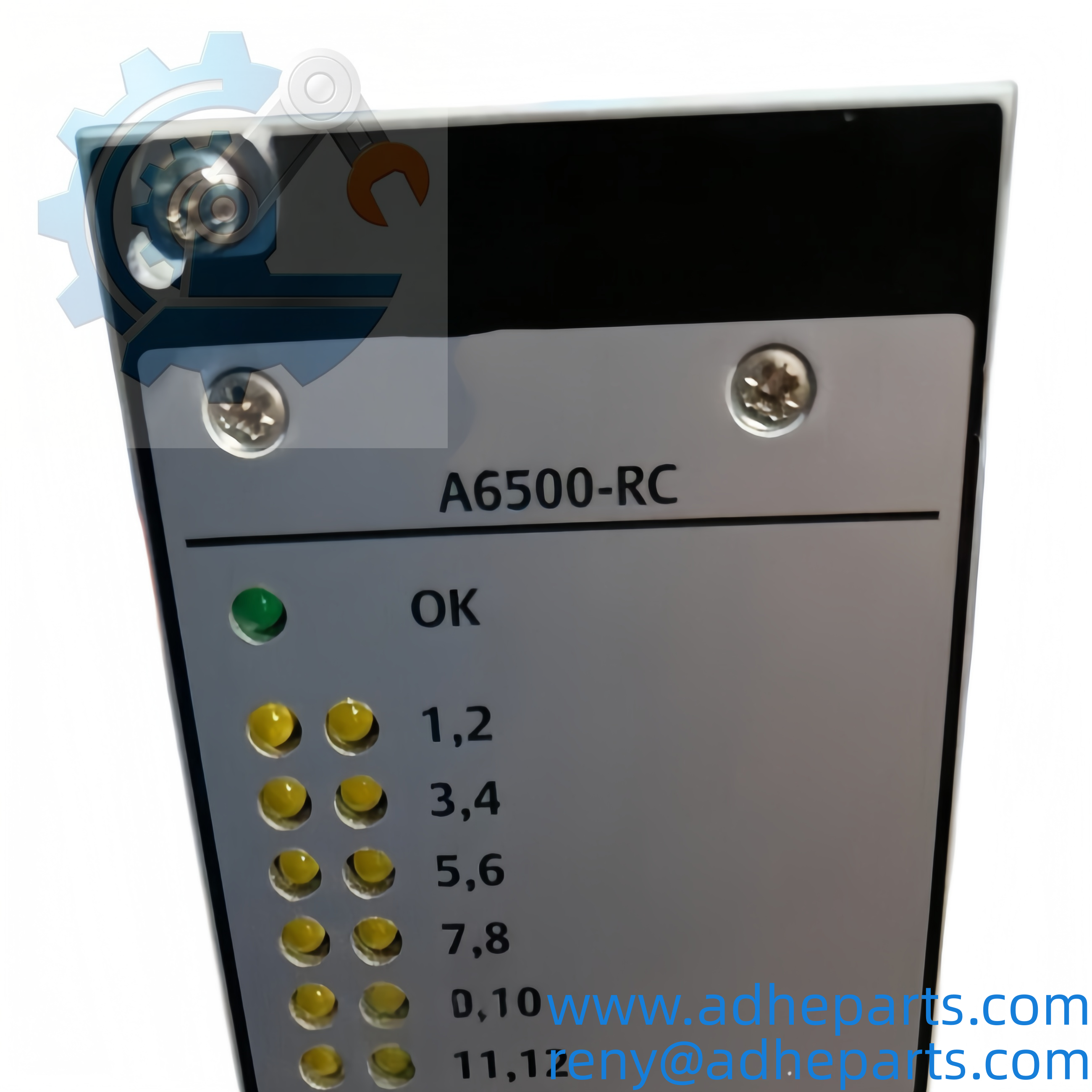

AMS-A6500-RC-sideview

Technical Pitfalls & Integration Warnings

1. Logic Configuration Mismatch

The -RC does not simply energize a relay whenever one input changes. Its inputs can be processed through configurable Boolean logic and time delays. A replacement with the wrong configuration could therefore produce completely different alarm or trip behavior even though the hardware itself passes a basic power-on test.

2. Relay Contact Configuration

Each output uses an SPDT relay, and the application can use normally open or normally closed contacts. Verify the existing wiring before replacement. A NO/NC misunderstanding on a machinery protection circuit can create an unwanted alarm—or worse, defeat an intended interlock.

3. Input Voltage Mismatch

Emerson specifies 0–3 VDC as logic low and 13–32 VDC as logic high for the digital inputs. A field signal that sits in the undefined region should not be treated as a valid logic command.

4. Hot-Swap Does Not Mean Zero Risk

Emerson identifhe as a hot-swappable module. However, do not interpret that as permission to remove any relay card without checking the plant’s maintenance procedure. If the relay is part of an active trip or interlock path, disturbing the module can have operational consequences.

Frequently Asked Questions (FAQ)

Q1: What exactly is the on ?

It is a 16-channel output relay module for the AMS 6500 / CSI 6500 machinery health monitoring system. It receives monitoring status signals and uses configurable logic to control physical relay outputs.

Q2: How many inputs and relay outputs does it have?

The module provides 66 digital inputs and 16 relay outputs. The outputs are SPDT type.

Q3: What raes fit?

he is a 10 TE, 3U, two-slot plug-in module designed for the -xR rack family.

Q4: Case as a direct replacement for another relay card?

Only if the existing system is configured for tme architecture. Check the rack type, module identification, relay logic, wiring, and stored configuration before replacement. A relay card with the same general purpose is not automatically electrically equivalent.

Q5:he hot-swappable?

Yes. Emerson’s specifications explicitly identify it as a hot-swappable module.

Even so, if the card is connected to an active machinery trip or shutdown circuit, follow the plant’s approved maintenance procedure before removal.

Q6: What is the maximum relay contact rating?

Emerson specifies a maximum voltage capacity of 32 VDC / 48 VAC. The listed loads include 32 V / 2 A DC1 and 48 V / 2 A AC1, with lower ratings for specific utilization categories.

Q7: he perform logic by itself?

Yes. The module supports up to 16 logic networks, with functions including AND, OR, XOR, SR/RS, and positive/negative logic. Time delays from 0 to 1000 seconds are also specified.

Q8: What should I send when asking for a replacement quotation?

Provide the exact model, a clear photograph of the installed module, the rack model, and—if available—the current configuration or logic information. If the module is being replaced because of a machinery trip, include the associated alarm or diagnostic information as well.
