Product Introduction
When a critical emergency shutdown pushbutton signal fails to register in the DCS, this module eliminates that blind spot in your safety monitoring chain.
It mounts directly in standard FOXBORO I/A Series control racks, with front-facing status LEDs for every individual channel. Its rugged metal housing resists dust, moisture and common industrial electromagnetic interference for long-term stable operation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Input Channels | 16 fully independent isolated digital inputs |
| Supported Signal Types | Dry contact, wet contact 24V DC switch signals |
| Operating Temperature Range | 0°C ~ 60°C |
| Storage Temperature Range | -20°C ~ 80°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Installation | Standard FOXBORO I/A Series control system rack |
| Communication Interface | Dedicated backplane fieldbus connection |
| Signal Isolation | Per-channel individual electrical isolation |
| Protection Grade | IP20 for rack-mounted installation |
| Diagnostics | Built-in channel open/short circuit detection |
File Download：
FOXBORO–FBM216 label
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Oil & Gas Refinery Safety Monitoring: Tracks valve position, emergency stop button and pump running status signals across process units.
- Power Substation Control: Collects auxiliary contact position signals from breakers and disconnect switches for grid operation monitoring.
- Water Treatment Plant Automation: Monitors filter backwash valve status, pump running feedback and high/low level alarm switch signals.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never mix dry contact and wet contact inputs on adjacent channels. The third terminal block from the left shares a common return path that will cause false trigger signals.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable 4 diagnostic channels. This unit requires I/A Series system firmware v7.1+; it will not report full health status on v6.x legacy racks.
- ⚠️ Bold Warning 3: Skipping ESD protection during installation can damage the onboard input conditioning chip. The fault will only appear when field signal voltage spikes above 30V DC.
A refinery maintenance team once swapped a FBM216 unit without verifying firmware compatibility. 4 emergency stop button signals stopped reporting to the DCS after 3 days of operation, leaving the unit with unprotected safety interlocks for 11 hours before the fault was discovered during a routine inspection.

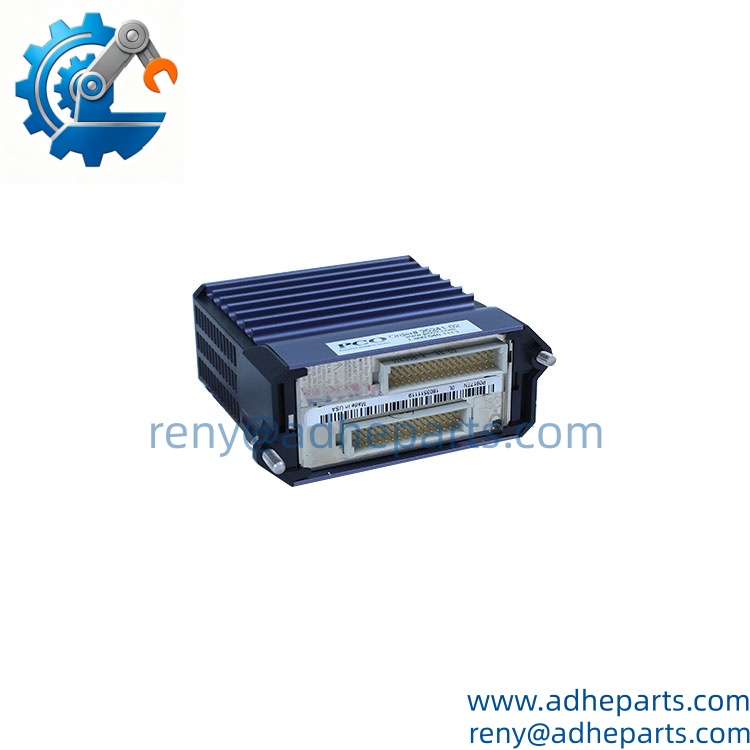

FOXBORO–FBM216 sideview

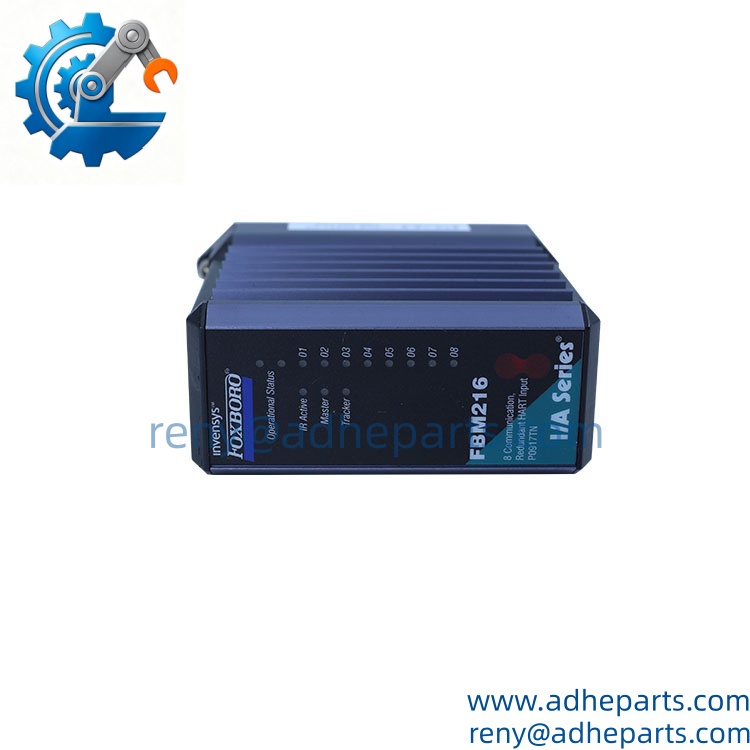

FOXBORO–FBM216 sideview 2
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against FOXBORO’s official part registry, inspect the anti-counterfeit hologram, and confirm no bent pins on the backplane connector.
- Live Rig Testing: Seat the unit in a calibrated FOXBORO I/A Series test rack, apply system power, and confirm full fieldbus handshake and all 16 channel toggle detection for 2 continuous hours.
- Parameter Testing: Inject simulated dry and wet contact signals into every channel, verify detection accuracy stays 100% consistent, and confirm per-channel 500V isolation resistance meets industrial standards.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

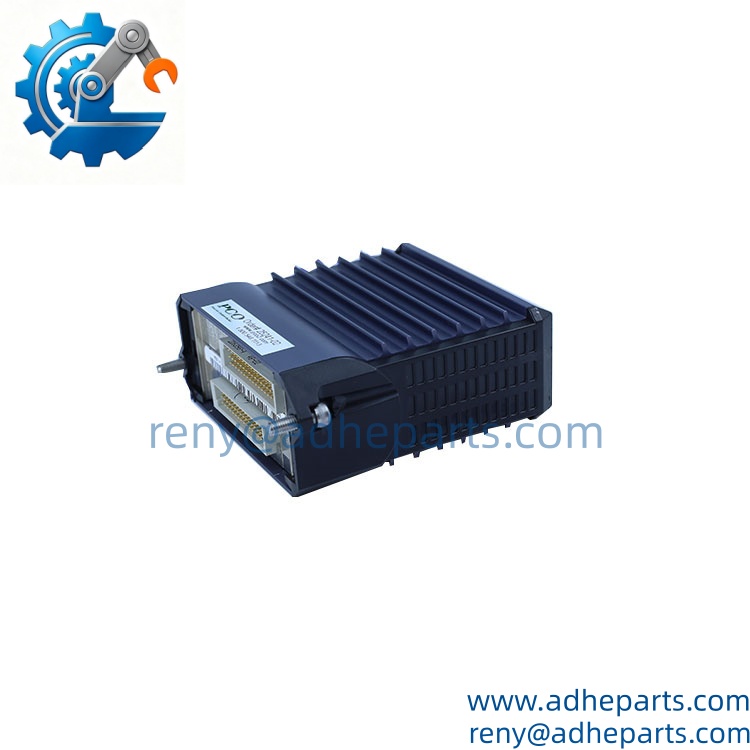

FOXBORO–FBM216 backside
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the DCS rack is powered on? Yes, but you must confirm the I/A Series system is configured for redundant I/O operation first. Non-redundant setups will lose all 16 switch status readings temporarily when you pull the unit.
- What exact FOXBORO systems is this module compatible with? It works natively with all FOXBORO I/A Series DCS racks. It will not boot in older Spectrum series systems without a custom OEM firmware patch.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine FOXBORO FBM216 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the per-channel 500V isolation resistance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official FOXBORO factory calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older FBM214 8-channel digital input unit? Well, technically it fits the same rack slot, but you will need to re-map all 8 existing DCS points and reconfigure the 8 new unused channels in the system logic software.
