Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

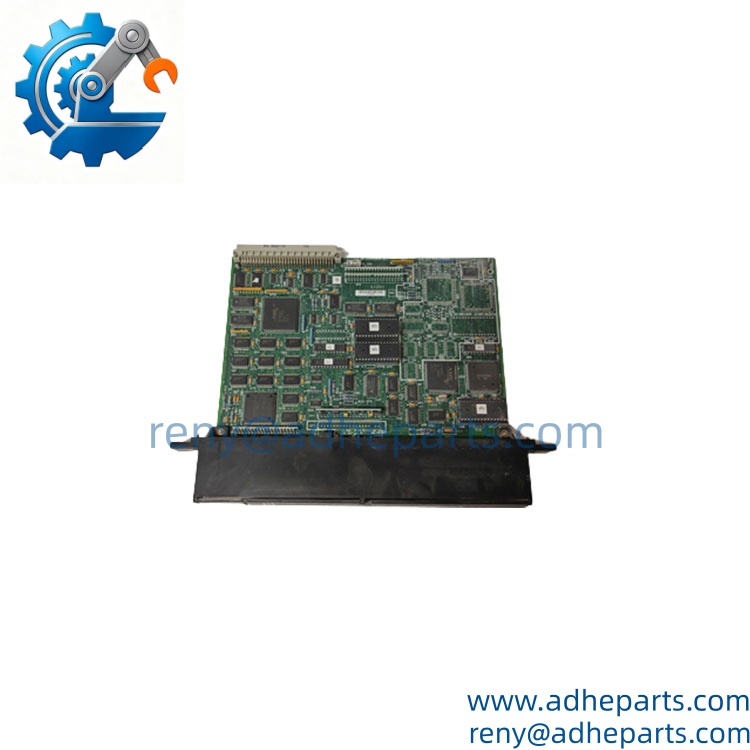

IC687BEM731-AB-front
Key Technical Specifications
- Bus Protocol: Genius serial remote I/O bus
- Supported Nodes: Up to 32 Genius remote I/O devices per bus channel
- Backplane Compatibility: Series 90‑70 PLC backplane slots
- Module Power Draw: 1.1 A @ +5 VDC from PLC backplane
- Status Feedback: Multi‑color front‑panel LED indicators for bus, fault, and activity
- Isolation: Bus channel galvanic isolation
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: ‑40 °C to +85 °C
- Signal Wiring: Shielded twisted‑pair Genius bus cable
- Weight: 0.32 kg
- Firmware: Hardware‑embedded on‑board firmware; no user flash update port

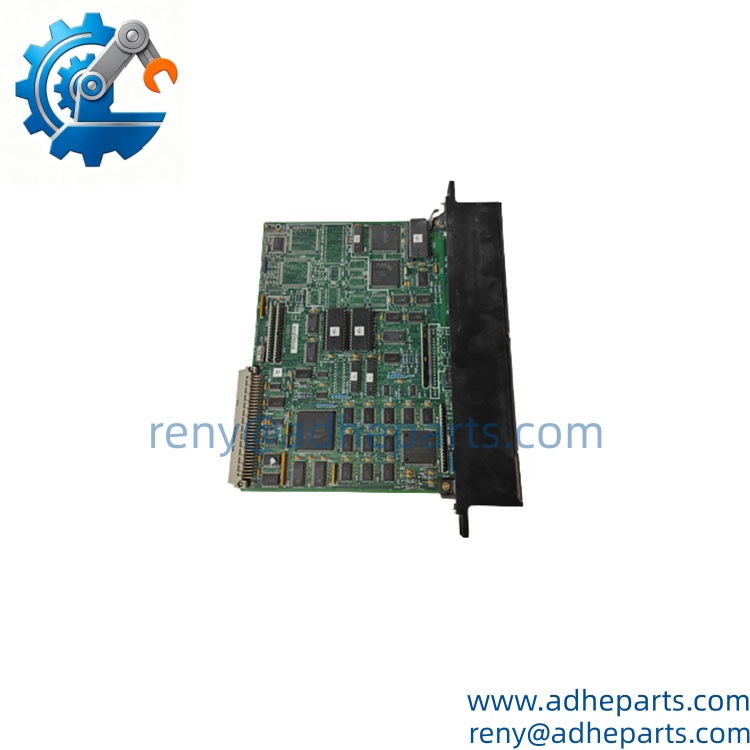

IC687BEM731-AB-front
Product Introduction (Anti‑Template)
When a main CPU trips and downtime costs thousands per minute, faulty remote‑bus communication often sits at the root of unplanned plant stops. The IC687BEM731‑AB manages all Genius bus traffic for Series 90‑70 racks, passing input and output signals out to field‑mounted I/O blocks without overloading the main CPU cycle time.
Honestly, this hardware removes heavy I/O polling work from the main processor, so scan cycles stay stable even with dense remote node layouts. Field technicians read bus faults directly from front‑panel LEDs, —though customs clearance in the EU might add 2 days for legacy automation spare‑part shipments.

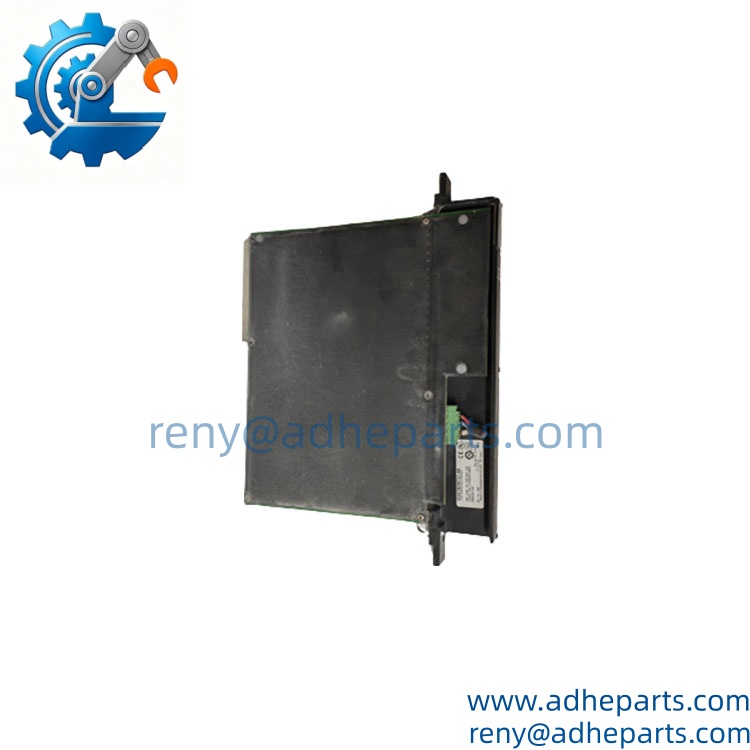

IC687BEM731-AB-backside

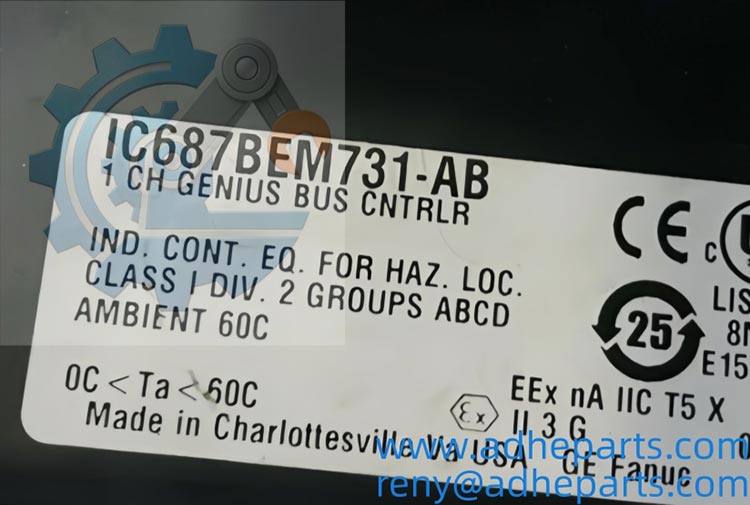

IC687BEM731-AB-label
QC, Procurement & Logistics SOP
- Inbound Verification: Confirm original part marking, inspect factory physical labels, cross‑check board silkscreen identifiers to filter refurbished counterfeit assemblies.
- Live Rig Testing: Seat module inside valid Series 90‑70 test rack; run power‑on self‑test, establish Genius bus link with simulated remote nodes, validate input/output data transmission across the bus.
- QA & Anti‑Static Packaging: Seal unit inside ESD‑protective bag, add shock‑absorbing foam around PCB edges, mark packaging with module revision details for receiving‑team reference.
- Global Logistics & Export Compliance: Apply optimized HS code classification for legacy PLC communication hardware. Use reinforced outer cartons built for air or sea freight; complete all commodity documentation before carrier hand‑off to prevent hold‑ups at customs databases.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. One site fitted IC687BEM731‑AB to an older Series 90‑70 CPU running firmware V4.1. The bus controller initialized, but several Genius I/O nodes dropped connections under high‑load conditions. Match bus‑module hardware revision against CPU firmware revision before rack insertion.
- Bus Termination Resistor Errors. A maintenance team skipped end‑of‑bus termination resistors during field swap. The module showed normal LED activity, yet random signal glitches and intermittent node drop‑outs appeared during motor‑start transients. Proper termination is non‑negotiable for Genius bus runs.
- Wiring/Terminal incompatibility. A crew reused unshielded cable from a different legacy system to cut material costs. Heavy nearby motor‑drive noise corrupted bus signals; valid I/O readings would randomly flip mid‑run. Only use approved shielded twisted‑pair Genius bus cabling.
- ESD destruction during unboxing. A technician handled the exposed circuit board without grounding in a dry production hall. The module powered up and lit LEDs, but it could not establish stable Genius bus communication. Static damage can leave no obvious physical marks.

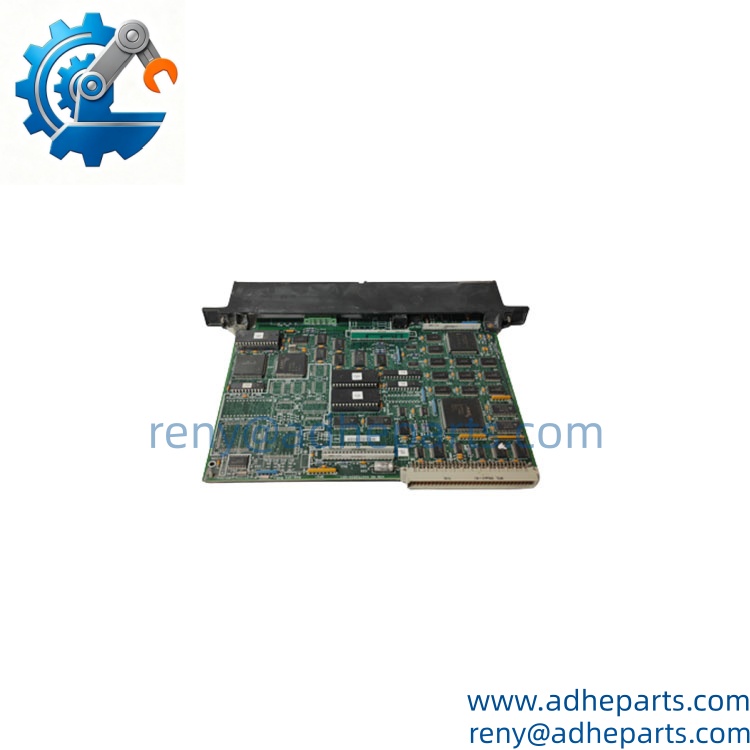

IC687BEM731-AB-front
Frequently Asked Questions (FAQ)
Q: What global lead times should I budget for this IC687BEM731‑AB spare module? A: New‑surplus inventory ships within 1‑3 working days. Ocean‑crossing transit runs 5‑14 days based on carrier selection. Add extra time if your territory performs legacy‑automation import screening.
Q: Can I hot‑swap IC687BEM731‑AB while the Series 90‑70 PLC stays online? A: Hot‑swap is not supported for this bus controller. Removal while backplane is live disrupts Genius remote I/O traffic and triggers system fault states. Set the PLC to offline mode before installing or removing this unit.
Q: Does IC687BEM731‑AB work with older Series 90‑70 CPU hardware revisions? A: It fits physically in the backplane slot, but full bus functionality depends on installed CPU firmware. Very old CPU revisions recognize the module yet cannot address the full 32‑node bus capacity. Confirm CPU part and firmware numbers before purchase.
Q: Which shipping method delivers best results for this legacy PLC module bound for humid tropical sites? A: Air freight delivers more stable conditions. Place desiccant packets inside the shipping carton. Long sea‑voyage humidity swings can degrade onboard component performance over transit.
Q: How can I verify bus‑controller function before sending it out to a remote plant site? A: Run bench testing with a small set of real Genius I/O nodes. Cycle input signals and confirm corresponding outputs respond correctly across the bus. Do not rely solely on front‑panel LED status.
Q: Will customs databases flag this legacy GE PLC spare for extra inspection? A: It falls under general industrial automation spare‑part classification. Accurate commodity descriptions and clear part‑number documentation reduce inspection risk. Incomplete paperwork can stretch clearance timelines.
Q: What happens if I exceed the 32‑node maximum Genius bus count? A: Communication latency rises sharply. Nodes drop offline randomly, and some I/O points return stale or incorrect values. The bus controller does not block over‑limit hardware connections; you must enforce node limits within system configuration software.
