Product Introduction
When a refinery’s distillation column control loop drops out mid-run, this processor keeps the rest of the DCS from cascading into full unplanned downtime. It slots directly into EcoStruxure Foxboro DCS racks, supporting both 100 Series and 200 Series Fieldbus I/O modules without extra gateway hardware. Its built-in ECC memory protection eliminates single-bit data corruption errors that plague non-ECC industrial controllers.

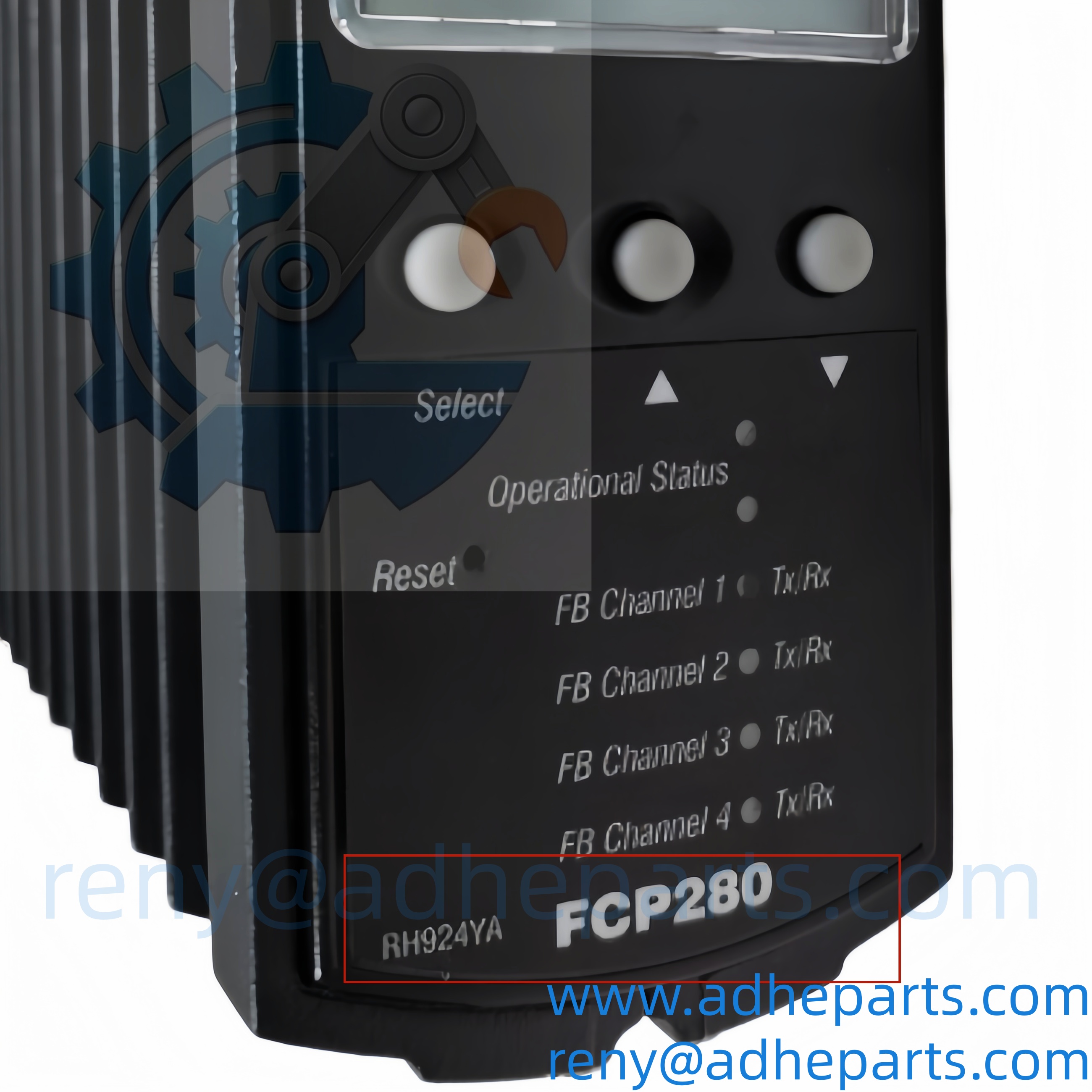

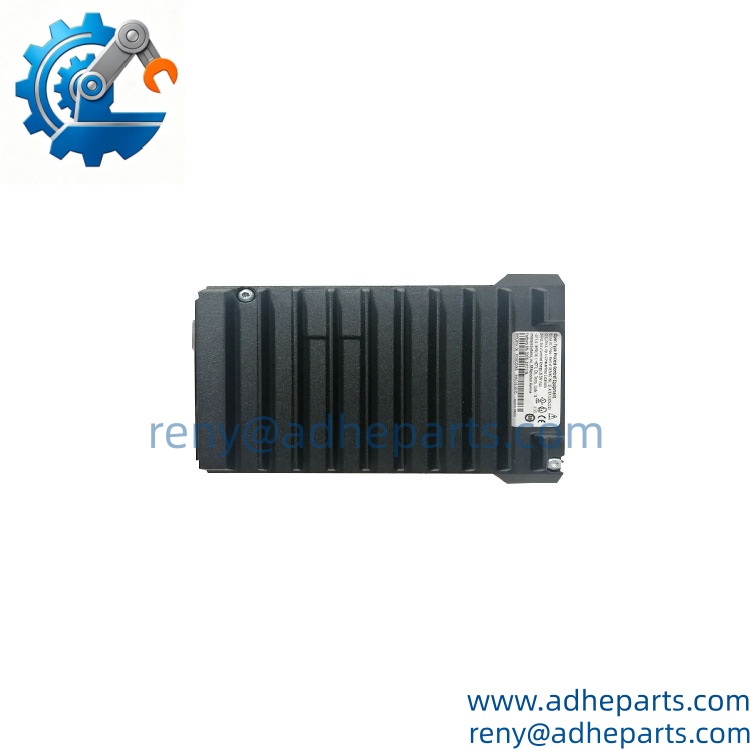

FCP280 RH924YA label
Key Technical Specifications
| Parameter | Value |
|---|---|
| Platform Compatibility | EcoStruxure Foxboro DCS / Foxboro Evo Process Automation System |
| Processor | ARM System-on-Chip (SoC) |
| Memory | 128 MB SDRAM, 128 MB Flash |
| Memory Protection | ECC for single-bit error detection/correction, multi-bit error detection |
| Max FBM Capacity | Up to 128 200 Series FBMs, 128 100 Series FBMs, or mixed combination |
| Fieldbus Communication | HDLC, 2 Mbps for 200 Series FBMs, 268 Kbps for 100 Series FBMs |
| Control Network Interface | Redundant fiber-optic or 100 Mbps copper Ethernet via baseplate adapters |
| Max Configurable Control Blocks | Up to 8000 per unit (fault-tolerant configuration supported) |
| Mounting Options | Horizontal or vertical in dedicated 2-position baseplates |
| Dimensions | 105mm (4.13 in) height, 116mm (4.7 in) with mounting lugs |
| Operating Temperature | 0°C to +60°C (standard DCS cabinet environment) |
To learn more about this product click on the file below or download the file:
FOXBORO FCP280 RH924YA Datasheet

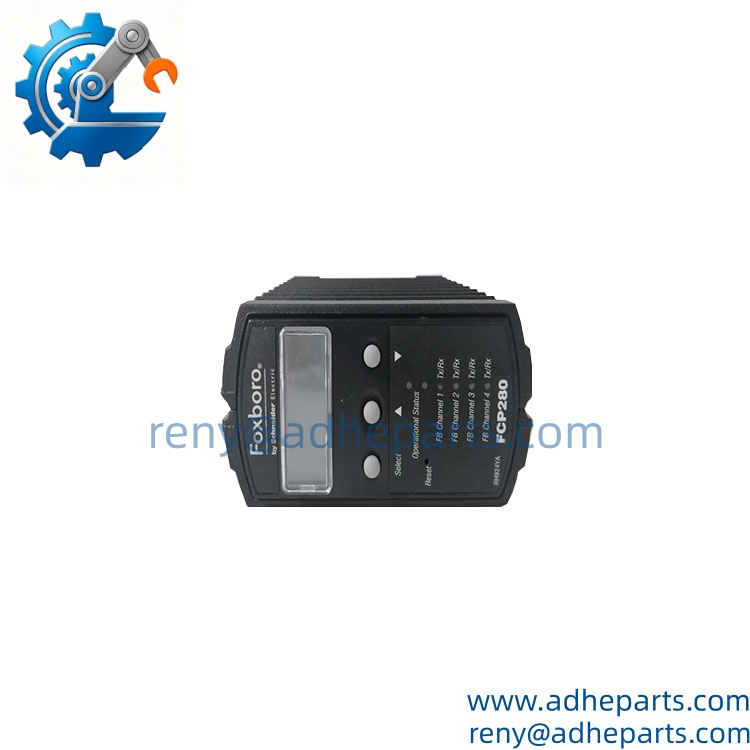

FCP280 RH924YA front

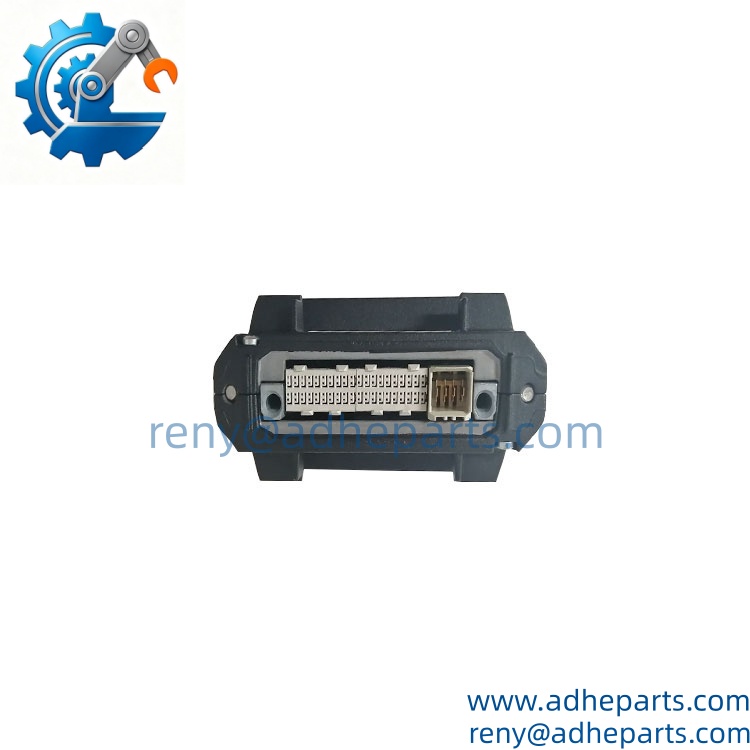

FCP280 RH924YA backside
Field Application & Technical Pitfalls (The Engineer’s Guide)
This processor is non-negotiable in three high-throughput process industry scenarios. It runs the core control logic for continuous distillation loops in oil refineries, it manages the distributed I/O for large chemical plant batch reaction processes, and it acts as the primary field controller for water treatment plant SCADA systems.
Three non-negotiable pitfalls to avoid on replacement:
- ⚠️ Firmware revision mismatch: Older Foxboro A2 systems running pre-v10 firmware will not recognize this processor’s full 8000 control block capacity, even if the physical baseplate fits.
- ⚠️ Overloading mixed Fieldbus segments: If you mix 100 Series and 200 Series FBMs on the same bus, the total maximum supported 100 Series FBM count drops to 64, not 128.
- ⚠️ Skipping redundant network validation post-install: Failing to confirm both fiber and copper Ethernet links are active will leave the system with no failover path if the primary network drops.
I watched a process control tech skip the firmware check last quarter. He slotted the new FCP280 into a 2017-vintage Foxboro rack, got no fault codes on the HMI, and walked away. At 3 a.m. the next shift, the controller silently capped control block execution at 4000, and half the plant’s temperature loops drifted out of spec for 2 hours before anyone noticed.
Another Compared Items:
Foxboro FCP270 | 24 VDC Field Control Processor

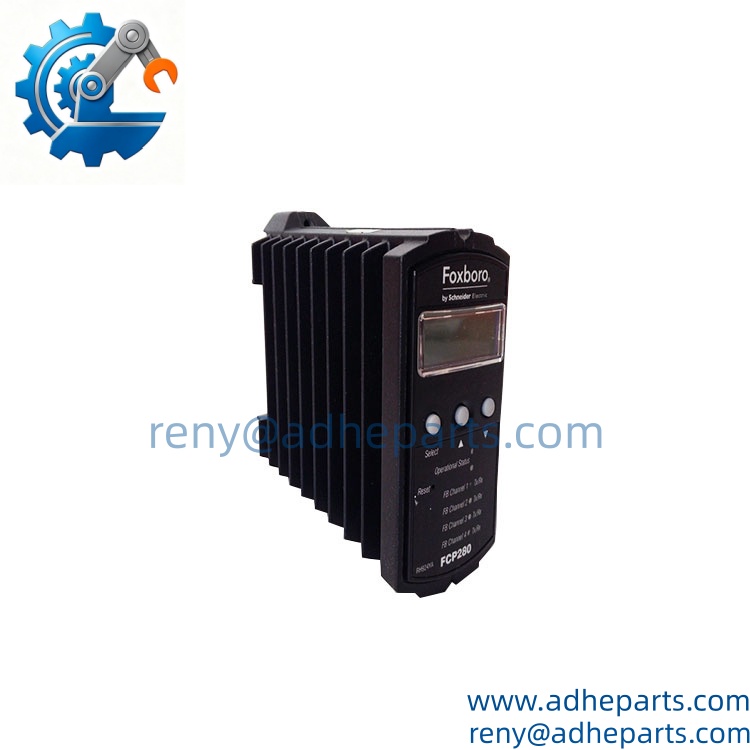

FCP280 RH924YA sideview
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM part number and serial label against Schneider Electric’s official Foxboro component database, confirm the unit is genuine factory-sourced hardware.
- Live Rig Testing: Mount the processor in a stock Foxboro Evo test rack, run 2 hours of continuous full-load control block execution, confirm both Fieldbus and Ethernet communication links maintain zero dropped packets.
- Parameter Testing: Verify ECC memory error correction triggers correctly under simulated single-bit fault conditions, confirm HDLC Fieldbus communication hits full 2 Mbps speed for 200 Series FBMs.
- Final QA & Packaging: Seal the unit in a static-shielded anti-static bag, apply a scannable QC passed label, and include a printed full performance test report inside the shock-resistant shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this processor while the DCS rack is powered up? Yes, the baseplate design supports hot-swap. Just confirm the redundant FCP is fully active and in control before you pull the old unit.
- What exact Foxboro DCS versions does this unit work with? It is fully validated for EcoStruxure Foxboro DCS and Foxboro Evo systems. Verify firmware compatibility with the OEM datasheet for legacy I/A Series systems.
- How long does the standard warranty last? All new genuine factory units carry a full 12-month OEM-backed warranty, no hidden restocking fees.
- How do I tell a genuine OEM unit apart from a third-party reworked clone? Genuine units have a laser-etched Schneider Electric part number on the housing, not a printed sticker. The memory chips also carry official Foxboro part markings, no generic unbranded components.
- My controller shows random control block execution delays. Is this always a bad FCP280? No. First check if the Fieldbus segment is overloaded with too many mixed 100 Series FBMs. If the segment load is within limits, the processor is the next most likely root cause.
- Do I need to re-download the full control logic database after installing a new unit? No. The redundant peer processor will automatically sync the full logic database to the new unit once it boots up. No manual full download is required for standard replacement.
- What is the maximum number of 200 Series FBMs I can connect to a single FCP280? You can run up to 128 200 Series FBMs exclusively. If you mix in 100 Series FBMs, the total 100 Series count is capped at 64, with the remaining slots available for 200 Series units.
