ABB LD800HSE 3BDH000320R0101 | HSE to H1 Gateway

Description

Product Introduction (Anti-Template)

When an FF-H1 network has to reach the higher-level HSE backbone, the linking device becomes a critical communication point. The ABB LD800HSE, part number 3BDH000320R0101, was designed specifically for this job, providing a protocol bridge between FOUNDATION Fieldbus H1 segments and High-Speed Ethernet.

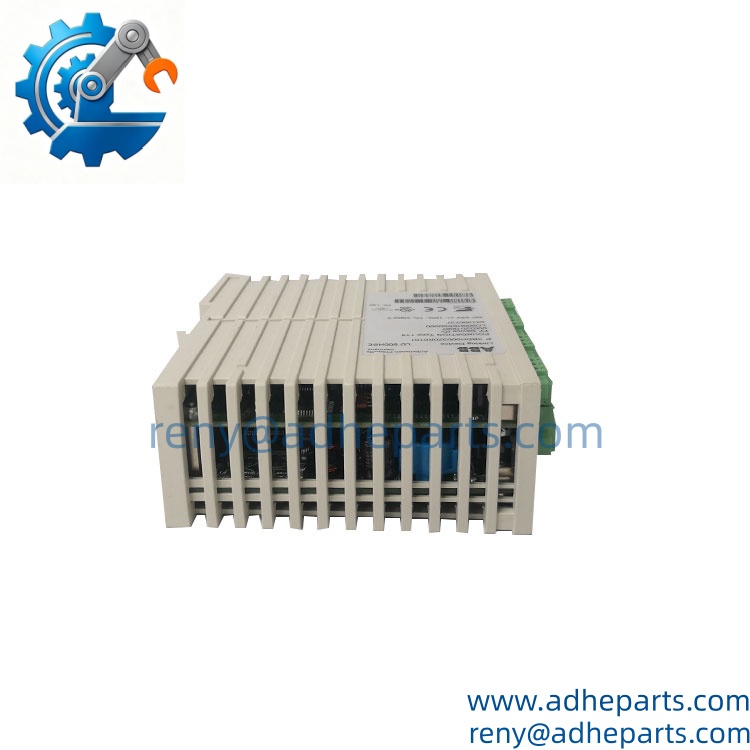

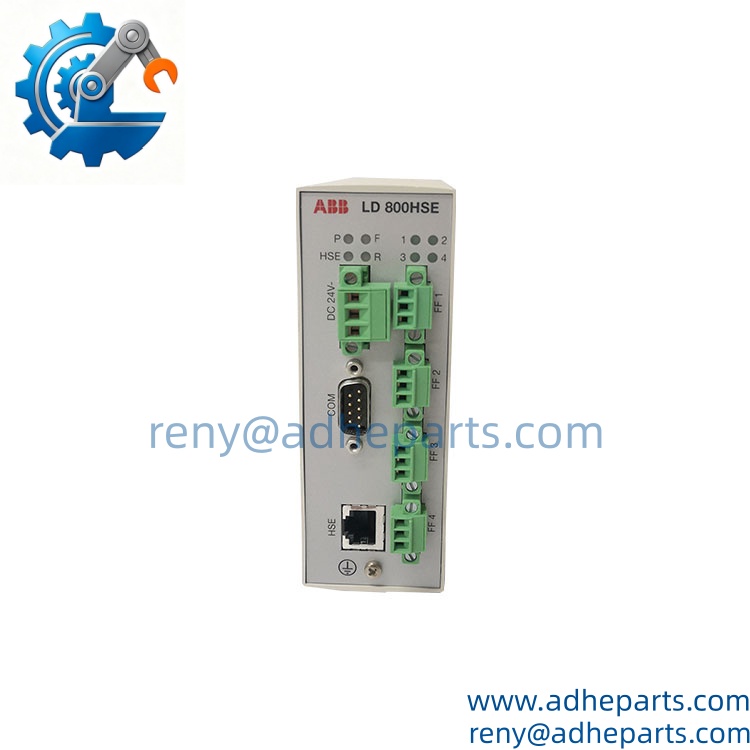

Four independent H1 links can be connected to one LD800HSE, while each H1 link is managed by its own Link Active Scheduler. The unit is DIN-rail mounted and requires an external 24 V DC supply; the H1 segments are powered separately.

Key Technical Specifications

ABB’s documentation identifies 3BDH000320R0101 as hardware version 1.0x and specifically distinguishes it from later LD800HSE hardware versions. The original ABB documentation also identifies the unit as a DIN-rail module with four H1 links and one HSE connector.

One important procurement point: 3BDH000320R0101 should not be casually substituted with 3BDH000320R02 or LD 800HSE EX in a redundant pair. ABB specifies restrictions on mixing these article numbers during normal plant operation.

Field Application & Technical Pitfalls (The Engineer’s Guide)

The LD800HSE matters most where FOUNDATION Fieldbus instrumentation is already embedded in a running process-control installation.

1. Process instrumentation networks
   It connects FF-H1 field devices to the HSE-level control network, allowing fieldbus data to be exchanged with the supervisory control environment.
2. ABB DCS installations
   The device is associated with ABB’s FOUNDATION Fieldbus network architecture and is used within ABB control environments where H1 field devices need access through the HSE backbone.
3. Redundant communication architectures
   Two LD800HSE units can be configured as a redundant pair using the dedicated redundancy connection. This makes the exact article number particularly important during spare-parts planning.

Three replacement pitfalls deserve particular attention:

• Hardware revision mismatch: The 3BDH000320R0101 belongs to hardware version 1.0x. Do not assume that a visually similar with another article number is a drop-in replacement. ABB explicitly lists compatibility restrictions.
• Redundant-pair configuration: Do not replace one unit in a redundant pair with a different article number without checking the ABB replacement procedure. A mixed configuration may be permitted temporarily for an upgrade, but ABB places restrictions on operation and configuration changes during that period.
• Power and H1 wiring: The requires external 24 V DC power, while the four H1 links require separate power. Confusing the LD supply with H1 segment power can lead to an apparently dead communication path even though the module itself is functional.

Firmware is another checkpoint. ABB’s service documentation recommends using the latest firmware released for the particular system environment before commissioning. Firmware and capability-file compatibility should therefore be checked rather than copied blindly from the failed unit.

Lesson learned: A plant can have a perfectly healthy replacement module and still fail commissioning because the spare belongs to a different hardware generation. In one hypothetical maintenance case, the engineer installed a later article-number into a redundant pair, then discovered that the expected configuration restrictions prevented normal operation. The spare was technically similar—but not equivalent for that specific redundancy arrangement.

Quality Control (QC) SOP & Transparency

1. Inbound Verification

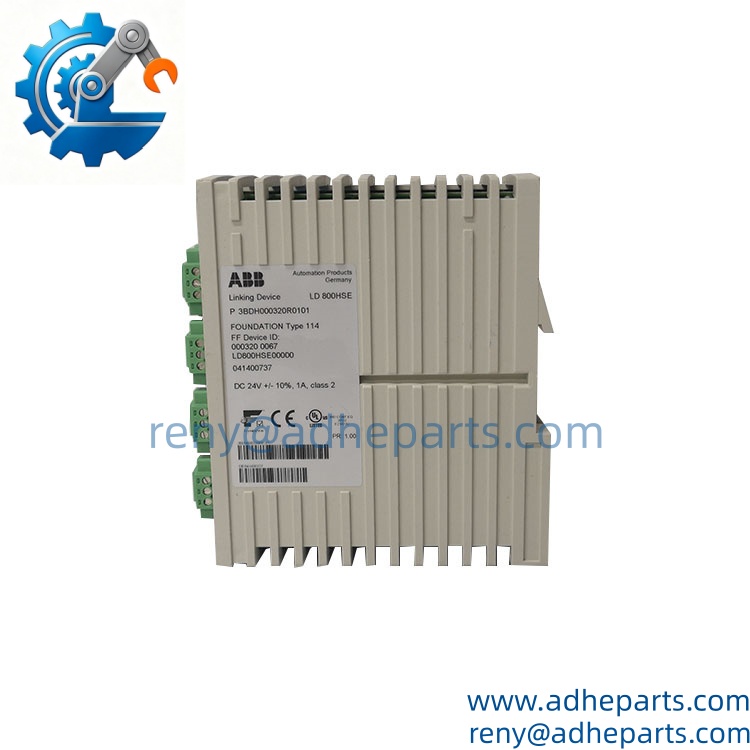

   • Verify the ABB article number 3BDH000320R0101 against the physical nameplate.
   • Check hardware-version information and serial identification.

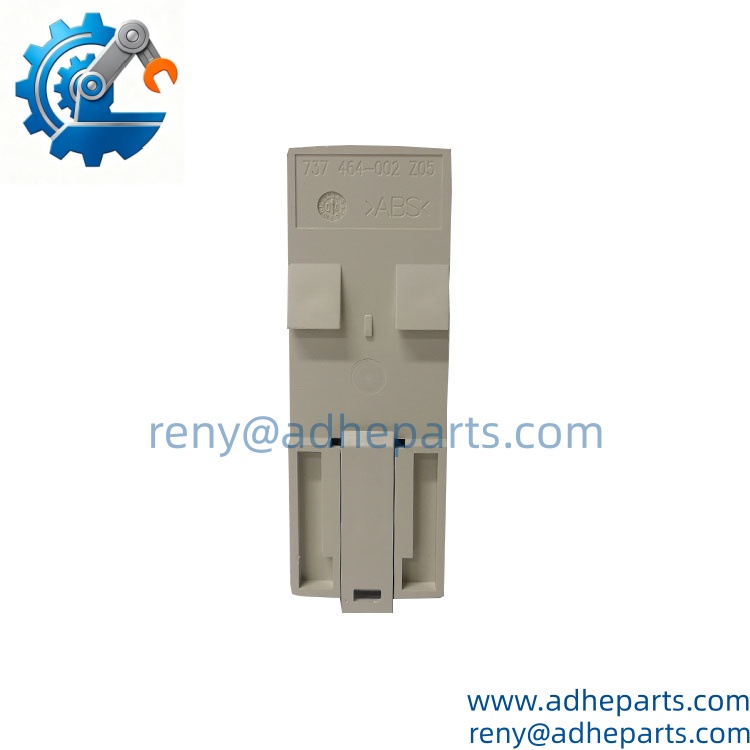

   • Inspect original labels, connectors, enclosure, and DIN-rail mounting points.
   • Compare available packaging and documentation against the supplied unit.
   • For surplus stock, document any storage marks or packaging wear instead of presenting aged inventory as newly manufactured stock.
2. Live Rig Testing
   • Apply a controlled external 24 V DC supply within the documented operating range.
   • Confirm startup behavior and status indications.
   • Test the HSE communication interface using a compatible industrial Ethernet test environment.
   • Where the required equipment is available, connect an FF-H1 test segment and verify communication between the H1 side and HSE side.
   • For redundant applications, verify the redundancy-link behavior according to the applicable ABB procedure.
3. Parameter Testing
   • Verify DC supply current and startup behavior.
   • Check HSE communication stability.
   • Test each available H1 link individually rather than testing only one port.
   • Check isolation and continuity of relevant interfaces where applicable.
   • Confirm there are no abnormal communication faults, intermittent connections, or unstable link states.
4. Final QA & Packaging
   • Record the exact article number, hardware version, and serial information.
   • Apply a QC-passed identification label after testing.
   • Place the module in an anti-static protective bag.
   • Use shock-resistant packaging suitable for international transportation.
   • Provide the applicable test record and a 12-month warranty under the agreed warranty terms.

Frequently Asked Questions (FAQ)

Q1. What exactly does the ABB do?
It acts as a linking device between FOUNDATION Fieldbus HSE and FF-H1. The documented architecture provides four H1 links and one HSE connection, allowing H1 field devices to communicate with the higher-level HSE network.

Q2. Is 3BDH000320R0101 the same as 3BDH000320R02?

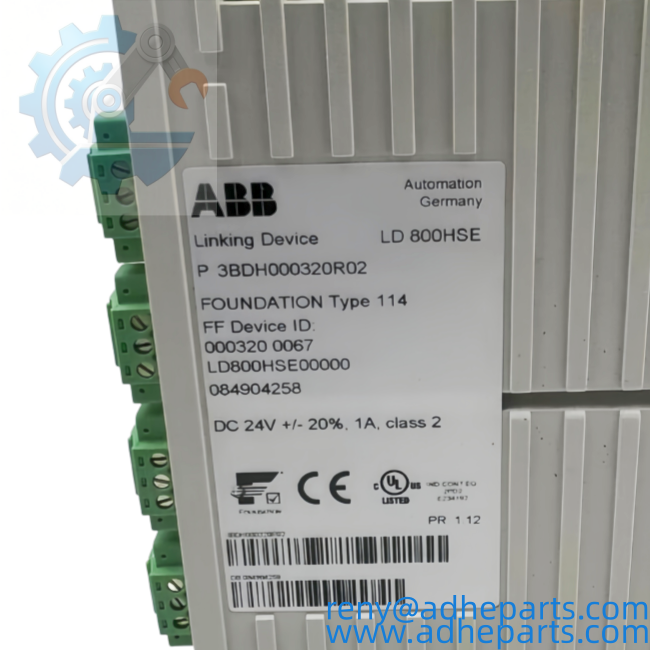

No—not for procurement purposes. ABB identifies 3BDH000320R0101 as hardware version 1.0x and 3BDH000320R02 as hardware version 1.1y. They have defined compatibility restrictions, particularly when used in redundant sets.

Q3. Can I hot-swap the ?
Do not assume that it is safe. ABB’s documentation provides specific rules for online replacement within redundant sets, including restrictions when different article numbers are temporarily mixed. Follow the system-specific maintenance procedure before removing a live unit.

Q4. Does the need 24 V DC?
Yes. The itself requires an external 24 V DC power supply, while the connected H1 links are powered separately.

Q5. Is the EX interchangeable with this model?
No. The EX version, 3BSE073314R1, is a different article number and is designed for hazardous-area applications. ABB specifically states that it is not suitable for replacing 3BDH000320R0101 in a redundant set.

Q6. How should I confirm compatibility before ordering?
Send the existing module’s complete article number, hardware version, serial/nameplate information, and whether it is installed in a redundant pair. For a running plant, that information is more useful than simply confirming “.”

Q7. What warranty is available?
A 12-month warranty can be provided for the supplied unit under the agreed warranty terms. For New Surplus inventory, the actual physical condition and test status should be confirmed before shipment.
