Product Introduction
When your DeltaV SIS network needs to cover a larger plant area without losing data integrity, this repeater eliminates signal attenuation to keep all safety nodes reliably connected.
It features a rugged industrial design that fits directly into standard DeltaV SIS system racks, with redundant communication paths to eliminate single points of failure. Its IP20 rated housing is built for long-term stable operation in oil & gas, power generation and chemical processing facilities .

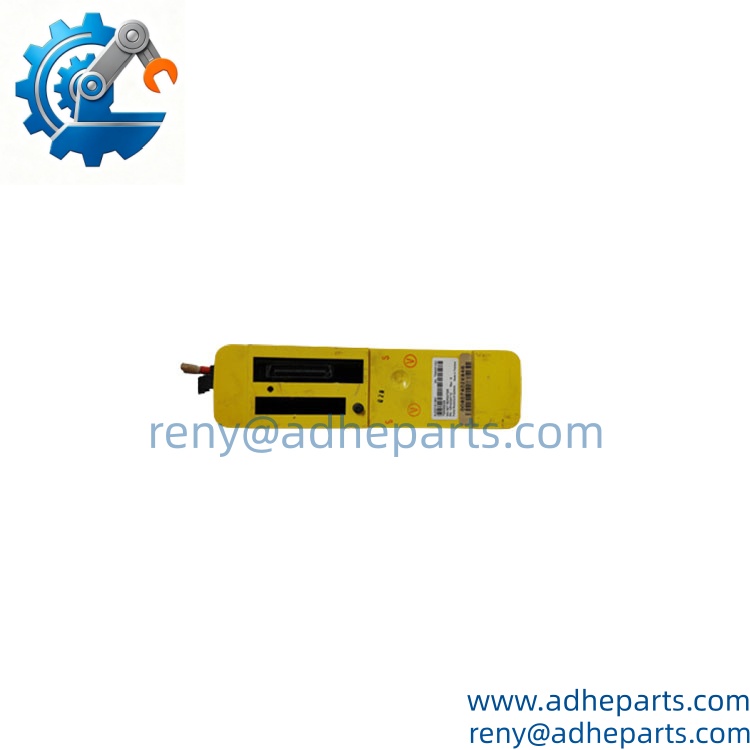

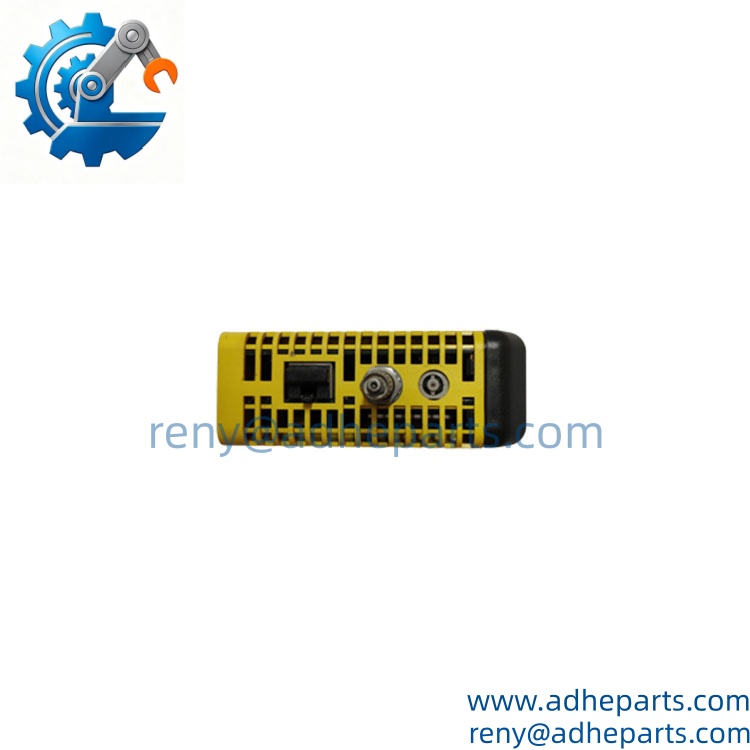

Emerson KJ2221X1-BA1
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | KJ2221X1-BA1 (VS6002) |
| Dimensions | 3.8 × 8.8 × 11.4 cm (L×W×H) |
| Weight | Approximately 0.26 kg |
| Country of Origin | United States |
| Input Power | 24 VDC, max 300 mA |
| Communication Protocols | SISNet, Ethernet/IP, Modbus RTU |
| Data Rate | Up to 1 Mbps |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, RoHS, ATEX, IEC 61508 (SIL-compliant) |

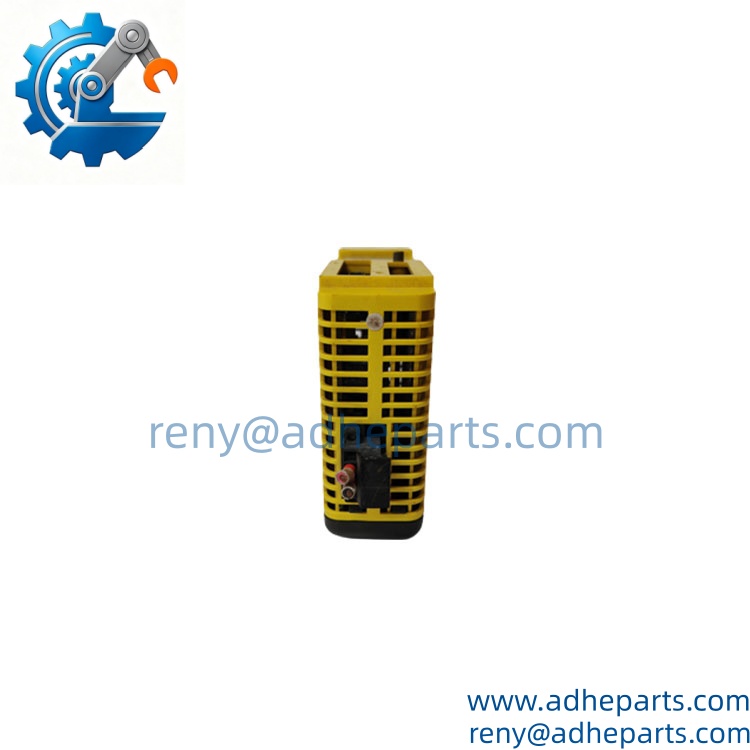

Emerson KJ2221X1-BA1
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Oil & Gas Offshore Platform SIS Networks: Extends SIS Net communication across large platform layouts, ensuring all ESD and F&G safety nodes maintain reliable data connection.
- Large Chemical Plant Distributed Safety Systems: Connects geographically separated SIS control zones across the entire plant, eliminating signal attenuation issues over long cable runs.
- Power Generation Plant BMS Safety Networks: Maintains stable high-speed communication between boiler safety system nodes, ensuring fast and reliable safety interlock response.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never cascade more than 3 repeaters on the same SIS Net segment. The third unit from the source will introduce excessive signal delay that violates SIL 3 safety response time requirements.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable redundant communication paths. This unit requires DeltaV SIS system firmware v14.3+; it will not support full redundant operation on v12.x legacy systems.
- ⚠️ Bold Warning 3: Skipping the 15-minute post-installation network latency test will leave you with uncaught hidden signal faults. The issue will only surface when the network is under full safety event load, leading to delayed safety response.
A refinery maintenance team once swapped a KJ2221X1-BA1 repeater and skipped the full latency test. 4 repeaters were cascaded on the same SIS Net segment, causing signal delay that made the ESD system miss a high-pressure alarm, triggering a 2-hour partial plant shutdown.

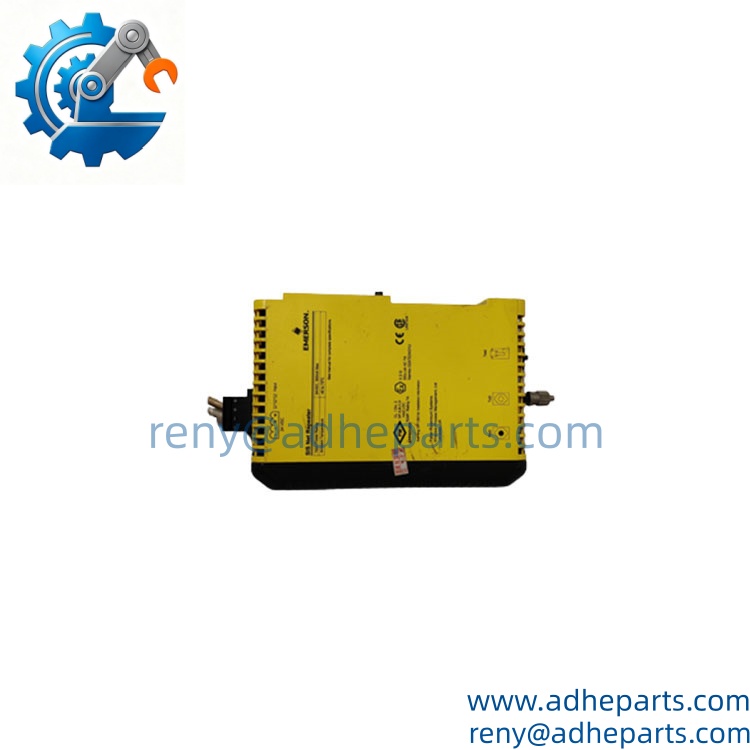

Emerson KJ2221X1-BA1
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Emerson’s official part registry, inspect the anti-counterfeit label, and confirm no bent pins on the SIS Net and backplane connectors.
- Live Rig Testing: Seat the unit in a calibrated DeltaV SIS test rack, apply 24V DC power, and confirm full SIS Net handshake and 1 Mbps data transfer stability for 2 continuous hours.
- Parameter Testing: Verify network latency stays within 1ms maximum, confirm redundant communication paths operate correctly, and validate all CE/ATEX/SIL compliance indicators meet Emerson factory specifications.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

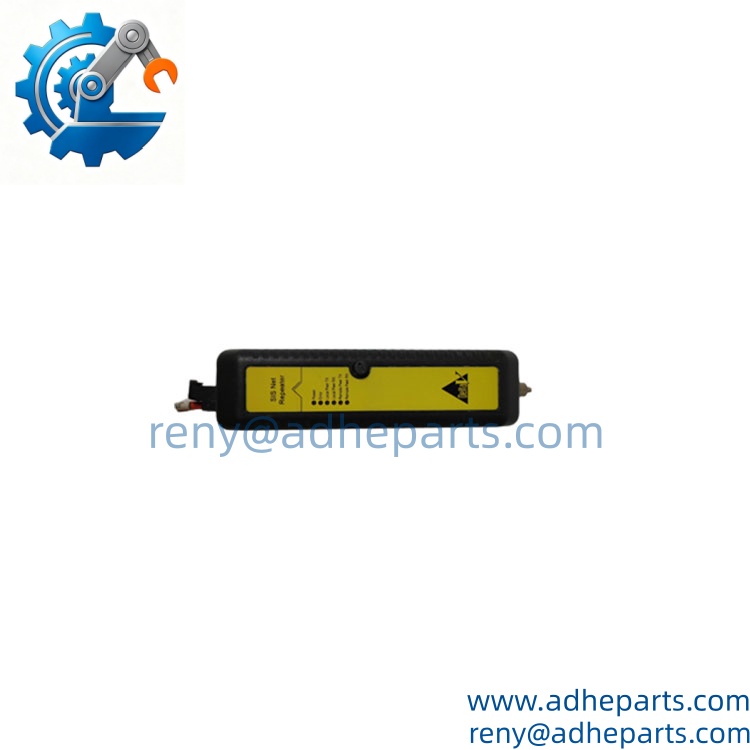

Emerson KJ2221X1-BA1
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the DeltaV SIS system is running? Yes, but you must confirm the redundant SIS Net path is fully active before removing the unit, otherwise you will temporarily lose communication with downstream safety nodes.
- What exact Emerson systems is this module compatible with? It works natively with all Emerson DeltaV SIS safety system networks. It will not operate correctly with older DeltaV classic non-SIS networks without a custom protocol converter.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field .

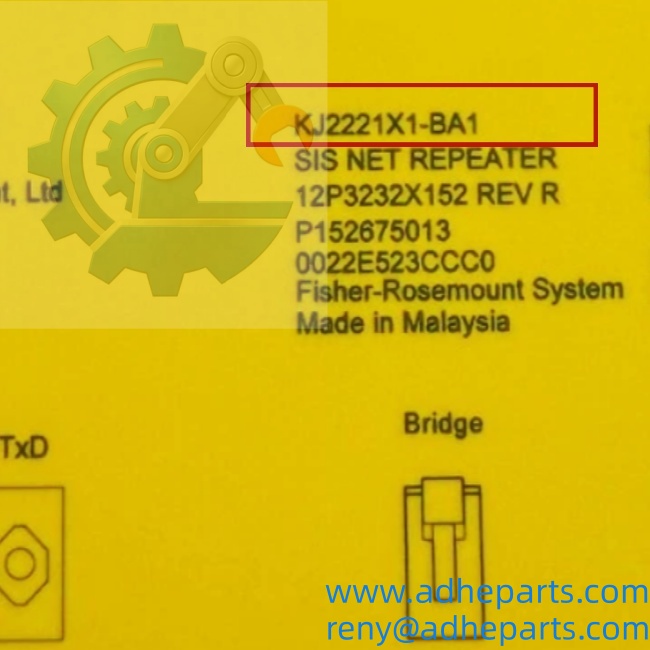

- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine Emerson KJ2221X1-BA1 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the 1 Mbps full-speed data transfer test.
- What is the typical lead time for shipment? In-stock units ship within 2-3 work days, with new original box packaging . If you require official Emerson factory SIL certification documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older KJ2221X0-BA1 legacy SIS repeater? Well, technically it uses the same SIS Net protocol, but you will need to re-run the full SIS network latency validation process in the DeltaV engineering station to maintain SIL 3 compliance.
