Description
3. Key Technical Specifications
- Power supply: 24 V DC (isolated)
- Current consumption: 450–500 mA typical
- Operating temperature: –20 °C to +60 °C
- Storage temperature: –40 °C to +85 °C
- Humidity: 5–95 % non-condensing
- Dimensions: Approx 260 mm x 130 mm x 30 mm
- Weight: 0.3 kg
- Interfaces: System bus, RS-232/RS-485 serial, Ethernet
- Processor: 1 GHz Celeron-class for embedded control
- Protection: Overcurrent, overvoltage, short-circuit
- Board material: FR4, 1.6 mm thick
- Mounting: Rack-mounted in ABB Procontrol/Advant chassis
4. Product Introduction (Anti-Template)

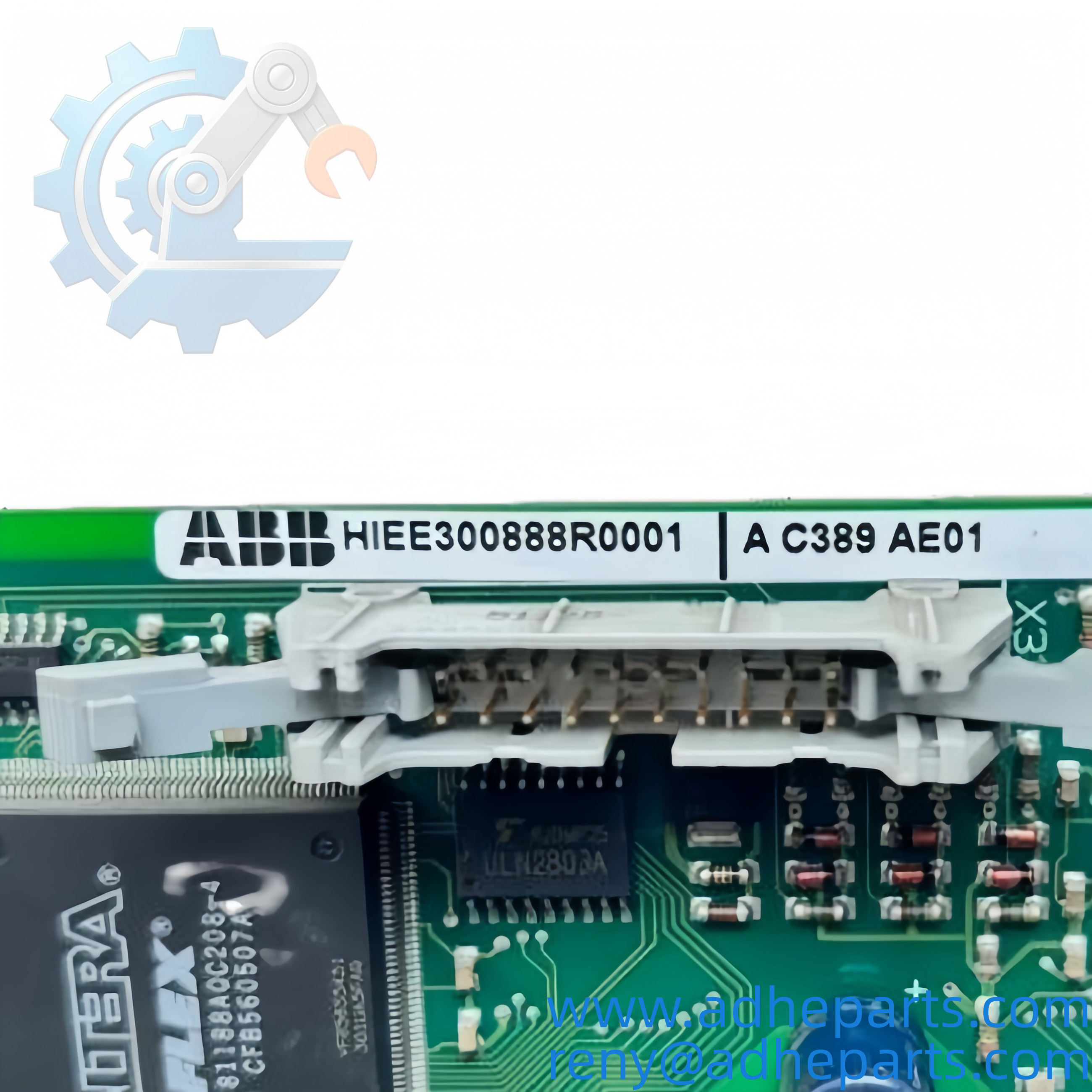

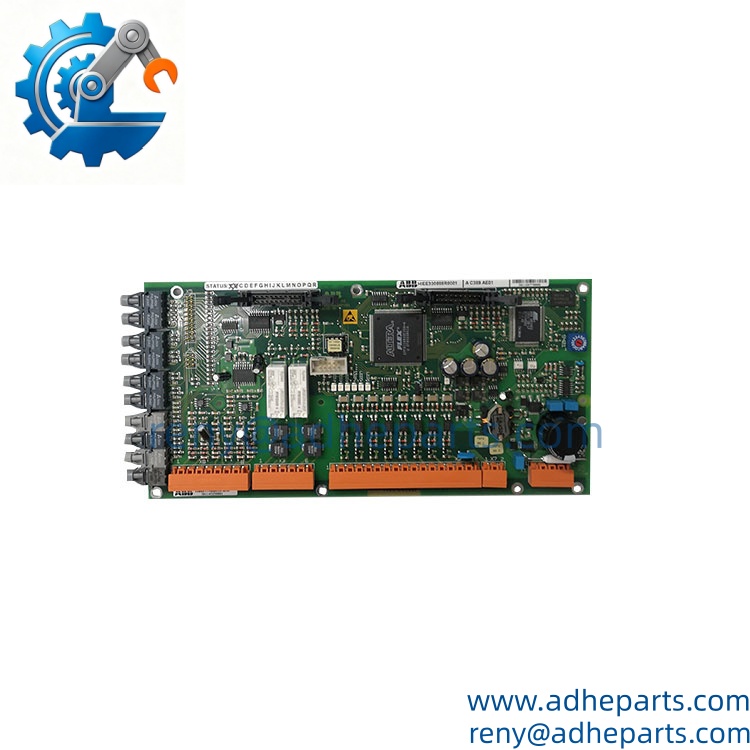

When a main CPU trips and downtime costs thousands per minute, the last thing you need is an unresponsive output card. The ABB AC389AE01 HIEE300888R0001 slots right into Procontrol/Advant racks as a pulse amplifier interface board built for exactly those critical signal-conditioning needs. It processes encoder and sensor pulses with sub-millisecond accuracy and stays rock-steady from –20 °C to +60 °C under continuous vibration and chemical exposure.
Honestly, this design choice saves hours of rewiring when you stay inside the same ABB family. The compact processor and onboard diagnostics give technicians an instant visual check without opening a laptop, while the 24 V DC bus keeps power delivery clean.
5. QC, Procurement & Logistics SOP
- Inbound Verification: Origin tracing against ABB part labeling, OEM seal and date-code inspection, visual check for bent pins or damaged connectors.
- Live Rig Testing: Power-on self-test in a compatible rack, verification of all channels under load, confirmation of response timing and protocol validation.
- QA & Anti-Static Packaging: Final functional sign-off, conformal inspection, sealed in anti-static bags with desiccant and foam support.
- Global Logistics & Export Compliance: Optimized HS code classification for industrial electronic modules, double-boxed with shock indicators, documented for air or sea freight to minimize customs holds.
6. Technical Pitfalls & Integration Warnings
Firmware or system revision mismatch can drop communication. Picture a plant running an older Procontrol CPU that expects a specific protocol handshake—swap in a later lot and the outputs stay dark until the backplane firmware is aligned.
DIP switch or address configuration errors are classic. A technician sets the wrong base address, the module powers up with LEDs, yet the DCS never sees the points; hours later the root cause is a single switch that should have been left at factory default.
Wiring or terminal incompatibility bites hard. Source or sink wiring mistakes happen when people forget to match the field device polarity; the channel reads zero or flickers randomly.
ESD during unboxing still kills modules. Dry winter air, no wrist strap, a quick touch on the edge connector, and one channel fails intermittent weeks later. Always ground before handling.
7. Frequently Asked Questions (FAQ)
How long does global shipping usually take once the unit clears QA? Most regions see 3–7 business days by air after export docs are complete. Sea freight stretches that to 3–5 weeks depending on port congestion—customs clearance in the EU might add 2 days.
What shipping and customs options do you support? We handle air freight for urgency and sea for bulk. All shipments carry optimized HS code classification and full commercial invoice so clearance stays predictable.
Can I hot-swap the AC389AE01 HIEE300888R0001 while the rack is live? Not recommended. Removing or inserting under power risks backplane arcing and can take out adjacent modules. Power down the I/O base first.
Is the AC389AE01 HIEE300888R0001 backward-compatible with older ABB racks? In most cases yes within the same family, provided voltage, commons, and addressing match. Always confirm the exact backplane revision and firmware before the swap.
What happens if the load exceeds 0.5 A on one channel? The overcurrent and thermal protection kick in. The channel shuts down until the fault clears and the module cools; repeated overloads can permanently degrade that output.
Do you supply the terminal blocks or just the module? Module only unless specified. Match the original terminal style or use the ABB-compatible blocks rated for the current.
Any special storage or handling notes before installation? Keep in original anti-static packaging until ready. Avoid condensation; bring the unit to ambient temperature before powering up in a humid plant.
