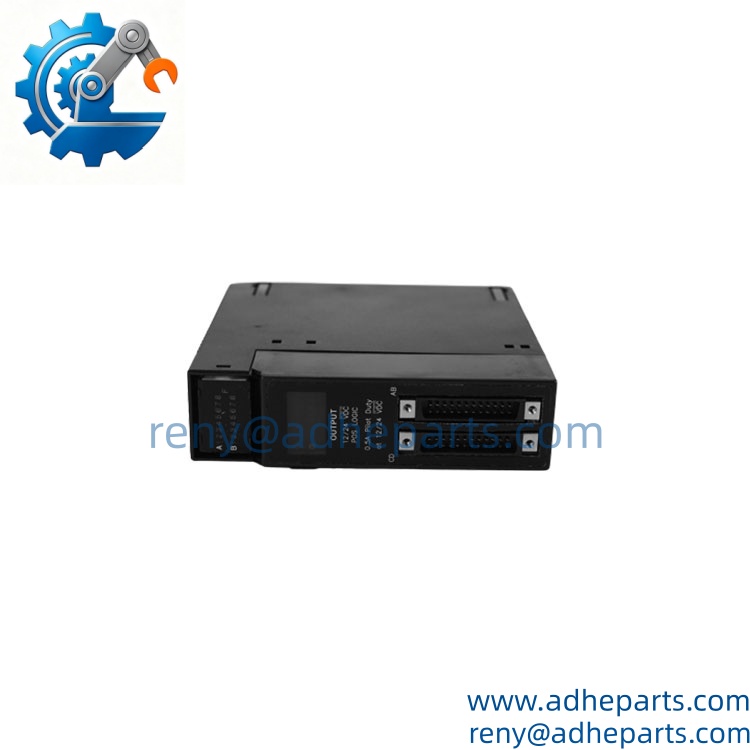

GE IC693MDL753H | 0.5A 32-Point DC Output Module

The IC693MDL753 is documented as a 12/24 VDC, 0.5 A positive-logic 32-point output module for the GE Series 90-30 PLC. The outputs are arranged as four isolated groups of eight, with each group having its own common.

The H suffix should be retained in the purchasing description because the customer’s installed hardware may depend on the specific revision. For procurement, use the complete identifier IC693MDL753H, rather than shortening it to IC693MDL753.

IC693MDL753H-label

Key Technical Specifications

The documented electrical characteristics specify 0.5 A per output point, with 4 A maximum per group. The module uses sourcing/positive-logic outputs, meaning the output switches the positive side of the external DC supply to the connected load.

The four output groups are electrically separated from one another, while opto-isolation provides 1500 V isolation between the field and logic sides. This arrangement is useful when different groups operate separate field-load circuits.

IC693MDL753H-sideview

Product Introduction (Anti-Template)

When a Series 90-30 PLC has to control a large number of DC field devices, the GE IC693MDL753H provides 32 discrete output points in a single PLC I/O position. Its four groups of eight outputs can drive 12–24 VDC loads such as solenoid valves, relays, indicators, and other actuators, with each point capable of sourcing up to 0.5 A.

The important detail is the positive-logic architecture. This is a sourcing output module, so the external wiring must be designed accordingly. The group commons and current limits also matter—especially when several loads operate simultaneously. Honestly, checking the common-current calculation before installation is much cheaper than chasing an intermittent output problem later.

QC, Procurement & Logistics SOP

1. Inbound Verification

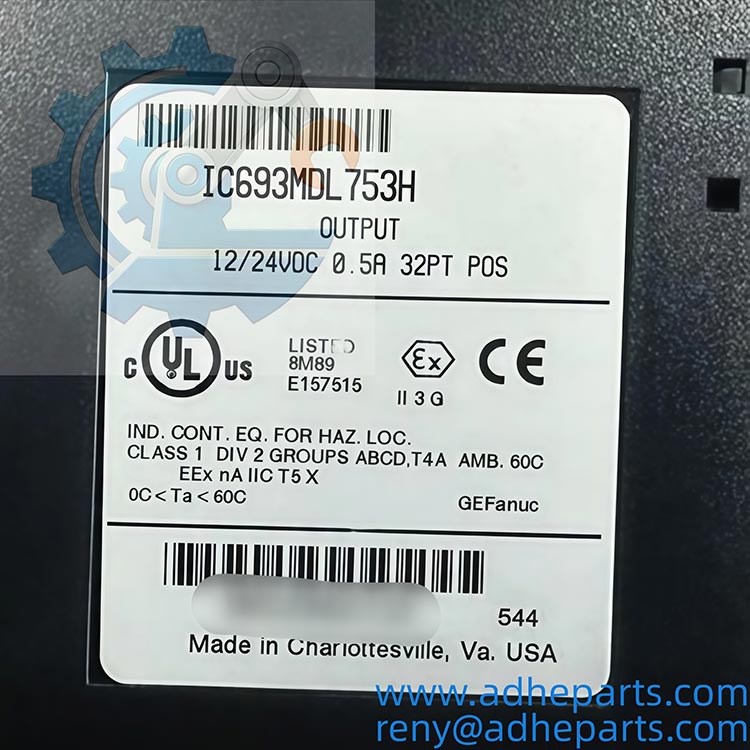

   Verify the complete marking IC693MDL753H, hardware revision, serial number, connector condition, front-panel LEDs, terminal/interface condition, and overall PCB condition.
2. Revision Verification
   Compare the H-revision hardware against the customer’s existing module. If the customer has provided a photo, match the label and physical layout rather than relying only on the base IC693MDL753 number.
3. Live Rig Testing
   On a compatible Series 90-30 test rack, verify module recognition, power-up diagnostics, all 32 output indicators, representative output switching, output voltage, and response behavior.
4. Load Testing
   Test representative loads while staying within the 0.5 A per-point and 4 A per-group limits. Do not validate the module only with an unloaded voltage measurement.
5. QA & Anti-Static Packaging
   Use ESD precautions when handling the module. Protect both 24-pin connectors from impact and contamination. Keep the module secured in anti-static packaging during transportation.
6. Global Logistics & Export Compliance
   Export documentation should identify the item as a GE Fanuc IC693MDL753H Series 90-30 32-Point 12/24 VDC Positive-Logic Output Module. HS classification should be reviewed according to the actual PLC I/O function and destination customs requirements. For urgent maintenance orders, air freight is generally practical; rigid internal cushioning helps protect the connectors during air or sea transportation.

Technical Pitfalls & Integration Warnings

1. Positive vs. Negative Logic
   The IC693MDL753 is a positive-logic/sourcing output module. Do not replace it with a visually similar negative-logic module such as an IC693MDL750/related variant without checking the field circuit. GE’s module catalog distinguishes these output architectures.
2. Exceeding Group Current
   Each point supports up to 0.5 A, but the group limit is 4 A. Eight outputs operating simultaneously at their maximum rating would exceed practical group limits. Calculate the simultaneous load rather than evaluating each channel independently.
3. Common-Terminal Wiring

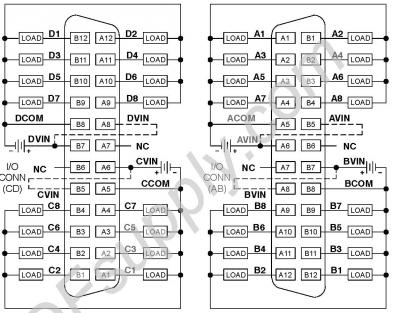

   Each output group has its own common. The technical documentation notes that both common pins should be used when the group current exceeds 3 A. This is a wiring detail that is easy to miss when replacing an existing card.
4. Connector / Cable Compatibility

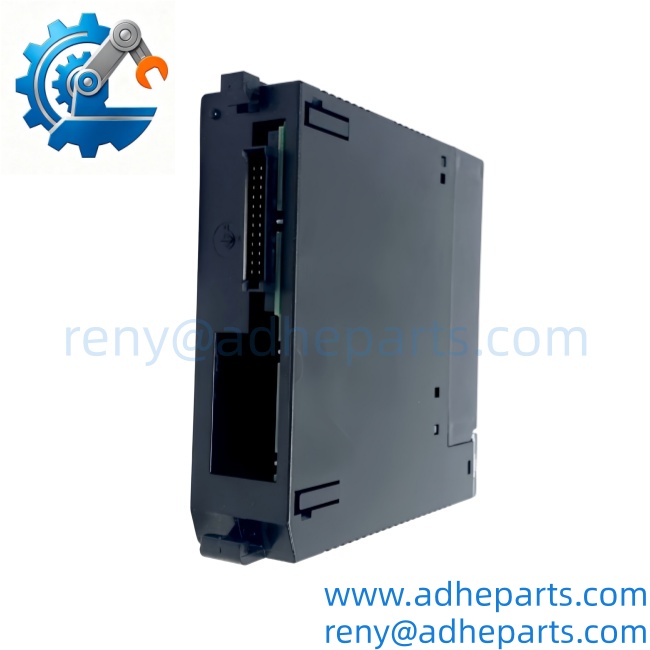

   The module uses two 24-pin field connectors. Confirm the existing cable or connector assembly before shipment. A correct module with an incompatible field connection will still leave the customer with a wiring problem.

IC693MDL753H datasheet

Frequently Asked Questions (FAQ)

Q1: “What is GE IC693MDL753H?”

It is a 32-point discrete DC output module for the GE Series 90-30 PLC. It provides positive-logic/sourcing outputs for switching 12–24 VDC field loads.

Q2: How many outputs does it have?

There are 32 discrete outputs, arranged as four isolated groups of eight. Each group has its own common connection.

Q3: “Is the output 12 VDC or 24 VDC?”

It supports both. The rated operating range is 12–24 VDC, with the documented output voltage range extending from approximately 10.2 to 28.8 VDC.

Q4: “Can each point handle 0.5 amp?”

Yes. Each output point is rated for 0.5 A maximum, while the group has a 4 A maximum. The common connection also has its own current limitation.

Q5: Can I replace with another 90-30 output module?

Not automatically. Check:

• Output logic: positive/sourcing vs. negative/sinking
• Number of points
• Voltage range
• Current rating
• Group isolation
• Field connector/cable
• Hardware revision

A module with the same general Series 90-30 form factor is not necessarily electrically interchangeable.

Q6: “Can this module be hot-swapped?”

Do not assume it can be hot-swapped. Follow the approved Series 90-30 maintenance procedure and determine whether the rack and field loads can safely remain energized. Since this module directly controls field devices, an uncontrolled output state during removal or insertion can have consequences.

Q7: What information should I provide when ordering ?

Please provide:

• Front-label photo
• Complete part number:
• Hardware revision
• Existing PLC CPU/baseplate
• Field cable or connector photo
• Load type
• Number of simultaneously active outputs
• Quantity required
• Destination country
• Required delivery date

For this module, the output logic and field wiring are the two points I would verify first. The is not just a generic 32-point card; its sourcing architecture and group-current limitations directly affect whether it can replace the customer’s existing module.
