Product Introduction
When a high-speed production line’s RX7i PLC chassis suffers backplane damage from a nearby lightning strike, this unit gets your system back online without full controller replacement.
It is built with 2mm thick cold-rolled zinc-plated steel panels, rated to withstand 5G continuous vibration for heavy industrial environments. Its 2.1 Gbps backplane delivers low-latency data transfer between all installed modules.

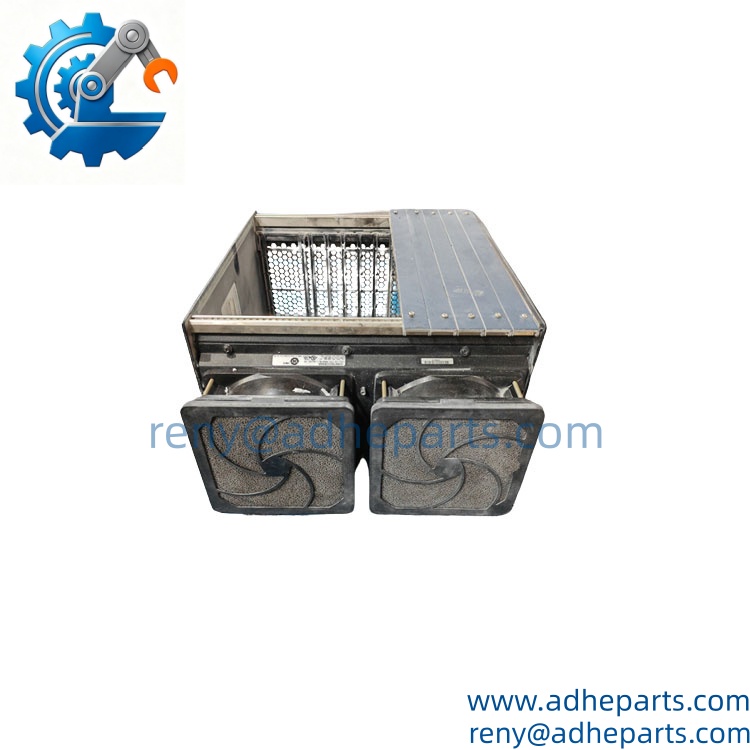

IC698CHS009A-front
Key Technical Specifications
| Parameter | Value |
|---|---|
| Total Slot Capacity | 9 modules (including dedicated power supply slot) |
| Backplane Bandwidth | 2.1 Gbps |
| Power Input | 100-240V AC via dedicated power supply module |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Construction Material | Cold-rolled steel with zinc plating |
| Empty Weight | 5.8 kg |
| Dimensions (H x W x D) | 435 mm x 200 mm x 160 mm |
| Vibration Rating | 5G continuous vibration resistance |
| Certifications | UL 508, CE, IEC 61131-2 |

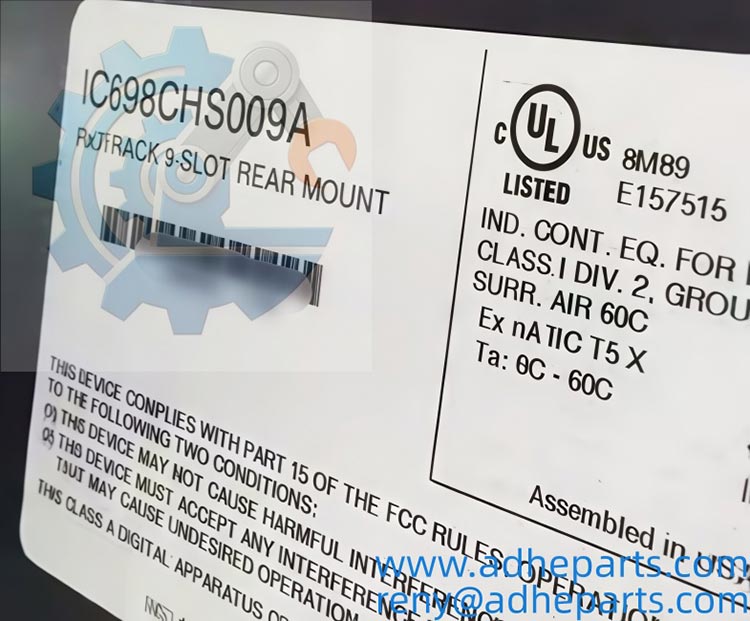

IC698CHS009A label
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- High-Speed Packaging Line Control: Houses the full RX7i PLC system for high-throughput food and beverage packaging lines requiring sub-10ms scan cycles.
- Power Plant Turbine Control: Provides stable mechanical and electrical support for critical turbine protection and control I/O modules in power generation facilities.
- Automotive Welding Robot Control: Accommodates high-density motion and safety I/O modules for automotive assembly line robotic welding cells.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never install non-RX7i series modules in this chassis. The third slot from the left has a unique high-speed backplane pinout that will physically damage non-compatible module connectors.
- ⚠️ Bold Warning 2: Misaligned module insertion will bend backplane pins. This chassis uses 0.8mm pitch high-density connectors; even one bent pin will break 2.1 Gbps communication for the entire slot row.
- ⚠️ Bold Warning 3: Skipping the 24-hour burn-in test after chassis replacement will leave you with uncaught intermittent backplane connection faults. The issue will only surface when ambient plant temperature fluctuates more than 20°C.
A food processing plant maintenance team once swapped a IC698CHS009A chassis and skipped the full 24-hour burn-in. A slightly bent backplane pin caused intermittent CPU communication dropouts, triggering random line stops that took 10 hours of troubleshooting to trace back to the faulty chassis connection.

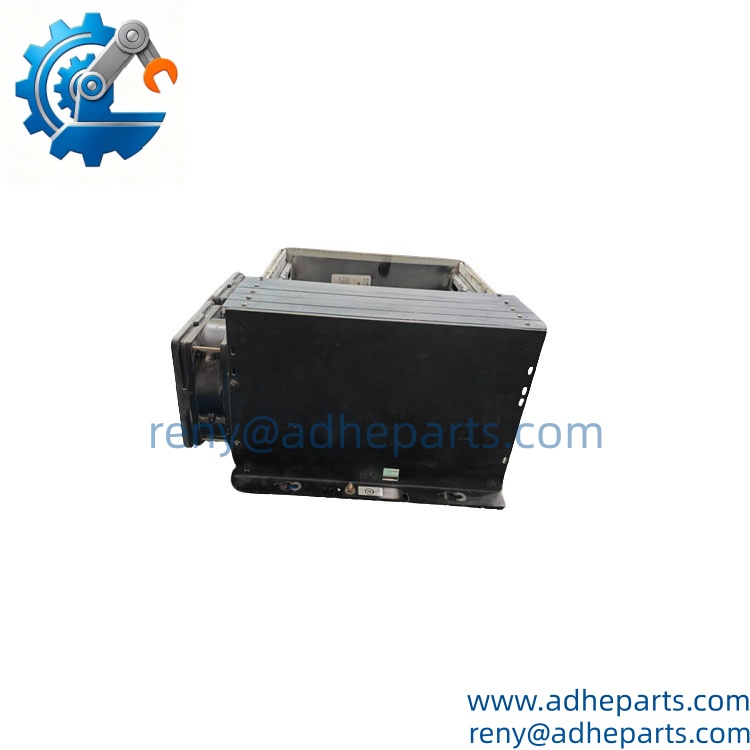

IC698CHS009A sideview
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against GE Fanuc’s official part registry, inspect all 9 backplane high-density pins for no physical damage, and confirm chassis steel housing has no dents or corrosion.
- Live Rig Testing: Populate the chassis with a full set of test RX7i modules, apply 240V AC power, and confirm 100% backplane communication stability across all slots for 2 continuous hours.
- Parameter Testing: Verify backplane bandwidth throughput meets 2.1 Gbps rated specification, confirm 500V insulation resistance between all backplane signal lines and chassis ground, and check all mounting points for structural rigidity.
- Final QA & Packaging: Seal the chassis in a heavy-duty static-shielding bag, attach a unique QC passed serial label, and nest it in shock-absorbing foam padding inside a rigid industrial shipping crate.

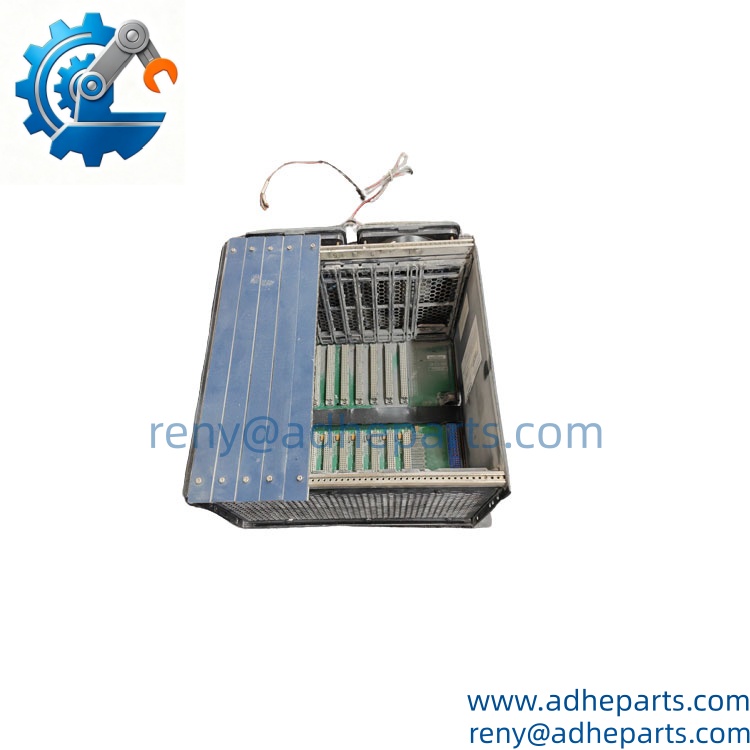

IC698CHS009A sideview
Frequently Asked Questions (FAQ)
- Can I hot-swap modules in this chassis while the PLC is running? Yes, but only if your RX7i system is configured for hot-swap capable redundant power supply and I/O modules. Non-redundant setups will trigger a system fault when you pull a module.
- What exact GE systems is this chassis compatible with? It works natively with all GE PACSystem RX7i series modules. It will not accept older Series 90-70 PLC modules without a custom adapter plate.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by misaligned module insertion, overvoltage, or physical impact in the field.
- How do I tell a genuine OEM chassis apart from a third-party clone? Genuine GE IC698CHS009A units have a laser-etched part number on the inner steel frame, not a printed sticker. Clone units almost always fail the 5G continuous vibration resistance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official GE factory inspection documentation, add 2 extra business days to the turnaround window.
- Can this chassis replace the older 7-slot IC698CHS007A RX7i chassis? Well, technically it uses the same backplane protocol, but you will need to reconfigure your PLC rack topology in the Proficy Machine Edition software to recognize the 2 extra available slots.
