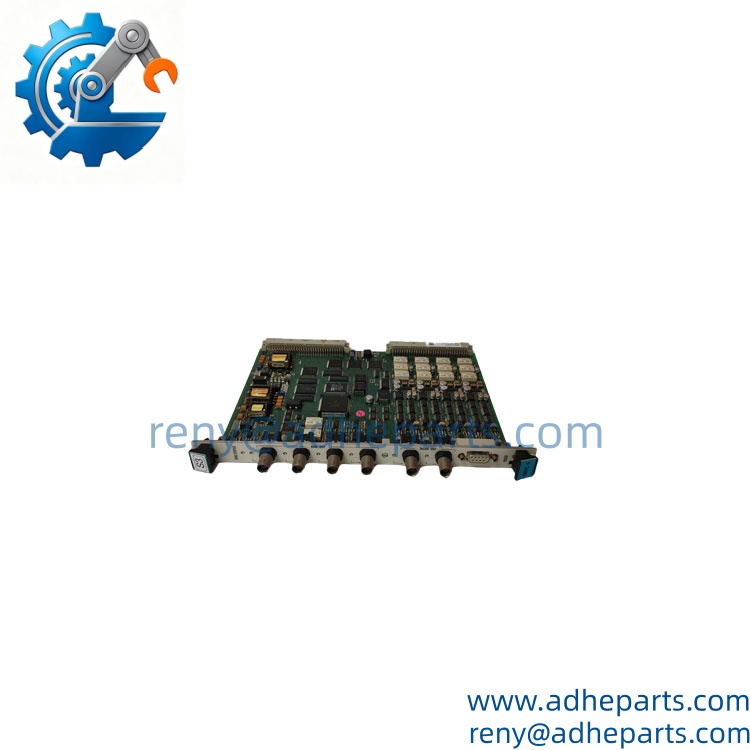

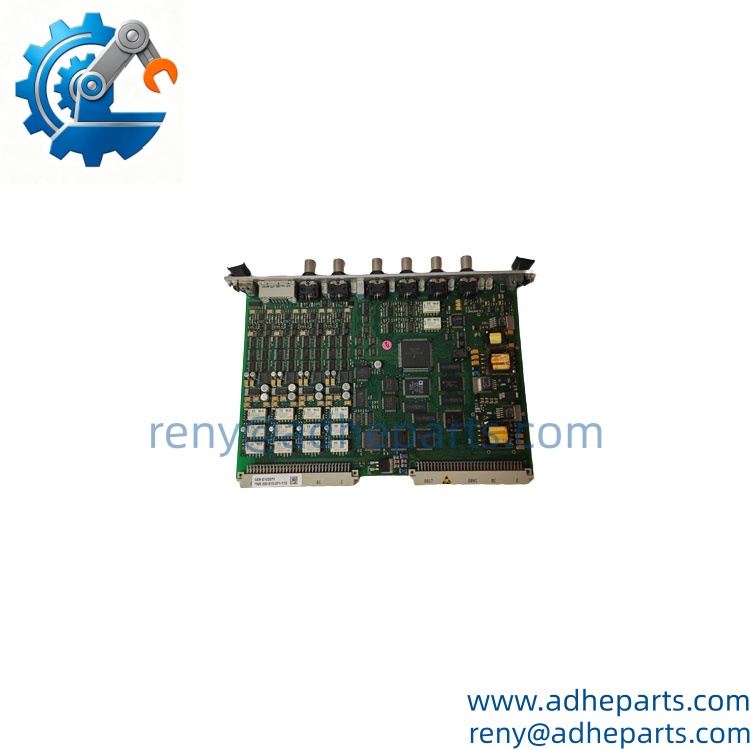

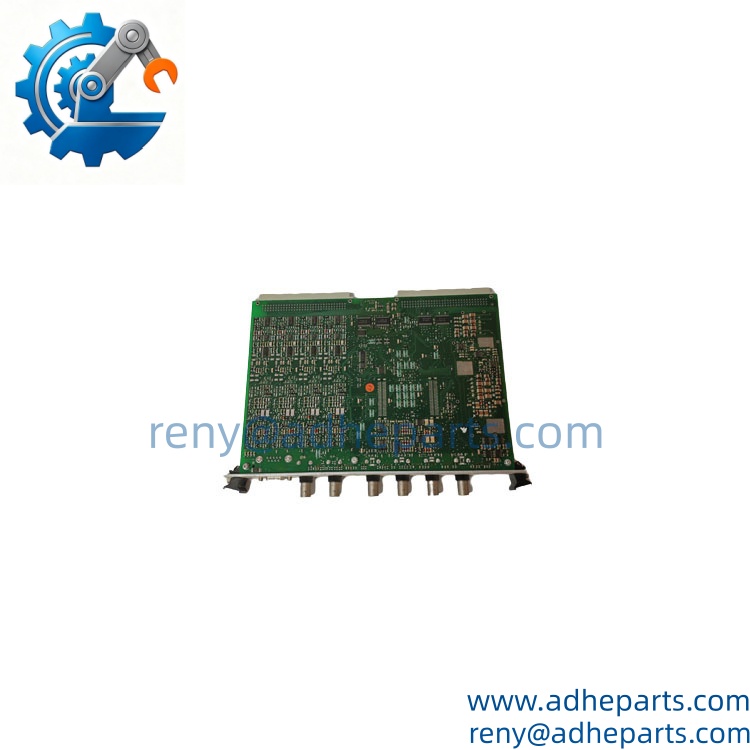

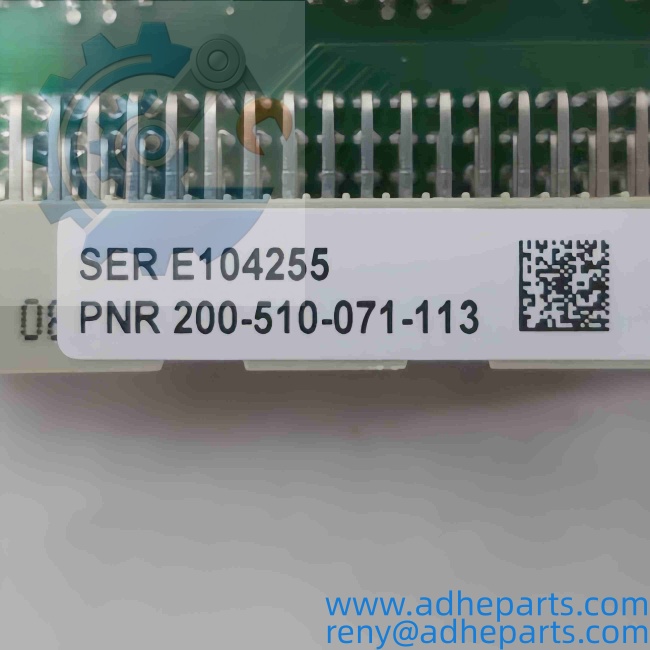

Vibro-Meter 200-510-071-113

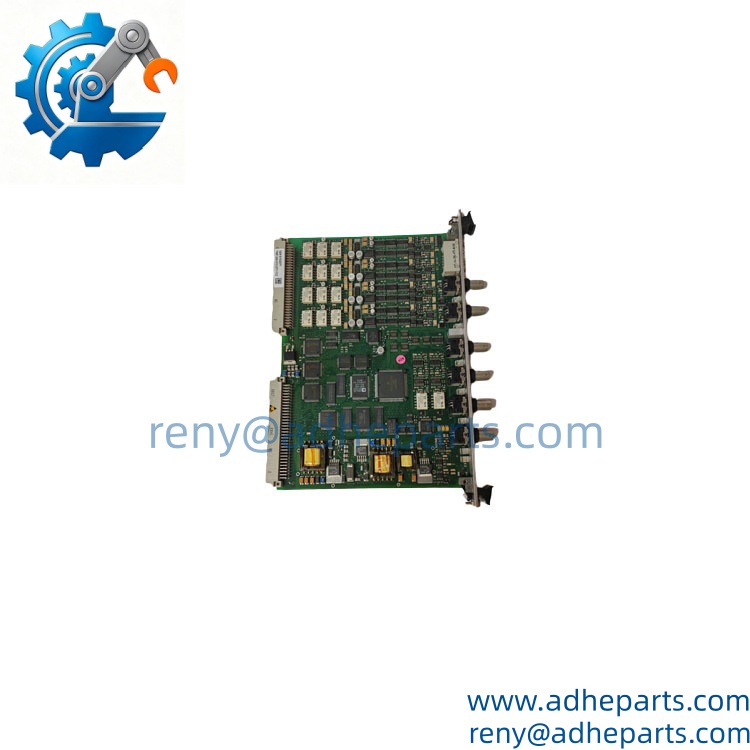

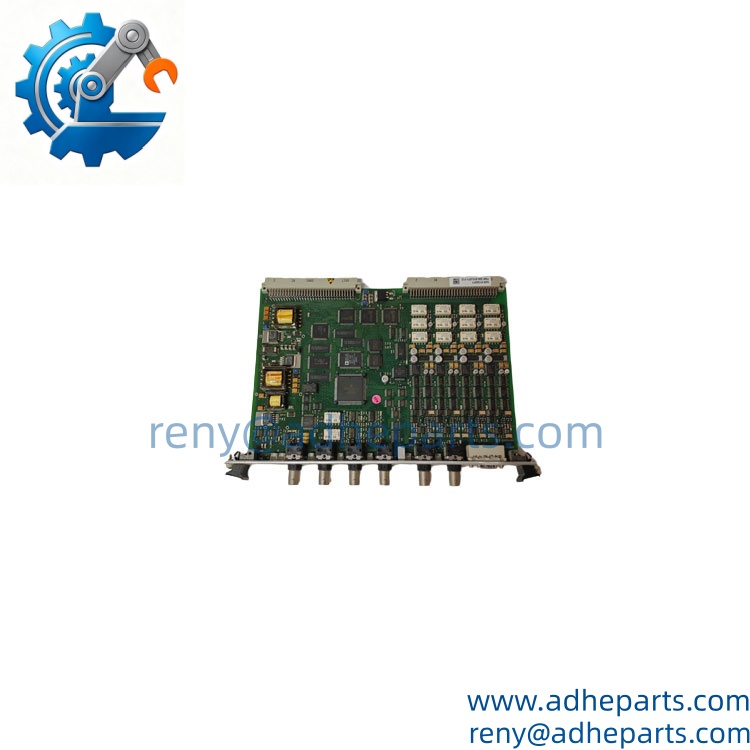

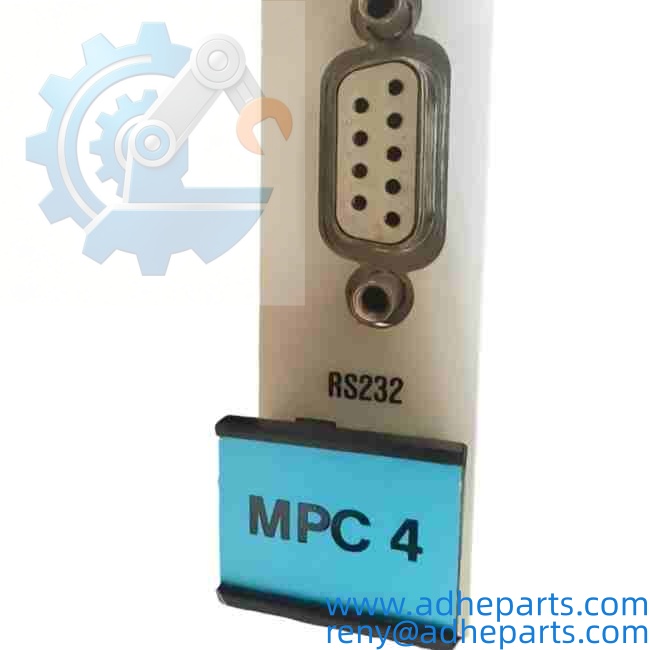

Vibro-Meter 200-510-071-113
Key Technical Specifications
- Part Numbers: MPC4 200-510-071-113 + IOC4T 200-510-111-034 (sold as matched pair)
- Channel Configuration: 4 dynamic input channels, 2 tachometer speed/phase reference channels
- Supported Sensors: Proximity probes, IEPE accelerometers, velocity transducers
- Measurands: Peak-to-peak displacement, velocity, acceleration, RMS, gap, order tracking, amplitude & phase
- A/D Conversion: 24-bit DSP processing
- Input Range: AC ±10V max; DC 0 to ±20V
- Accuracy: ±1% full scale
- Form Factor: Single-width 6U cards for VM600 ABE040 / ABE042 rack
- Hot Swap: Supported
- Operating Temperature: -25 °C to +70 °C
- Relative Humidity: 5%–95% non-condensing
- Rack Power: 24 VDC backplane supply
- Interfaces: Front BNC buffered raw signal outputs, relay outputs, 4-20mA, Modbus RTU
- Software: Configured via VM600 MPSx software
- Safety: SIL capable variant, available conformal coating option for harsh industrial environments
- Weight: ~0.4 kg per card
Vibro-Meter 200-510-071-113
Vibro-Meter 200-510-071-113
Product Introduction
The VM600 MPC4 200-510-071-113 must be deployed together with its matched IOC4T I/O card 200-510-111-034. This card pair forms the core mechanical protection unit for the legacy VM600 Mk1 rack system, used for high-value rotating machinery in power generation, oil & gas and petrochemical plants.
The MPC4 performs high-speed digital signal processing, while the IOC4T provides sensor power supplies, buffered outputs, relay trip contacts and analog outputs. The pair continuously monitors vibration, shaft displacement and rotational speed, with fully configurable alarm and hazard setpoints. Front-panel BNC ports let technicians capture raw transducer signals for field diagnostics without breaking wiring. This hardware is end-of-original OEM production, so matched pairs are in limited supply. Prepare full datasheets and calibration certificates for global procurement portals and customs databases to reduce inspection delays.
Vibro-Meter 200-510-071-113
QC, Procurement & Logistics SOP
- Inbound Verification: Verify both part numbers as a matched pair; inspect front panel labeling, gold edge connectors and PCB condition. Cross-check hardware revision codes; reject mismatched MPC4 / IOC4T combinations. Confirm conformal coating status if specified.
- Live Rig Testing: Install matched pair inside ABE040/ABE042 rack. Inject simulated proximity and vibration signals, validate tacho speed reading, check alarm/hazard relay operation, BNC buffered outputs, LED status indicators and MPSx software communication.
- QA & Anti-Static Packaging: Clean gold edge connectors individually; place each card inside separate ESD shielding bags with foam cushioning to prevent connector damage in transit.
- Global Logistics & Export Compliance: Apply correct HS classification for paired machinery vibration protection modules. Use reinforced rigid packaging for air or sea freight; compile datasheet, calibration test report and safety certification to minimize customs hold-ups.
Vibro-Meter 200-510-071-113
Technical Pitfalls & Integration Warnings
- Mismatched Pair Risk. MPC4 and IOC4T must be matched hardware revisions. Mixing unmatched MPC4 / IOC4T part numbers causes missing relay outputs, incorrect buffered signal impedance, or failure to download MPSx configuration.
- Firmware & MPSx Software Version Mismatch. Older MPSx software builds cannot support newer hardware revisions. Validate software compatibility before commissioning; version conflicts may block setpoint download or disable trip functions.
- Sensor Cabling & Ground Loops. Proximity probe coax and IEPE sensor wiring require proper shield termination. Different earth potentials between machine and rack produce measurement drift, false vibration alarms and intermittent channel dropout.
- ESD Damage. Gold edge connectors and front-end signal circuits are extremely sensitive. Unprotected contact may pass basic power tests but trigger sporadic channel faults after rack installation.
- RoHS Revision Differences. Older and newer card revisions have different buffered output impedance (2000Ω vs 50Ω). Mixing revisions changes signal characteristics and can affect external monitoring instruments.
Frequently Asked Questions (FAQ)
What global lead times apply for this + pair (200-510-071-113 / 200-510-111-034)? Stock-on-hand matched pairs can ship in 1–3 business days. Final delivery lead time depends on destination; remote industrial regions can extend full transit to 14–22 calendar days.
Can I hot-swap the / pair while the VM600 rack remains powered? Hot swap is supported for individual cards, but always bypass protection setpoints and lock out trip logic before extraction or insertion to prevent unintended machine trips. Never hot swap if the system already has another active hardware fault.
What sensors can connect directly to this / set? Proximity probes, IEPE accelerometers and velocity transducers are supported. Each dynamic channel is independently configurable for displacement, velocity or acceleration measurements.
Is backward compatibility guaranteed for older VM600 ABE racks? Physically the cards fit ABE040 and ABE042 chassis. Verify MPSx software version, backplane revision and hardware pairing before drop-in replacement. Bench testing before live machine commissioning is mandatory.
Can I use the card alone without the matching ? No. The cannot operate independently. It requires the paired card for sensor power, relay trip outputs and buffered signal interfaces.
Is field repair available for this pair? Original OEM component sourcing is limited for this discontinued Vibro-Meter Mk1 hardware. Replacing the full matched card pair is the recommended low-risk option for safety-critical rotating machinery protection loops.
What pre-installation checks should be completed?
- Inspect edge connector pins for bending, oxidation or contamination
- Confirm and are matching hardware revisions
- Validate MPSx software revision compatibility
- Check shielded sensor cable continuity and grounding plan before field wiring
