Vibro-Meter 200-566-000-01 | New Original 12 Month Warranty Direct Replacement

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction

When your large-scale rotating machinery (steam turbines, gas turbines, compressors) needs continuous high-precision vibration monitoring that meets strict ISO-10816 mechanical vibration safety standards, this module acts as the core signal interface gateway between field vibration sensors and the VM600 mechanical protection system.
It features fully differential signal input design that effectively suppresses industrial site electromagnetic interference, ensuring no signal distortion even in high-EMI power plant and petrochemical plant environments. It mounts directly behind the corresponding XMV16/XMC16 processing module in the VM600 rack, forming a matched card pair that guarantees signal synchronization and integrity.

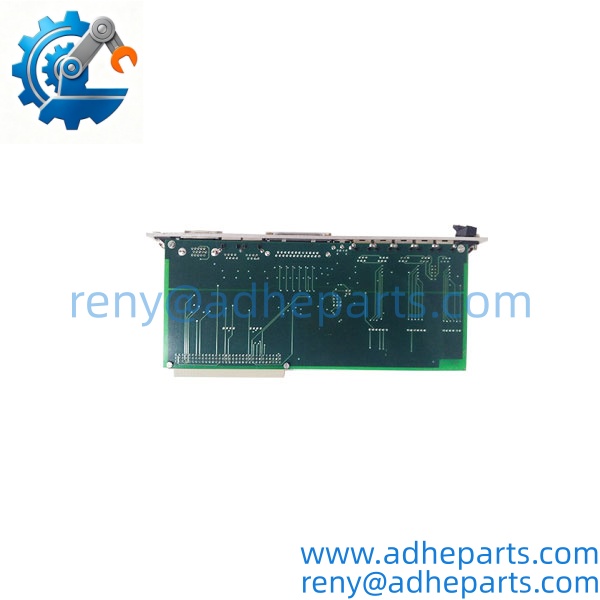

200-566-000-01

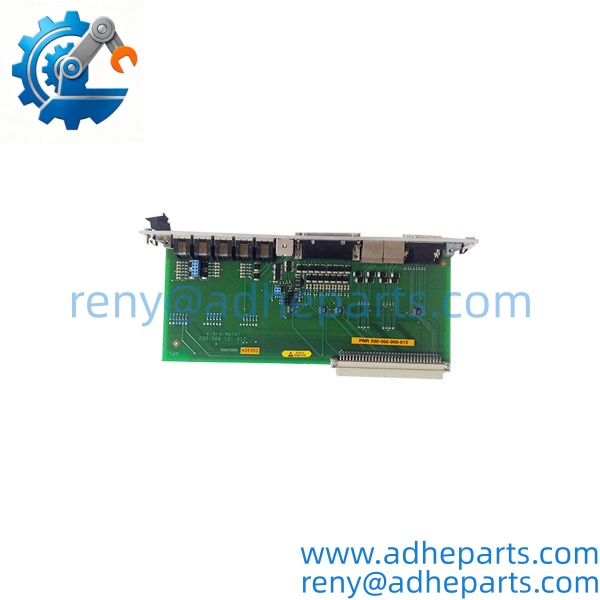

200-566-000-01

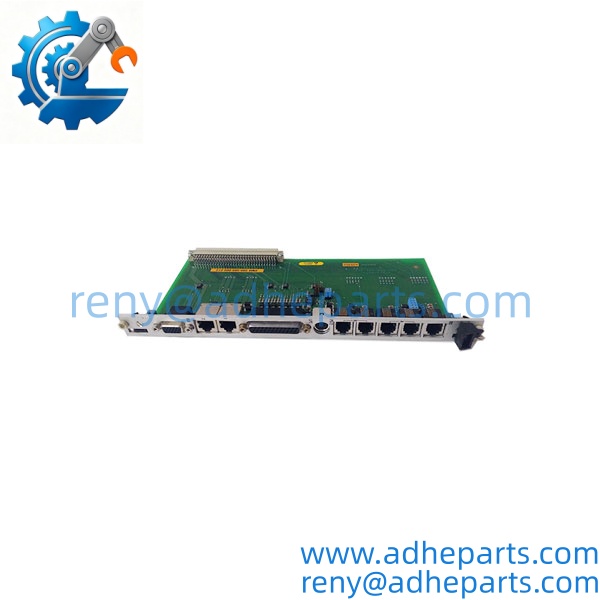

200-566-000-01

Key Technical Specifications

Field Application & Technical Pitfalls

Critical Industrial Scenarios

• **Thermal Power Plant Steam Turbine Vibration Monitoring: Acts as the core signal interface unit for steam turbine vibration protection systems, collecting and transmitting high-precision shaft vibration and bearing vibration signals to the VM600 processing module, ensuring the turbine operates within safe vibration limits.
• **Petrochemical Plant Centrifugal Compressor Protection: Delivers reliable vibration signal transmission for large petrochemical centrifugal compressors, meeting strict API 670 machinery protection system requirements.
• **Natural Gas Pipeline Gas Turbine Monitoring: Adapts to remote field harsh operating environments, providing stable vibration signal acquisition for gas pipeline gas turbine generator sets.

Non-Negotiable Technical Pitfalls

• ‌⚠️ Bold Warning 1‌: Never connect non-differential single-ended vibration sensors directly to this module. The third channel will experience severe common-mode interference that causes 15%+ vibration measurement offset.
• ‌⚠️ Bold Warning 2‌: Skipping the pre-commissioning full 16-channel signal integrity test will leave you with hidden signal dead zones. This unit must complete full-channel vibration signal verification with a standard vibration calibrator to ensure all channels operate correctly.
• ‌⚠️ Bold Warning 3‌: Do not install this module without pairing it with the corresponding XMV16/XMC16 processing module. The system will fail to recognize the IOC-N unit, resulting in complete loss of vibration monitoring functionality.

A thermal power plant maintenance team once swapped a 200-566-000-01 module and skipped the full-channel signal test. The hidden dead vibration channel caused the turbine bearing vibration protection loop to fail to trigger on time, leading to a 2-hour unit forced shutdown to inspect potential equipment damage.

Quality Control (QC) SOP & Transparency

1. ‌Inbound Verification‌: Cross-check the OEM serial number against Meggitt’s official Vibro-Meter part registry, confirm the part number 200-566-000-01 matches the factory label, and inspect no bent pins or corrosion on all signal and Ethernet connectors.
2. ‌Live Rig Testing‌: Power the unit in a calibrated system test rack, apply standard vibration signal inputs, and confirm full 16-channel signal transmission stability for 2 continuous hours.
3. ‌Parameter Testing‌: Verify all 16 dynamic channels and 4 tachometer channels operate correctly, confirm Ethernet VibroSight communication functions operate properly, and validate all status LED indicators function correctly.
4. ‌Final QA & Packaging‌: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

Frequently Asked Questions (FAQ)

• ‌Can I hot-swap this module while the system is running?‌ No. You must first place all corresponding vibration protection loops in bypass mode before removing the unit, otherwise you will trigger temporary vibration signal loss alarms.
• ‌What exact systems is this module compatible with?‌ It works natively with Vibro-Meter Mk2 mechanical monitoring systems. It will not operate correctly with non- vibration monitoring platforms without custom signal protocol adaptation.
• ‌How long is the standard warranty for this new surplus unit?‌ 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overvoltage, or improper module pairing in the field.
• ‌How do I tell a genuine OEM unit apart from a refurbished clone?‌ Genuine Vibro-Meter 200-566-000-01 modules have a laser-etched part number on the metal housing, not a printed sticker. Clone units almost always fail the full 16-channel differential signal integrity test.
• ‌What is the typical lead time for shipment?‌ In-stock units ship within 48 hours. If you require official Meggitt factory vibration performance test documentation, add 2 extra business days to the turnaround window.
• ‌Can this module replace the older IOC legacy interface unit?‌ Well, technically it fits the same rack slot footprint, but you will need to reconfigure all vibration channel mapping parameters in the VibroSight software to unlock the full 16-channel high-precision performance.
