When a VM600 machinery monitoring rack is already integrated into a plant, replacing a communication interface is not simply a matter of finding a board with the same connector layout. The Vibro-Meter VM600 IOCN 200-566-000-112 / 200-566-101-013 provides the interface between the VM600 rack architecture and external communication systems, working with the CPUM to exchange monitoring, diagnostic, and system-status information.

For maintenance teams, the important point is architectural compatibility. The IOCN belongs to the VM600 machinery protection and condition monitoring platform and can provide Ethernet and serial communication paths for integration with plant control systems. Depending on the hardware and firmware configuration, documented interfaces include 10/100BASE-TX Ethernet and serial communication for protocols such as Modbus TCP, PROFINET, and Modbus RTU.

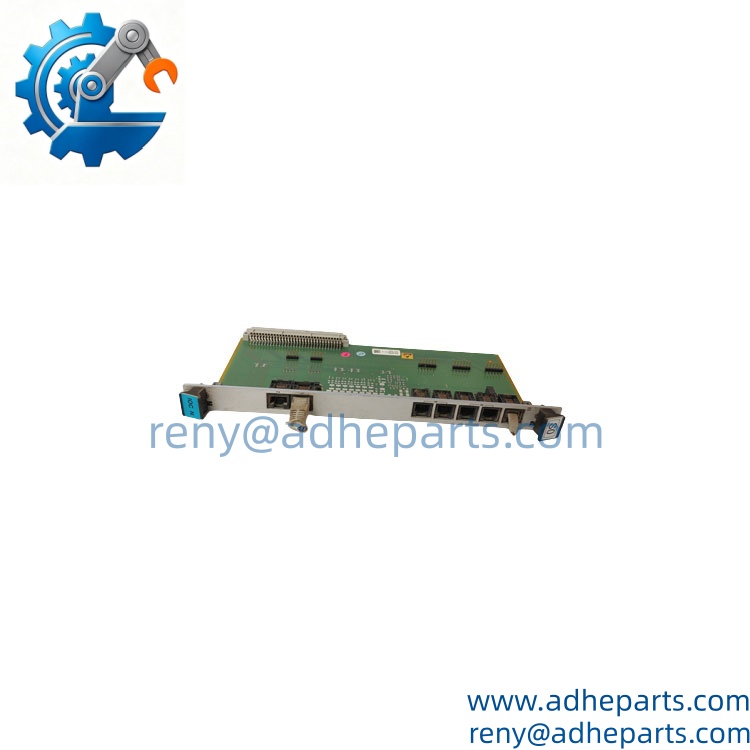

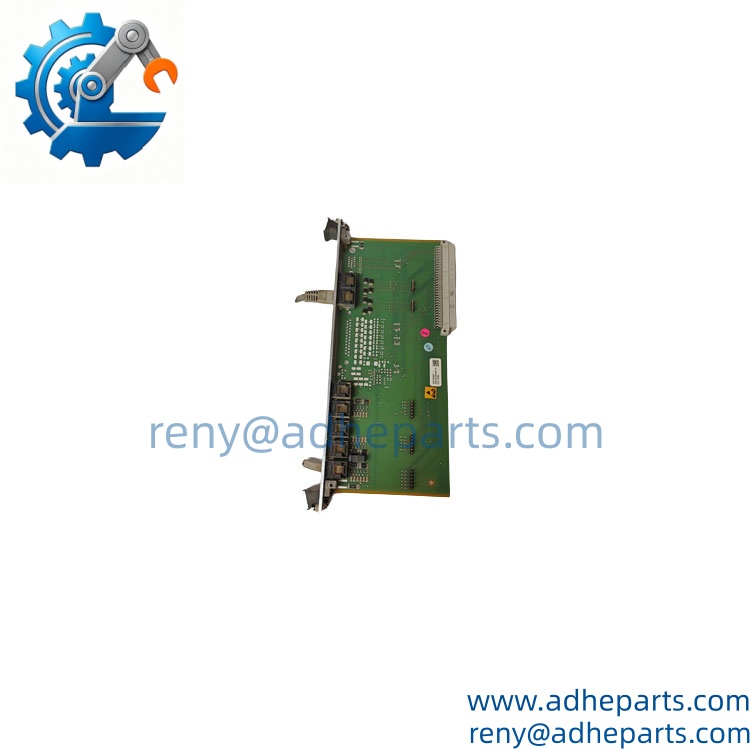

Vibro-Meter IOCN 200-566-000-112

Vibro-Meter IOCN 200-566-000-112

Key Technical Specifications

*Protocol availability and interface configuration depend on the IOCN/CPUM hardware and firmware revision. The 200-566-000-112 documentation describes Ethernet interfaces for 10/100BASE-TX communication and an RS serial interface supporting RS-232/RS-485.

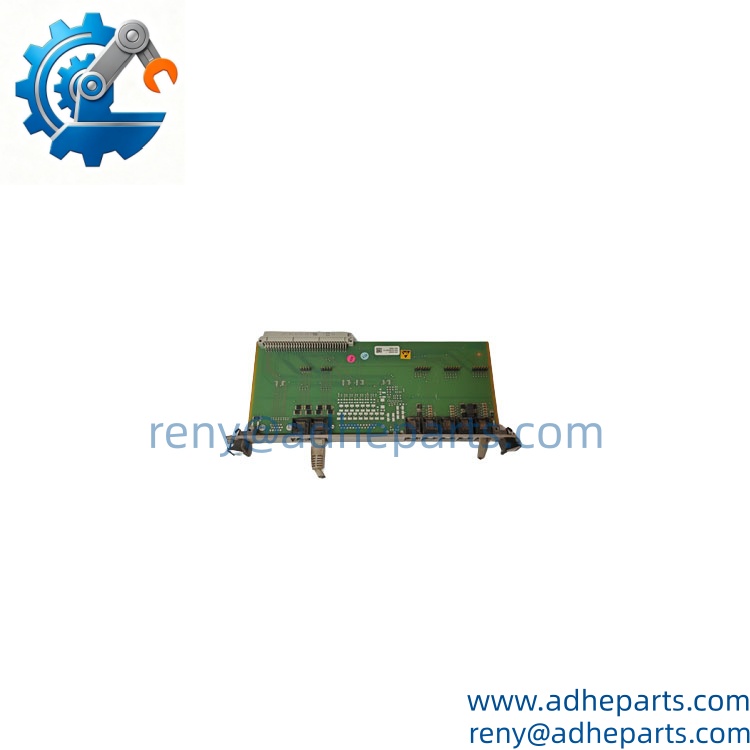

Vibro-Meter IOCN 200-566-000-112

Field Application & Technical Pitfalls (The Engineer’s Guide)

Machinery Protection and Condition Monitoring

The IOCN is used where a rack needs to exchange machinery-monitoring information with a higher-level control or monitoring environment. Typical installations are associated with rotating equipment such as turbines, compressors, pumps, and other critical machinery where vibration and protection data must reach the plant control system.

DCS / PLC Communication

An IOCN can act as the communication interface for transferring information to an external automation architecture. Ethernet-based communication and serial interfaces allow the existing monitoring rack to participate in a broader plant network without replacing the complete system.

Maintenance and Rack Replacement

For a replacement job, the part-number relationship matters more than the appearance of the PCB. Do not assume that every IOCN carrying the same product name is electrically and functionally interchangeable. Hardware generation, CPUM revision, firmware, rack type, and communication configuration should all be checked before installation.

Pitfall 1 — Wrong hardware generation:
The numbers 200-566-000-112 and 200-566-101-013 should be checked against the identification label and existing rack documentation. Later variants can have different communication architecture and interface capabilities.

Pitfall 2 — Firmware and protocol mismatch:
Some communication functions depend on the CPUM firmware version. For example, documentation for 200-566-000-112 specifies PROFINET support with a suitable CPUM firmware revision. Installing the physical card without checking firmware can therefore leave the hardware apparently healthy while the required protocol remains unavailable.

Pitfall 3 — Treating IOCN as a standalone I/O module:
The IOCN is not simply a generic 24 VDC digital input/output card. Its role is tied to the rack and CPUM architecture. If the application requires direct sensor input replacement, verify whether the actual requirement is an IOCN, IOC4T, MPC4, or another module before ordering.

A practical maintenance case is fairly straightforward: a plant reports that the rack is operating locally but the control room has stopped receiving monitoring data. The first reaction may be to replace the CPU or protection card. In reality, the communication/interface path may be the failed component. Checking the IOCN, CPUM, Ethernet link, firmware, and rack configuration together usually gives a much faster diagnosis.

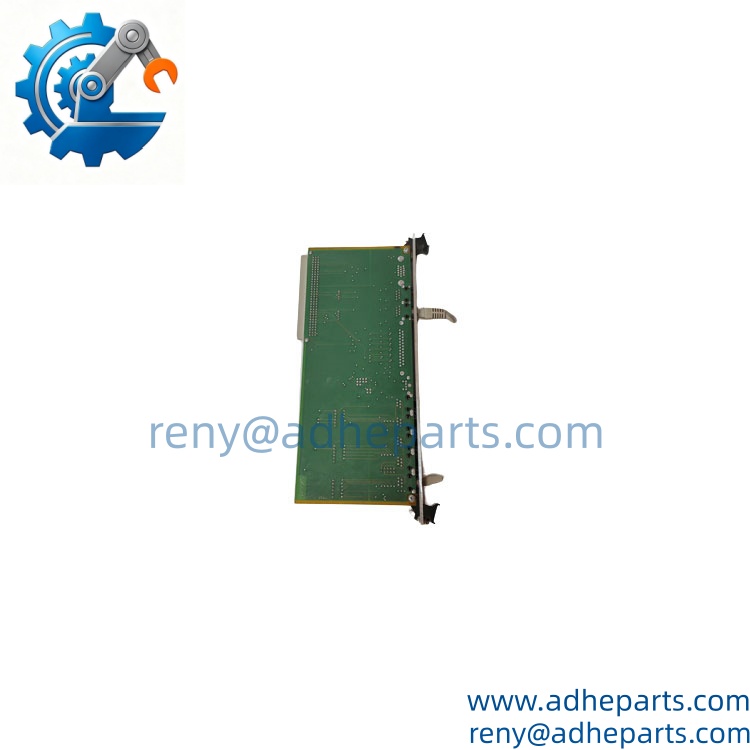

Vibro-Meter IOCN 200-566-000-112

Quality Control (QC) SOP & Transparency

1. Inbound Identification

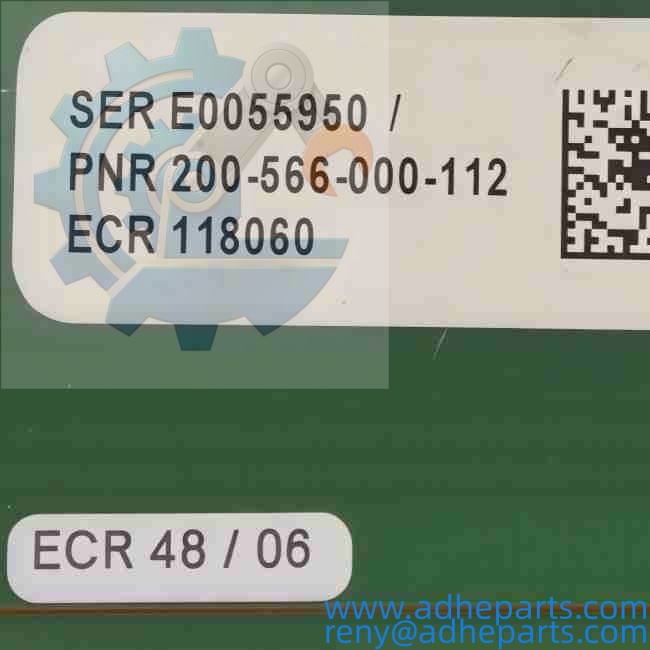

   Verify the manufacturer marking, IOCN designation, complete part number, hardware identification, and associated assembly number against the purchase requirement.
2. Physical Inspection
   Check the PCB, connectors, terminal areas, mounting edge, labels, and components for corrosion, impact damage, contamination, or unauthorized modification.
3. Configuration Verification
   Confirm that the card belongs to the required generation and that its communication configuration is appropriate for the customer’s CPUM and rack.
4. Communication Interface Check
   Where the applicable test setup is available, verify Ethernet and serial communication interfaces rather than relying only on power-up status.
5. Functional Testing
   Test the IOCN together with the relevant rack/CPUM environment when practical. Check module status, communication response, and system diagnostics.
6. Parameter and Firmware Review
   Record the available hardware and firmware information before shipment. This is particularly important when the customer’s existing system depends on a specific communication protocol.
7. Final QA and Packaging
   Photograph the identification label and overall condition before packing. The card is then protected against electrostatic discharge and mechanical impact during transportation.

Vibro-Meter IOCN 200-566-000-112

FAQ

Q1. What is the main function of the IOCN?
The IOCN is primarily a communication and interface card for the architecture. It works with the CPUM to exchange monitoring and system information through Ethernet and serial communication interfaces.

Q2. Is 200-566-000-112 a digital input card?
Not in the conventional PLC sense. Although some aftermarket listings describe it as an I/O card, its documented role is as an IOCN signal and communications interface associated with the CPUM.

Q3. Can it communicate with a PLC or DCS?
Yes, where the specific hardware and firmware configuration supports the required protocol. Documented communication options include Modbus TCP, PROFINET, and serial Modbus RTU. Exact compatibility should be confirmed against the customer’s CPUM firmware and rack configuration.

Q4. Is 200-566-101-013 the same as 200-566-000-112?
They are closely associated identifiers for the IOCN assembly, but the exact relationship should be confirmed from the card label and customer’s existing hardware documentation before treating them as interchangeable. This is especially important for legacy installations.

Q5. Can the IOCN be replaced while the rack is operating?
Some documentation describes live insertion and removal for applicable module configurations. However, do not assume hot-swapping is permitted solely because the module supports it in one system configuration. Follow the rack-specific maintenance procedure and verify the applicable hardware generation first.

Q6. Is a refurbished IOCN acceptable for a maintenance replacement?
It can be, particularly for legacy installations where the original hardware is difficult to source. The key considerations are exact part-number matching, hardware revision, communication compatibility, functional testing, and warranty rather than cosmetic condition alone.

Q7. What information should be provided when requesting a replacement?
For an accurate quotation, provide the complete IOCN part number, a clear photo of the identification label, the rack model, the associated CPUM part number, and the required communication protocol. If firmware information is available, include that as well. This significantly reduces the risk of supplying a physically similar but incompatible communication card.
