Description

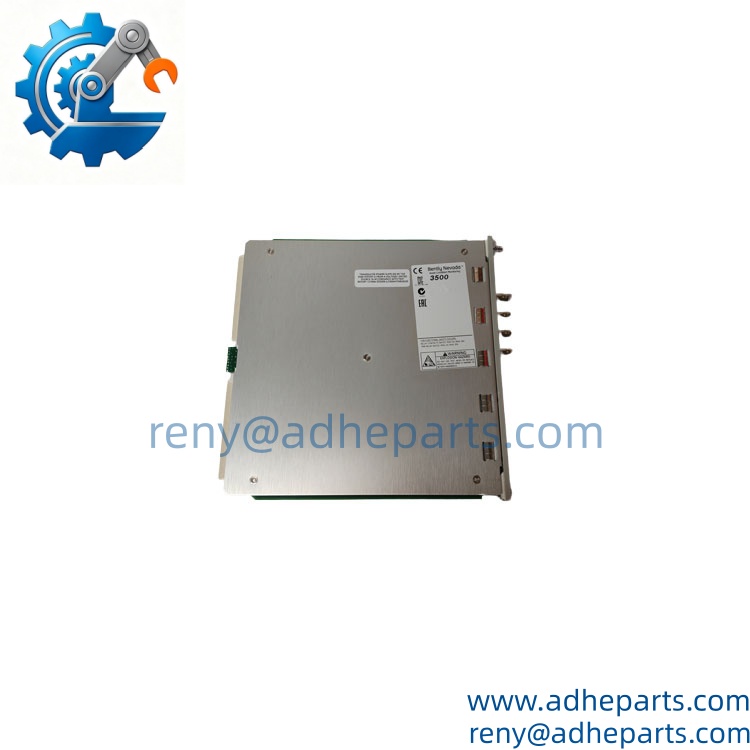

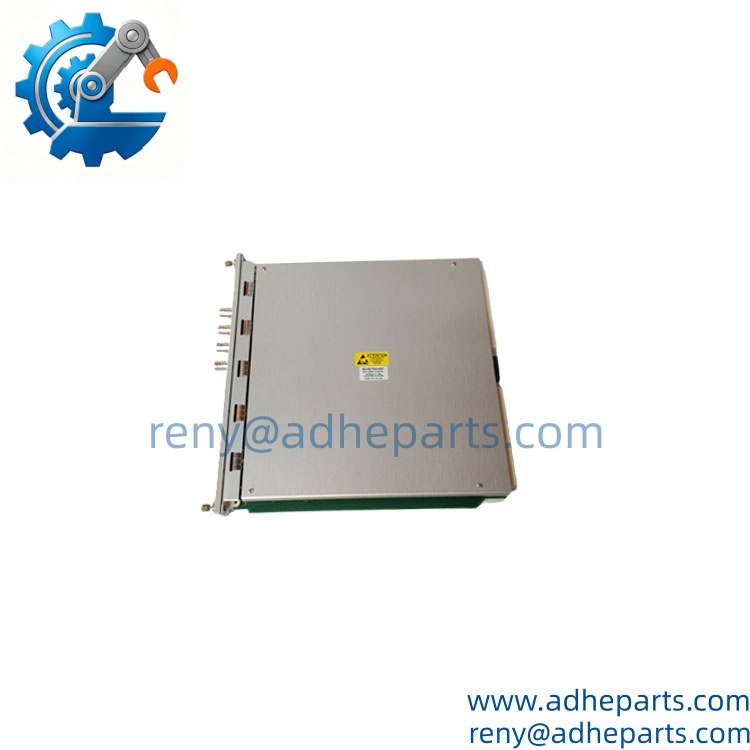

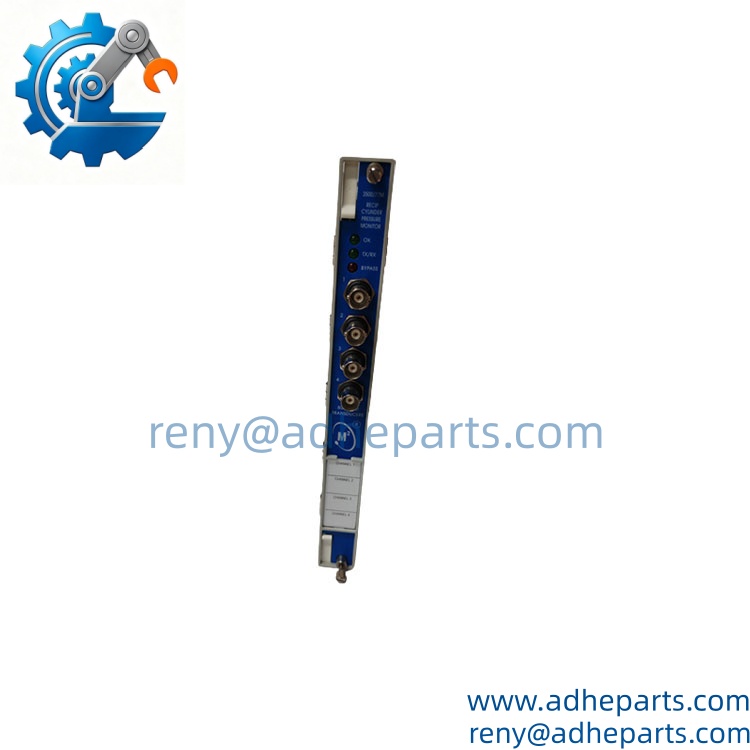

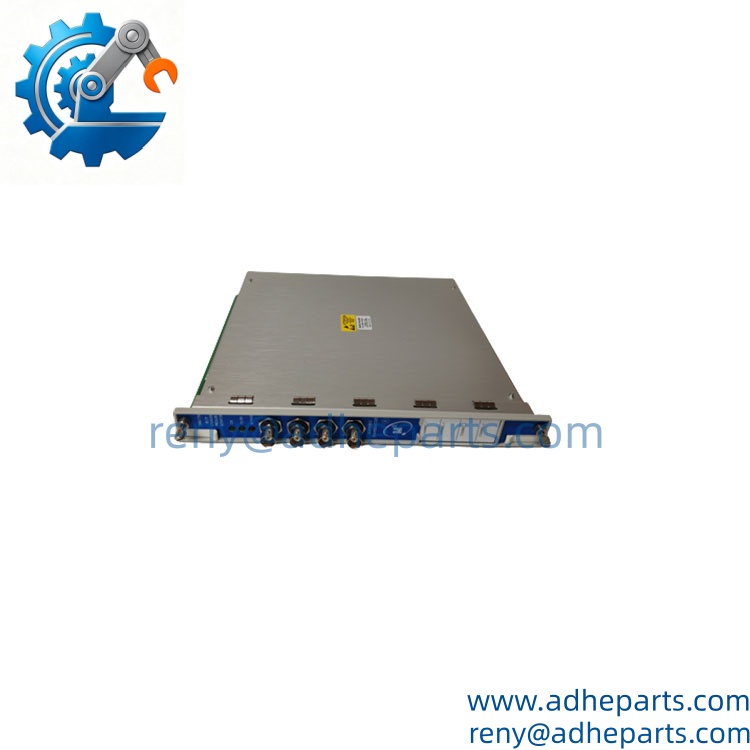

The 176449-07 is identified in Bently Nevada documentation as the 3500/77M Cylinder Pressure Monitor. The 3500/77M is a four-channel monitor designed for reciprocating compressor applications and accepts signals from approved pressure transducers.
A typical system may include:
3500 System Rack Backplane → Bently Nevada 3500/77M 176449-07 → Pressure Transducers → System 1 Monitoring Software & DCS
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Reciprocating Cylinder Pressure Monitor |
| Model | 3500/77M |
| Part Number | 176449-07 |
| Product Family | Bently Nevada 3500 Series |
| Number of Channels | 4 |
| Input Type | Approved reciprocating cylinder pressure transducers |
| Primary Application | Reciprocating compressor monitoring |
| Measured Variables | Discharge Pressure, Suction Pressure, Maximum Pressure, Minimum Pressure, Compression Ratio |
| Additional Diagnostics | Peak Rod Compression, Peak Rod Tension, Degrees of Rod Reversal |
| Alarm Functions | User-programmable Alert and Danger setpoints |
| Monitor Position | One full-height front slot |
| I/O Module | One full-height rear slot |
| Compatible I/O | 143729-01 internal termination; 143737-01 external termination |
| Required Firmware | Revision L or later, according to published documentation |
| Rack Software | 3500/01 Version 3.00 or later |
| Operating Temperature | Approximately -20°C to +65°C, system-dependent |
Bently Nevada describes the 3500/77M as a four-channel monitor for reciprocating compressors. Depending on configuration, each channel can provide multiple cylinder-pressure variables, including maximum/minimum pressure, suction/discharge pressure, compression ratio, rod loading, and rod reversal information.
The published documentation also specifies firmware and software requirements for the module. The datasheet lists 3500/77M firmware Revision L, 3500/01 software Version 3.00, 3500/02 Version 2.30, and 3500/03 Version 1.30 or later.
Product Introduction (Anti-Template)
When a reciprocating compressor starts showing abnormal cylinder behavior, pressure data can reveal problems that vibration measurements alone may not explain. The Bently Nevada 3500/77M 176449-07 is a four-channel cylinder pressure monitor designed to condition pressure-transducer signals and calculate operating variables used for compressor protection and diagnostics.
The useful part is not simply the four input channels. The monitor turns pressure information into values such as compression ratio, peak rod compression, peak rod tension, and rod reversal, giving operators a more complete picture of cylinder loading. That makes configuration accuracy important—especially when replacing an installed module during an outage.
QC, Procurement & Logistics SOP
- Inbound Verification

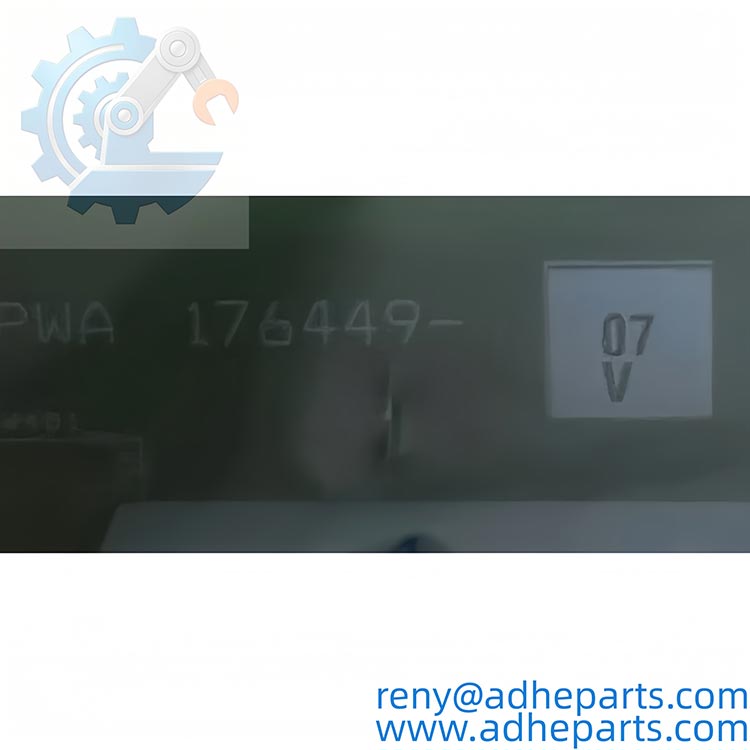

- Confirm the complete part number: 176449-07.

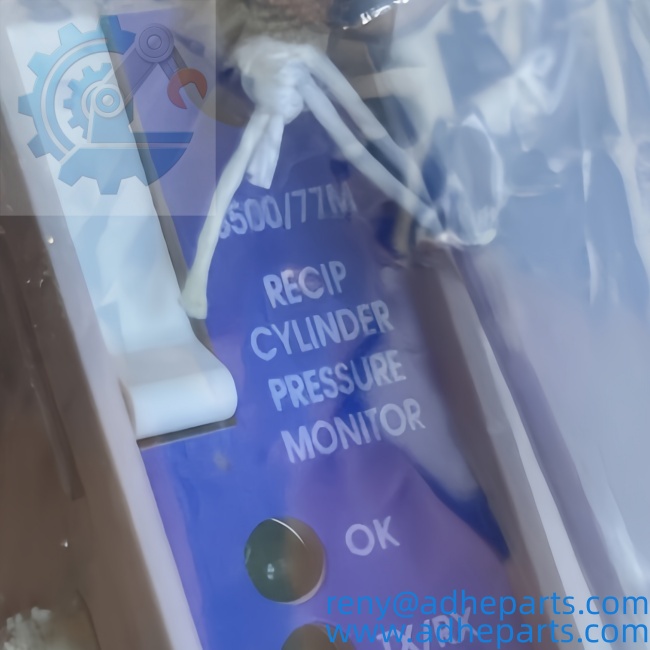

- Verify that the unit corresponds to the 3500/77M Reciprocating Cylinder Pressure Monitor.
- Inspect the front-panel condition, identification label, card edge, connectors, mounting hardware, and visible revision markings.
- Check the required I/O configuration before releasing the monitor for shipment.
- For replacement orders, compare the existing monitor’s part number and system configuration rather than relying only on the 3500/77M family name.
- Live Rig Testing
- Perform controlled power-on testing when compatible 3500 Series test equipment is available.
- Check startup behavior, status indication, display/interface response, and diagnostic functions.
- Where suitable equipment is available, verify representative pressure-input behavior.
- Confirm that the monitor communicates correctly with the installed rack configuration.
- Check firmware compatibility before commissioning. A published Bently Nevada datasheet specifies Revision L or later firmware for this module.
- QA & Anti-Static Packaging
- Photograph the identification label and physical condition before packing.
- Protect the electronics and card-edge contacts against electrostatic discharge.
- Use anti-static packaging with suitable cushioning.
- Prevent the module from moving inside the carton during transportation.
- For outage-critical equipment, record the product identification before sealing the package.
- Global Logistics & Export Compliance
- Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
- Classify the item according to its actual function as an electronic machinery-monitoring module and the destination customs requirements.
- For urgent compressor maintenance, air freight is generally the practical option.
- Sea freight can be considered for consolidated or non-urgent shipments.
- Use rigid export packaging to protect the monitor from vibration, impact, and moisture during air or sea transportation.
- Customs clearance can add time when the product description or tariff classification does not correspond with the physical equipment.
Technical Pitfalls & Integration Warnings
1. Firmware Rev Mismatch
Do not overlook firmware. Published documentation specifies minimum firmware and software revisions for the 3500/77M. An older rack may have been commissioned around a particular software environment, while a replacement monitor may carry a different revision. The module can power up and still create configuration or communication problems.
2. I/O Configuration Mismatch
The 3500/77M works with different cylinder-pressure I/O arrangements. Bently Nevada documentation lists 143729-01 for internal terminations and 143737-01 for external terminations. These are not interchangeable installation details. Verify the installed I/O module and termination method before ordering.
3. Transducer / Wiring Compatibility
The monitor is designed around approved cylinder-pressure transducers. The signal path includes the transducer, cable, I/O module, and monitor. If a technician changes only one component without checking the complete chain, pressure readings can be incorrect or unavailable. The 3500/77M documentation specifically identifies 165855-series cylinder pressure transducers among its associated components.
4. ESD During Unboxing
The monitor contains sensitive electronics. Keep it inside anti-static packaging until installation is ready. Avoid touching card-edge contacts, and follow the plant’s ESD procedure during rack installation. A replacement module that arrives physically perfect can still be compromised by careless handling.
Frequently Asked Questions (FAQ)
Q1: What is the Bently Nevada 3500/77M 176449-07 used for?
It is a four-channel reciprocating cylinder pressure monitor used primarily with reciprocating compressors. It processes pressure-transducer signals and calculates pressure-related variables for machine protection and diagnostics.
Q2: How many channels does the 3500/77M support?
The 3500/77M provides four cylinder-pressure monitoring channels. Each channel can produce multiple measured variables associated with compressor-cylinder operation.
Q3: Which parameters can it monitor?
Depending on the system configuration, measured variables include:
- Discharge pressure
- Suction pressure
- Maximum pressure
- Minimum pressure
- Compression ratio
- Peak rod compression
- Peak rod tension
- Degrees of rod reversal
These measurements are particularly useful for evaluating reciprocating compressor performance and mechanical loading.
Q4: Can I replace the 176449-07 without changing the I/O module?
Potentially, but the installed I/O configuration must be checked first. The 3500/77M can be paired with internal-termination I/O or external-termination I/O configurations. If the existing rack uses external terminations, the associated termination block and cable arrangement must also be considered.
Q5: Can the 3500/77M be hot-swapped?
Do not treat removal as a routine live-maintenance operation without checking the site’s approved 3500 maintenance procedure. This module is part of a machinery protection system, and removing it can affect active compressor protection. Follow the plant isolation and maintenance requirements before replacement.
Q6: What software or firmware should I check before ordering?
The published datasheet specifies 3500/77M firmware Revision L or later, 3500/01 Version 3.00 or later, 3500/02 Version 2.30 or later, and 3500/03 Version 1.30 or later. These requirements should be checked against the installed rack before commissioning.
Q7: How quickly can 176449-07 be shipped?
Lead time depends on physical stock, condition, inspection requirements, and destination. For an outage-critical compressor application, confirm the exact unit and complete part number before arranging freight. Air freight is generally preferable when restoring a protection system quickly.
Q8: What should I provide when requesting a replacement?
Provide the existing monitor’s complete part number, a clear nameplate photograph, the 3500 rack configuration, installed I/O module number, transducer model, and firmware information if available. That information gives engineering and procurement teams a much safer basis for confirming compatibility.
