204-040-100-012 Vibro-Meter VM600
Key Technical Specifications
- Part Number: 204-040-100-012 (MPC4 Safety Version)
- Channel Configuration: 4 fully programmable dynamic channels, 2 speed/auxiliary channels
- Supported Sensors: Proximity probes, accelerometers, velocity transducers
- Measurands: Displacement, velocity, acceleration, peak-to-peak, RMS, order tracking
- Safety Rating: IEC 61508 SIL 1 certified

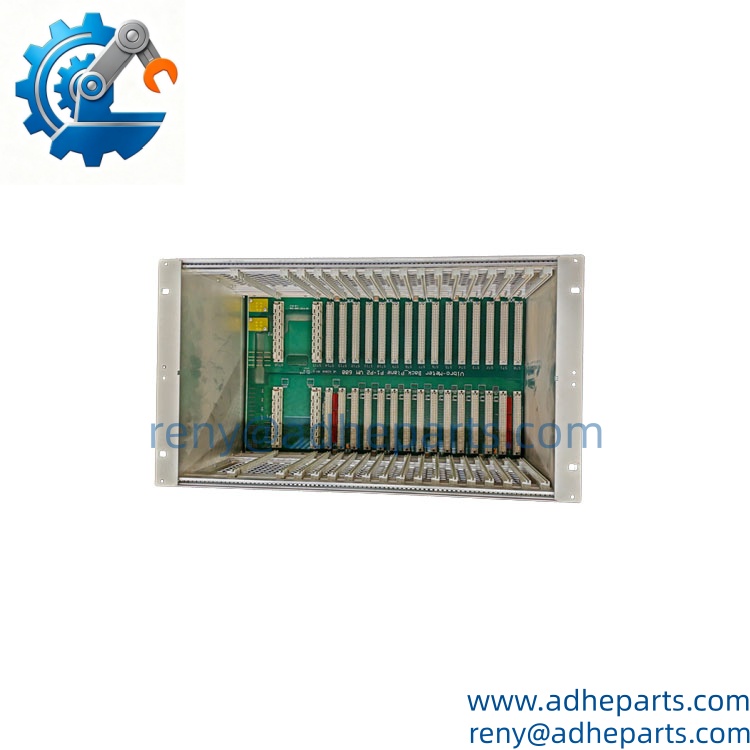

- Form Factor: Single-width 6U card for VM600 ABE040 / ABE042 rack
- Hot Swap: Supported
- Operating Temperature: -25 °C to +70 °C
- Relative Humidity: 5%–95% non-condensing
- Power Supply: 24 VDC from rack backplane
- Dimensions: 262 mm (H) × 20 mm (W) × 187 mm (D)
- Weight: ~0.4 kg
- Conformal Coating: Available variant for harsh environments
- Software: Configured via VM600 MPSx software
Product Introduction
The 204-040-100-012 is the SIL1 safety variant of the VM600 MPC4 machinery protection card, built to separate safety protection tasks from condition monitoring functions within the same VM600 rack. It uses onboard DSP to continuously process dynamic sensor signals, compute vibration metrics and trigger hardware alarm/trip outputs independent of host communication. This version excludes VME slave and tachometer bus interfaces, prioritizing protection integrity for gas turbines, steam turbines, centrifugal compressors, pumps and fans in power generation, oil & gas and chemical plants.
This legacy Vibro-Meter hardware is end-of-original-production. The isolation architecture prevents condition monitoring software traffic from interfering with safety protection loops, which is critical for high-value rotating assets. Customs processing for vibration safety cards may add short delays when entering some regions, so complete datasheet and compliance documentation is recommended for global procurement portals and customs databases.

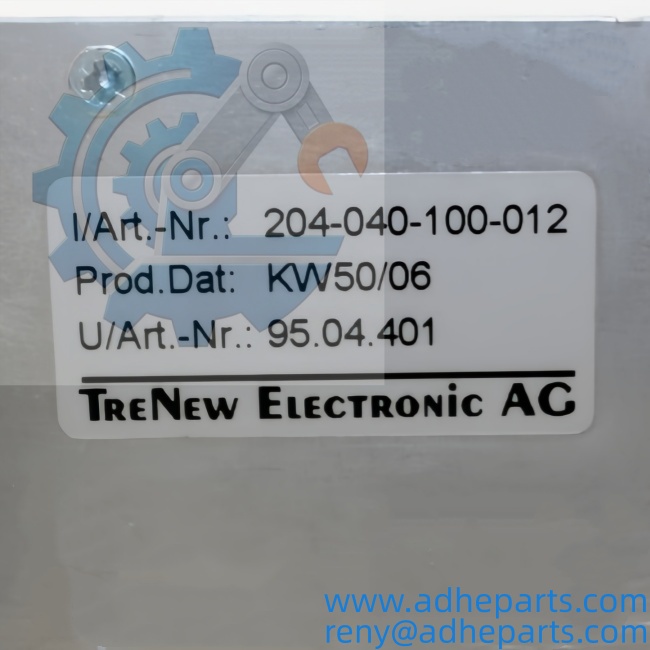

204-040-100-012 Vibro-Meter VM600

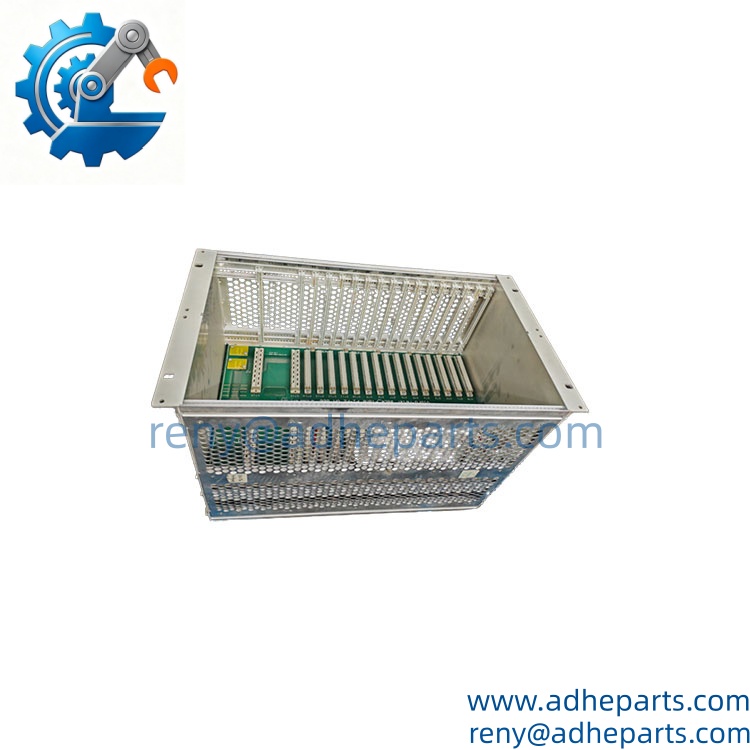

204-040-100-012 Vibro-Meter VM600
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect OEM part marking, front panel labeling and edge connector pins; cross-check hardware revision and conformal coating status; verify it is the SIL1 safety variant without VME slave circuitry to avoid mixing with standard MPC4 cards.
- Live Rig Testing: Install in matching ABE040/ABE042 backplane; apply simulated proximity and vibration sensor signals, validate threshold alarm/trip relays, confirm MPSx software communication and LED status indicators.
- QA & Anti-Static Packaging: Clean gold edge connectors; seal inside ESD shielding bag, add custom foam cushioning for shock protection during transit.
- Global Logistics & Export Compliance: Apply correct HS classification for machinery vibration protection modules. Use reinforced rigid packaging for air or sea freight; compile datasheet, calibration report and safety certification to minimize customs inspection hold-ups.
204-040-100-012 Vibro-Meter VM600
204-040-100-012 Vibro-Meter VM600
Technical Pitfalls & Integration Warnings
- Hardware Variant Confusion. This 204-040-100-012 SIL1 version lacks VME slave and tacho bus support. Installing it in a rack expecting standard MPC4 tachometer functions results in missing speed data. Many sites mistakenly swap standard MPC4 and this safety variant.
- Firmware & MPSx Version Mismatch. Older MPSx software releases do not recognize the SIL variant register map. Always validate software compatibility before commissioning; mismatched versions can block setpoint download or suppress trip outputs.
- Sensor Wiring & Ground Loops. Proximity probe cabling requires dedicated shielded coax. Different earth potentials across machine and rack create measurement drift, false vibration alarms and intermittent channel dropout.
- ESD Damage During Handling. Gold edge connectors and front-end signal circuits are extremely sensitive. Unprotected contact may pass bench power tests but trigger sporadic channel faults after rack installation.
- Mixed Protection / Condition Monitoring Racks. This card is designed for functional isolation. Improper bus configuration in combined MPS and CM racks can compromise safety separation and violate SIL assessment assumptions.
Frequently Asked Questions (FAQ)
What global lead times apply for Vibro-Meter VM600 204-040-100-012? Stock-on-hand units can ship in 1–3 business days. Final delivery lead time depends on destination; remote industrial regions can extend full transit to 14–22 calendar days.
Can I hot-swap the 204-040-100-012 while the VM600 rack remains powered? Yes, hot swap is supported. Always bypass protection setpoints and lock out trip logic before extraction or insertion to prevent unintended machine trips.
Does this card work with VibroSight condition monitoring software? This SIL1 protection variant is configured via MPSx protection software. It does not support the full VibroSight condition monitoring data capture and VME bus features of standard MPC4 cards.
What sensors can be wired directly to this card? Proximity probes, accelerometers and velocity transducers are supported. Each channel is independently configurable for displacement, velocity or acceleration measurements.
Is backward compatibility guaranteed for older racks? Physically it fits ABE040 and ABE042 chassis. You must verify MPSx software version, backplane revision and safety functional isolation requirements before drop-in replacement. Bench testing before live machine commissioning is mandatory.
Is field repair available for the 204-040-100-012? Original OEM component sourcing is limited for this discontinued Vibro-Meter module. Direct hardware replacement is the recommended low-risk path for safety-critical rotating machinery protection loops.
What pre-installation checks should be completed?
- Inspect edge connector pins for bending, oxidation or contamination
- Confirm variant: SIL1 safety card, no VME slave interface
- Validate MPSx software revision compatibility
- Check shielded sensor cable continuity and grounding plan before field wiring
