ABB XVC724BE101 Industrial Excitation Control Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

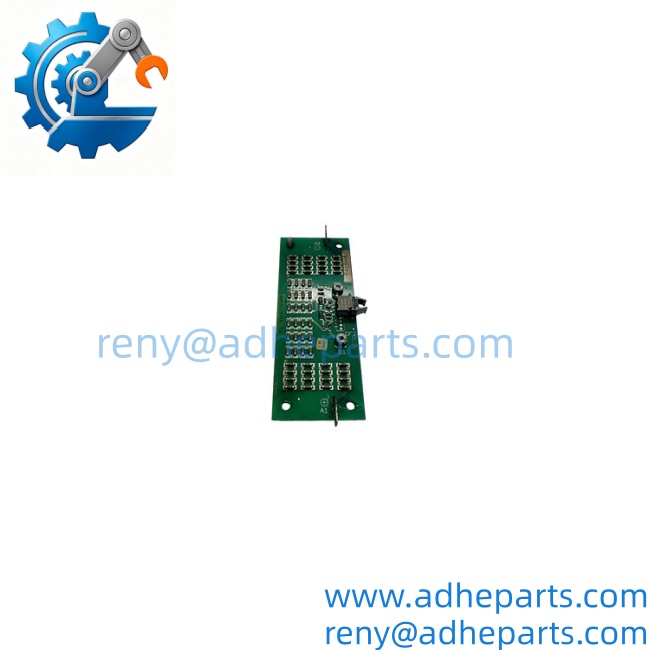

ABB XVC724BE101 3BHE009017R01

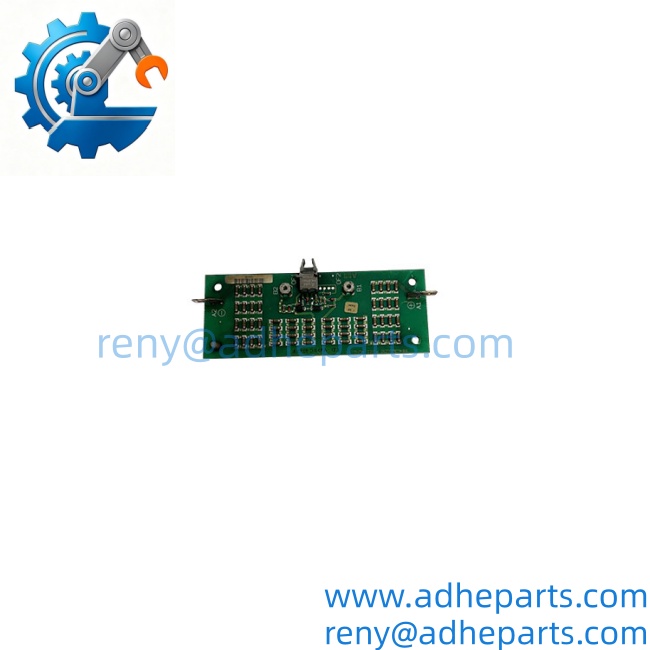

ABB XVC724BE101 3BHE009017R01

Key Technical Specifications

Public product records consistently associate the XVC724BE101 with ABB control and power-electronics equipment, but available listings provide conflicting information about its exact electrical ratings, communication ports, output channels, and dimensions. Those values should not be treated as confirmed specifications without the original ABB drawing or a clear board photograph.

Product Introduction — Anti-Template

The ABB XVC724BE101 3BHE009017R01 is a system-level control board used inside ABB power-electronics equipment. It is associated with XVC700 excitation and drive-control applications, where internal processing and signal handling support the operation of the larger assembly. The board is not normally installed as an independent field I/O module; its connectors, supply rails, and operating functions depend on the host equipment.

When sourcing this board, the host-system model and complete part-number marking are essential. Related XVC724 versions may have different hardware configurations or application roles. A visually similar board is not automatically a valid substitute, especially where excitation feedback, gate-control signals, or protection circuits are involved.

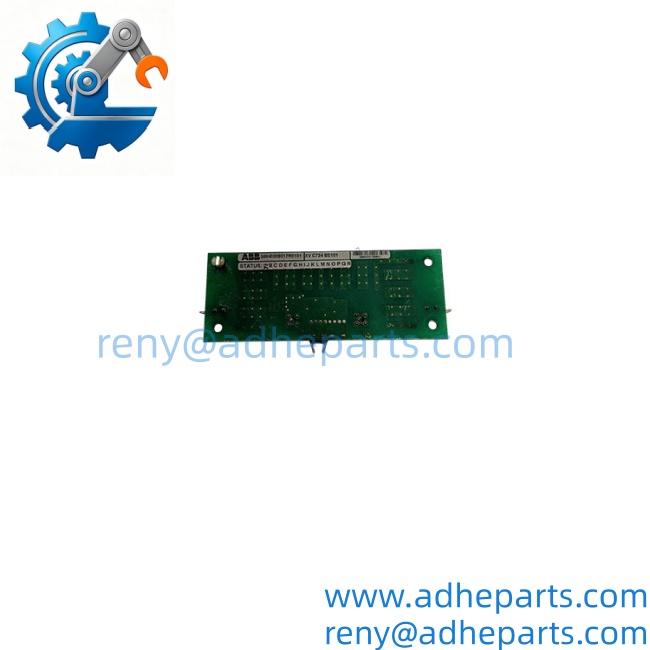

ABB XVC724BE101 3BHE009017R01

QC, Procurement & Logistics SOP

1) Inbound Verification

Check the following upon receipt:

• Complete model marking: XVC724BE101.
• ABB part number: 3BHE009017R01 or 3BHE009017R0101.
• PCB revision and serial number.
• Connector type, position, and pin condition.
• PCB tracks, solder joints, and component condition.
• Signs of overheating, carbonization, corrosion, or previous repair.
• Mounting holes, brackets, and insulation barriers.
• Compatibility with the customer’s ABB equipment.

Request clear photographs of both sides of the board before confirming a replacement, particularly if the customer’s label only shows the shortened part number.

2) Functional Testing

Testing should be performed with the correct ABB host assembly or an approved board-level test fixture.

Recommended checks include:

1. Visual inspection under magnification.
2. Connector continuity.
3. Power-rail resistance checks.
4. Insulation and short-circuit checks.
5. Low-voltage power-up testing where approved.
6. Signal-path verification against the reference board.
7. Feedback and control-signal checks.
8. Communication or internal interface checks where applicable.
9. Thermal observation during operation.
10. Comparison of measured values with the original equipment documentation.

Do not apply unknown supply voltages to the board. The exact supply arrangement is host-equipment dependent.

3) QA & ESD Packaging

• Handle the PCB in an ESD-controlled area.
• Use an anti-static bag.
• Protect all connectors with suitable covers.
• Prevent the board from flexing during transport.
• Use non-abrasive cushioning.
• Add moisture protection for international shipment.
• Record the label, revision, and visible condition before dispatch.

4) Export & Logistics

Prepare:

• Commercial invoice.
• Packing list.
• Complete model and part number.
• Country of origin.
• Net and gross weight.
• Package dimensions.
• Product description: “ABB industrial control PCB for power-electronics equipment.”
• Correct customs classification.
• End-use information if required.

The board is generally suitable for express air shipment when individually packed. Rigid packaging is recommended because damage to connectors or PCB mounting points may not be visible from the outside.

ABB XVC724BE101 3BHE009017R01

Technical Pitfalls & Integration Warnings

1) Confirm the exact application

Available records associate the XVC724BE101 with ABB XVC700 excitation and power-electronics equipment, but some listings describe it as a generic VFD control board. The host-system model should be confirmed before selecting the product description or replacement.

2) Do not rely on generic electrical specifications

Some listings provide unsupported values for input voltage, output current, processor type, memory, and communication ports. These specifications conflict with other product records and should not be used for engineering approval without an ABB schematic or technical manual.

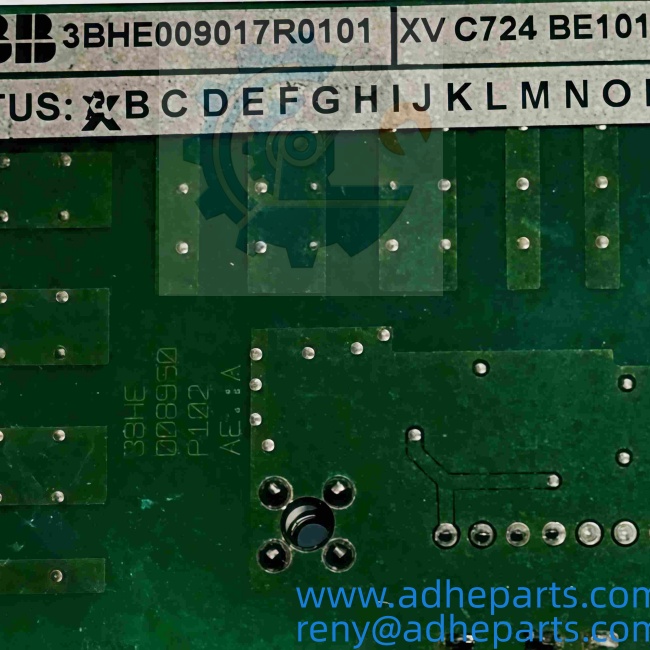

3) Check the full part-number format

The part may appear as:

• XVC724BE101
• 3BHE009017R01
• 3BHE009017R0101

The customer should provide a label photograph to confirm whether the final suffix or revision is present.

4) Do not substitute XVC724BE102 automatically

XVC724BE102 is a related board designation, but a related model is not necessarily electrically interchangeable with . Confirm connector layout, firmware, hardware revision, and host-system compatibility before substitution.

5) Inspect for heat and power-stage damage

Boards installed in excitation or high-power drive equipment may be exposed to heat, electrical transients, and repeated power cycling. Burn marks, discolored resistors, cracked solder joints, and damaged insulation should be investigated before the board is released for shipment.

6) Follow isolation procedures

The board may be connected to hazardous-voltage circuits through the host equipment. Before removal or testing, isolate the system, allow DC-link capacitors to discharge, verify the absence of voltage, and follow the equipment-specific maintenance procedure.

7) Verify the board against the original wiring

Connector compatibility alone is insufficient. Compare connector pin assignments, cable orientation, mounting position, and board revision against the original installation.

Frequently Asked Questions

Q1. What is ABB 3BHE009017R01?
It is an ABB control PCB associated with XVC700 power-electronics and excitation-control equipment.

No. It is generally identified as an internal control board used within a larger ABB equipment assembly, not as a standalone PLC processor.

Q3. Is used in excitation systems?
Available product records associate it with ABB XVC700 excitation and power-electronics systems. The exact application should be confirmed from the customer’s equipment model and board label.

Q4. Is 3BHE009017R01 the same as 3BHE009017R0101?
They appear in supplier records as shortened and extended versions of the same designation. Confirm the complete marking on the physical board before ordering.

Q5. Can XVC724BE102 replace ?
Do not assume direct interchangeability. The hardware revision, connector layout, firmware, and host-system configuration must be checked first.

Q6. What information is needed for a replacement quotation?
Provide the complete board label, clear photos of both sides, the host ABB equipment model, board revision, quantity, and destination country.

Q7. Can the board be tested separately?
Only if an approved board-level test procedure or suitable host-equipment test setup is available. Because the board’s supply and signal connections are system-dependent, standalone testing without the correct documentation may damage the PCB.
