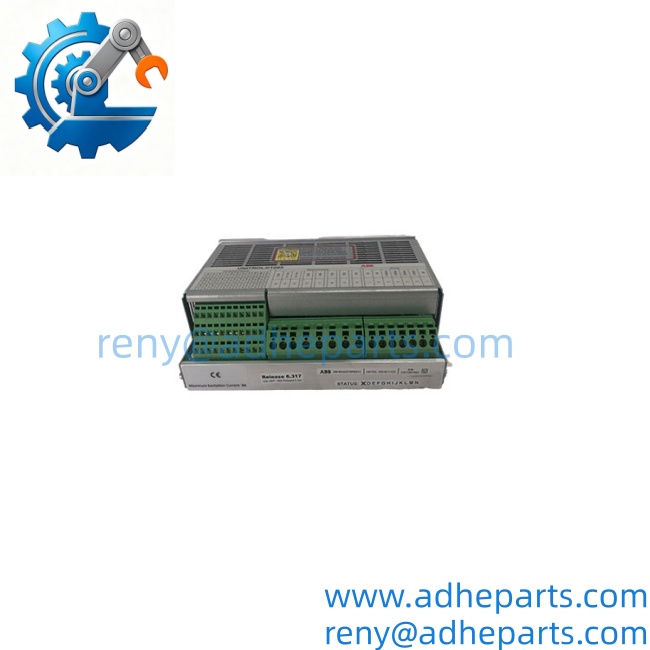

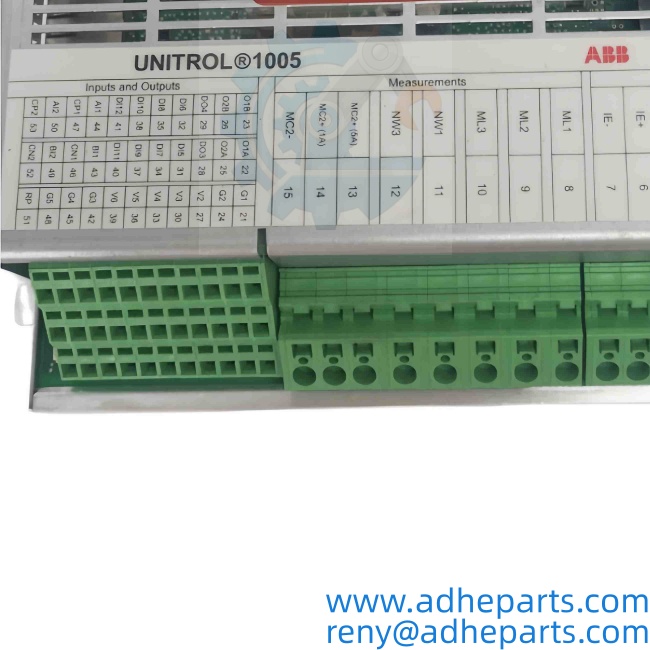

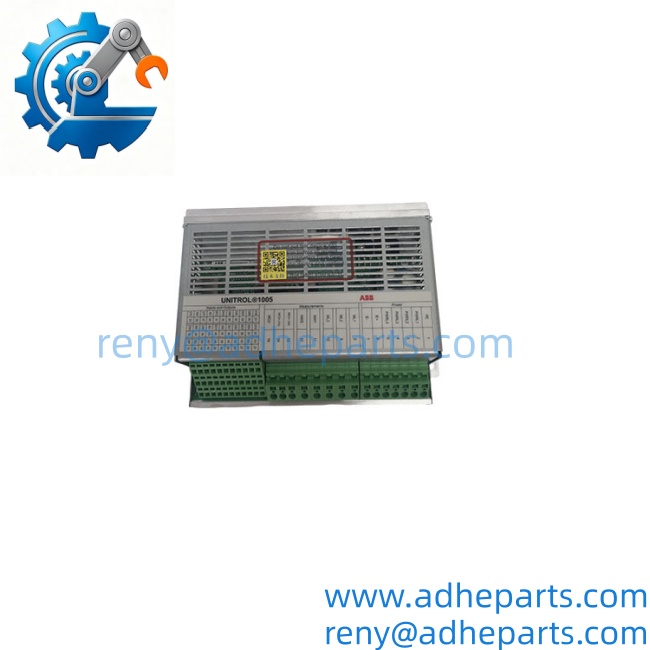

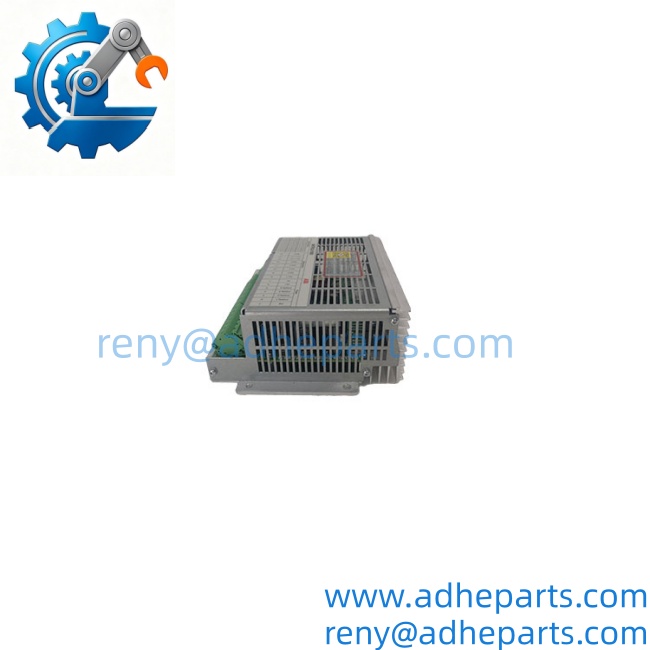

ABB UNITROL 1005-0011 ECO 3BHE043576R0011
ABB UNITROL 1005-0011 ECO 3BHE043576R0011
Key Technical Specifications
The -0011 ECO suffix defines the hardware build. Confirm each line against the label on your existing unit and the OEM datasheet for your specific variant.
| Parameter | Value |
|---|---|
| Model | UNITROL 1005-0011 ECO |
| Order Code | 3BHE043576R0011 |
| Brand | ABB |
| Product Family | UNITROL 1000 |
| Function | Automatic voltage regulator for synchronous generators and synchronous motors |
| Regulation Modes | Automatic voltage, field current, power factor / var — verify which modes the ECO build enables |
| Field Output Stage | PWM converter with DC output |
| Continuous Field Current | Verify with OEM datasheet — UNITROL 1005 class, confirm against your machine’s field rating |
| Short-Time / Forcing Current | Verify with OEM datasheet |
| Max Field Voltage | Derived from auxiliary supply — verify |
| Auxiliary Supply | Wide-range DC and AC input — verify exact range on the unit label |
| Voltage Regulation Accuracy | Verify — typically ±0.25% to ±0.5% steady state |
| Voltage Setpoint Adjustment | Local adjustment plus remote analog setpoint (4–20 mA or 0–10V) — verify |
| Digital Inputs | Verify count and function assignment |
| Relay Outputs | Verify count and contact rating |
| Analog Inputs / Outputs | Verify |
| Communication | Serial interface — verify protocol and physical layer |
| Limiters and Protections | V/Hz limiter, overexcitation limit, underexcitation limit, field overcurrent, loss of voltage sensing |
| Field Flashing Support | Yes — verify wiring and control requirements for your machine |

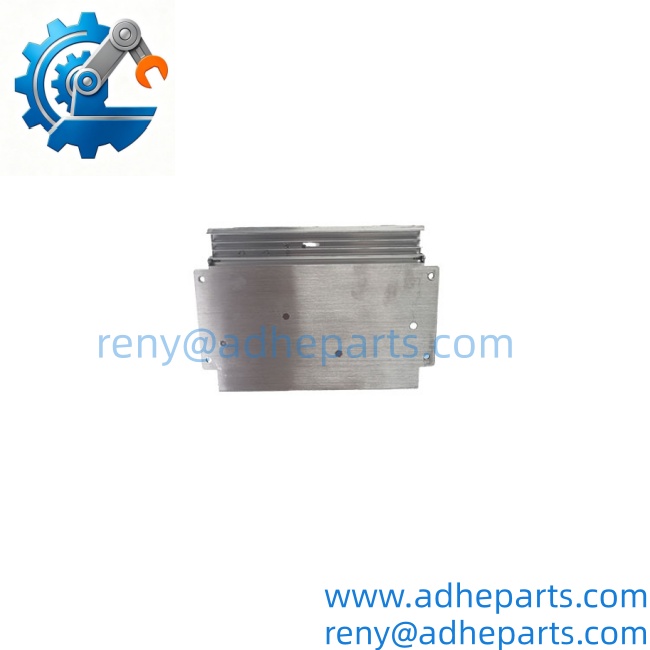

| Cooling | Natural convection, heatsink mounted |
| Mounting | Panel or DIN rail — verify bracket supplied with your build |
| Operating Temperature | Verify — confirm for your enclosure ambient |
| Storage Temperature | –40 °C to +85 °C (typical — verify) |
| Humidity | 5% – 95% RH, non-condensing |
| Weight | Verify with OEM datasheet |
| Certifications | CE, UL — verify on the specific unit’s label |
Product Introduction
The ABB UNITROL 1005-0011 ECO is a compact automatic voltage regulator for synchronous generators. It holds terminal voltage by controlling field current through a PWM output stage and manages the V/Hz, overexcitation, and underexcitation limiters. The 3BHE043576R0011 order code defines the build.
The practical value is the integrated power stage. Older regulators needed a separate converter and a bank of external relays. This unit takes the auxiliary supply and drives the field directly. Two things must match before you swap it: the ECO build’s feature set and the parameter file from the machine.
ABB UNITROL 1005-0011 ECO 3BHE043576R0011
ABB UNITROL 1005-0011 ECO 3BHE043576R0011
Application Scenarios & Field Experience
Part 1 – Narrative Paragraph
The failure that strands an operator is a regulator that stops building voltage at start-up, and the cause is usually not the AVR itself. I have watched a crew replace a regulator twice on a diesel genset before anyone checked the voltage sensing circuit — a blown fuse in the VT feed, not a dead board. The second common failure is unstable voltage under load, which is often a parameter set that was never tuned for the machine’s time constants, not a hardware fault. When you replace a UNITROL, pull the parameter file first. Without it, you are commissioning from scratch on a machine you may not have data for.
Part 2 – Numbered List (Application Scenarios)
- Small Hydro – Synchronous Generator Excitation – The regulator holds generator terminal voltage through load swings on a run-of-river unit. The V/Hz limiter protects the stator core during start-up before the breaker closes.
- Diesel and Gas Gensets – Standby and Prime Power – Used on sets from roughly 100 kVA upward with brushless exciters. The underexcitation limiter prevents pole slipping when the set picks up a leading power factor load.
- Cogeneration – Synchronous Generator on a Plant Bus – The regulator runs in power factor or var mode while the generator parallels with the utility. The overexcitation limiter holds the field within the exciter’s thermal rating during voltage dips.
- Marine – Shaft Generator Excitation – Regulates the shaft generator on vessels operating in diesel-electric or hybrid modes. The serial link feeds excitation status to the vessel’s power management system.
Part 3 – Short Field Story
A municipal hydro plant had a 1.5 MW unit that would not hold voltage above 80% load. The regulator had been replaced twice by a contractor, and the problem followed the machine. We asked for the parameter file and the CT and VT wiring diagram. The voltage sensing was landed on a single phase instead of the correct three-phase sensing configuration, so the regulator was correcting against the wrong signal. Once the sensing was corrected and the parameters reloaded, the unit carried full load at nominal voltage. The AVR had been fine the whole time.
ABB UNITROL 1005-0011 ECO 3BHE043576R0011
Standard Operating Procedure (SOP) for Quality Control
- Visual & Origin Inspection – We verify the ABB marking, the UNITROL 1005-0011 ECO model string, the 3BHE043576R0011 order code, and the date code. We inspect the terminal blocks and heatsink for damage and check the board for evidence of moisture or rework. A unit with a cracked heatsink or burned terminal block is rejected.
- Parameter and Firmware Documentation – We read the firmware revision string and, on refurbished units, extract and archive any existing parameter set. We do not ship a used regulator without documenting its configuration state.
- Power-Up Self-Test – The unit is powered from a bench supply at rated auxiliary voltage. We verify the self-test completes, the display initializes, and no fault code is latched.
- Field Output Verification – We connect a resistive load bank to the field output and sweep the output current across its range. We measure output voltage, current, and ripple, and confirm the PWM stage holds regulation without oscillation.
- Sensing Input Verification – We inject calibrated three-phase voltages into the sensing inputs and verify the measured terminal voltage tracks the reference within specification. We also test the analog setpoint input at 4 mA, 12 mA, and 20 mA.
- Limiter Function Test – We drive the unit into the V/Hz, overexcitation, and underexcitation limits and confirm each limiter engages at the configured threshold and recovers cleanly when the condition clears.
- Communication Port Test – We connect to the serial port and verify the unit responds to configuration queries. We record the protocol settings so you can compare them against your plant’s setup.
- ESD-Safe Packaging – The unit is wrapped in anti-static film, seated in a foam insert with the terminals protected by caps, and packed in a double-wall carton with static warning labels.
Frequently Asked Questions (FAQ)
Q1: Can I drop this into a machine that currently runs a different UNITROL 1000 variant?
A: Mechanically, the mounting and terminal layout on the UNITROL 1005 are consistent across the family. Electrically and functionally, the ECO build determines which regulation modes and I/O are available. Compare the order codes and the terminal assignment on both units. If your machine uses a mode the ECO build does not support, the swap will not work no matter how clean the wiring is.
Q2: Will my parameter file load into this unit?
A: Only if the firmware revision is compatible. Parameters are tied to the firmware version. If the replacement has a different revision, you may need to convert the file or re-enter the settings manually. Pull your existing parameter file before you remove the old unit — that file is your recovery path, and recreating it from memory is not realistic.
Q3: What is the warranty, and what does it cover?
A: We offer a 12-month warranty from the ship date. It covers component failure, field output stage failure, sensing input failure, and communication port failure under normal operating conditions. It does not cover damage from incorrect auxiliary supply voltage, reversed field output wiring, or ESD damage from handling without a wrist strap. Every unit is bench tested at rated auxiliary voltage before it ships.
Q4: Do you have this exact order code in stock?
A: UNITROL inventory moves and varies by build. Confirm availability before you plan an outage. If we do not have the -0011 ECO variant, we will tell you what we do have and whether a different build would suit your machine. Do not assume any UNITROL 1005 will configure the same way.
Q5: Any installation pitfalls I should watch for?
A: Four. First, verify the voltage sensing configuration before you power the unit — single-phase sensing on a machine wired for three-phase sensing will cause incorrect regulation under load. Second, check the field output polarity and confirm the field discharge path is intact; an open discharge circuit can damage the output stage at de-excitation. Third, verify the auxiliary supply voltage on the label against your station battery before connecting. Fourth, reload the parameter file and confirm regulation at no load and at full load before you return the machine to service. A regulator that builds voltage does not necessarily regulate correctly.
