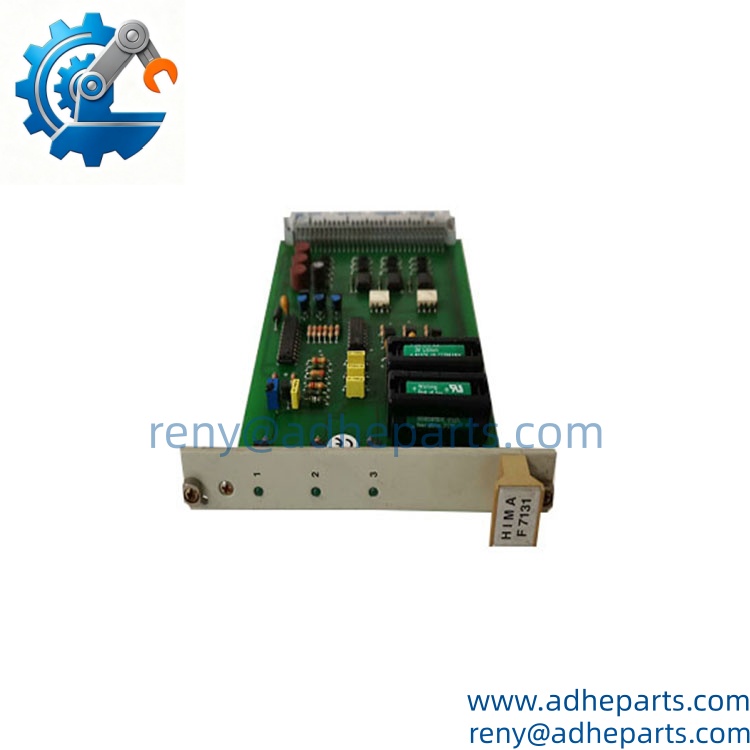

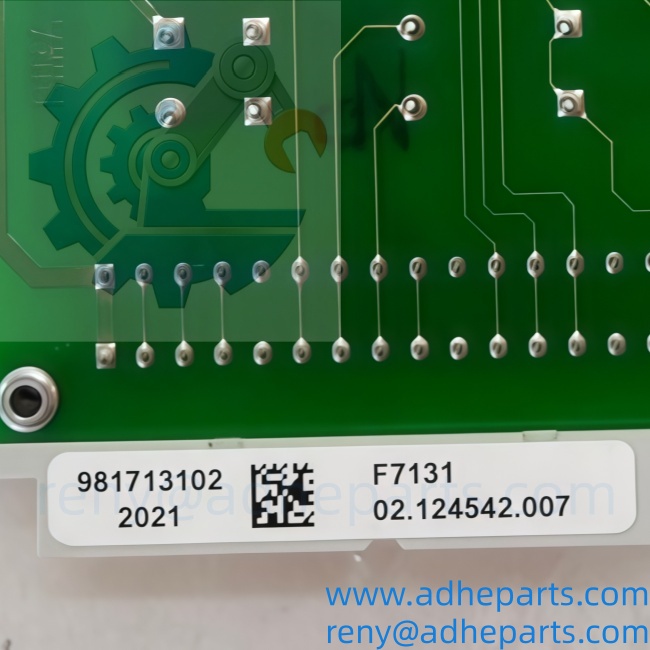

HIMA-F7131-sideview
Key Technical Specifications
- Nominal Monitored Voltage: 5 V DC (up to three separate power supply sources)
- Auxiliary Monitoring Output: 3 × 24 V DC for B9361 assembly kit connection
- Module Width: 4 TE rack unit
- Operating Current: 25 mA @5 V DC; 20 mA @24 V DC
- Buffer Battery Type: CR‑1/2 AA‑CB lithium cell (HIMA part 44 0000016)
- Diagnostic Interface: 3 test bits for F8650 / F8651 central CPU modules
- Visual Status: 3 front‑panel LED status indicators
- Operating Temperature: 0 °C to +60 °C
- Weight: 0.15 kghoneywell-…
- Compatible Central Modules: F8650, F8651
- Battery Service Interval: Recommended replacement every 4 years
File Download：
Product Introduction (Anti‑Template)
Operating as the backbone of the H41q / H51q platform, the F7131 tracks multi‑source 5 V system power while holding CPU RAM data active through short power drops via its onboard buffer battery. It feeds diagnostic status back to F8650 or F8651 central units so control logic can flag supply degradation before full failure occurs.
Honestly, this design choice saves hours of unexpected troubleshooting; plant teams get early warning instead of discovering corrupted RAM after a brief site power flicker. Front‑facing LEDs give local status without pulling system logs, —though customs clearance in the EU might add 2 days for safety‑classified spare‑part shipments.

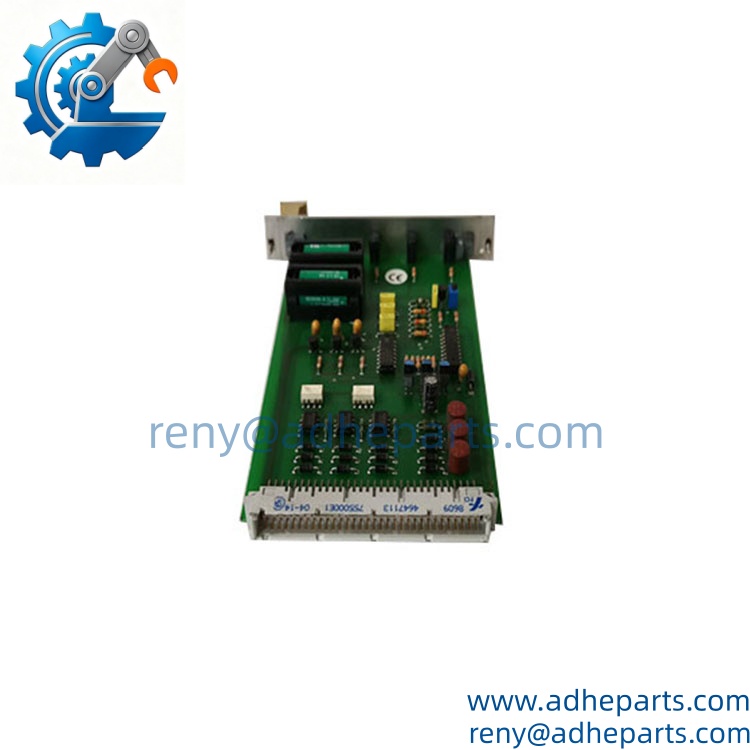

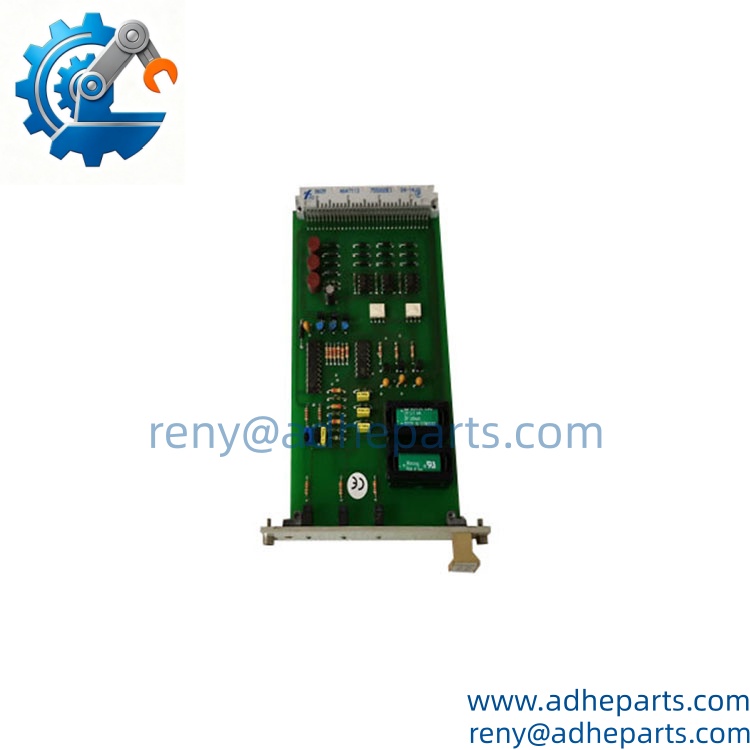

HIMA-F7131-front
QC, Procurement & Logistics SOP
- Inbound Verification: Cross‑check original manufacturing origin markers, inspect OEM physical seals, and validate printed part number against etched board identifiers to rule out altered units.
- Live Rig Testing: Mount module inside matching H51q test rack; complete power‑on self‑test, LED status validation, and diagnostic bit communication check against simulated F8650 CPU traffic.
- QA & Anti‑Static Packaging: Apply ESD‑shielded bag protection, add foam cushioning for PCB edge protection, and affix physical condition tags noting battery age where applicable.
- Global Logistics & Export Compliance: Assign optimized HS code classification for safety automation spare hardware. Secure inner and outer carton packing suited for air or sea transit; complete required export documentation before hand‑off to carrier to reduce hold‑ups at customs databases.

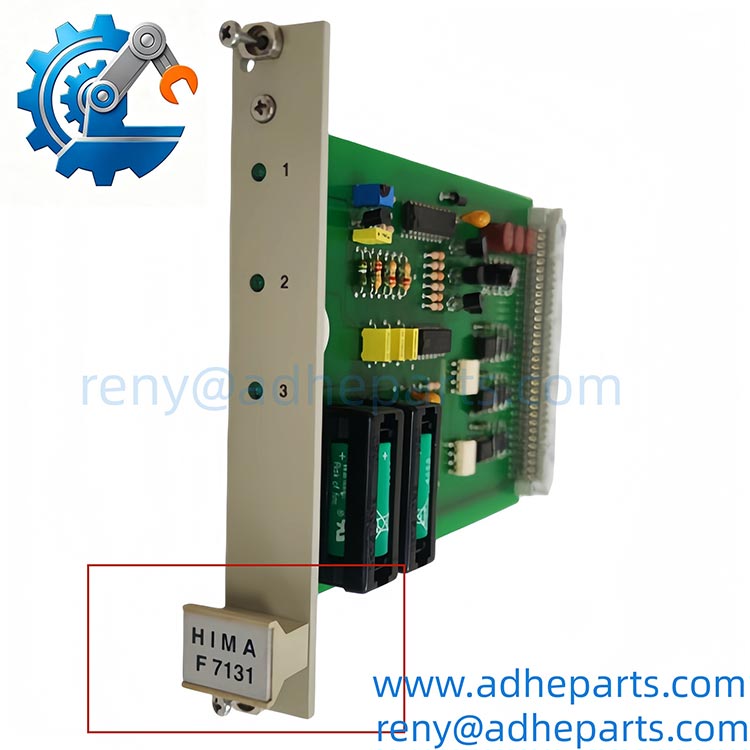

HIMA-F7131-front
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. A facility swapped an F7131 onto an H51q rack running older F8650 CPU firmware revision V2.7. Diagnostic test bits would not populate inside system logic, so power‑supply fault alarms never triggered. Always cross‑reference module hardware revision against installed CPU firmware before physical insertion.
- Backplane Bus Configuration Errors. One maintenance crew seated the F7131 into an H41q rack slot reserved for standard I/O instead of the dedicated monitor slot. The module powered on with lit LEDs but never communicated with the central controller. Slot position is not arbitrary for this hardware.
- Battery Compatibility Misuse. A technician fitted a non‑spec lithium cell to cut costs. The wrong physical dimension caused partial contact; RAM data got wiped during a short utility outage. Stick strictly to the designated CR‑1/2 AA‑CB battery type.
- ESD destruction during unboxing. A field tech pulled the unit from packaging without a grounded wrist strap inside a low‑humidity control room. The module showed normal LED lights after fitting, yet diagnostic communication remained dead. Visible damage does not always appear after static exposure.

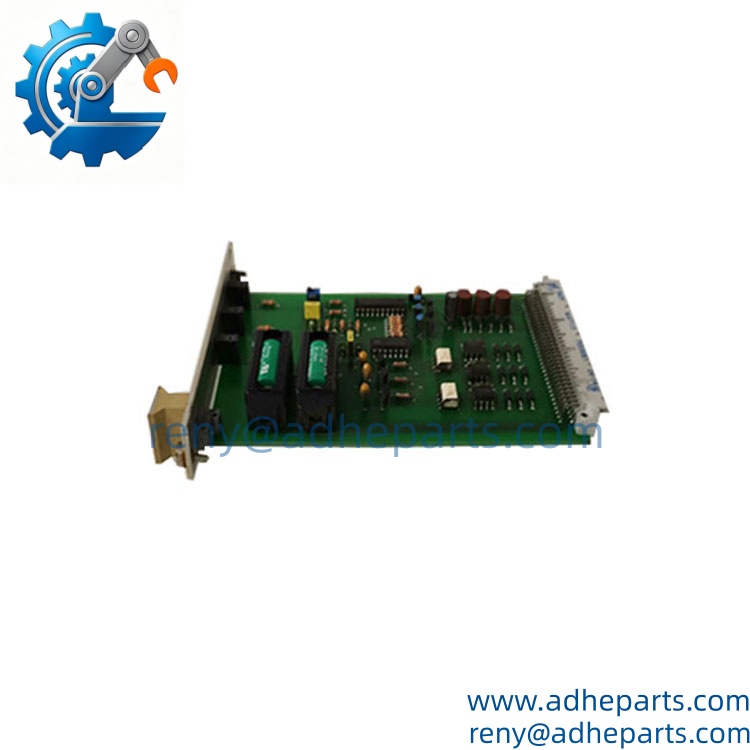

HIMA-F7131-sideview
Frequently Asked Questions (FAQ)
Q: What typical global lead times should I plan for when ordering this HIMA F7131? A: New‑surplus stock dispatches within 1‑3 working days. Cross‑ocean transit ranges from 5‑12 days depending on selected carrier. Allow extra buffer if your region enforces safety‑part import screening.
Q: Can I hot‑swap the F7131 while the H51q safety rack stays fully online? A: No. This power‑monitor module connects directly to system backplane power rails. Live removal creates RAM retention loss and can trigger full CPU fault states. Always bring the associated central CPU to safe offline state before insertion or removal.
Q: Does F7131 offer backward compatibility for older H41q hardware setups? A: Physical form factor fits H41q racks, yet full diagnostic feature set only activates with F8650 / F8651 central modules. Older H41q CPU revisions will accept the module physically but ignore its diagnostic bit outputs. Confirm CPU part numbers before purchase.
Q: What shipping options work best for sending this unit to high‑humidity tropical locations? A: Air freight is preferred. Request moisture‑absorbent desiccant added inside the shipping carton. Sea freight exposes electronics to long‑term humidity swings that can degrade lithium buffer battery performance.
Q: How do I confirm the buffer battery still holds usable charge before site installation? A: Complete powered dwell testing on your test rig. Cut input rack power temporarily and verify system RAM retains stored data. If status LEDs show irregular behavior, replace the lithium cell before deploying to live plant hardware.
Q: Will customs databases flag this part for extra inspection when shipped internationally? A: It falls under industrial safety spare‑part classification. Complete commodity description and part‑number documentation lowers odds of inspection delays. Missing paperwork can extend clearance by multiple business days.
Q: What happens if I install without replacing an expired four‑year cycle battery? A: The module continues normal power‑supply monitoring. If site power drops, RAM content will not persist. Operators face CPU memory loss and possible full safety‑system restart upon utility power restoration.
