Product Introduction

The ABB AI610 is a rack-mounted analog input I/O module built for ABB AC800M distributed control systems. It captures continuous analog signals from field sensors and transmitters, converting analog readings to digital values usable by the controller for closed-loop control and process visualization.

Each channel can be individually configured for current or voltage inputs. Built-in overvoltage protection and onboard channel diagnostics detect open-loop faults, short circuits, and out-of-range signals to alert operators before process upset occurs. It installs directly into the system backplane and supports hot swap during planned outages, minimizing rack downtime.

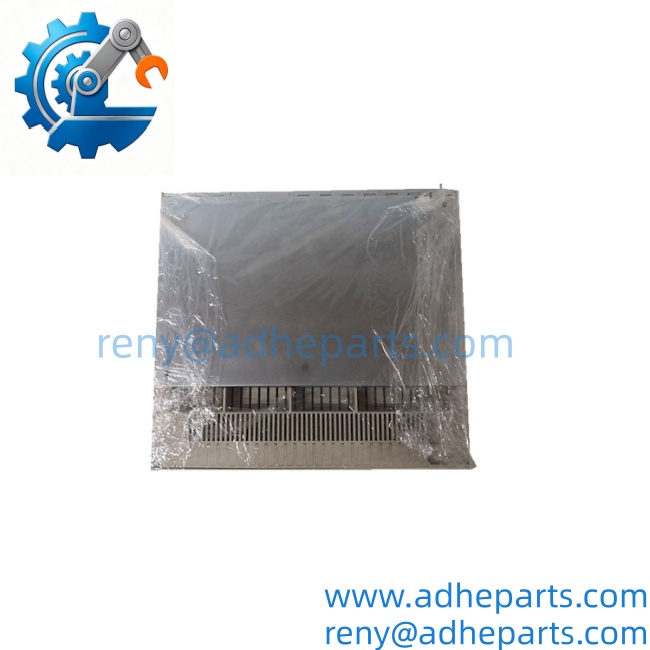

ABB AI610

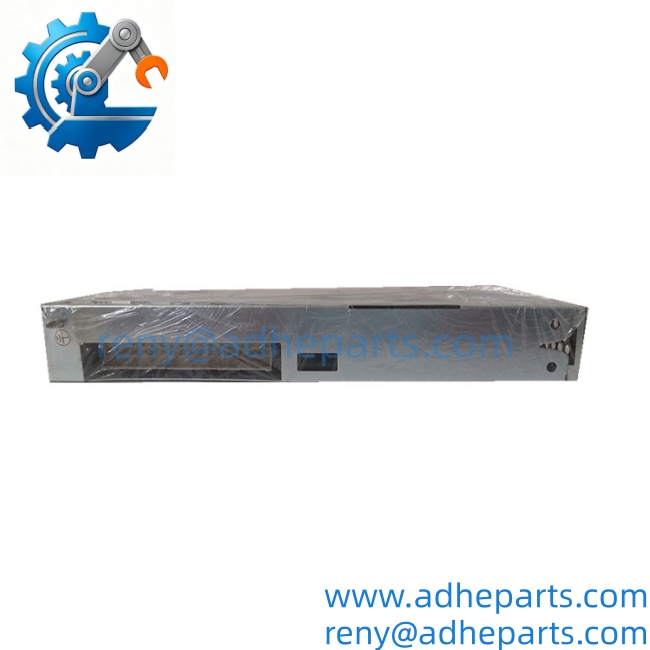

ABB AI610

Key Technical Specifications

Field Application & Technical Pitfalls (The Engineer’s Guide)

Critical Industrial Scenarios

1. Power plants: Boiler and turbine auxiliary measurement of pressure, flow and liquid level.
2. Petrochemical processing: Continuous monitoring of reactor and pipeline transmitters.
3. Water & wastewater treatment: Reading flow meters, tank level sensors and pH transmitters.
4. Pulp and paper mills: Monitoring process variables across drying and bleaching lines.

Critical Technical Pitfalls

• Incorrect Channel Type Configuration: Accidentally setting a 4–20mA transmitter channel to voltage mode will produce incorrect readings. Always match software configuration to the physical transmitter wiring.
• Ground Loop Noise: Multiple grounding points between transmitters and the DCS rack create common-mode noise. This causes signal drift and fluctuating values even when the sensor itself is stable. Use isolated transmitters or single-point grounding to resolve.
• Unshielded Long Cable Runs: Long unshielded instrument wiring picks up EMI from variable frequency drives and high-current power cables, creating unstable analog readings. Shielded twisted pair cable is required for runs longer than 10 meters.
• Backplane Connector Contamination: Dust and corrosion on the module edge connector lead to intermittent communication dropouts. Inspect and clean gold contacts before installing replacement modules.

Field example: A maintenance tech replaced an AI610 card during a plant shutdown. He reused the existing wiring but failed to verify channel configuration after swap. Three level transmitters were set to voltage mode instead of current mode. When the unit went online, the DCS showed false high readings, triggering an automatic tank overfill alarm and a controlled process shutdown. The issue required reconfiguring channel parameters and a full loop check before returning the line to service.

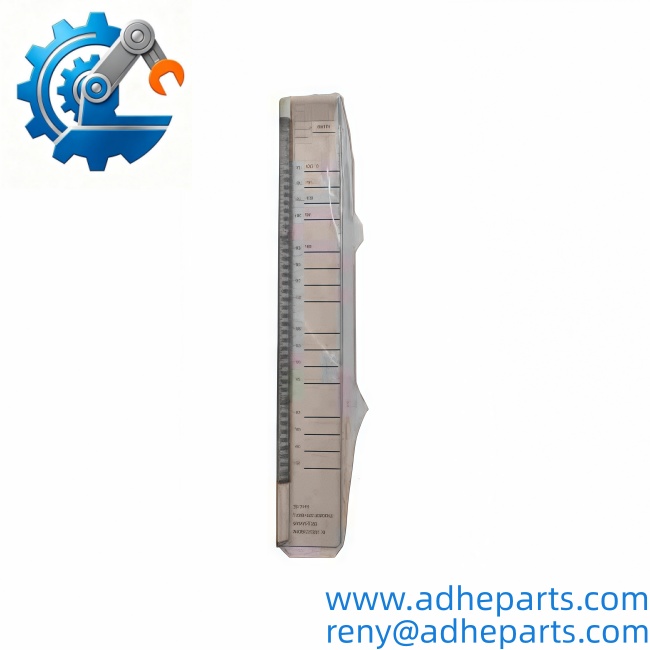

ABB AI610

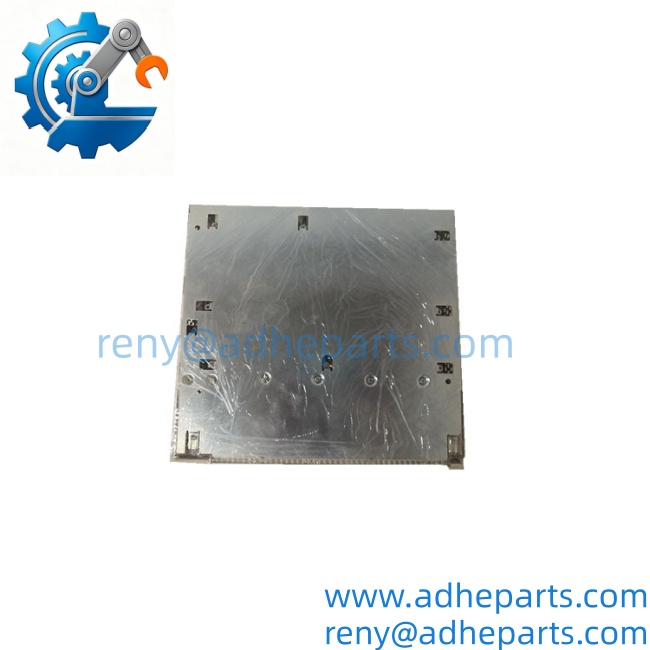

ABB AI610

Quality Control (QC) SOP & Transparency

1. Inbound Inspection: Verify OEM marking, part number, serial number, housing condition and terminal block integrity. Inspect edge connector pins for bending, oxidation or physical damage.
2. Bench Signal Test: Inject calibrated 4–20mA and voltage signals to each channel, validate conversion accuracy across full measurement range. Confirm diagnostic alarms trigger on open circuit and short circuit faults.
3. Backplane Communication Test: Mount module to test rack; confirm controller recognition, data transfer and fault reporting function normally.
4. Final QA & Packaging: Save serial-number linked test records. Seal module in anti-static ESD bag, apply QC pass sticker and pack in rigid shock-resistant carton.

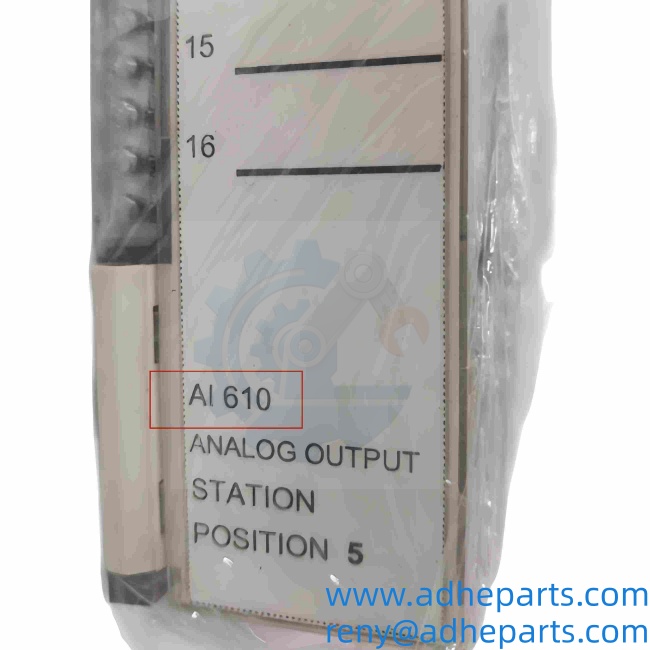

ABB AI610

ABB AI610

Frequently Asked Questions (FAQ)

1. Is the ABB AI610 hot-swappable? Yes, it supports hot swap within the AC800M rack. Still follow site lockout/tagout rules for field wiring before removing or attaching field signal cables.
2. Can AI610 read RTD temperature sensors directly? No. This module is designed for standard 4–20mA and voltage transmitters. RTD inputs require a dedicated RTD module.
3. What warranty comes with new surplus AI610? 12-month hardware warranty. Warranty does not cover damage from miswiring, overvoltage, lightning surges, EMI damage or incorrect software configuration.
4. How many channels can I use simultaneously? All 8 channels operate at the same time; each can be independently set for current or voltage signal type.
5. What causes fluctuating analog readings after installing a replacement ? Most often ground loops, poor cable shielding, loose terminal screws, or incorrect channel configuration. Perform loop isolation and stepwise signal injection for troubleshooting.
6. Does work with older ABB DCS systems outside AC800M? No. It is purpose-built for AC800M racks. Verify your controller model and rack hardware compatibility before ordering.
7. Can I use this card for safety instrumented systems (SIS)? The standard is a basic process control I/O module, not certified for SIS safety loops. Use ABB SIS-rated I/O for safety critical applications.
