ABB PU512V2 3BUR001401R1 | Real-Time Accelerator Module

Description

Product Introduction

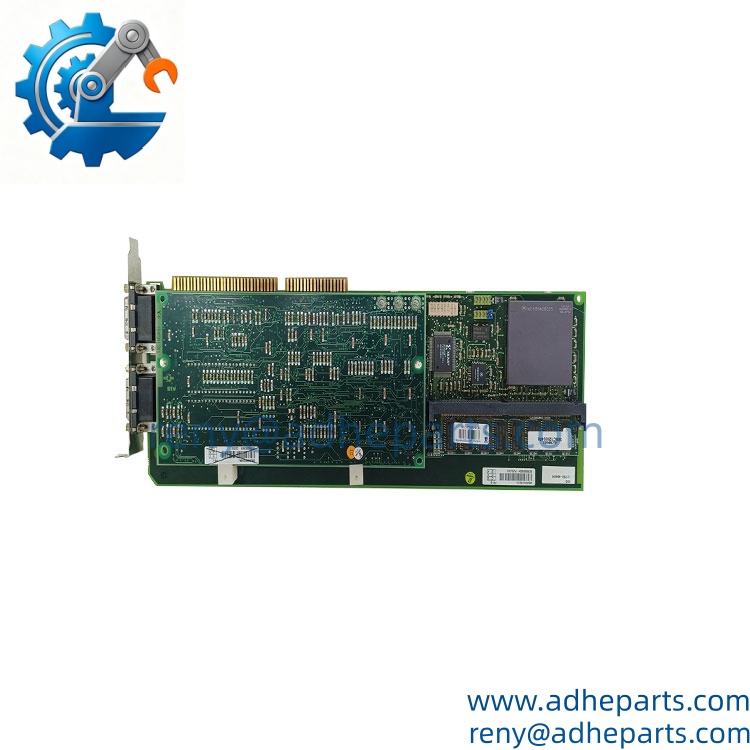

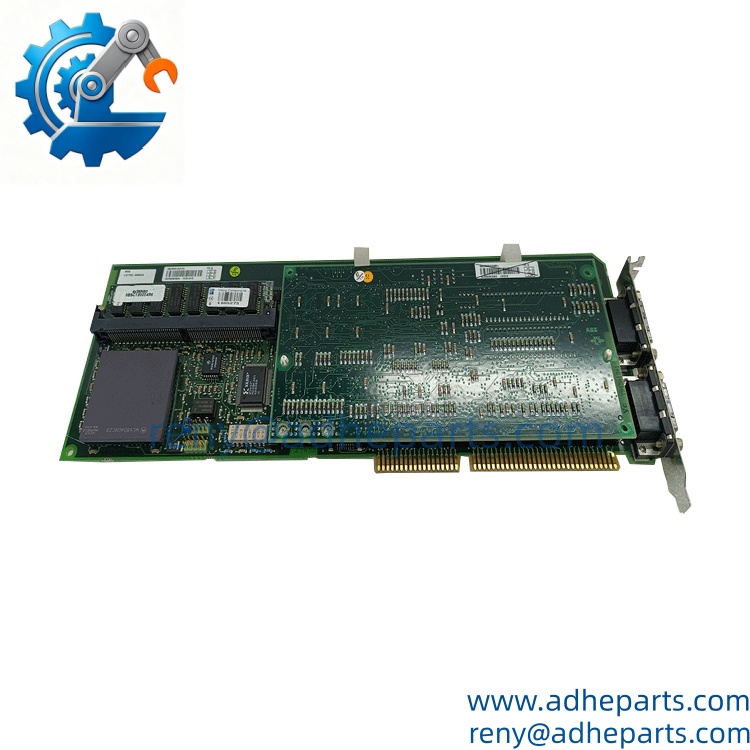

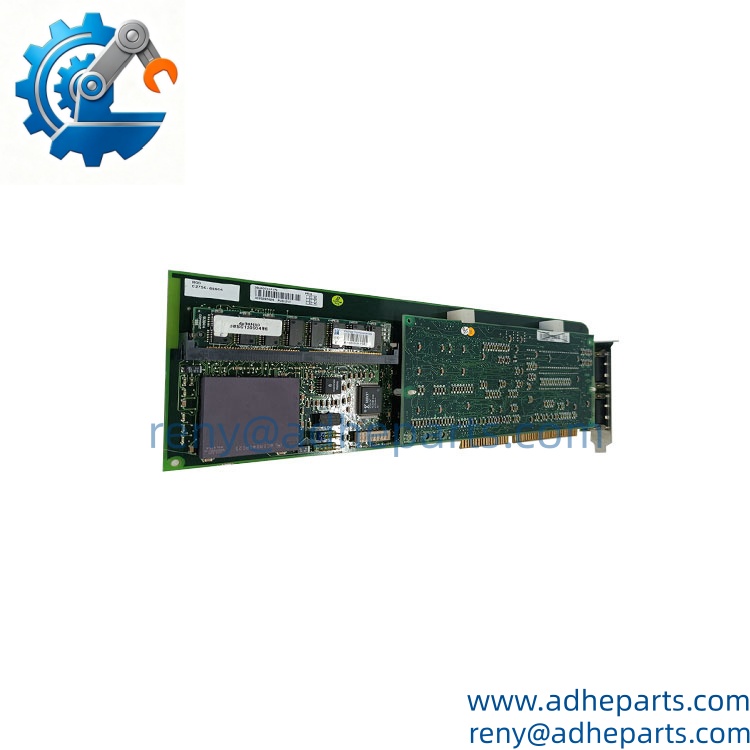

When a legacy MOD 300 station loses its RTA hardware, finding a compatible replacement is often more difficult than the repair itself. The ABB PU512V2, part number 3BUR001401R1, is a Real-Time Accelerator module designed for older Advant MOD 300 installations.

This version includes 16 MB RAM and DCN capability and is associated with older HP/Advant station hardware using EISA expansion slots. It is not a general-purpose modern PLC processor; compatibility depends heavily on the host station architecture and installed MOD 300 software.

Key Technical Specifications

ABB’s spare-parts documentation identifies PU512V2 3BUR001401R1 as a refurbished Advant component, while product references identify it as an RTA module with DCN and 16 MB RAM.

A key point for procurement: the PU512V2 is specifically associated with MOD 300 systems and older EISA-based station hardware. A visually similar ABB processor or RTA board should not be treated as an equivalent replacement without checking the host station.

Field Application & Technical Pitfalls (The Engineer’s Guide)

The PU512V2 is primarily a legacy-system maintenance part. Its value is not in adding new functionality to a modern control platform; it is in keeping an established MOD 300 installation operational without forcing an expensive control-system migration.

1. MOD 300 operator or control stations
   The RTA module provides the real-time processing function required by compatible Advant/MOD 300 station hardware.
2. Legacy industrial process plants
   Plants with long operating lifecycles may still depend on MOD 300 equipment for process control. In these cases, an RTA failure can stop a station even when the field I/O and other hardware remain healthy.
3. Spare-parts recovery projects
   PU512V2 is particularly relevant when an engineering team needs to restore an existing station rather than redesign the entire control architecture.

Three replacement pitfalls deserve attention:

• Host hardware mismatch: The EISA architecture is the first checkpoint. The was intended for older station hardware with EISA slots; it should not be purchased simply because the model appears in a MOD 300 parts list.
• Software compatibility: The RTA hardware and MOD 300 software environment must be compatible. A functioning board is not necessarily a functioning replacement if the station’s software configuration expects another revision.
• Memory/version identification: is specifically documented as a 16 MB version. Do not confuse it with PU512V1 or other RTA variants without checking the complete part number and station requirements.

Do not treat this as a plug-and-play PLC CPU. Before removing the failed card, record the existing station configuration, board position, software revision, and communication connections.

Lesson learned: A maintenance team may find a with the correct ABB designation and still discover that the replacement does not initialize correctly. In a typical legacy-system failure, the board was electrically healthy, but the engineer had not checked the station’s EISA hardware and software revision before ordering it.

Quality Control (QC) SOP & Transparency

1. Inbound Verification

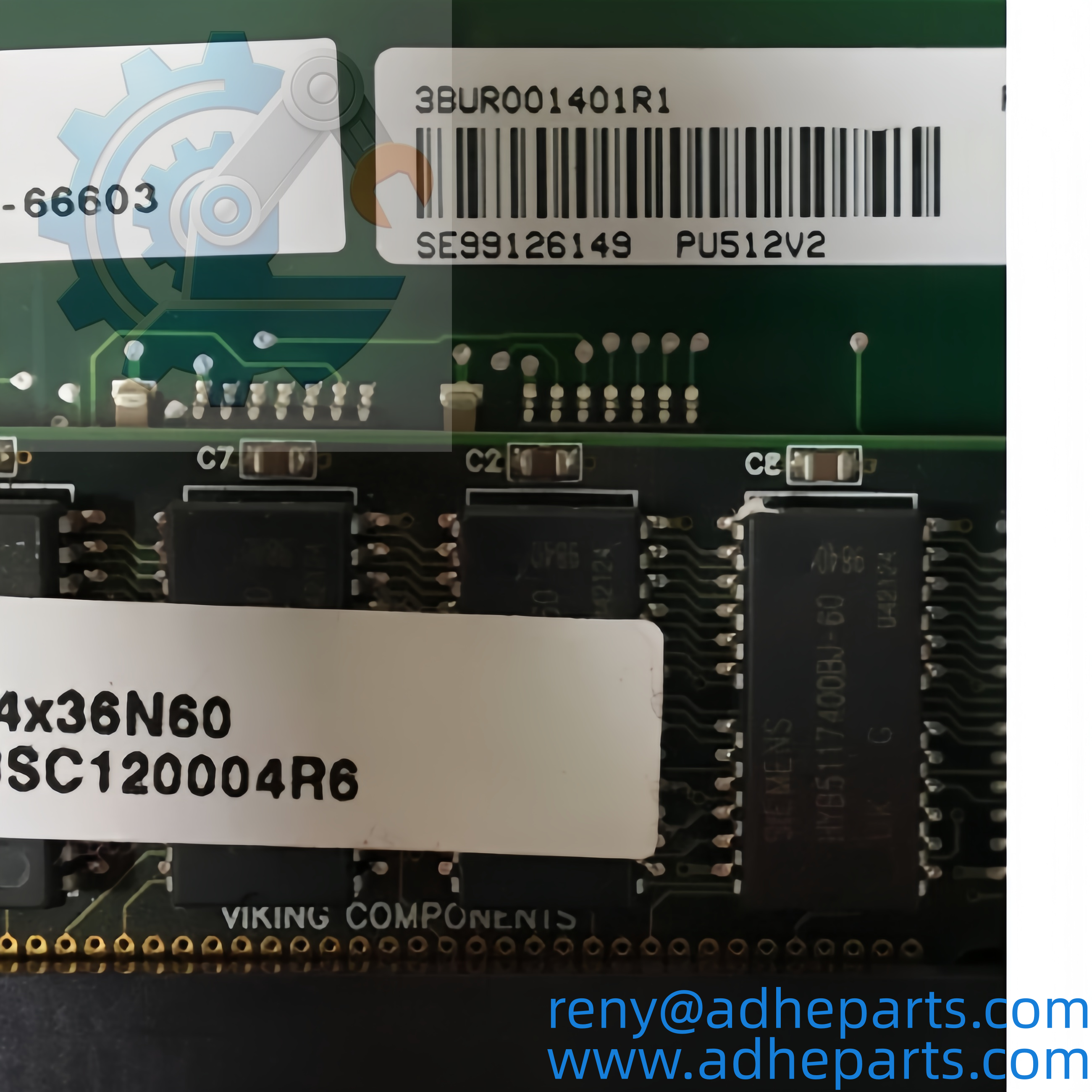

   • Verify the complete ABB designation 3BUR001401R1.
   • Check PCB markings, revision information, serial number, and connector condition.
   • Inspect the board for corrosion, damaged components, bent connector pins, or previous repair work.
   • Confirm that the memory configuration corresponds to the required 16 MB version.
   • For New Surplus inventory, document storage condition and packaging condition separately from electrical test results.
2. Live Rig Testing
   • Use a compatible Advant/MOD 300 test environment where available.
   • Install the RTA board in the appropriate EISA-based host hardware.
   • Apply controlled power and verify startup behavior.
   • Confirm RTA initialization and DCN communication.
   • Where the original engineering environment is available, verify communication between the RTA module and the MOD 300 station.
3. Parameter Testing
   • Verify board power consumption and startup stability.
   • Check memory recognition by the host station.
   • Verify DCN interface behavior.
   • Monitor the board for abnormal resets, communication interruptions, or diagnostic errors.
   • Check connector continuity and PCB condition before final release.
4. Final QA & Packaging
   • Record model, article number, revision, and serial information.
   • Attach a QC-passed identification label after testing.
   • Place the PCB in an anti-static bag.
   • Add mechanical protection around the EISA connector and exposed PCB areas.
   • Provide the applicable test record and a 12-month warranty under the agreed warranty terms.

Frequently Asked Questions (FAQ)

Q1. What is the ABB used for?
It is a Real-Time Accelerator (RTA) module for ABB Advant MOD 300 systems, with DCN capability and a documented 16 MB RAM configuration.

Q2. Is 3BUR001401R1 the same as PU512V1?
No. and PU512V1 are different RTA variants with different part numbers. For example, PU512V1 is associated with 3BSE004736R1, while is 3BUR001401R1.

Q3. Can I use in any ABB Advant system?
No. This is where procurement mistakes become expensive. The is specifically associated with MOD 300 systems and older EISA-based Advant station hardware, so the host station should be identified before ordering.

Q4. Does have 16 MB memory?
Yes. The ABB product identification for 3BUR001401R1 describes the unit as “ Real Time Accel. w/ DCN Int Mod. 16MB RAM.”

Q5. Can this module be hot-swapped?
Do not assume it can. Because the belongs to an older EISA-based station architecture, live replacement should only be performed when the specific station’s maintenance procedure explicitly permits it. Otherwise, shut down and isolate the relevant equipment first.

Q6. Is this part still in production?
It is a legacy part rather than a current-generation controller. Current spare-parts references list within ABB’s older Advant inventory, with refurbished units available through the surplus market.

Q7. What warranty is available?
A 12-month warranty can be provided under the agreed supply terms. For a legacy RTA board, I would also recommend confirming the exact part number, memory version, host station model, and intended MOD 300 application before placing the order.
