Description

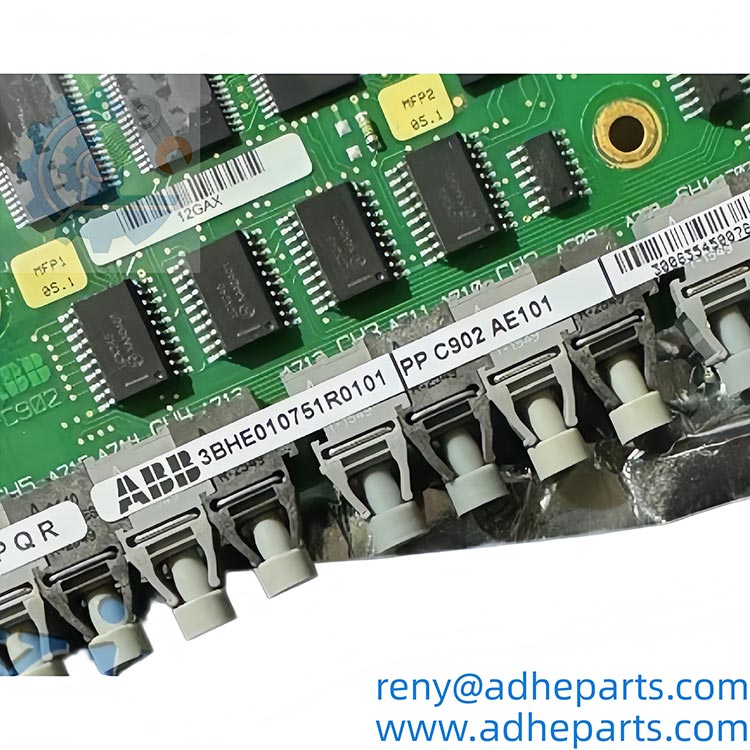

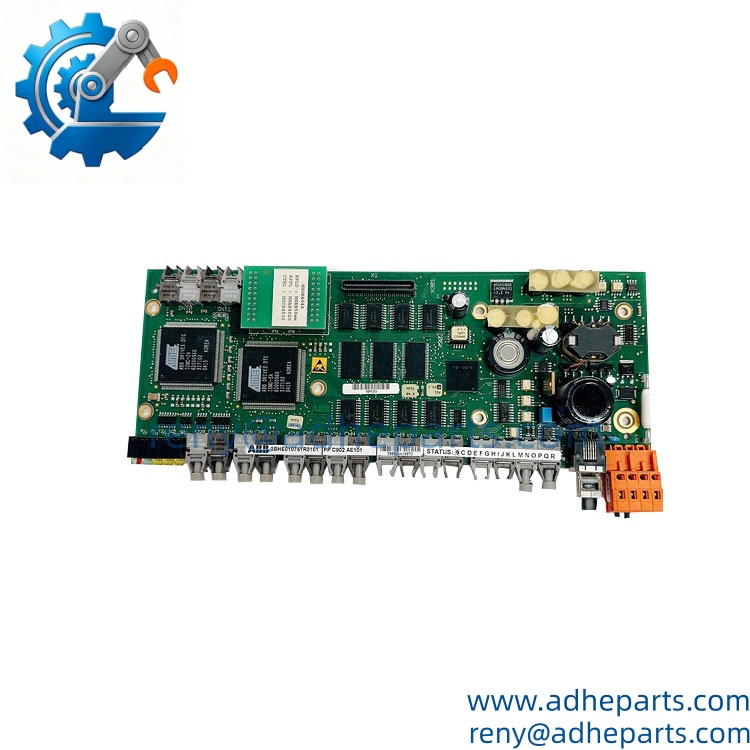

ABB product data identifies 3BHE010751R0101 as CT PP C902 AE101 AMC-33, with the catalog description “APPLIC. & MOTOR”. The product record also identifies it as a spare part and lists a gross weight of approximately 0.44 kg.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PP C902 AE101 |
| ABB Product ID | 3BHE010751R0101 |
| Board Designation | AMC-33 |
| Product Type | Application & Motor Control Board |
| Primary System | ABB ACS6000 |
| Main Function | Application and motor control |
| Processor | Approx. 150 MHz |
| Board Type | Control PCB / Drive Control Board |
| System Role | Motor-control and application processing |
| Product Status | Legacy / Obsolete |
| Gross Weight | Approx. 0.44 kg |
| ABB Customs Tariff Reference | 85049090 |
ABB’s product record specifically associates this ordering number with CT PP C902 AE101 AMC-33 and describes its function as application and motor control. It also lists customs tariff number 85049090 and Thailand as the country of origin in the available product record.
The PP C902 AE101 is associated with the ACS6000 drive platform, and independent technical documentation identifies it as an AMC-33 application and motor-control board. The product is listed as obsolete, so exact revision matching is particularly important when sourcing a replacement.
Product Introduction (Anti-Template)
Operating inside an ABB ACS6000 drive, the PP C902 AE101 AMC-33 handles application and motor-control processing rather than acting as a general-purpose PLC I/O card. The board is identified by ABB product number 3BHE010751R0101, with the catalog description CT PP C902 AE101 AMC-33; APPLIC. & MOTOR.
This distinction matters when replacing a failed board. The ACS6000 control architecture depends on coordinated operation between application control, motor control, feedback, and the drive’s power section. A board with the same physical dimensions but a different revision may not be a valid substitute. Honestly, for this type of legacy drive hardware, matching the complete ABB ordering number is much safer than matching the board by appearance.
QC, Procurement & Logistics SOP
- Inbound Verification
The incoming board is checked against PP / 3BHE010751R0101 / . The PCB label, revision, connector layout, component condition, and board markings are recorded. Since multiple PP variants exist, the full ordering number is used as the primary identification reference. - Live Rig Testing
Where a compatible ACS6000 test environment is available, the board can be installed under controlled conditions. Processor initialization, communication with the drive control architecture, board diagnostics, and application/motor-control functions should be checked. A simple power-on test should not be treated as full functional validation. - QA & Anti-Static Packaging
The PCB is handled using ESD protection and placed inside an anti-static bag. Connectors and exposed components receive additional cushioning. The board is secured inside the export carton to prevent vibration from stressing the PCB or connectors. - Global Logistics & Export Compliance
Commercial documentation should identify the item accurately as an ABB PP Application & Motor Control Board, part number 3BHE010751R0101. ABB’s available product record gives 85049090 as the customs tariff reference; the final HS classification should be reviewed against the destination country’s customs requirements and the actual declared function.For urgent medium-voltage drive maintenance, air freight is normally the practical option. Sea freight may be considered for consolidated shipments where the maintenance schedule allows longer transit. Anti-static packaging and shock protection should be maintained throughout transportation.
Technical Pitfalls & Integration Warnings
- Firmware / Control Revision Mismatch
A replacement board can power up while still failing to operate correctly with the existing ACS6000 configuration. Processor firmware, board revision, drive-control software, and application parameters should be checked before commissioning. - Application Configuration Errors
The board participates in application and motor-control functions. Restoring an incorrect parameter set or incompatible application configuration can lead to control faults even when the replacement PCB is electrically healthy. Preserve the original configuration before removing the failed board whenever possible. - Wiring / Connector Incompatibility
Never reconnect cables solely according to connector shape. The control architecture may contain feedback, control, communication, and auxiliary signals with different electrical functions. Photograph and document the original connections before replacement. - ESD During Unboxing
The is a populated control PCB with sensitive electronic components. Keep it inside the anti-static packaging until installation, use appropriate grounding procedures, and avoid touching PCB contacts or components directly.
Frequently Asked Questions (FAQ)
Q1: “What is ABB PP used for?”
The PP is an Application & Motor Control Board associated with ABB drive systems. ABB identifies 3BHE010751R0101 as CT PP with the function description “APPLIC. & MOTOR.”
Q2: Is 3BHE010751R0101 the same part as PP ?
Yes. 3BHE010751R0101 is the ABB product identification number associated with PP . For procurement, use the complete ordering number rather than the shortened model name alone.
Q3: “Is this an drive board?”
Yes. Available technical documentation identifies the PP as a control board used with the drive platform.
Q4: Can I hot-swap the PP ?
Do not assume it can be hot-swapped. The board belongs to a drive control architecture associated with medium-voltage equipment. The drive should be shut down and electrically isolated according to the site’s approved maintenance and lockout procedures before board replacement.
Q5: “Is the part backward-compatible with every PP board?”
No. Similar model names do not guarantee electrical or software compatibility. Verify the complete ABB part number, AMC revision, associated control hardware, firmware, and application configuration before selecting a replacement.
Q6: What is the approximate shipping weight?
ABB’s available product record lists a gross weight of approximately 0.44 kg for 3BHE010751R0101. The final shipment weight will be higher after anti-static protection, cushioning, carton, and export packaging are added.
Q7: What information should I provide before ordering?
Please provide:
- Existing PP nameplate or PCB photo
- Complete part number
- revision
- Associated drive model
- Existing control-board configuration
- Firmware/software information, if available
- Quantity required
- Destination country
- Required delivery date
For this legacy board, the original PCB label is especially valuable. It allows the exact AMC revision and ordering number to be checked before the replacement is released.
