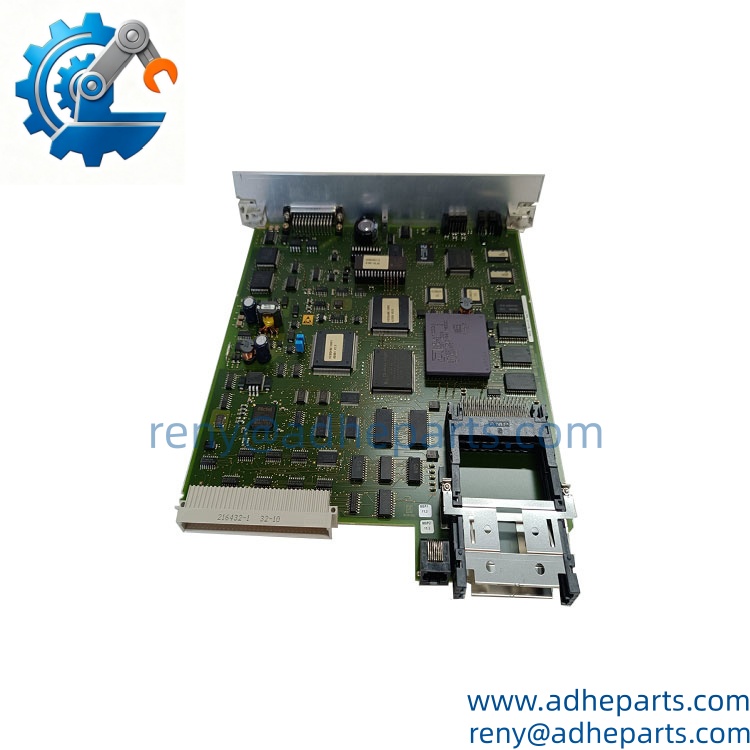

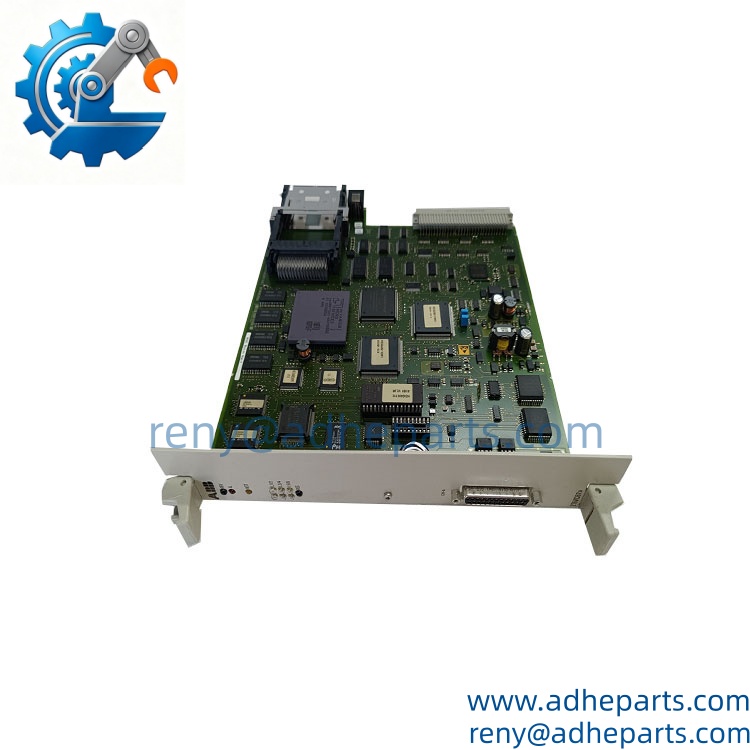

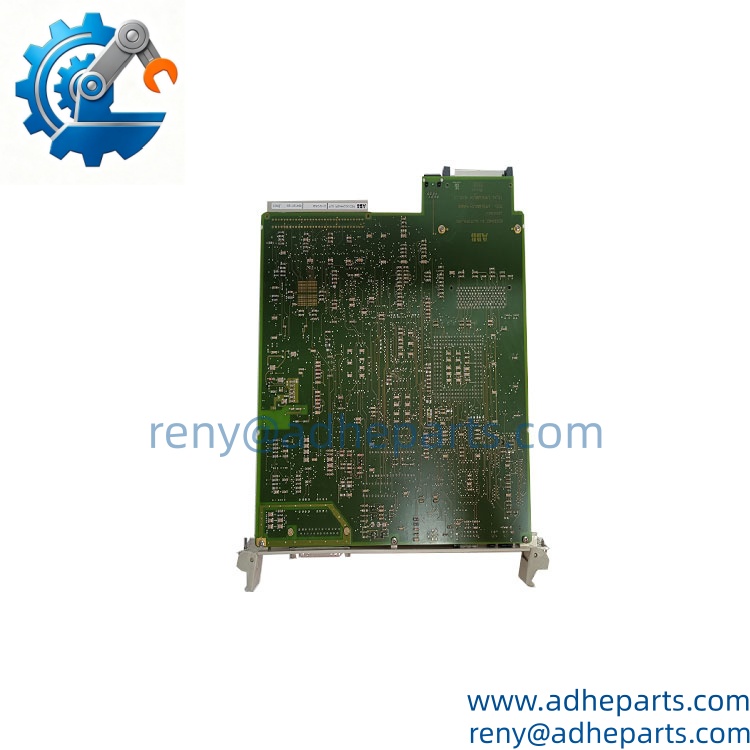

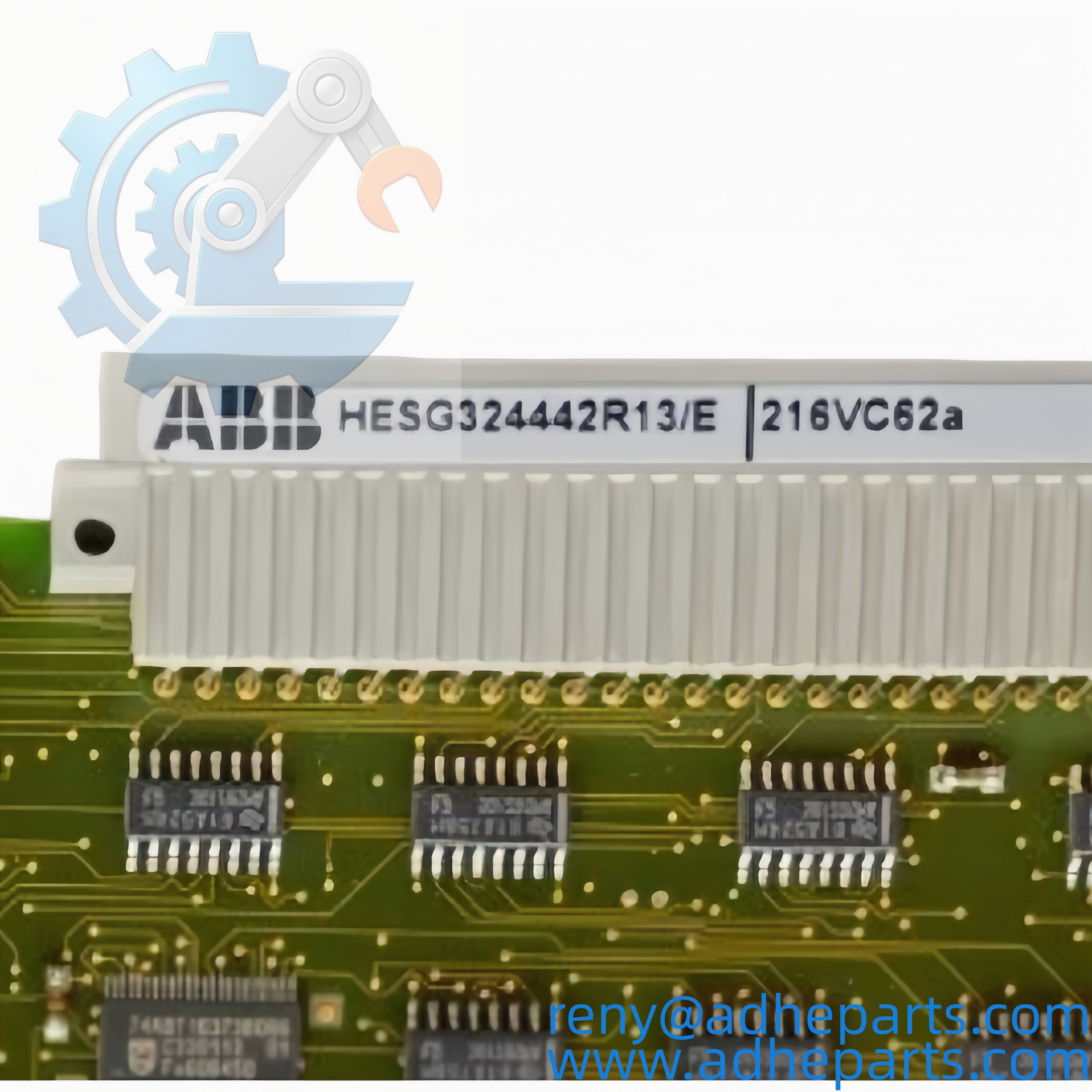

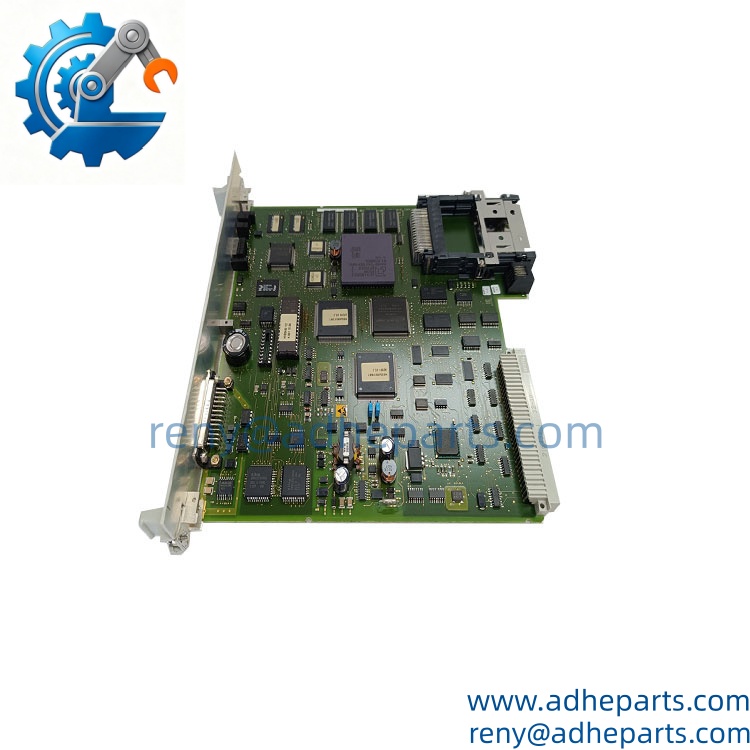

ABB 216VC62a | HESG324442R13 Processing Unit

Description

Key Technical Specifications

ABB‘s RE.216 documentation identifies the 216VC62a as the processing unit for the generator protection system. It stores the software library for available protection and logic functions, user settings, and the configuration assigning input/output signals to protection functions. The unit also acts as an interface to the interbay bus in substation monitoring and automation systems.

The documented processor is a 32-bit 80486DX-2, with a stated computing capacity of 425%. The unit supports SPA BUS as a standard interface, while LON BUS, MCB interbay bus, and MVB process bus are available according to the installed system configuration.

Product Introduction (Anti-Template)

When a generator protection system has to make a trip decision, process measurement data, and retain configuration information at the same time, the processing unit becomes the center of the architecture. The ABB 216VC62a performs that role inside the REG 216 / RE.216 protection system, executing the installed protection and logic functions while maintaining the associated settings and operating data.

This is not simply a generic CPU card. The plant-specific protection configuration is stored through this unit, including the assignment of I/O signals to protection functions. That makes the replacement procedure more involved than matching the front-panel label. Check the exact hardware version, installed software, rack position, and configuration before commissioning.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the complete identification as ABB 216VC62a.
   • Verify the associated HESG part number and hardware revision where applicable.
   • Inspect the processor board, connectors, card edge, front interface, and visible component condition.
   • Compare the replacement against the existing RE.216 rack configuration.
   • Check whether the customer’s unit uses the same communication and bus configuration.
2. Live Rig Testing
   • Perform controlled power-up testing using compatible RE.216 equipment when available.
   • Check startup behavior and processor status.
   • Verify the front RS-423 interface where the test setup supports it.
   • Check communication with the associated rack and representative protection-system components.
   • Do not overwrite plant-specific protection settings during bench testing.
3. QA & Anti-Static Packaging
   • Record the complete model and hardware identification before packing.
   • Protect the PCB and card-edge contacts against electrostatic discharge.
   • Use anti-static packaging with rigid external cushioning.
   • Prevent movement of the processor unit inside the export carton.
   • For outage-critical equipment, keep identification photographs and test records with the shipment documentation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and appropriate HS classification.
   • Classify the item according to its actual function as an industrial protection-system processing unit and destination customs requirements.
   • For urgent generator protection work, air freight is normally the practical choice.
   • Sea freight can be considered for consolidated or non-urgent cargo.
   • Use moisture-resistant and shock-protected export packaging.
   • Ensure the declared product description matches the physical processor unit to reduce customs clarification requests.

Technical Pitfalls & Integration Warnings

1. Software / Configuration Mismatch

The 216VC62a stores the software module library, user settings, and I/O assignment configuration for the protection system. A replacement processor therefore cannot be treated as a blank generic CPU. If the correct plant configuration is not restored, the hardware may start normally while the protection scheme remains incomplete or incorrectly assigned.

2. Processor Revision and Rack Compatibility

The RE.216 architecture can use more than one 216VC62a processing unit in certain rack configurations. ABB documentation specifies particular rack positions for these processors. Do not simply insert a replacement into an arbitrary slot; verify the installed 216MB66/216MB68 arrangement and associated standard-cable connections first.

3. Communication Interface Mismatch

The 216VC62a can serve as an interface to the interbay bus and supports several communication arrangements, including SPA BUS, LON BUS, MCB interbay bus, and MVB process bus. The actual communication hardware and configuration depend on the installed system. Replacing a processor without checking the existing communication arrangement can leave the protection system running locally while the station-level interface fails.

4. ESD and Memory-Data Risk

The unit contains electronic memory supporting event and disturbance-recording information. ABB documentation notes that a gold-capacitor-backed supply maintains memory during a power interruption. Handle the processor using appropriate ESD precautions and follow the plant’s approved replacement procedure rather than casually removing power or manipulating the board.

Frequently Asked Questions (FAQ)

Q1: What is the ABB 216VC62a used for?

The 216VC62a is the processing unit of the ABB REG 216 / RE.216 digital generator protection system. It executes protection and logic functions and stores the associated software, settings, and I/O configuration.

Q2: What processor does the 216VC62a use?

ABB documentation specifies a 32-bit 80486DX-2 processor and a computing capacity of 425%. This is an older processor architecture designed specifically for the RE.216 protection platform rather than a general-purpose modern PLC CPU.

Q3: What communication protocols are supported?

The documented 216VC62a architecture supports:

• SPA BUS
• LON BUS
• MCB Interbay Bus
• MVB Process Bus

SPA BUS is available as a standard interface, while other protocols depend on the installed communication arrangement.

Q4: Can I replace the 216VC62a with any other 216-series module?

No. The 216-series contains different functional units. For example, the 216EA61 is an analog input unit, 216AB61 is a binary output unit, and 216DB61 provides binary input and tripping functions. The 216VC62a is specifically the processing unit.

Q5: Can the 216VC62a be hot-swapped?

Do not assume that it can be removed while the protection rack is energized. The processor is central to protection and logic execution, so removing it can affect active protection functions, event recording, and station communication. Follow the installed RE.216 maintenance and isolation procedure.

Q6: What should I provide when ordering a replacement?

Provide the complete 216VC62a identification and a clear photograph of the existing nameplate. If available, also provide:

• HESG part number and revision
• RE.216 rack model
• Existing processor position
• Communication interface configuration
• Current software/configuration information

This is particularly important because multiple hardware versions and HESG identifiers are associated with the 216VC62a family.

Q7: How should this processor be shipped internationally?

For an outage-related generator protection replacement, air freight is generally the practical option. The processor should remain protected against ESD, moisture, vibration, and impact throughout transportation. For less urgent consolidated cargo, sea freight may be considered
