Product Overview

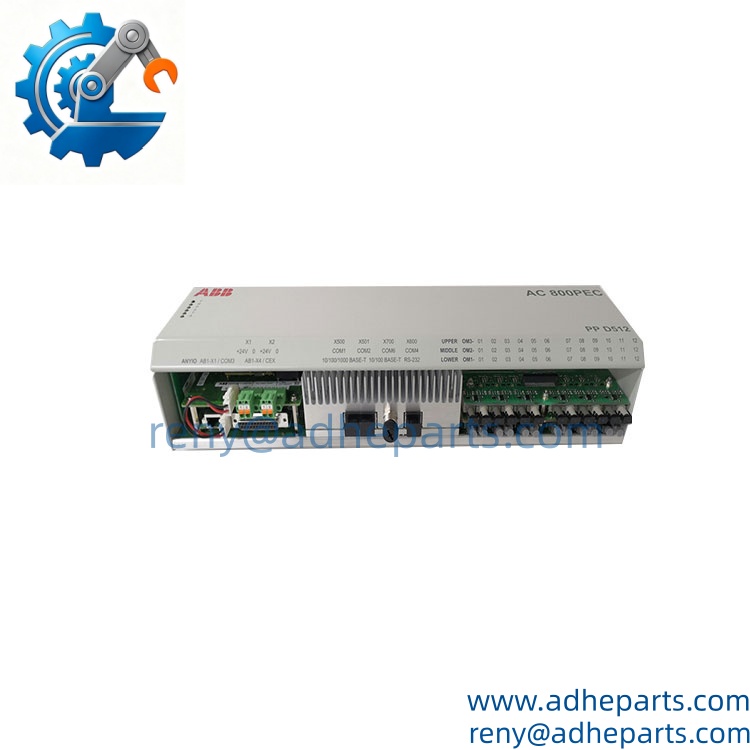

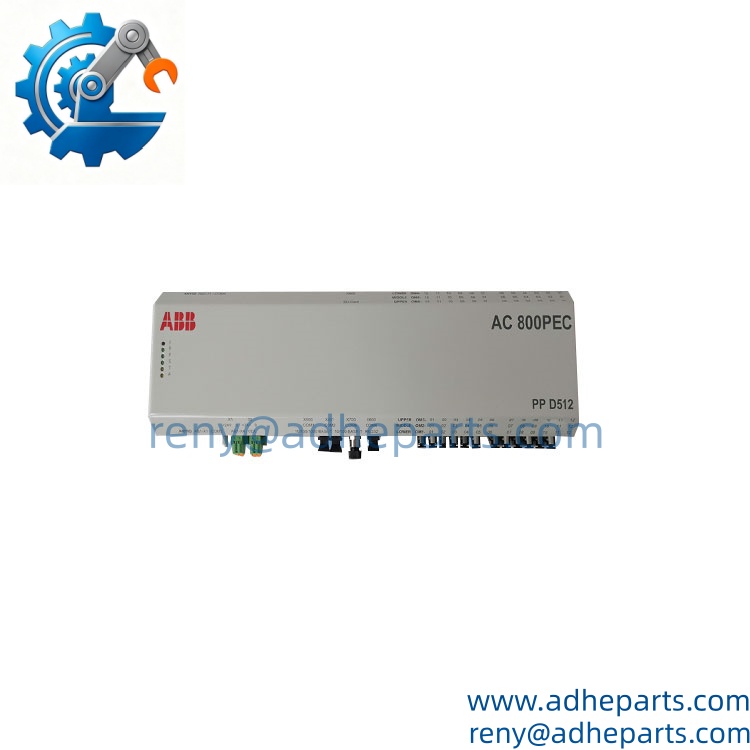

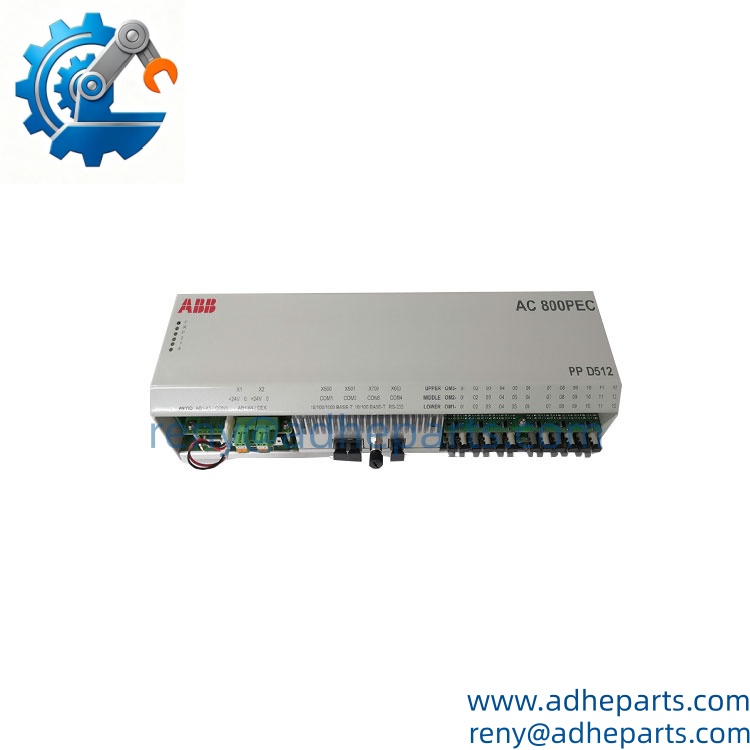

ABB PPD512A10-150000 is a dedicated high-speed processor within the AC800PEC control system. Differentiated from standard PLC controllers, it is optimized for power electronics applications requiring extremely fast signal processing. It executes closed-loop control for synchronous machine excitation, static frequency converters, wind turbine converters and FACTS devices. The module collects field measurement signals, runs real-time control algorithms and outputs pulse commands to power semiconductors. It is widely used as replacement spare hardware for legacy power generation and heavy industry automation systems.
Series
AC800PEC is ABB’s modular control platform targeted for high-speed power conversion and rotating machinery control. The platform consists of main processing units, signal interface boards, communication modules and power supplies, serving excitation systems, large drives, HVDC and grid stability control equipment.
Product Features
- High-speed DSP and FPGA hardware architecture supporting microsecond-level control cycles for power electronics.
- Multiple optical fiber communication ports for noise-resistant high-speed data exchange between control modules and power units.
- Onboard analog input channels for voltage, current and temperature measurement, plus digital input/output terminals for status and interlock signals.
- Supports IEC 61131-3 standard programming languages for flexible control logic development.
- Comprehensive built-in protection functions including overcurrent, overvoltage and hardware fault monitoring.
- Front panel LED indicators for power status, running mode, communication activity and fault diagnosis.
- Standard subrack plug-in design for installation inside AC800PEC control cabinets.
- Industrial-grade PCB layout with enhanced EMC performance for high electromagnetic interference environments.
- End-of-life legacy hardware; not recommended for new project engineering.
Product Parameters
表格
| Item | Details |
|---|---|
| Part Number | PPD512A10-150000 |
| Material Code | 3BHE040375R1023 |
| Brand | ABB |
| Series | AC800PEC Power Control System |
| Core Architecture | DSP + FPGA high-speed processor |
| Communication Interfaces | Fiber optic links, serial terminals |
| Programming Standard | IEC 61131-3 |
| Power Supply | 24 VDC control power |
| Mounting | Subrack plug-in module |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5–95% RH, non-condensing |
| Discontinued Status | Obsolete, spare-part only |
Product Specifications
- Certification: CE compliant
- Remark: ESD protection required during handling; firmware version must match the rest of AC800PEC rack components.
Function
- Execute ultra-fast closed-loop control algorithms for power conversion and rotating machinery.
- Acquire analog measurement signals and digital interlock status from field equipment.
- Transmit control pulses and setpoint signals to power electronic units via optical links.
- Process fault detection, trip interlock logic and send diagnostic alarms to supervisory systems.
- Communicate with upper-level HMI and plant DCS for parameter configuration and data exchange.
Purpose
High-speed main processor for ABB AC800PEC control racks, delivering real-time control for generator excitation systems, large variable frequency drives and grid power conversion equipment.
Application Fields
- Thermal power plant generator UNITROL excitation system maintenance
- Wind farm converter control system retrofit
- Metallurgy plant high-power rolling mill drive spare-part replacement
- HVDC and FACTS grid control equipment repair
- Legacy ABB platform site equipment maintenance
