GE Fanuc IC693PWR321 | Direct Replacement 90-30 PSU

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

4. Product Introduction (Anti-Template)

The IC693PWR321 is the standard AC/DC power supply module for GE Fanuc Series 90-30 PLC systems. It installs in the leftmost slot of the baseplate and provides the backplane power required by the CPU and I/O modules.

It accepts a wide input range of 85–264 VAC or 100–300 VDC and delivers three outputs: +5 VDC for logic, an isolated +24 VDC supply, and a +24 VDC relay supply used by relay output modules. The total combined output is limited to 30 watts. The supply is auto-ranging and current-limiting, so a short circuit on the output side will shut it down to protect the hardware. It is fully compatible with all Series 90-30 CPUs and remains one of the most commonly replaced power supplies in legacy 90-30 installations.

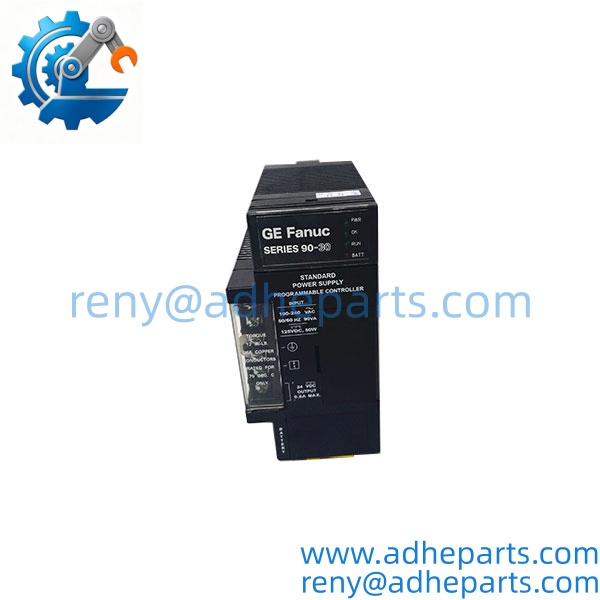

IC693PWR321

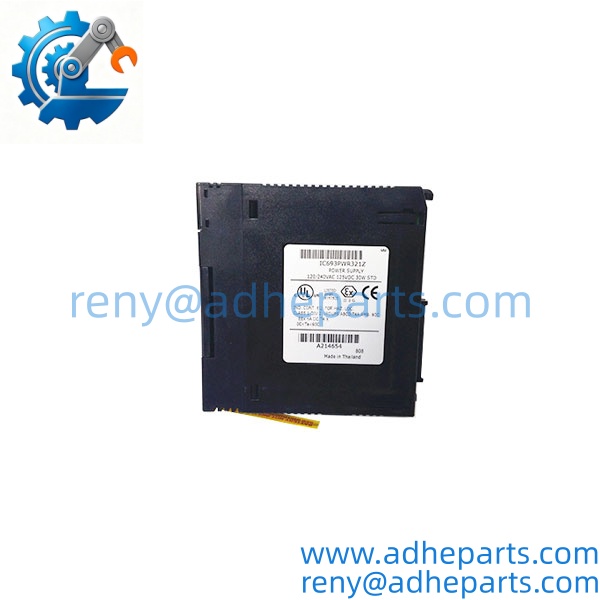

IC693PWR321

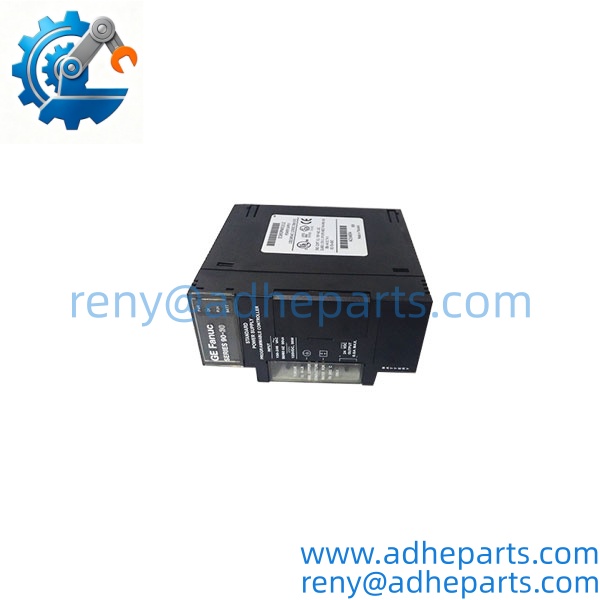

IC693PWR321

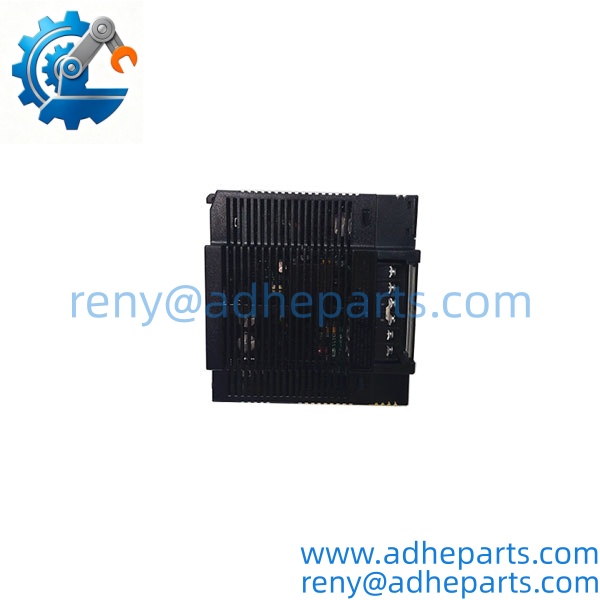

IC693PWR321

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full catalog number (IC693PWR321), revision, terminal block condition, and LED operation. Photograph all labels.
2. Live Rig Testing – Install in a compatible 90-30 baseplate, apply input power, and verify +5 V, isolated 24 V, and relay 24 V outputs under load where possible. Confirm PWR LED behavior.
3. QA & Packaging – After functional inspection, protect the terminals and connectors, clean the module, and pack in protective packaging with desiccant.
4. Global Logistics & Export Compliance – Classify under the correct HS code for industrial power supply modules. Packaging must protect against mechanical shock; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

Load Calculation – The combined load on all three outputs must not exceed 30 W. Overloading the +5 V rail is a common cause of shutdowns or unreliable operation.

Input Voltage – Although wide-range, verify that the actual supply voltage stays within 85–264 VAC or 100–300 VDC. Brownouts or overvoltage can cause cycling or damage.

Slot Position – The power supply must occupy the leftmost slot. Installing it elsewhere will prevent proper backplane power distribution.

Short-Circuit Behavior – The supply is current-limiting and will shut down on a hard short. Investigate field wiring or module faults before replacing the power supply.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified IC693PWR321?
Common surplus item. Typical lead time after verification is 1–7 business days plus standard shipping.

What input voltages does the IC693PWR321 accept?
85–264 VAC or 100–300 VDC (nominal 120/240 VAC or 125 VDC).

What are the output ratings?
+5 VDC at 15 W, +24 VDC Isolated at 20 W, and +24 VDC Relay at 15 W, with a total limit of 30 W.

Where does it install?
In the leftmost slot of a Series 90-30 baseplate.

Is it still in production?
The Series 90-30 platform is mature/legacy. The IC693PWR321 is primarily available as surplus or refurbished.

Can it power relay output modules?
Yes. The dedicated +24 VDC Relay output is intended for Series 90-30 relay output modules.

What should be confirmed before ordering a replacement?
Exact catalog number, input power type available at the site, and the total load of the existing baseplate configuration.
