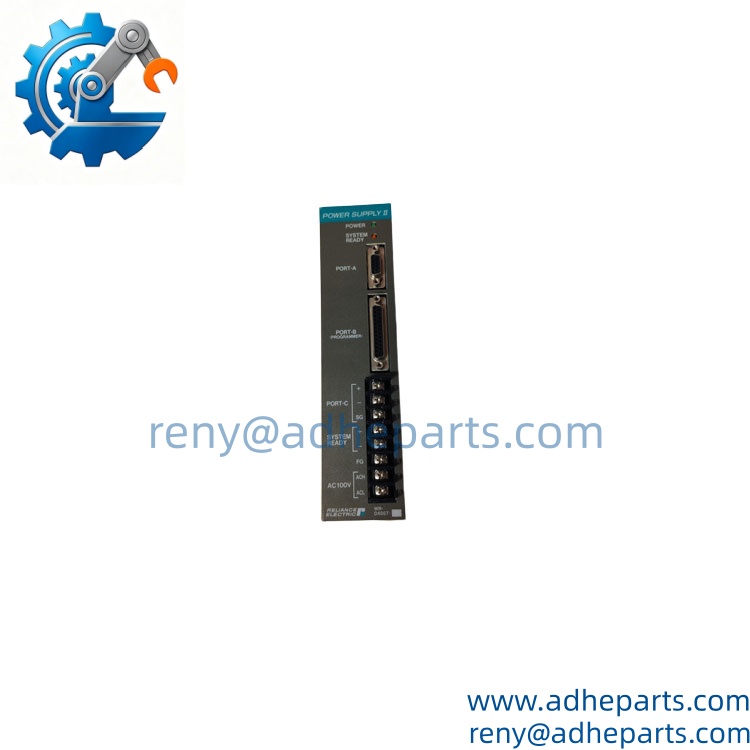

Reliance Electric WR-D4007
Key Technical Specifications
- Input Voltage: 85–132 VAC
- Input Frequency: 47–63 Hz
- DC Output: 24 VDC, 5 A maximum continuous
- Form Factor: Slot mount for PSC5000 rack backplane
- Status Indicators: Power LED, System Ready LED
- Protection Circuits: Overvoltage, overcurrent, short-circuit shutdown
- Operating Temperature: 0 °C to +50 °C
- Relative Humidity: 5%–95% non-condensing
- Protection Rating: IP20 (cabinet installation only)
- Weight: Approx. 1.5 kg
- Discontinued Status: End-of-life original OEM production

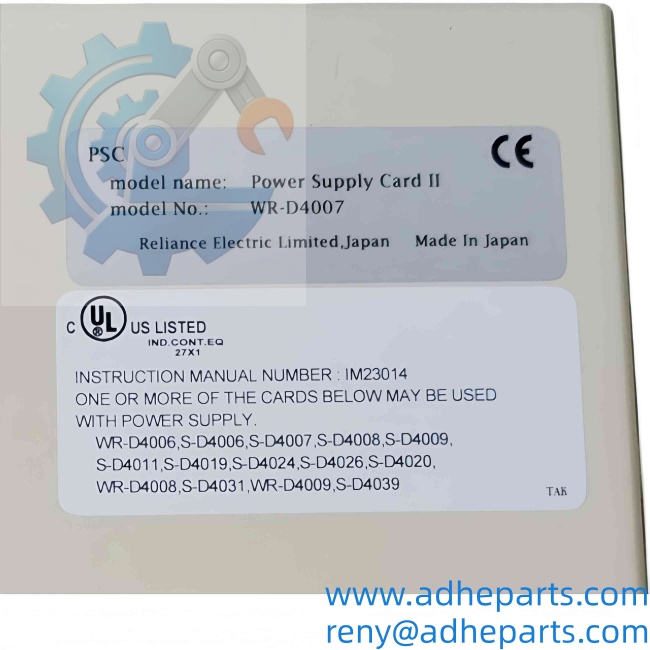

Reliance Electric WR-D4007
Product Introduction
Operating as the backbone of the PSC5000 platform, the WR-D4007 supplies clean regulated DC power for the entire rack of control and interface modules. Original factory production stopped years ago, so replacement stock remains limited for running legacy motor control lines.
Honestly, the integrated fault LED indicators speed up rack diagnostics when power glitches appear —though customs clearance in the EU might add 2 days for cross‑border industrial power hardware shipments. It plugs directly into the dedicated PSC backplane slot and distributes power across all resident I/O and processor cards.

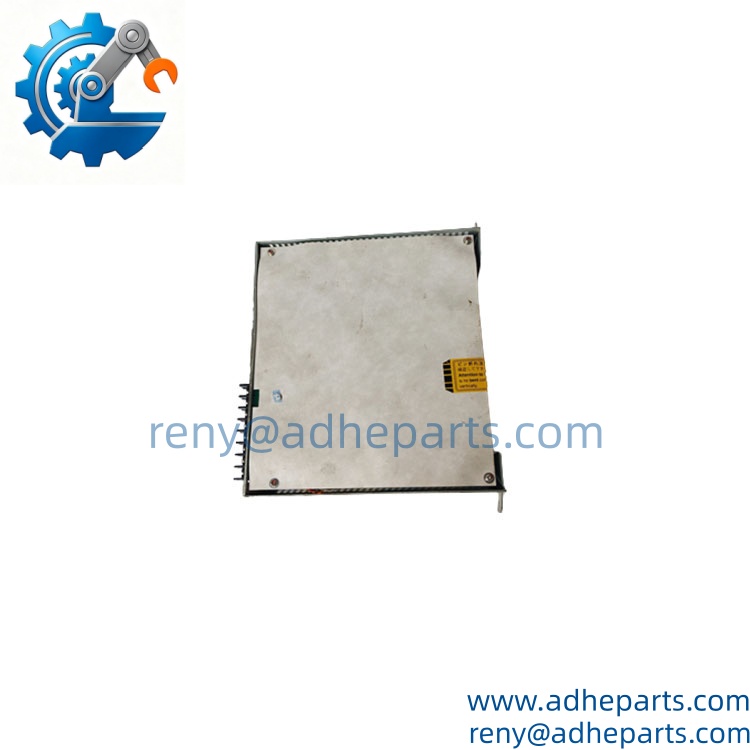

Reliance Electric WR-D4007

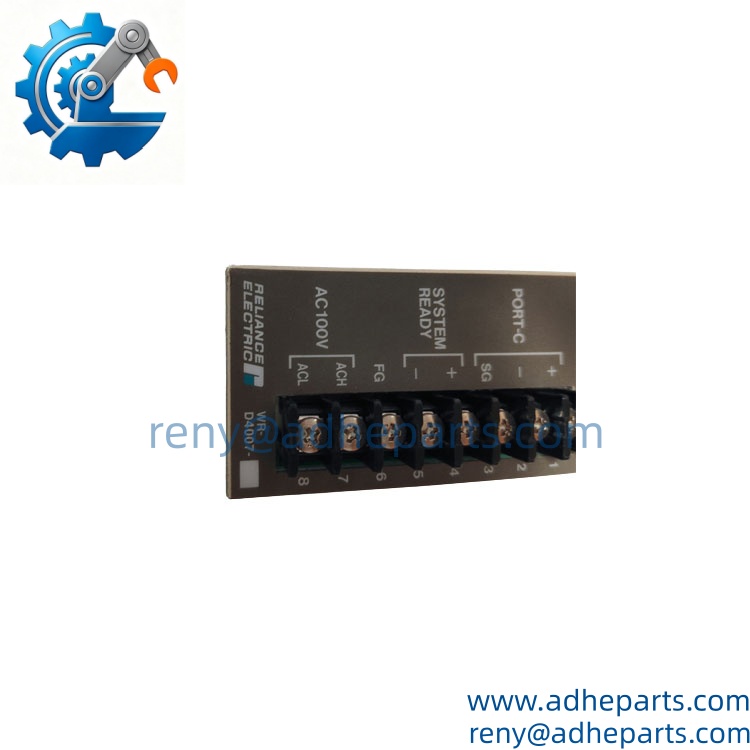

Reliance Electric WR-D4007
Reliance Electric WR-D4007
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect OEM labeling, metal housing and connector integrity; cross-check part marking and revision codes to reject counterfeit or mislabeled sub-variants.
- Live Rig Testing: Mount on matching PSC5000 backplane; apply rated AC input, validate 24VDC output stability, LED status response, and fault shutdown trigger.
- QA & Anti-Static Packaging: Clean edge connector contacts; place inside static shielding bag, surround with foam padding to absorb shock during transit.
- Global Logistics & Export Compliance: Assign optimized HS classification for industrial rack power supply hardware. Use reinforced rigid casing for air or sea freight; compile full technical documentation to reduce hold‑ups at global procurement portals and customs databases.
Reliance Electric WR-D4007
Reliance Electric WR-D4007
Reliance Electric WR-D4007
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. This power card itself holds no user firmware, but older PSC5000 backplanes with outdated bus logic may misread the power-good signal. One plant swapped a WR-D4007 into an aged chassis and saw random I/O resets after warm-up.
- DIP Switch / Configuration errors. Wrong input voltage selector jumper can expose internal circuits to overvoltage. A maintenance tech left the jumper set for 230V on a 120V feed, and the module never reached ready state.
- Wiring/Terminal incompatibility. Using unfiltered AC input cables lets line noise trigger intermittent power foldback. A technician reused a generic cable without proper shielding and fought random supply dropout during motor switching events.
- ESD destruction during unboxing. Touch exposed backplane connector pins without wrist grounding. The unit may power up once on bench, but internal control circuitry degrades slowly and fails after weeks of runtime.
Frequently Asked Questions (FAQ)
What global lead times should I expect for the Reliance Electric WR-D4007? Stock‑on‑hand units can ship within 1‑3 business days. Final arrival varies by destination; remote regions can extend total cycle to 14‑22 calendar days.
What shipping and customs options apply for this PSC5000 power card? Air freight delivers faster transit with higher cost. Sea freight cuts expenses for bulk orders but lengthens delivery timeline. Accurate HS classification and complete documentation reduce customs inspection risk.
Can I hot‑swap WR-D4007 while the PSC5000 rack stays powered? Do not hot‑swap this power supply card. Removing it live cuts backplane power instantly and can induce voltage transients that damage adjacent I/O modules. Full rack power isolation is mandatory before removal.
Does WR-D4007 offer backward compatibility with older racks? The physical slot fits most chassis. Some older backplane hardware revisions have subtle signal timing differences. Bench validation before live machine commissioning remains required.
What pre‑installation checks should your service team run?
- Inspect edge connector pins for bending, corrosion or oxidation
- Confirm AC input jumper matches your site mains voltage
- Verify output voltage under load before connecting to live backplane
Is field repair available for this end-of-life Reliance power supply? Original component sourcing is scarce for this discontinued hardware. Direct module swap is the safer path for production-critical racks.
Will this unit work outside a backplane? It can produce 24VDC on bench test, but the power-good handshake signal is tailored to the PSC backplane. Standalone use without the matching chassis will disable fault reporting functions.
