Product Introduction

The Metso D202275 is a multicore industrial communication and processing node built for the Metso DNA (Valmet DNA) ACN automation ecosystem, widely deployed within mineral processing and heavy process plants. It bridges ACN controllers (ACN RT/MR) with higher-level plant networks and third-party automation subsystems.

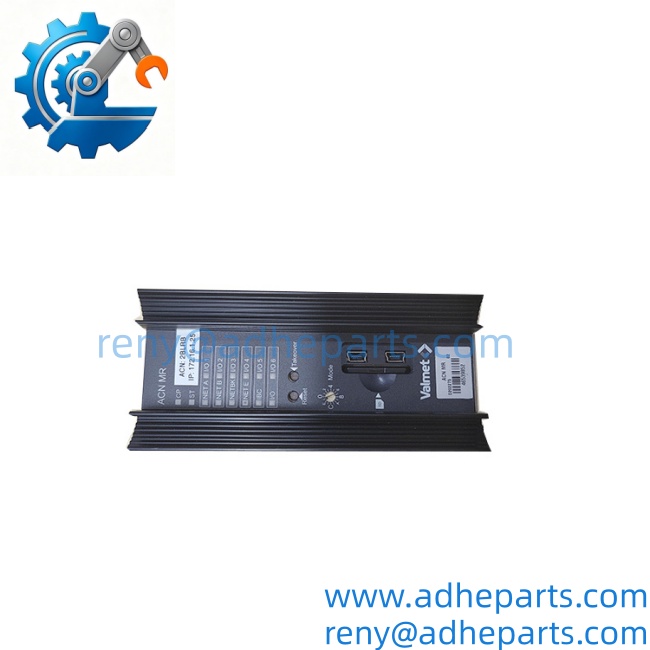

Beyond raw data routing, it performs protocol translation, time-synchronized data buffering, and hardware-rooted cybersecurity functions including secure boot and encryption. It offloads heavy communication workloads from main controllers to preserve deterministic control performance. Front-panel LED status indicators simplify quick health checks for power, link, fault and active communication states. It is engineered to withstand vibration, temperature cycling, and electrical noise typical of mining and mineral processing environments.

Metso D202275

Metso D202275

Key Technical Specifications

Field Application & Technical Pitfalls (The Engineer’s Guide)

Critical Industrial Scenarios

1. Mineral processing plants: Connect crushing, flotation and thickener ACN controllers to plant SCADA and historians.
2. Aggregate & cement facilities: Gateway between local control nodes and remote monitoring systems.
3. Metals refining: Real-time data exchange between DNA control system and third-party safety or analyzer subsystems.
4. Water & pulp processing: Secure data tunneling for remote diagnostics and IIoT asset monitoring.

Critical Technical Pitfalls

• IP Address & ACN Domain Mismatch: This node is tightly bound to the ACN control domain. Loading an incorrect static IP or VLAN configuration can isolate the entire controller segment from the SCADA layer. Always backup existing configuration before replacement.
• Uncontrolled Network Broadcast Storm: Connecting the service port directly to the main plant LAN without firewall segmentation can flood the deterministic ACN control network, introducing jitter and control loop instability. Keep service port isolated for commissioning only.
• Backplane / DIN Rail Grounding Deficiency: Poor cabinet grounding creates common-mode noise. This can cause intermittent Ethernet link drops or random communication timeouts that mimic module failure. Verify protective earth connection before commissioning.
• Firmware Revision Incompatibility: D202275 firmware must match the ACN controller firmware family. A newer or older firmware version will lead to handshake failures even if hardware part number matches.

Field example: A maintenance team swapped a D202275 spare during a scheduled shutdown for a flotation circuit. They installed the hardware and copied the old IP settings but ignored firmware revision matching. After power-up, the gateway established Ethernet link but refused to sync with ACN controllers. Operators lost all process visualization for 45 minutes until technicians downgraded the gateway firmware to match the rest of the ACN cluster.

Metso D202275

Metso D202275

Quality Control (QC) SOP & Transparency

1. Inbound Inspection: Verify OEM part marking, serial number, housing and connector integrity. Inspect Ethernet ports and DC power terminals for bent pins, corrosion or burn marks.
2. Bench Communication Test: Apply rated DC supply; verify power LED and link LED operation. Validate Ethernet port connectivity and basic protocol stack function on test bench.
3. Firmware Compatibility Check: Confirm firmware revision and archive serial-number-linked test logs.
4. Environmental & Isolation Spot Check: Inspect board assembly for solder defects; confirm ESD protection packaging.
5. Final QA & Packaging: Seal unit inside anti-static bag, apply QC pass sticker and pack within rigid shock-resistant carton.

Metso D202275

Frequently Asked Questions (FAQ)

1. Is the D202275 a direct control I/O module? No. It is a communication gateway/processor node, not an analog or digital I/O card. It does not read field sensor signals directly.
2. Can I hot-swap the D202275 while the ACN system remains online? Hardware replacement is possible in many configurations, but you risk loss of supervisory data and alarm visibility. Follow site lockout/tagout and change management procedures.
3. What warranty applies for new surplus ? 12-month hardware warranty. Warranty excludes damage from incorrect firmware, misconfiguration, improper grounding, surge damage or miswired DC supply.
4. Does it support OPC UA server/client function? Yes, OPC UA is one of its native protocol functions for data exchange with SCADA and asset monitoring platforms.

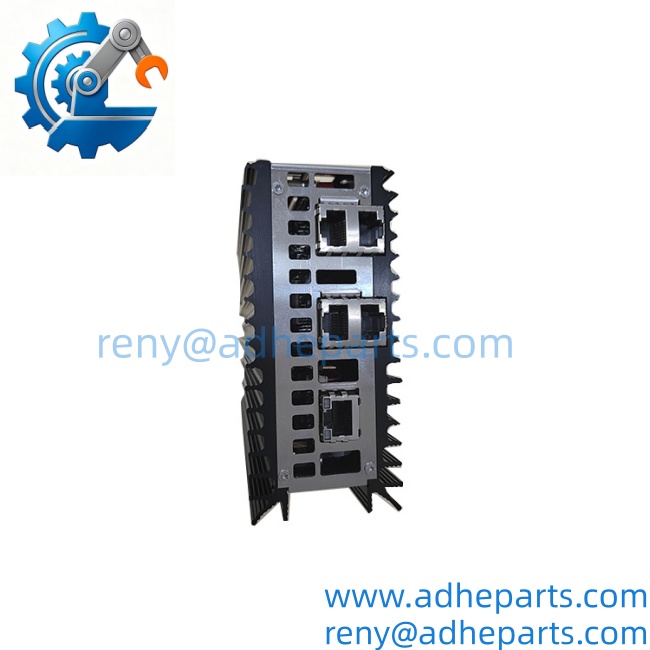

5. What is the difference between ACN ports and the dedicated service port? The two ACN gigabit ports connect to the deterministic control network. The service port is intended only for local commissioning, configuration and troubleshooting; it should not be permanently attached to plant production LAN.
6. Can this module be used outside the Metso/Valmet DNA ACN system? It is purpose-built for the ACN automation platform. It will not operate as a standalone generic protocol gateway for unrelated PLC systems.
7. What causes intermittent Ethernet link flickering after installation? Common causes include bad shield termination, loose DC
