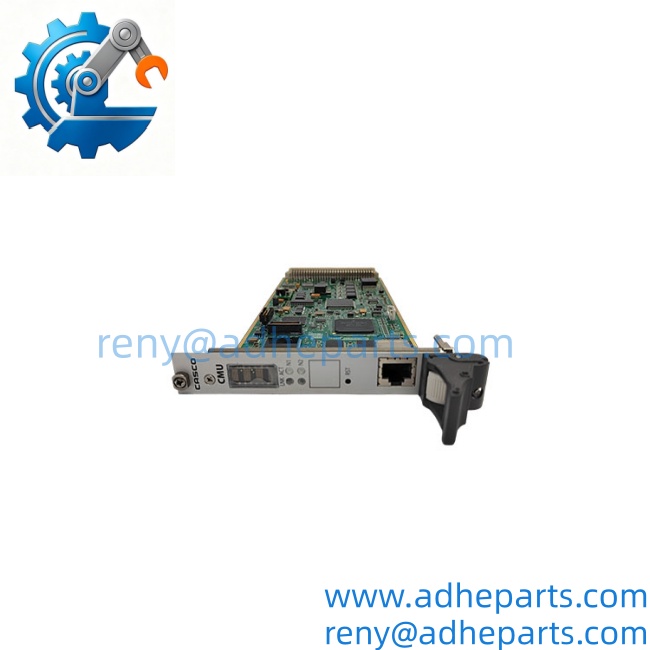

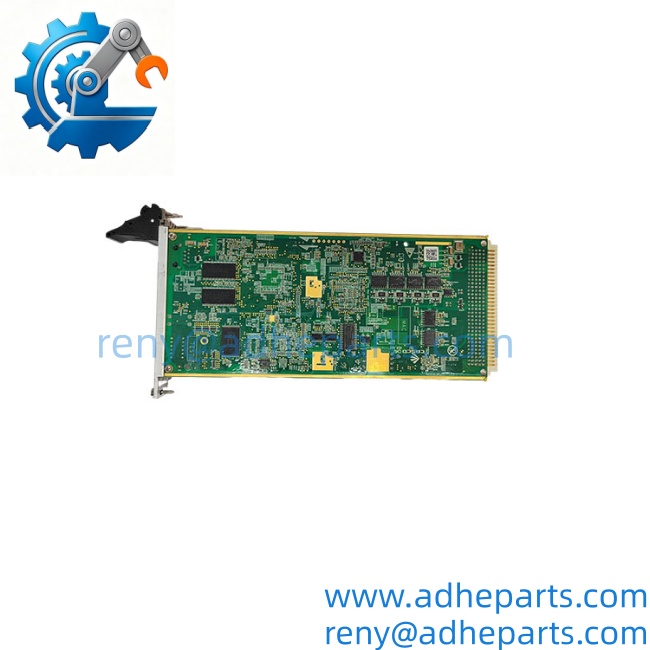

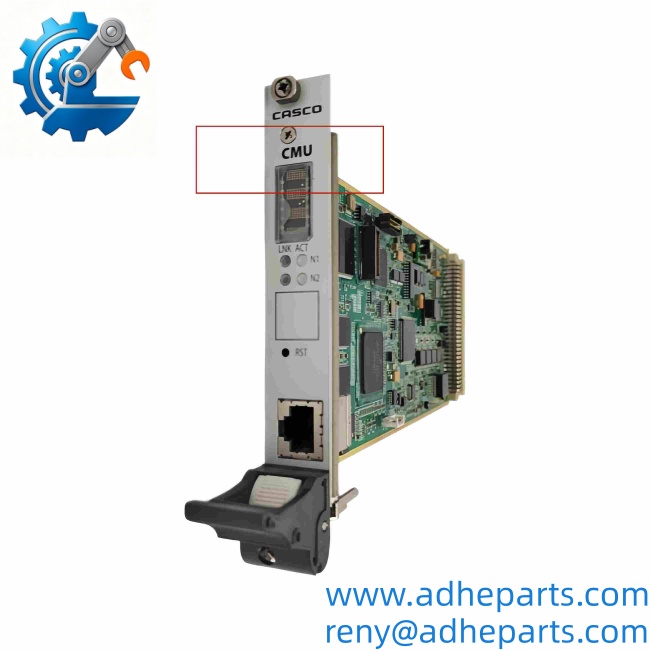

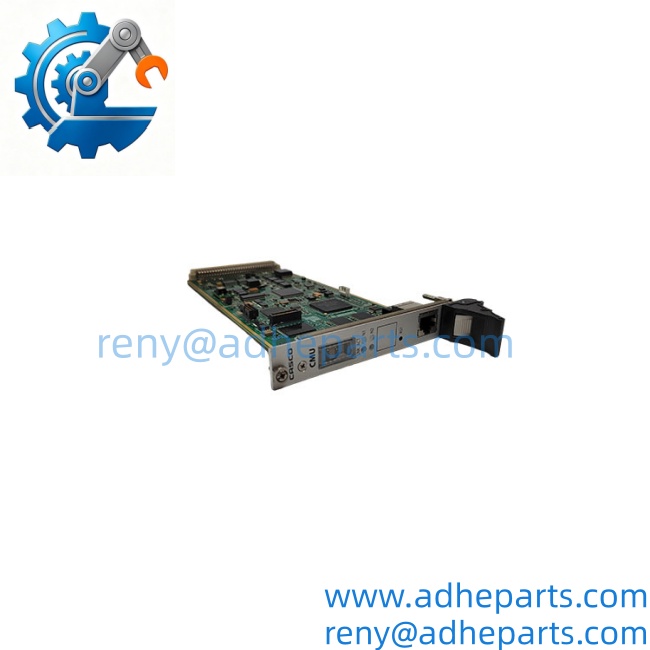

ALSTOM CMU 42015-115-00 Replacement Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

Parameter	Specification
Manufacturer	ALSTOM
Part Number	CMU 42015-115-00
Module Family	CMU
Product Type	Control module / control-system electronic assembly
Core Function	Equipment-specific control, monitoring, or signal processing
Installation	Confirm from the host cabinet and module construction
Power Supply	Not safely confirmed from consistent manufacturer documentation
Communication Interface	Must be verified from the actual board and system drawings
I/O Configuration	Not confirmed; do not assume the module has a fixed number of inputs or outputs
Operating Voltage	Published third-party values conflict and require verification
Operating Frequency	No reliable manufacturer-confirmed value identified
Dimensions and Weight	Confirm from actual stock or equipment drawings
Country of Origin	Verify from the product label and export documentation
Condition	New surplus, unused surplus, or used depending on available unit
Warranty	12 months, subject to stated warranty terms
Shipping Method	DHL, FedEx, UPS, or air/sea freight according to destination and shipment size

Several online listings assign values such as 115 V AC, 220 V, Ethernet/Modbus TCP, 8 inputs, 4 outputs, 1 MB memory, and a 100 MHz processor to this reference. Other listings describe it as a rack-mounted control or monitoring module with a dedicated backplane. Because these claims are not consistent, they should not be copied into a technical datasheet without verification.



Product Introduction — Anti-Template

The ALSTOM CMU 42015-115-00 is a legacy control-system spare part intended for use within a specific equipment architecture rather than as a general-purpose PLC replacement. Its actual role may depend on the cabinet, backplane, companion modules, and installed application software. For maintenance teams supporting older ALSTOM equipment, the main value of this reference is an accurate replacement match—not a generic module with similar-looking terminals. Confirm the complete identification label before purchase.

This part is suitable for procurement teams handling equipment repairs, retrofit projects, and long-term support of discontinued control assemblies. A photo of the front label, rear connectors, and PCB markings is often more useful than a broad product description when checking compatibility.

QC, Procurement & Logistics SOP



1) Inbound Verification

Before quotation or shipment, verify:

1. Manufacturer marking: ALSTOM.
2. Complete part number: CMU 42015-115-00.
3. Any additional suffix, revision, serial number, or manufacturing code.
4. Front-panel indicators, terminal labels, connector positions, and mounting features.
5. PCB revision and visible component condition.
6. Whether the unit is new surplus, refurbished, or previously installed.
7. Whether the buyer requires the exact revision or accepts an equivalent service revision.

The supplied part number should be compared with the failed unit’s label and the customer’s equipment bill of materials. Similar CMU references should not be treated as interchangeable without engineering confirmation.

2) Functional and Live Testing

Testing depends on the available test fixture and the original host system. Where supported, the inspection process may include:

• Visual inspection under magnification.
• Connector and terminal inspection.
• Continuity checks on accessible power and signal paths.
• Inspection for corrosion, damaged components, cracked solder joints, or contamination.
• Power-up testing using the correct controlled supply.
• Verification of status LEDs, diagnostic indications, and communication behavior.
• Functional testing in the original rack, approved test bench, or equivalent service fixture.
• Comparison of measured behavior with the customer’s system documentation.

A module should not be powered only because a third-party listing states a voltage. The correct supply and pinout must be confirmed first.

3) QA, ESD Protection, and Packaging

Each unit should be photographed before shipment, including:

• Complete front and rear views.
• Nameplate and part-number label.
• Serial number and revision markings.
• Connector condition.
• Any visible signs of previous installation.

Use ESD-safe packaging, an antistatic bag, shock-absorbing inner protection, and a rigid outer carton. Moisture-barrier packaging and desiccant should be used when the shipment will pass through humid environments or extended storage.



4) Global Logistics and Export Compliance

For international shipments, confirm:

• Consignee name and complete delivery address.
• Correct product description for the commercial invoice.
• Country of origin based on the actual unit and available records.
• Declared value and currency.
• Whether the buyer needs a certificate of origin, conformity statement, warranty letter, or packing list.
• Import restrictions for electronic control equipment in the destination country.
• Whether the shipment should move by express air courier, standard air freight, or sea freight.

A possible HS classification may fall under electrical control equipment or electronic control assemblies, but the final code must be confirmed from the actual construction, function, and local customs rules. Do not use a generic HS code solely because another seller used it.



5) Secure Air and Sea Packaging

For air shipment, use a double-wall carton with internal cushioning and prevent the module from moving inside the package. For sea shipment or long-term transport, add a moisture barrier, desiccant, and stronger corner protection. The package should protect connectors and exposed PCB edges from impact, static discharge, and condensation.



Technical Pitfalls & Integration Warnings



Host-System Compatibility

The CMU 42015-115-00 should be treated as an equipment-specific module. A similar part number, similar housing, or similar connector does not prove compatibility. Confirm the exact ALSTOM system, rack position, backplane, and companion modules.



Power-Supply and Pinout Errors

Published listings provide conflicting voltage information. Do not connect the module to 115 V AC, 220 V, or a DC supply until the actual electrical documentation has been checked. Applying the wrong voltage can permanently damage the board and create a serious safety hazard.



Firmware and Configuration

If the module contains application firmware, configuration data, or system-specific parameters, a physically identical replacement may still fail to start correctly. Check firmware revision, configuration memory, parameter files, and any required commissioning procedure.



Connector and Wiring Differences

Terminal labels, connector keying, cable assemblies, and backplane positions must be compared with the failed unit. Never rely on wire color alone. If the module is installed in a high-voltage or high-energy cabinet, isolate the equipment and follow the site’s lockout/tagout procedure before removing it.



ESD and Storage Damage

Handle the module only at an ESD-controlled workstation. Avoid touching connector contacts or exposed components. Units stored for long periods should be inspected for oxidation, moisture, battery leakage, and contamination before energization.



Frequently Asked Questions



Is ALSTOM CMU 42015-115-00 a general-purpose PLC CPU?

Not necessarily. Available descriptions identify it as a control module, but the exact architecture and function are not consistently documented. It should be purchased as a replacement for a confirmed ALSTOM equipment reference rather than as a universal PLC CPU.



What information should I provide for a quotation?

Please provide the complete part number, a clear photo of the nameplate, the front and rear of the module, the equipment model, and the cabinet or rack position. A photo of the failed unit’s connectors is especially useful.



Can you confirm the operating voltage?

The operating voltage must be confirmed from the actual unit and the applicable system documentation. Public listings provide conflicting values, so the module should not be energized based on an online product description.



Is a similar CMU module a direct replacement?

Not automatically. Confirm the complete part number, hardware revision, connector layout, backplane compatibility, firmware, and system application before approving a substitute.



Can the module be hot-swapped?

Do not assume hot-swapping is permitted. Follow the original equipment maintenance manual and site safety procedure. If the rack is not specifically designed for live replacement, isolate power before removing or installing the module.



What is the normal lead time?

If the exact reference is available in stock, shipment may normally be arranged after inspection, documentation, and payment confirmation. If the unit requires sourcing or testing, the lead time will depend on availability and the required verification process.



Can you provide photos and documentation?

Actual stock photos, nameplate images, serial-number records, and available manuals or technical references can be provided when available. If the original manufacturer documentation is unavailable, we can provide inspection photos and clearly identify which specifications still require confirmation.
