GE VG5SK8I052311 PM0N2000 | Digital Input Module

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

When a discrete signal disappears intermittently, the problem is not always the field switch or proximity sensor. GE VG5SK8I052311 PM0N2000 is identified in available equipment records as a digital input module, intended to bring discrete field states into an industrial control system.

The available technical references associate the unit with an 8-channel, 24 VDC-class input configuration. That makes it suitable for monitoring field contacts, switches, status signals, and other discrete devices—but the exact input wiring and electrical thresholds should be verified against the original module documentation before installation.

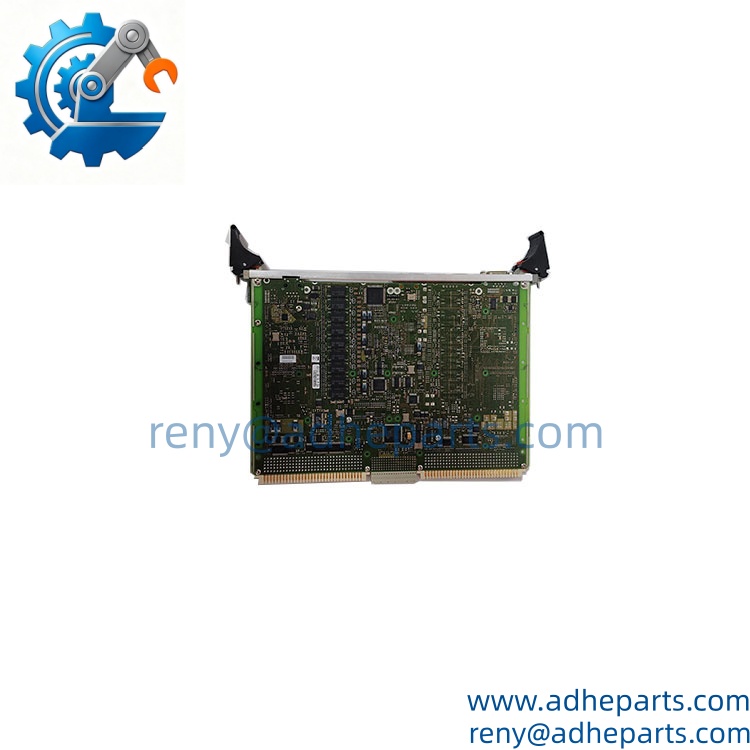

GE VG5SK8I052311 PM0N2000

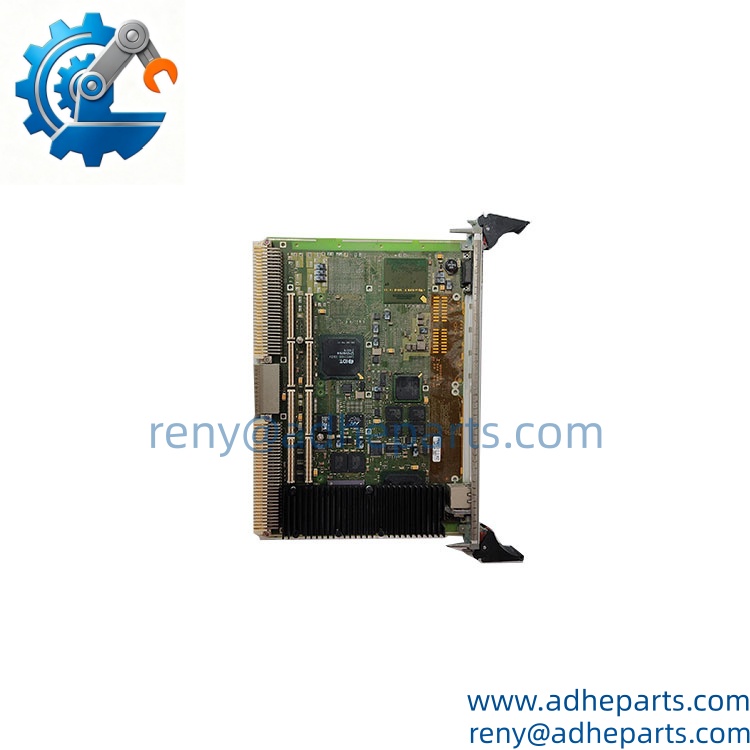

GE VG5SK8I052311 PM0N2000

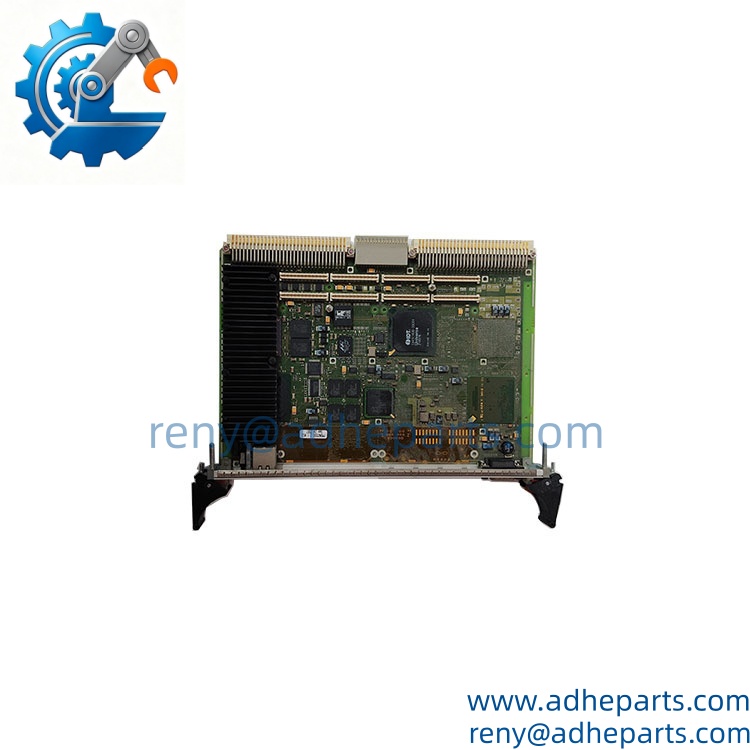

GE VG5SK8I052311 PM0N2000

Key Technical Specifications

A point worth keeping straight: VG5SK8I052311 and PM0N2000 are both used in product records for this item, but the available descriptions are inconsistent about the broader hardware family and communication architecture.

For a product page, I would therefore avoid assigning a specific bus protocol, terminal pinout, or maximum input current unless the physical nameplate or original technical documentation confirms it.

Field Application & Technical Pitfalls (The Engineer’s Guide)

This module sits at the front end of the control logic. Its job is straightforward: determine whether an external discrete signal is ON or OFF and make that state available to the controller.

1. Machine status monitoringInputs can be used for discrete machine conditions such as limit switches, auxiliary contacts, interlocks, and equipment-running feedback.
2. Process equipment permissivesIn a larger control sequence, several discrete signals may need to be present before a motor, pump, valve, or other device is permitted to operate.
3. Industrial alarm and trip circuitsA digital input can monitor a contact from an external protection or alarm circuit. A failed input channel can therefore look like a field-device failure even when the field device itself is healthy.

Three replacement pitfalls deserve particular attention:

• Input wiring configuration: Do not move the field wires one by one without recording their original positions. Check whether the application uses sinking or sourcing logic before reconnecting the module.
• Voltage mismatch: A 24 VDC-class input should not be treated as universally tolerant of every DC signal. Verify the actual input threshold and permissible voltage range from the applicable documentation.
• Common/reference wiring: Incorrect common wiring can make several channels appear dead at once. Check the module’s reference terminals before condemning the input card.

Do not troubleshoot a suspected failed input module by randomly applying external voltage to the terminals. First identify the channel arrangement and electrical reference.

Lesson learned: A maintenance technician replaces an input card after eight status signals suddenly disappear. The replacement behaves exactly the same because the field common was left disconnected during maintenance. The module was never the original problem.

Quality Control (QC) SOP & Transparency

1. Inbound Verification
   • Verify the complete marking VG5SK8I052311 PM0N2000.
   • Check all labels, revision markings, serial information, and connector design.
   • Inspect the PCB, terminal area, housing, and mounting points.
   • Look for corrosion, burned components, cracked solder joints, or unauthorized repairs.
   • Record whether the unit is New Original, New Surplus, or Refurbished.
2. Live Rig Testing
   • Use a compatible digital-I/O test environment.
   • Apply the verified control-system power supply.
   • Confirm module startup and diagnostic behavior.
   • Apply controlled 24 VDC-class input signals to each channel.
   • Verify that every input changes state correctly.
   • Test both ON and OFF transitions rather than checking only a static signal.
3. Parameter Testing
   • Verify input voltage thresholds against the applicable documentation.
   • Test all eight input channels individually.
   • Check channel-to-channel isolation where applicable.
   • Verify common/reference continuity.
   • Monitor for intermittent state changes during extended operation.
   • Record measured input behavior in the QC report.
4. Final QA & Packaging
   • Record the exact model, revision, serial information, and test results.
   • Apply a QC-passed identification label.
   • Protect connectors and terminals against impact and contamination.
   • Use anti-static packaging for the electronic assembly.
   • Provide the applicable test record and a 12-month warranty under the agreed warranty terms.

Frequently Asked Questions (FAQ)

Q1. What is GE VG5SK8I052311 PM0N2000?
It is identified as a digital input module used to acquire discrete field signals for an industrial control system. Available records associate the model with an 8-channel, 24 VDC-class input arrangement.

Q2. How many digital inputs does it have?
Available technical listings identify 8 digital input channels. Confirm the physical terminal arrangement against the actual unit before wiring.

Q3. Is it a 24 VDC input module?
The available specifications identify a 24 VDC-class input configuration. However, I recommend verifying the exact input voltage range and threshold from the original documentation before applying field power.

Q4. What can these inputs monitor?
Typical applications include limit switches, auxiliary contacts, equipment-running feedback, permissive signals, alarms, and other discrete ON/OFF field signals.

Q5. Can I hot-swap the module?
Do not assume that it can be hot-swapped. The correct procedure depends on the control-system architecture and carrier design. Unless the applicable maintenance procedure specifically permits live replacement, isolate the relevant power before removing the module.

Q6. How do I confirm exact compatibility?
Send the complete label, revision, connector/terminal photos, and the model of the carrier or controller. For this type of legacy hardware, those details are more reliable than matching the base model number alone.

Q7. What warranty is available?
A 12-month warranty can be provided under the agreed supply terms. For a replacement order, I recommend confirming the complete VG5SK8I052311 / PM0N2000 marking and terminal configuration before shipment.
